Description:

Power supply: DC20-50V
Current maximum: 5.6A
Maximum frequency: 200KHz
Model Number: DM556
Power Supply: DC
Color: black
Motor Type: DC Motor
Origin: Mainland China
Certification: None
Choice: yes
semi_Choice: yes

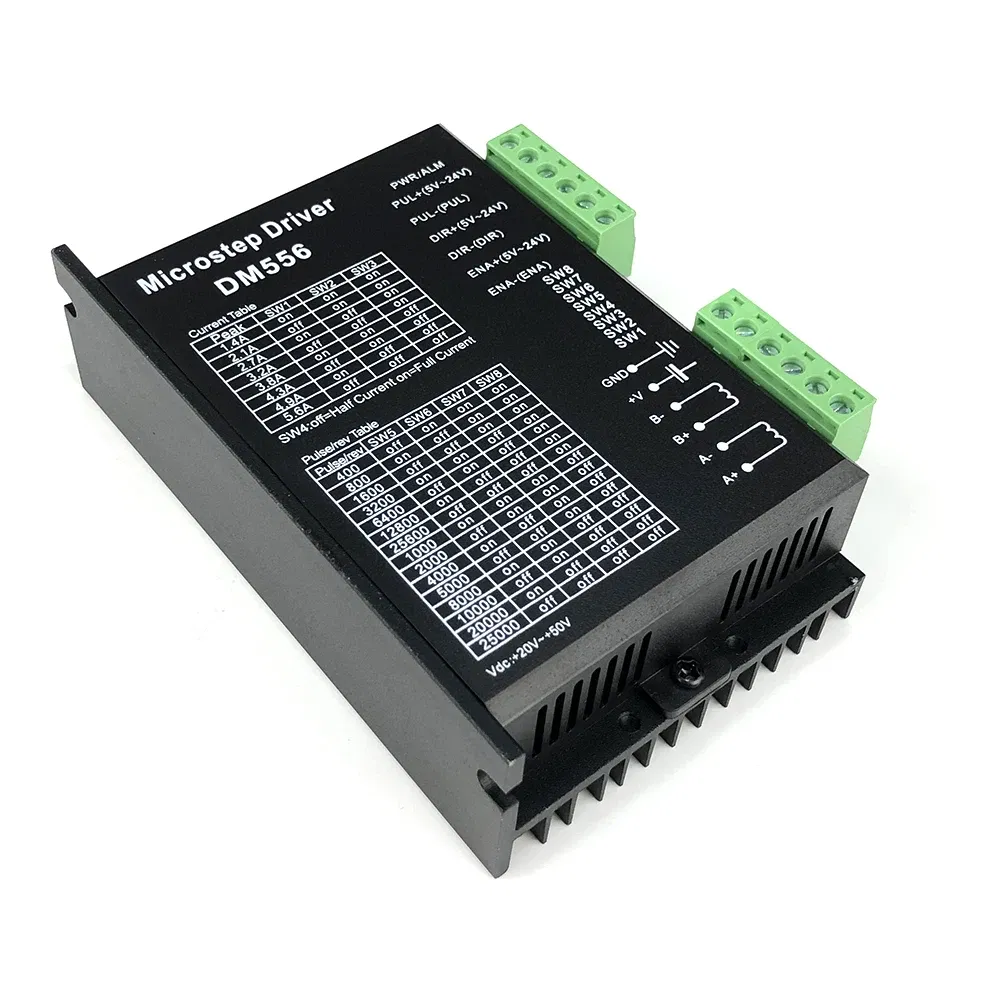

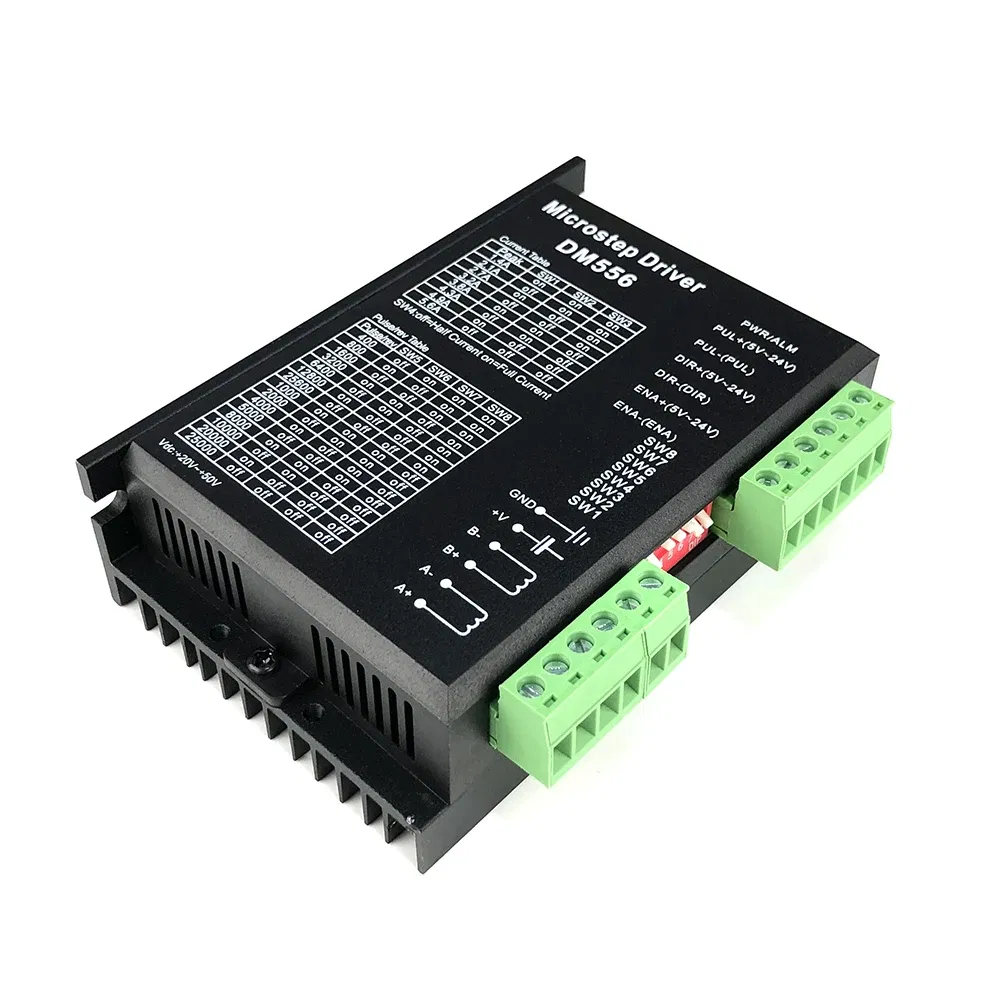

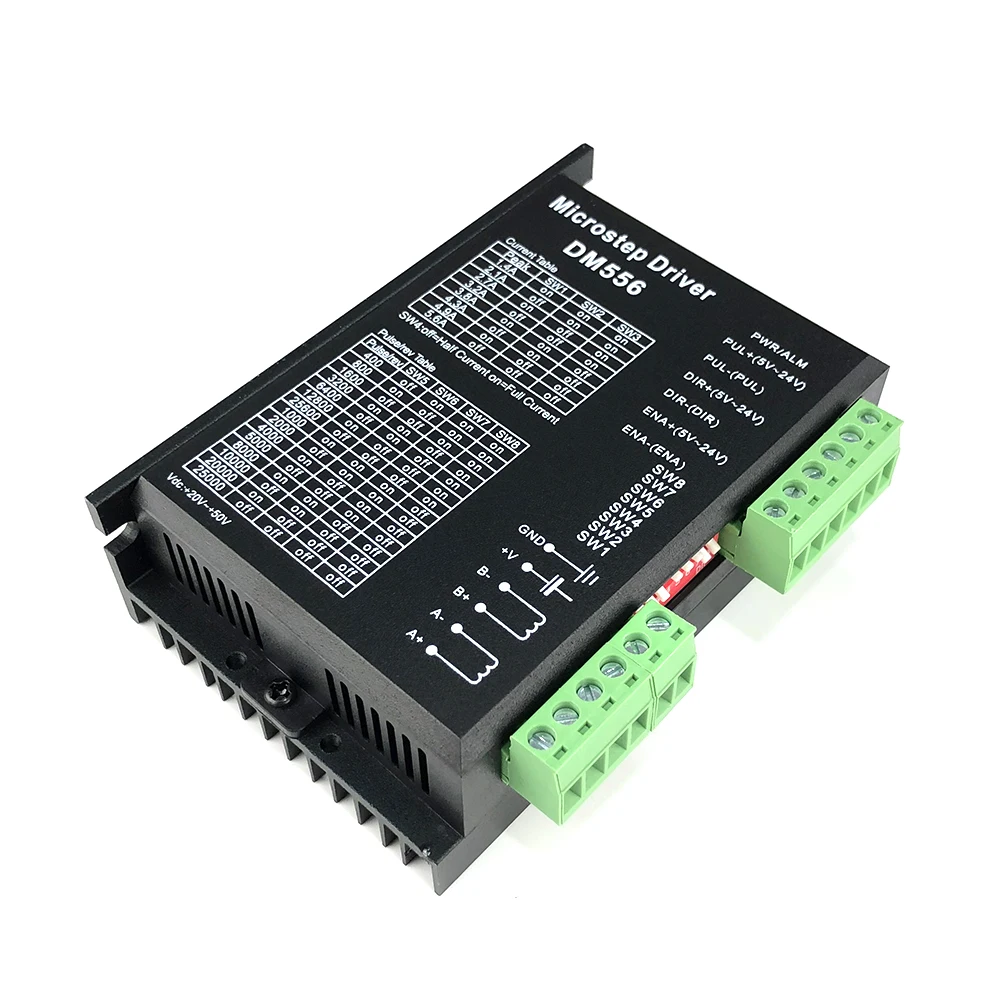

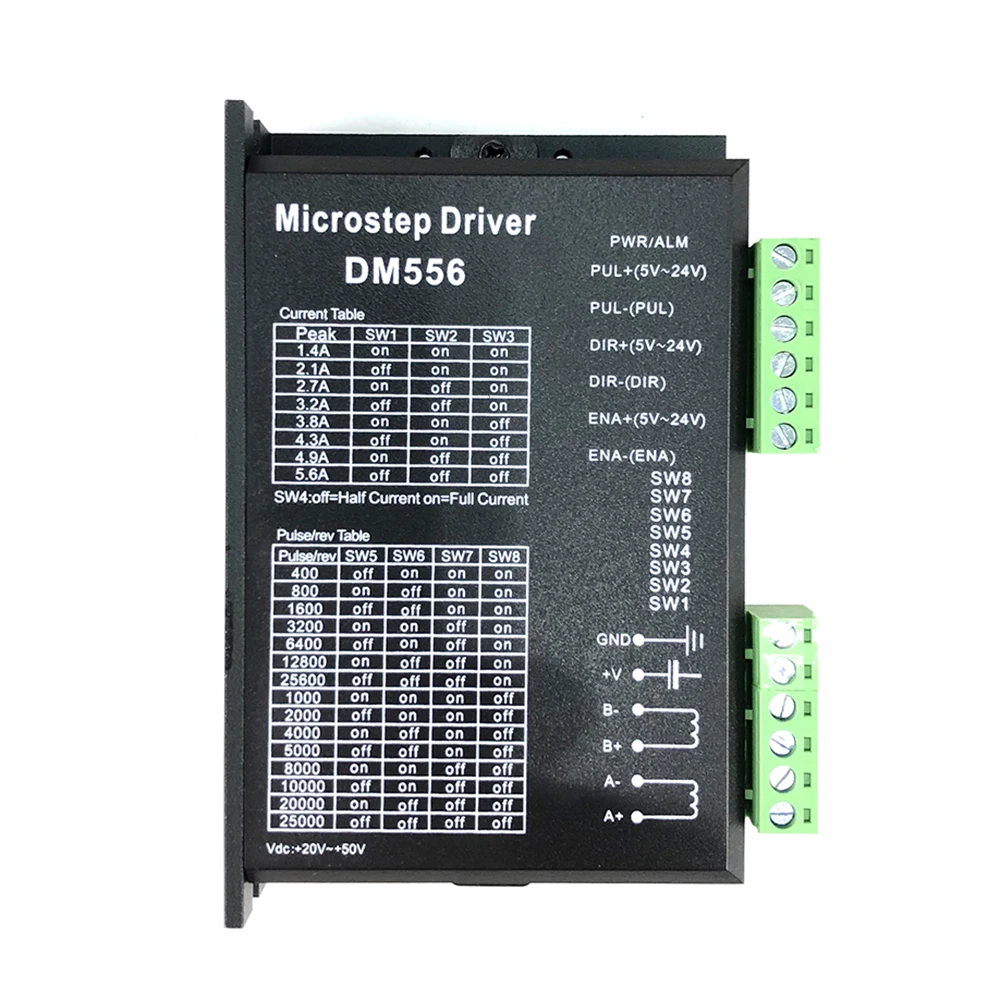

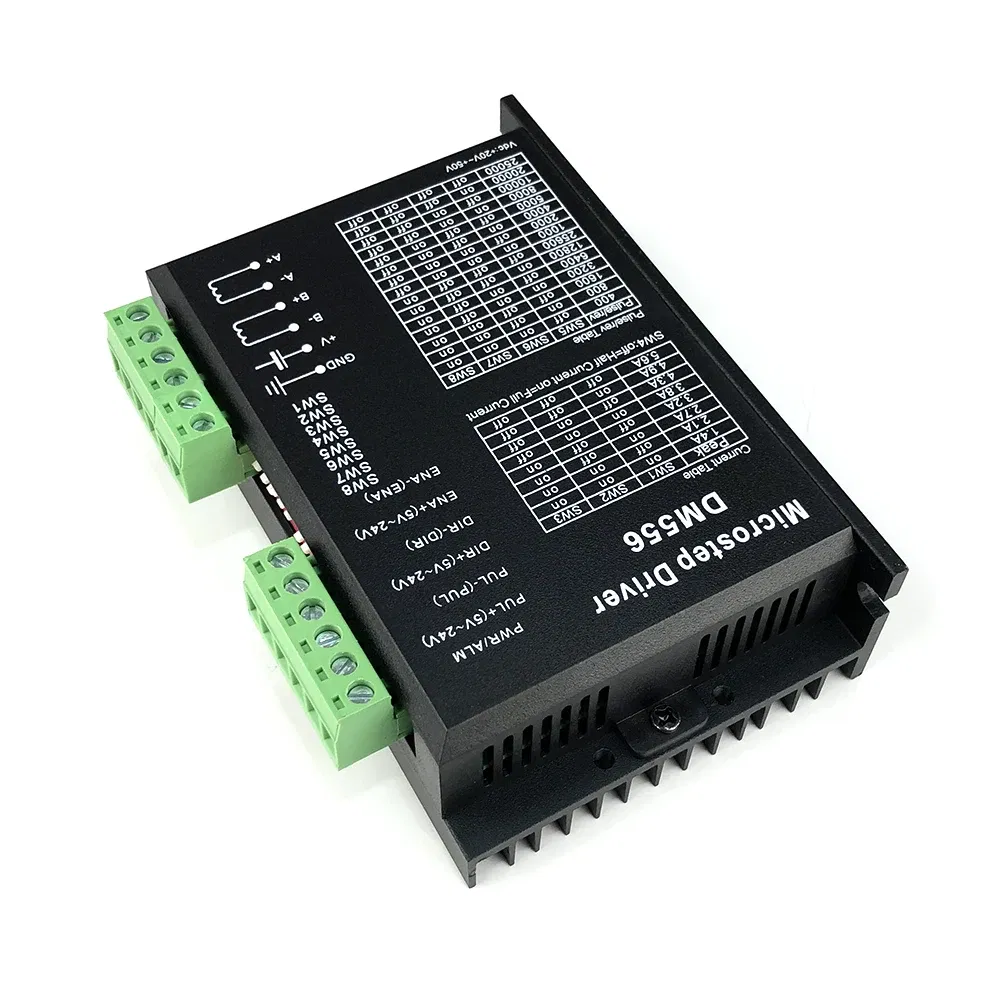

1pcs DM556 Stepper Motor Controller 2 Phase NEMA 23 34 Digital Stepper Motor Driver 20-50V DC Max 5.6A for 42 57 86 Series Motor

1.Introduction :

The DM556 is a versatility fully digital
stepping drive based on a DSP with advanced control algorithm. The DM556 is the
next generation of digital stepping motor controls. It brings a unique level of
system smoothness, providing optimum torque and nulls mid-range instability.
Motor self-test and parameter auto-setup technology offers optimum responses
with different motors and easy-to-use. The driven motors can run with much
smaller noise, lower heating, smoother movement than most of the drives in the
markets. Its unique features make the DM556 an ideal solution for applications
that require low-speed smoothness.

2.Features:

Extra smooth movement

Low drive & motor heating

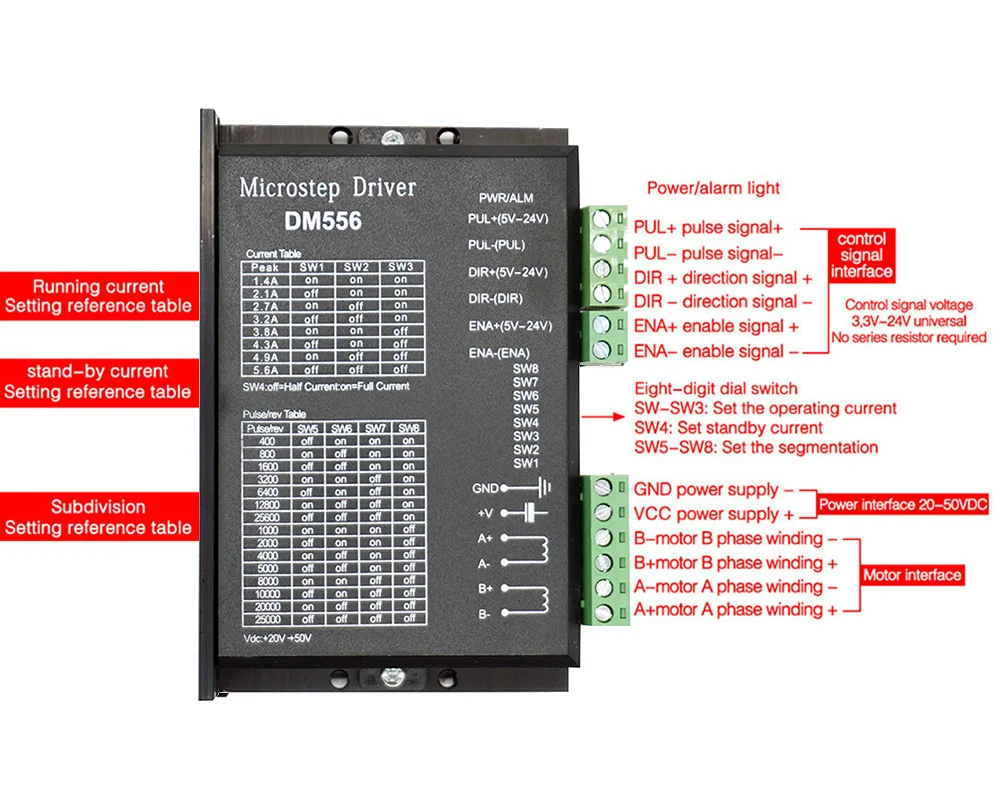

Step & direction or CW/CCW control

DSP-based stepper control technology

Automatic motor identification and self
configuration

3.DM556 Specifications:

Input voltage: DC20-50V

Maximum frequency: 200KHz

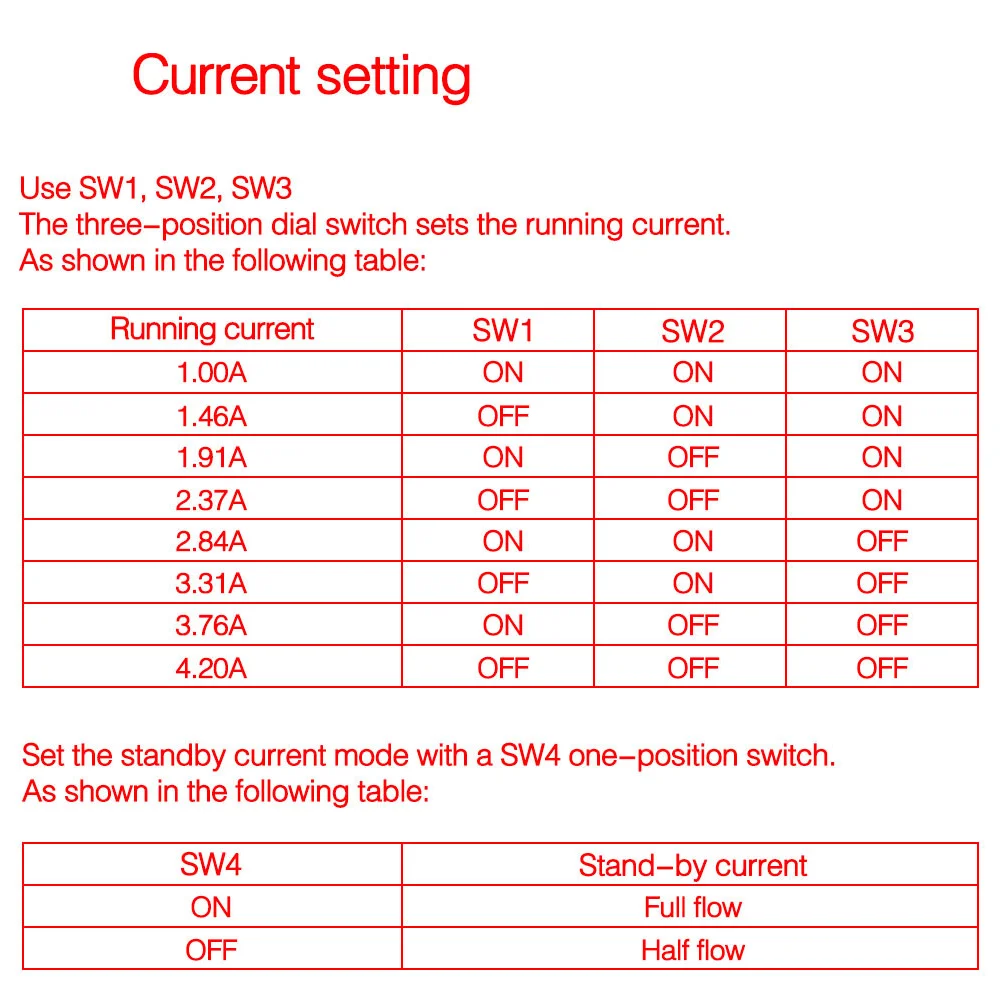

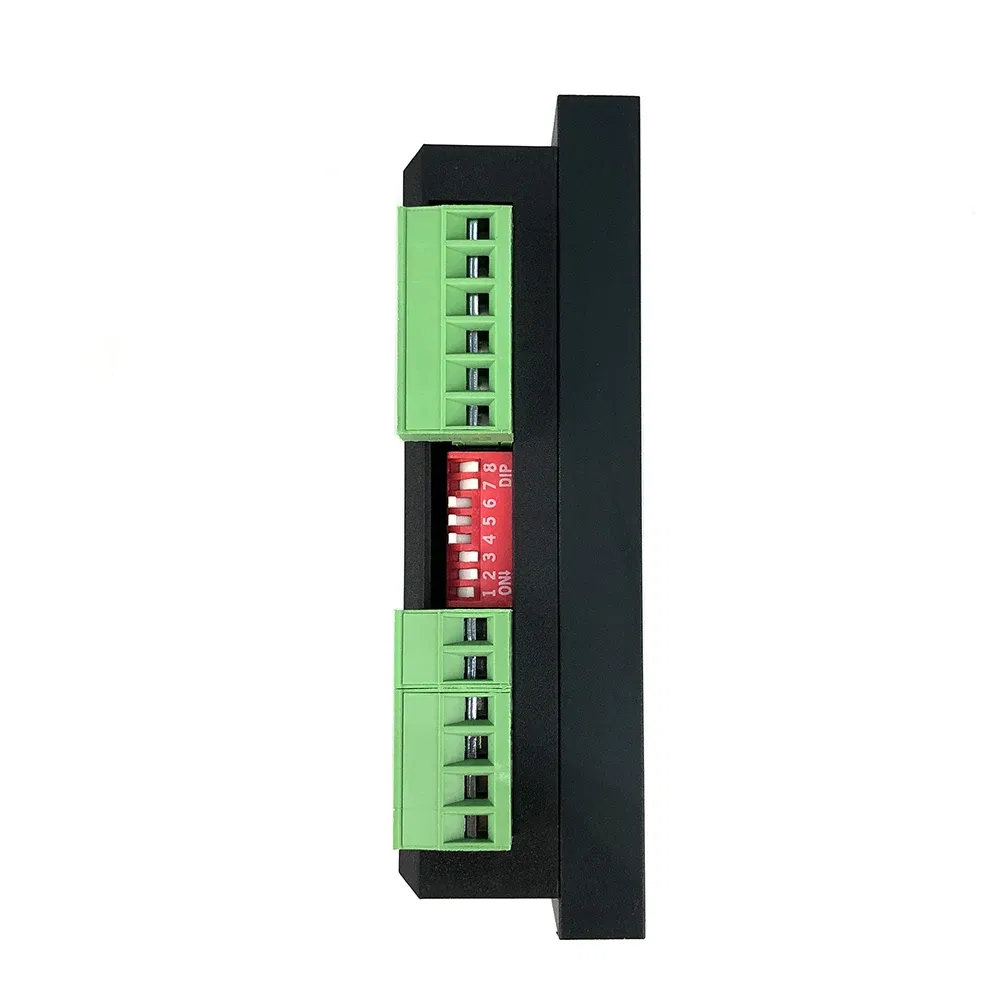

Output current: 7 selections of 1.4-5.6A
via DIP switches;or any value of 0.1-11. 5.60A via software configuration

Size: 11.7*8.5cm/4.61*3.35 inch

4.Note:

Please allow 1-3mm error due to manual
measurement. pls make sure you do not mind before you bid

Due to the difference between different
monitors, the picture may not reflect the actual color of the item. Thank
