Description:
Origin: Mainland ChinaItem Type: Cables, Adapters & Sockets
Choice: yes
semi_Choice: yes

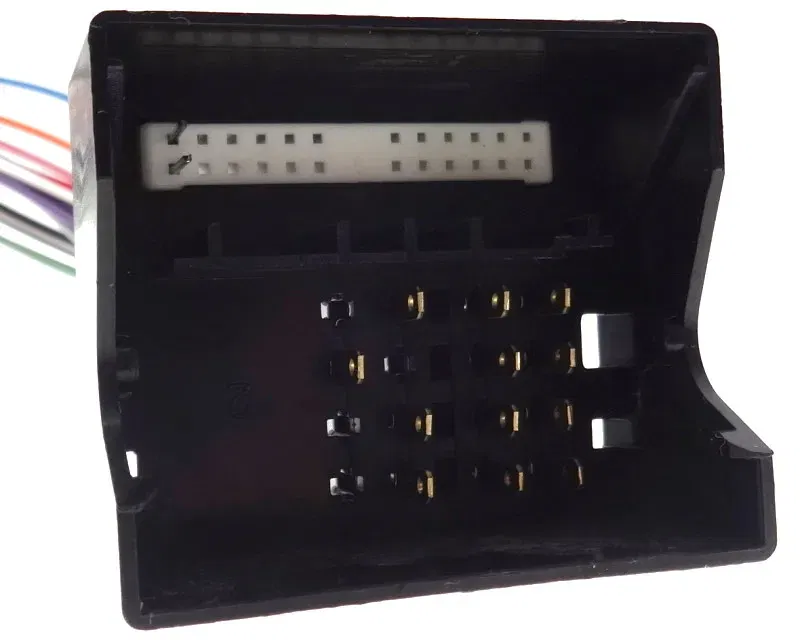

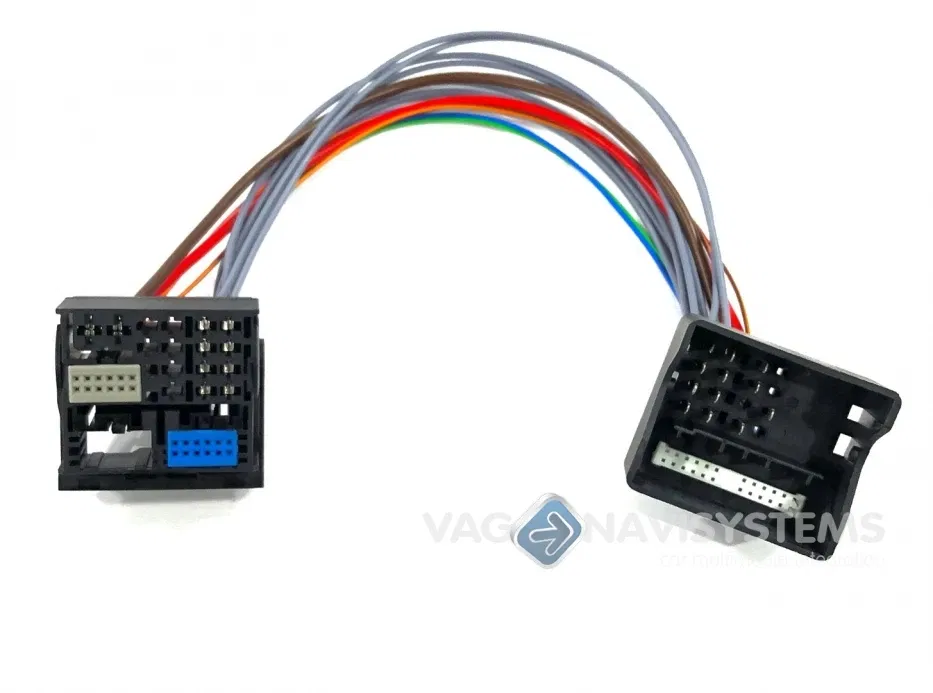

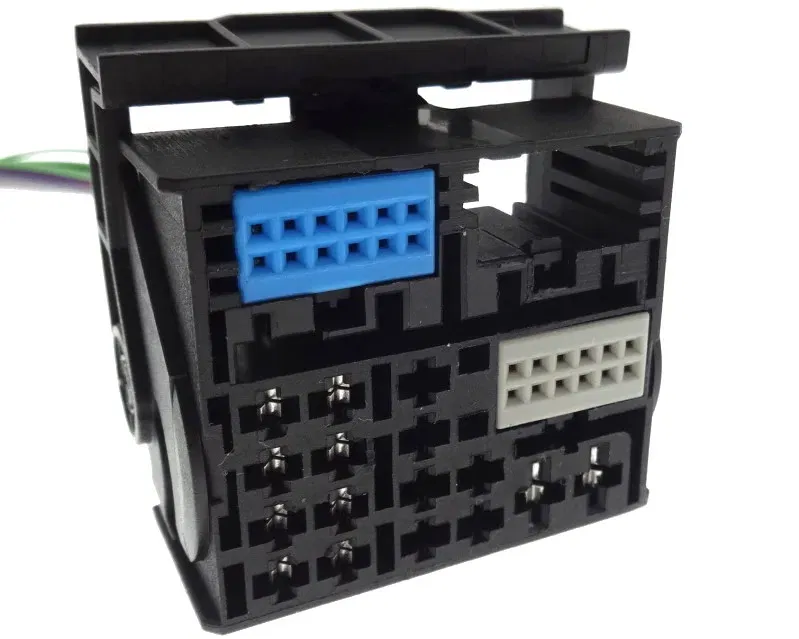

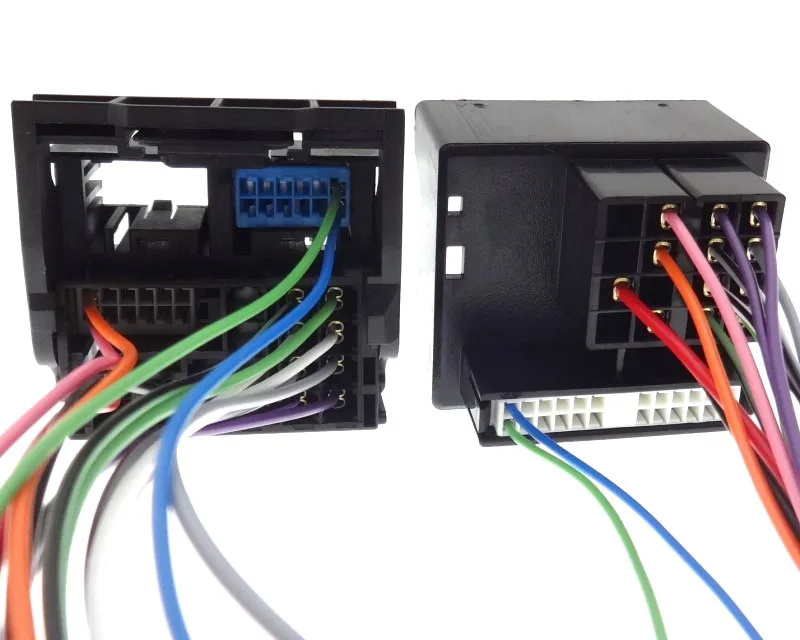

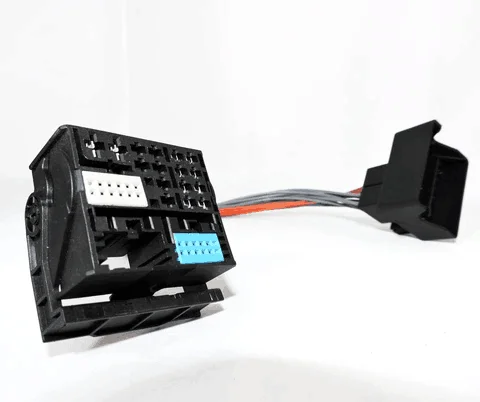

Quadlock adapter for VW MIB 2 retrofit (all in one)
This Adapter is necessary to be able to install the VW MIB 2 Navigation System (all in one) in vehicles with 1st generation Quadlock normally 2004-2015.
Compatible with the following vehicles:
VW Jetta (1K)
VW Beetle (5C)
VW Passat (3C)
VW Passat CC (3C)
VW Tiguan (5N)
VW Caddy (2K)
VW Scirocco (13)
VW Sharan (7N)
VW Transporter T5.1 (7E / 7H)
VW Transporter T6 (7E / 7H)
Specific Quadlock adapter for retrofitting a radio navigation unit MIB MQB
This navigation conversion adapter connects the existing vehicle connector of MFD3, RNS 310, 315, 510, 810, RCD 210, 310, 510 with the MIB MQB navigation device. Easy commissioning with minimal time expenditure.
Adapter fits the following PR numbers: I6V, I6W, I7A, I7B, I7C. Cable length about 27cm
Fitting for following vehicles:
- VW Tiguan 5N
- VW Scirocco 1K
- VW Beetle 5C
- VW Caddy
- VW CC
- VW T6
Compatible with:
- MIB MQB radio navigation unit
Hints:
- Not suitable for vehicles with sound system (PR no .: 9VE, 9VQ, 8RU)
- If there is a parking aid (PR no .: 7X1, 7X4, 7X5), the PDC control unit must be replaced, otherwise an optical display is no longer possible
- Installation is recommended directly at VW Service - programming required GATEWAY MQB / MIB

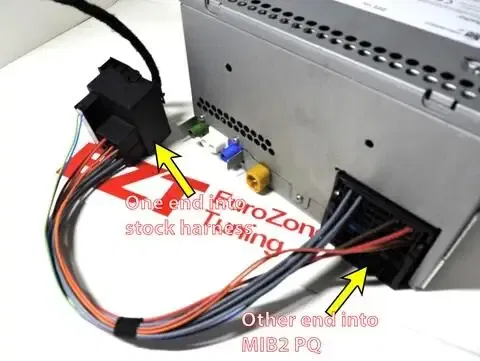

Use our custom built plug and play wiring harness to connect your MIB2 to your 2006-2014 Volkswagen's stock radio wiring harness.
Note: If your vehicle came with phone capabilities and has a microphone, you may need to re-pin two wires in your stock quadralock harness. If it did not, you can use our OEM Microphone and integrate it into this wiring harness.
