Description:
Origin: Mainland ChinaCertification: CE
Certification: RoHS
Model Number: FK 9803 230
Type: Ventilation

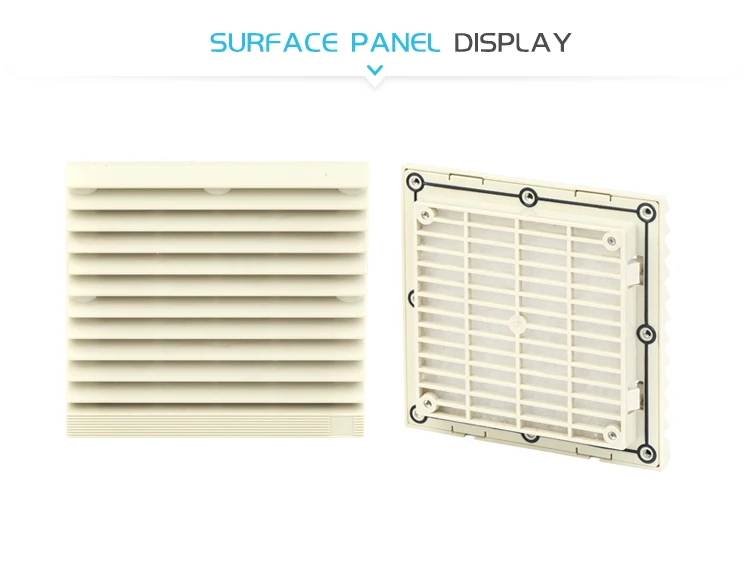

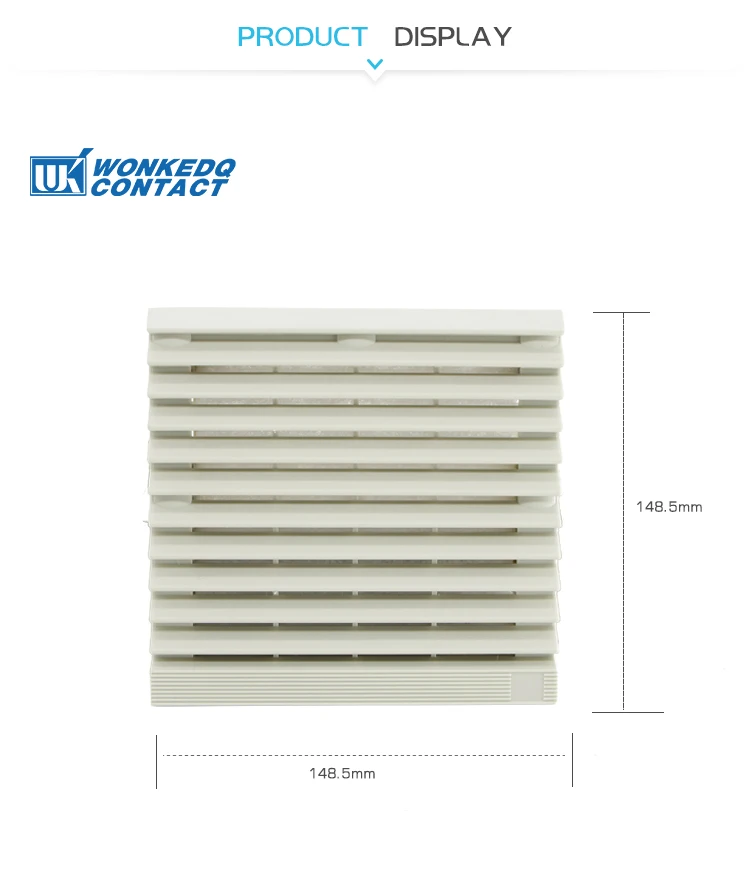

Surface size: 148.5x148.5 mm
Installation size: 122x122 mm
Equipe with Fan size: 120x120x38 mm
Item2: Exhaust fan filter
Item3: Garage fan
Item4: Ventilation grille
Item6: Ventilatie roosters
Item8: Filter ventilation
Item9: Ventilator filter
Item10: Ventillation grill
Item11: Ventilation system
Item12: Air filter ventilation

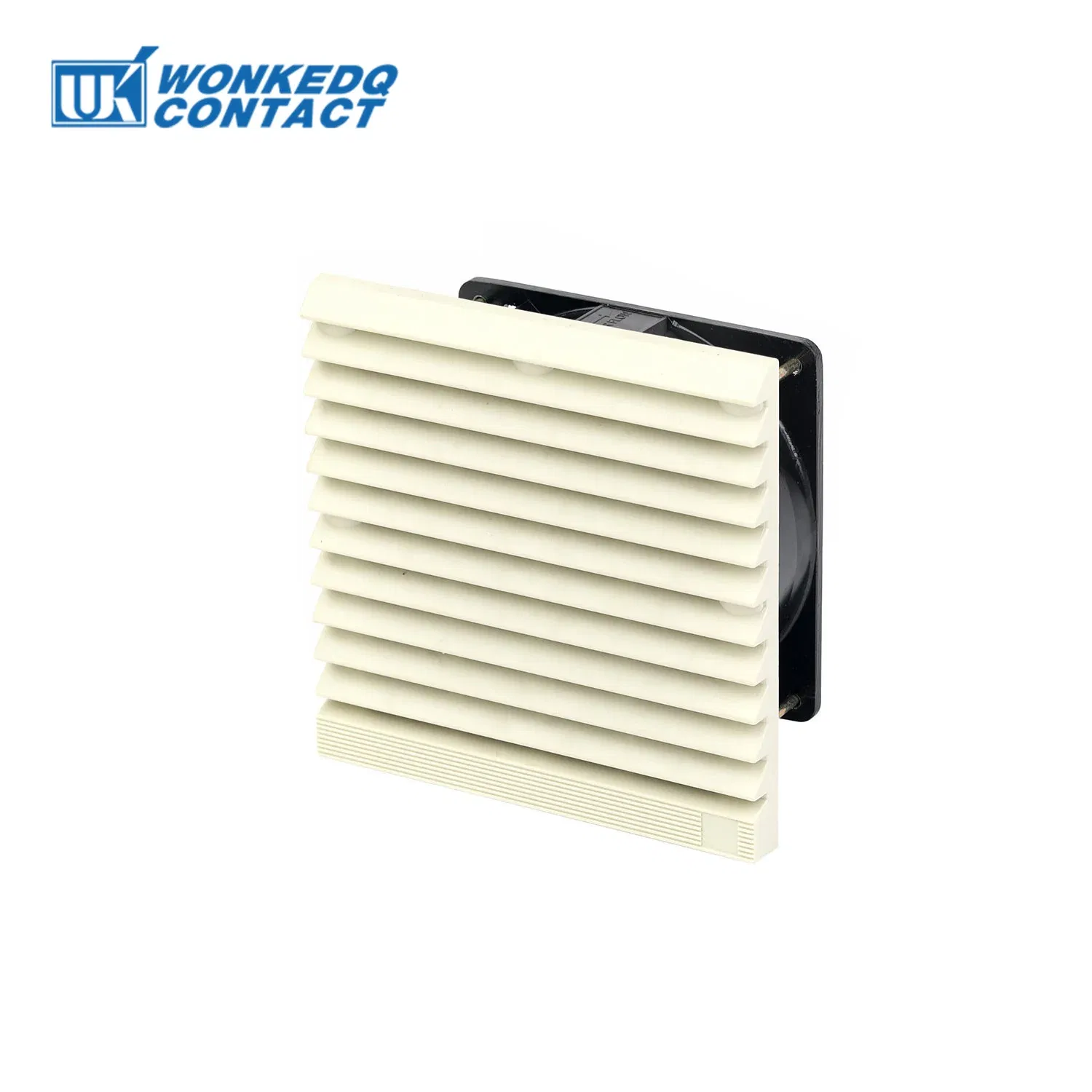

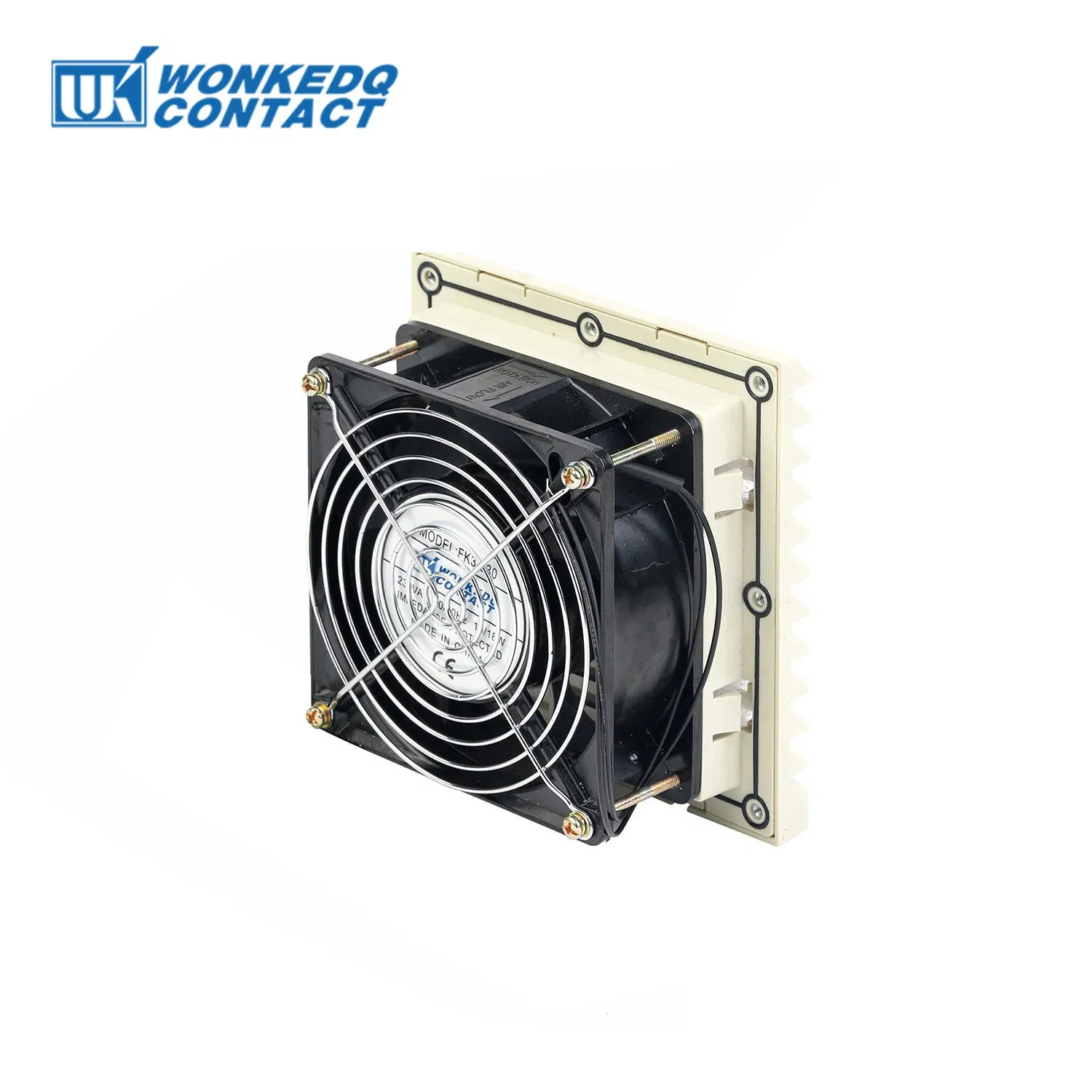

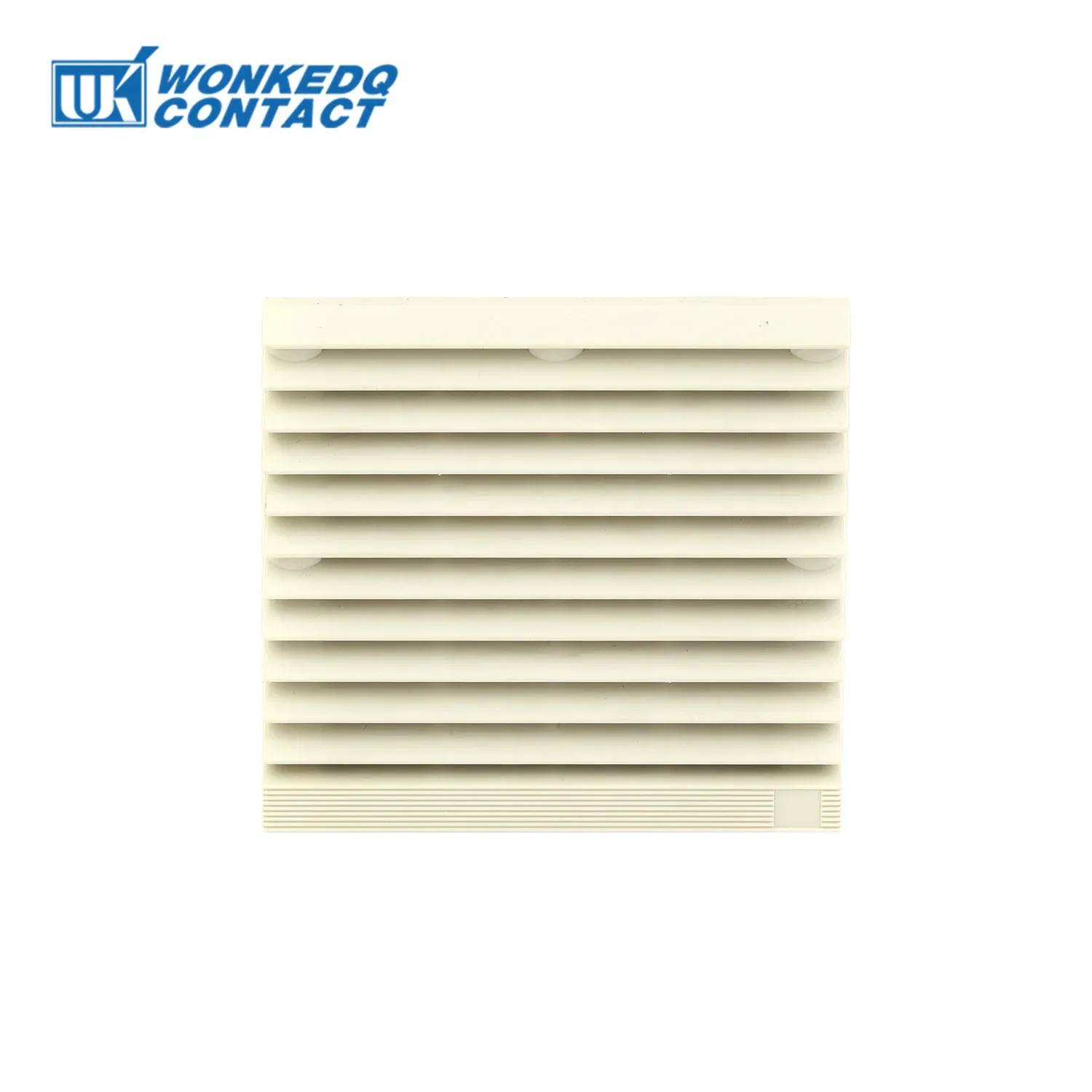

Cabinet Ventilation Fan Filter FK-9803-230 Filter With Fan
DESCRIPTION
The fan filter unit is designed for cooling the inside temperature of the enclosure. Electric cabinet,etc, by entering the cool air and remove the warm air inside. It is rain-proof with the design.

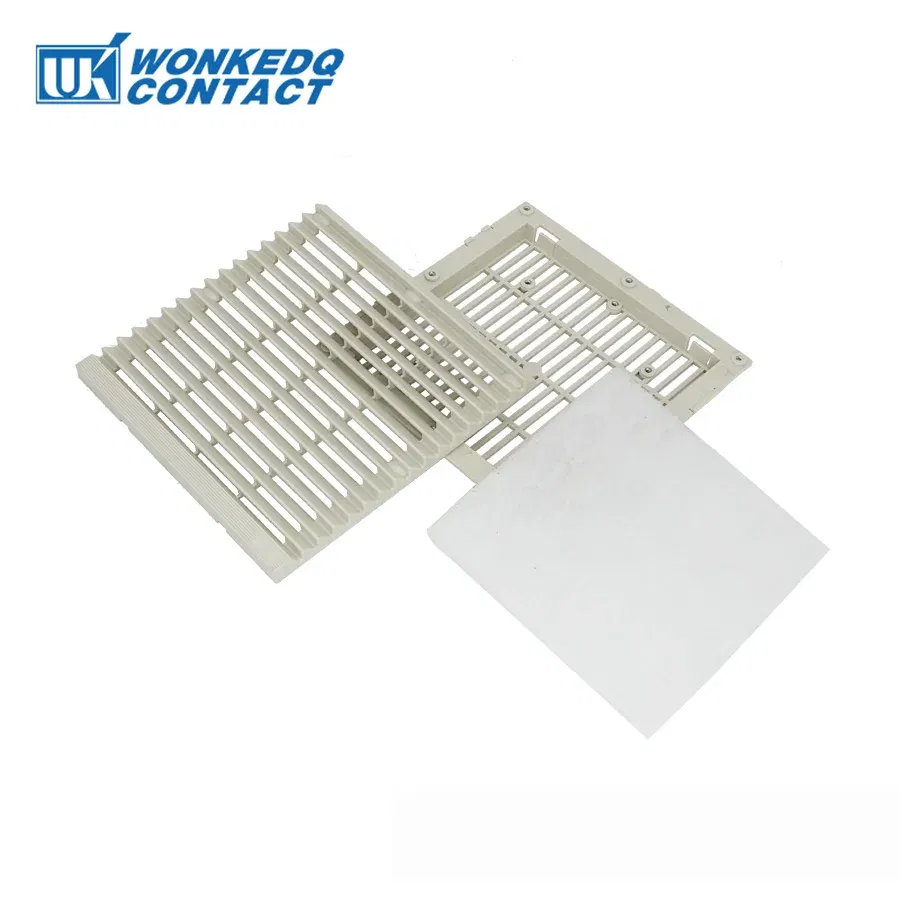

Frame material is made from heat resistance and anti-flame ABS.

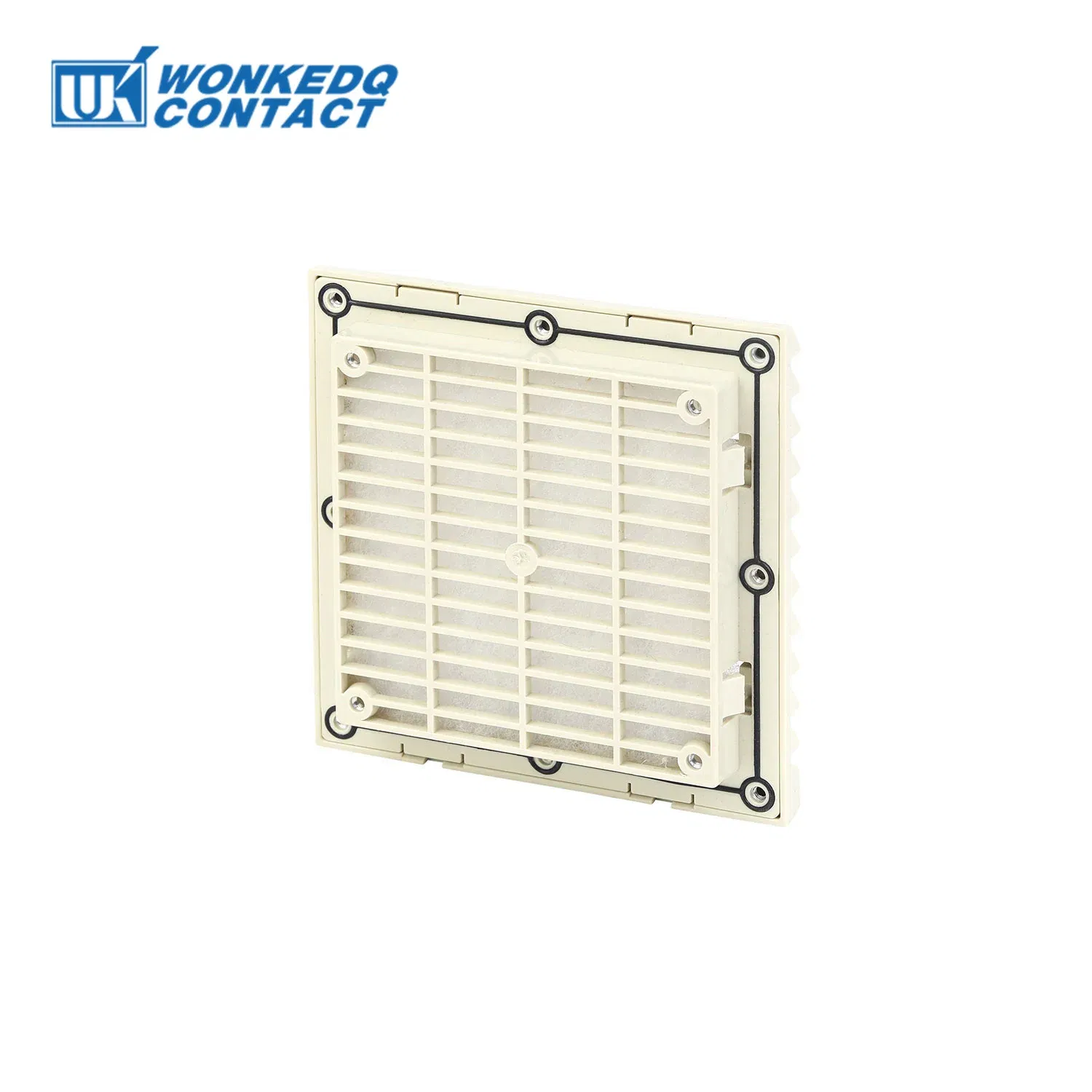

Filter pad is made from non-woven fiber, the filters can be replaced during operation without risk of touch with the rotating parts.

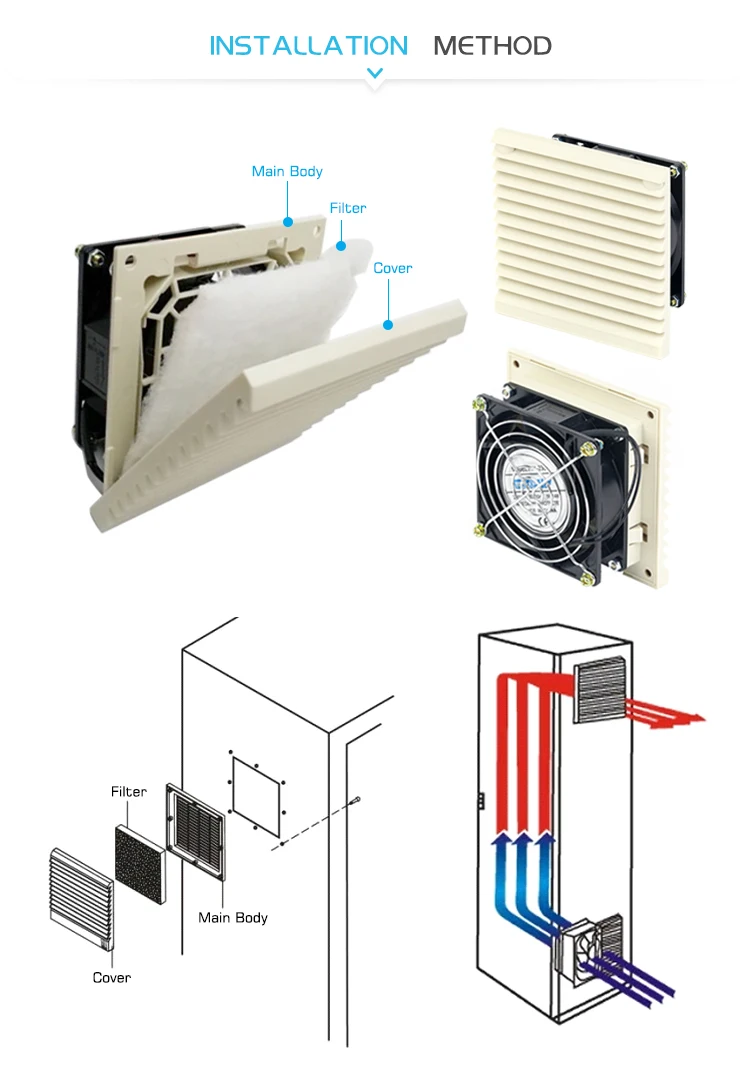

Click-fit design quickly installs into enclosure wall
Its easy to change the filter pad by using the groove handle on shutter.
- Other dimension can be customized.
TECHNICAL PARAMETERS
Filter unit Part No. | 9803-230 |

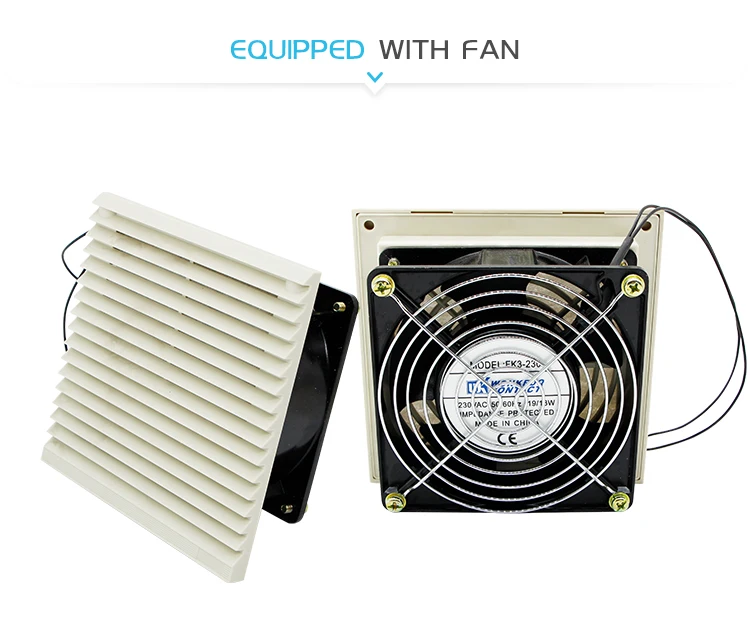

Fan with filter unit Part No. | 9803-230 |
Unimpeded air flow | 120m³/h |
Noise level | 49dB |
Surface dimension (mm) | 204x204mm |
Installation hole size (mm) | 124x124 |
Voltage/Current | 230V/120mA |
Input Power Rating | 17W |
Temperature range | -10℃~+55℃ |
Packing detail: 3322-300 (Filter unit) | 0.102kgs/pc |
Packing detail: 3322-230 (Fitler with Fan) | 0.489kgs/pc |
Certificate | CE, RoHS, CQC |

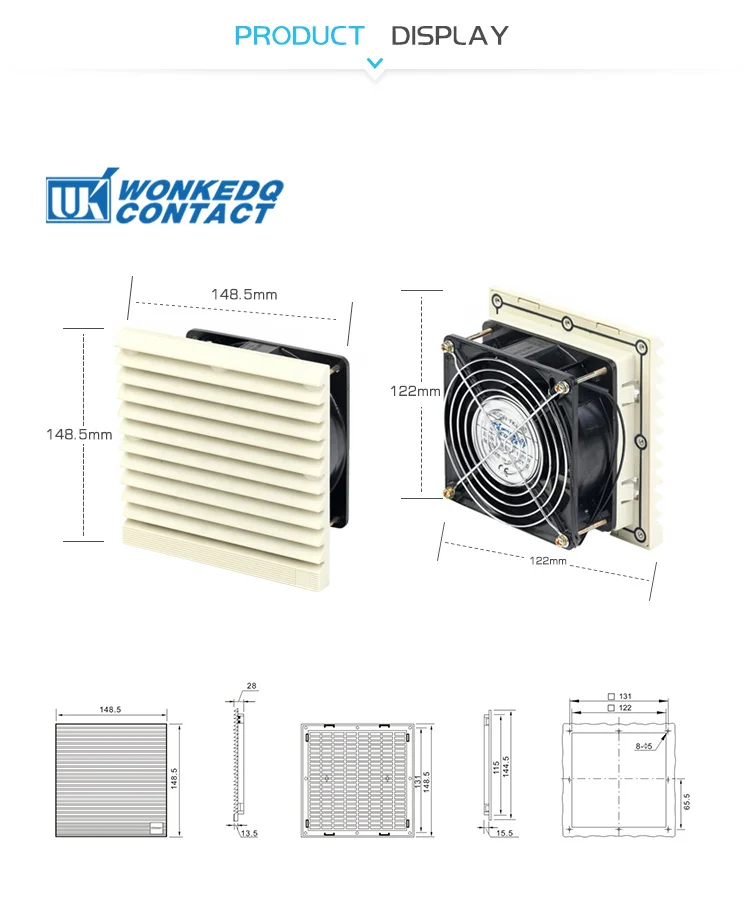

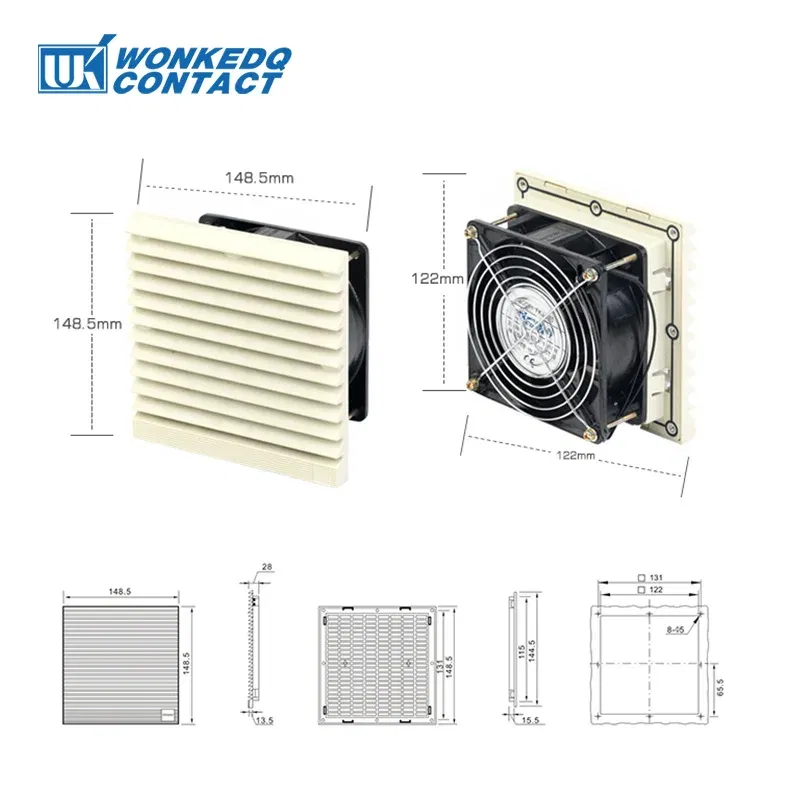

Other size available:
Item No. | Installation hole (mm) | Distance between hole (mm) | Overall size L/H/W(mm) | Matched Fan size(mm) |
9803 | 122x122 | 131x131 | 148.5x148.5x28 | 120x120x38 |
9804 | 175x175 | 184x184 | 204x204x28 | 172x150x51 |
9805 | 223x223 | 233x233 | 255x255x28 | 172x150x51 |
9806 | 283x283 | 300x300 | 320x320x28 | - |
