Description:

High-concerned chemical: None
Type: Color Filter
Origin: Mainland China
Model Number: NM-1100-0120-LP
Package: Yes
Surface Quality: AR Coating
Thickness: 1.0mm
To Fit: Sports camera, CCTV LENS, IP Camera, Camcorder, Camera, Camera Drone, Digital Camera, Film Camera
Mount Fitting: Drop-In
Wavelength: Long Band Pass 780nm-1100nm
Circular Size: 8mm/11mm
Filter Shape: Circular
Filter Color: Black
Choice: yes
semi_Choice: yes

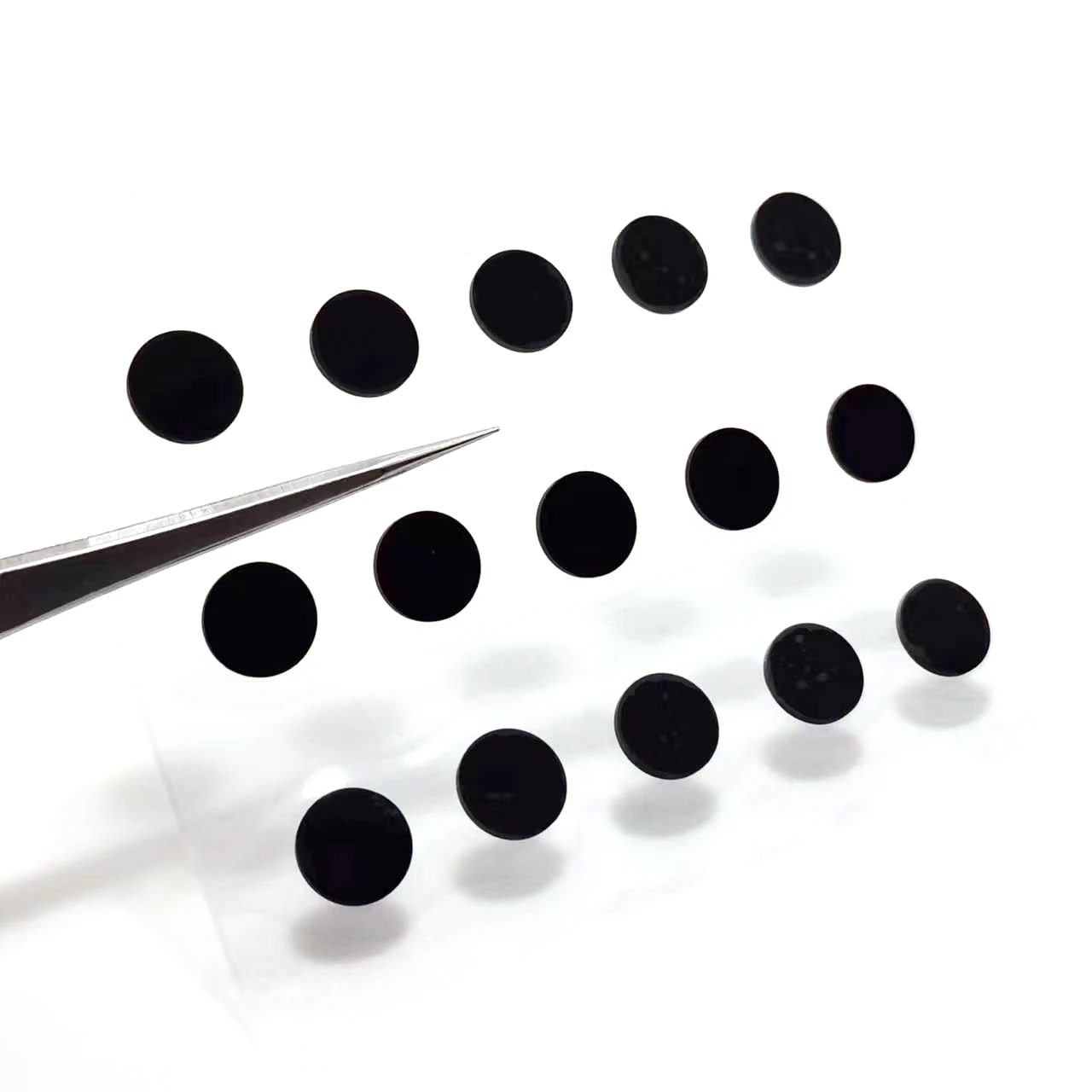

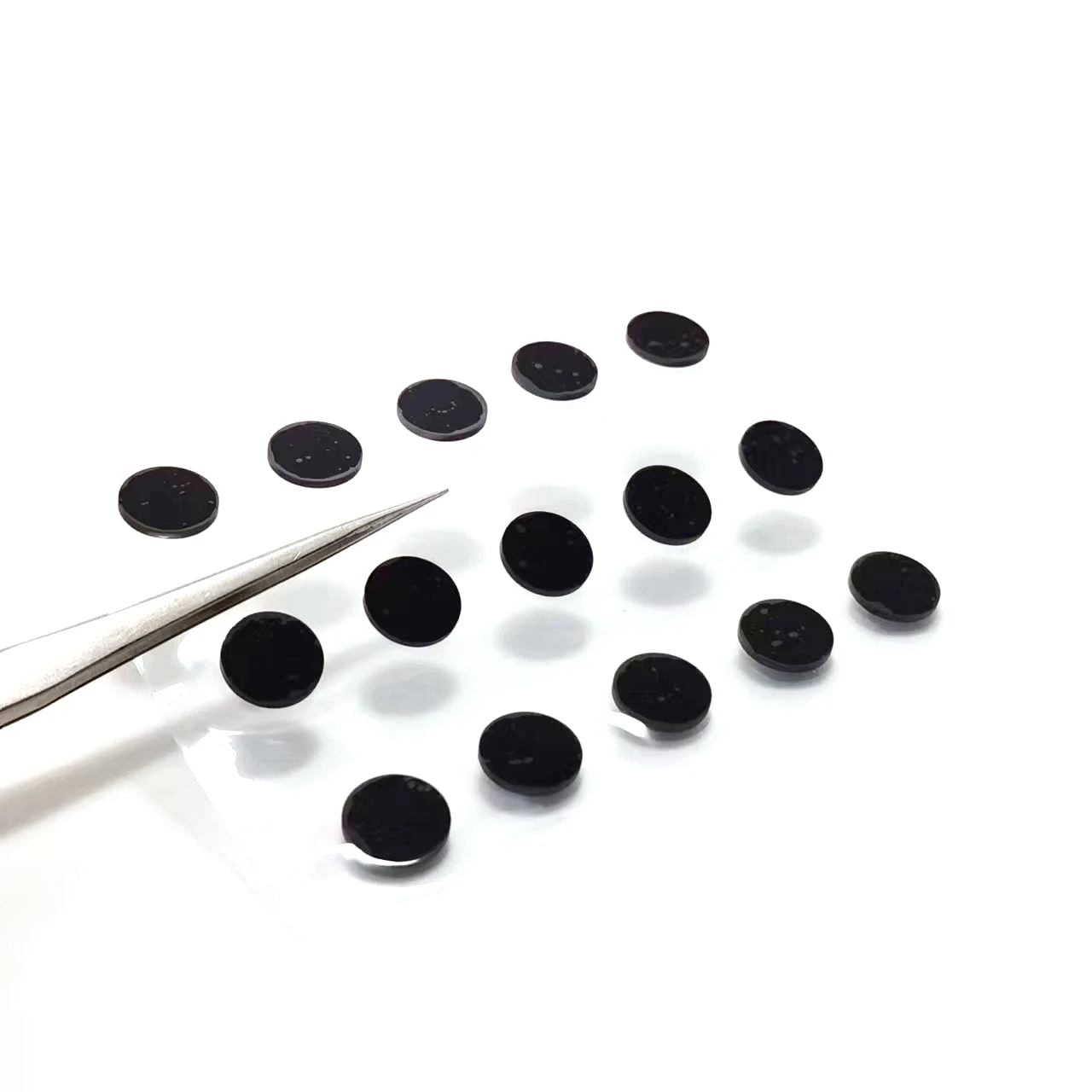

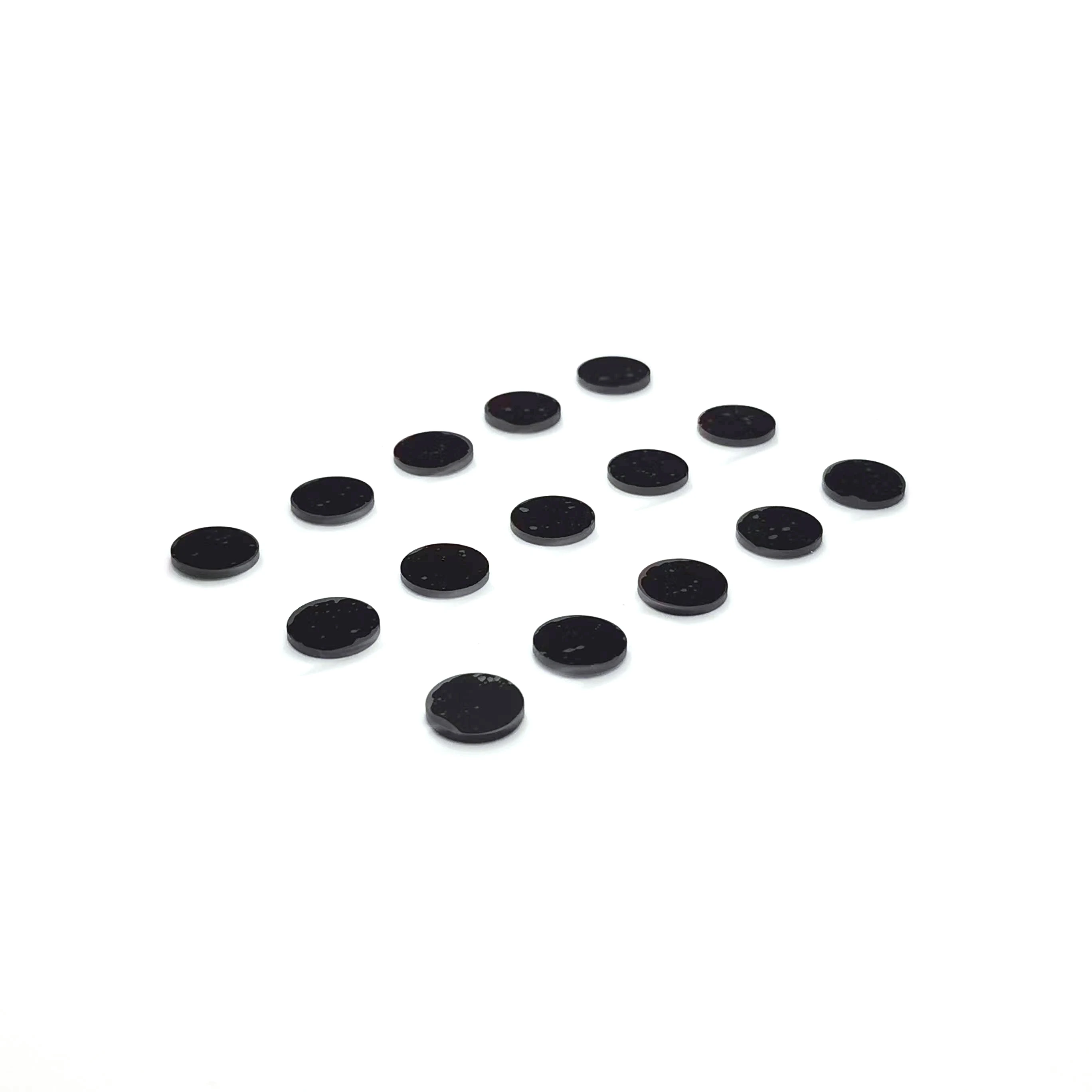

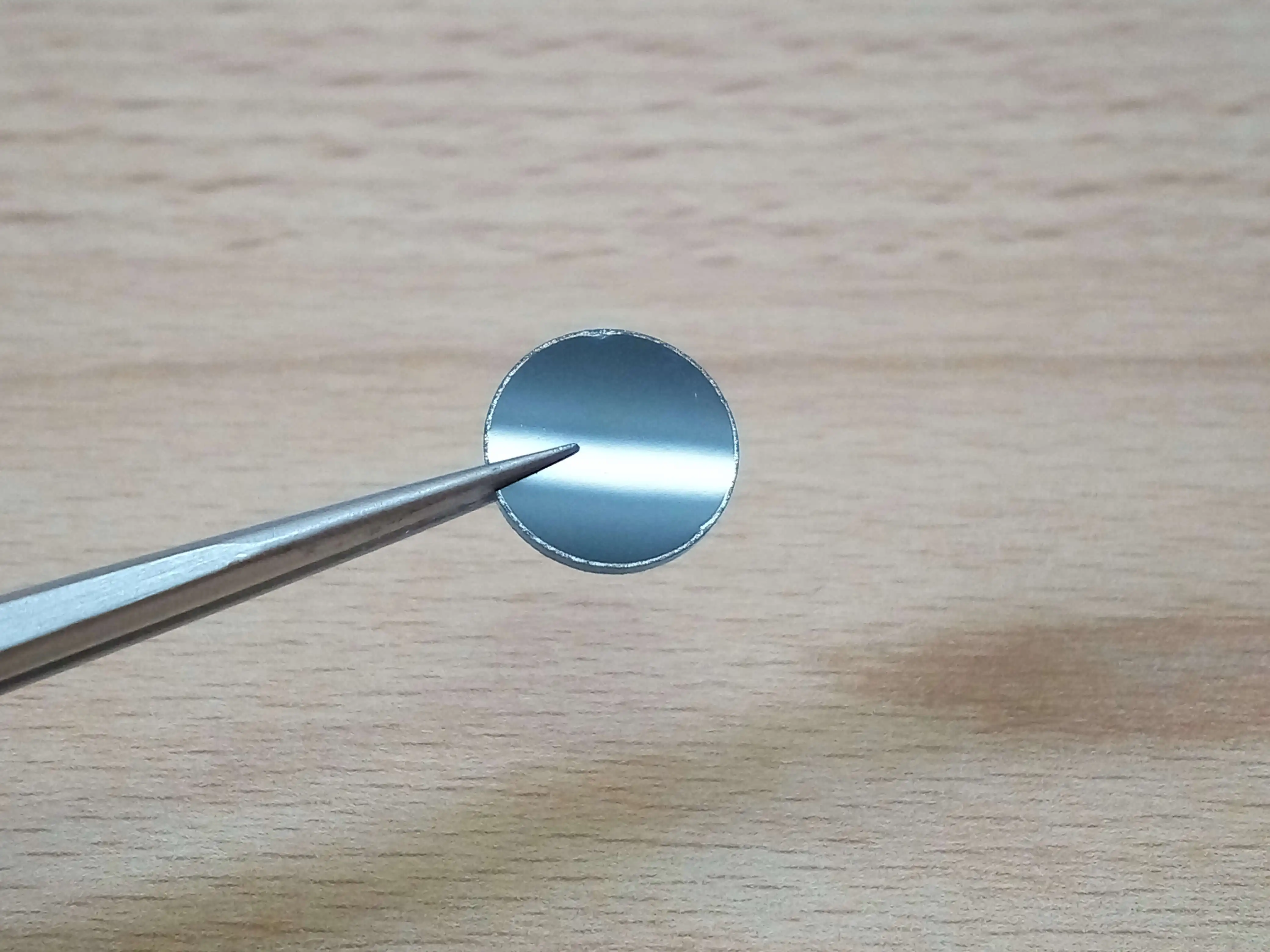

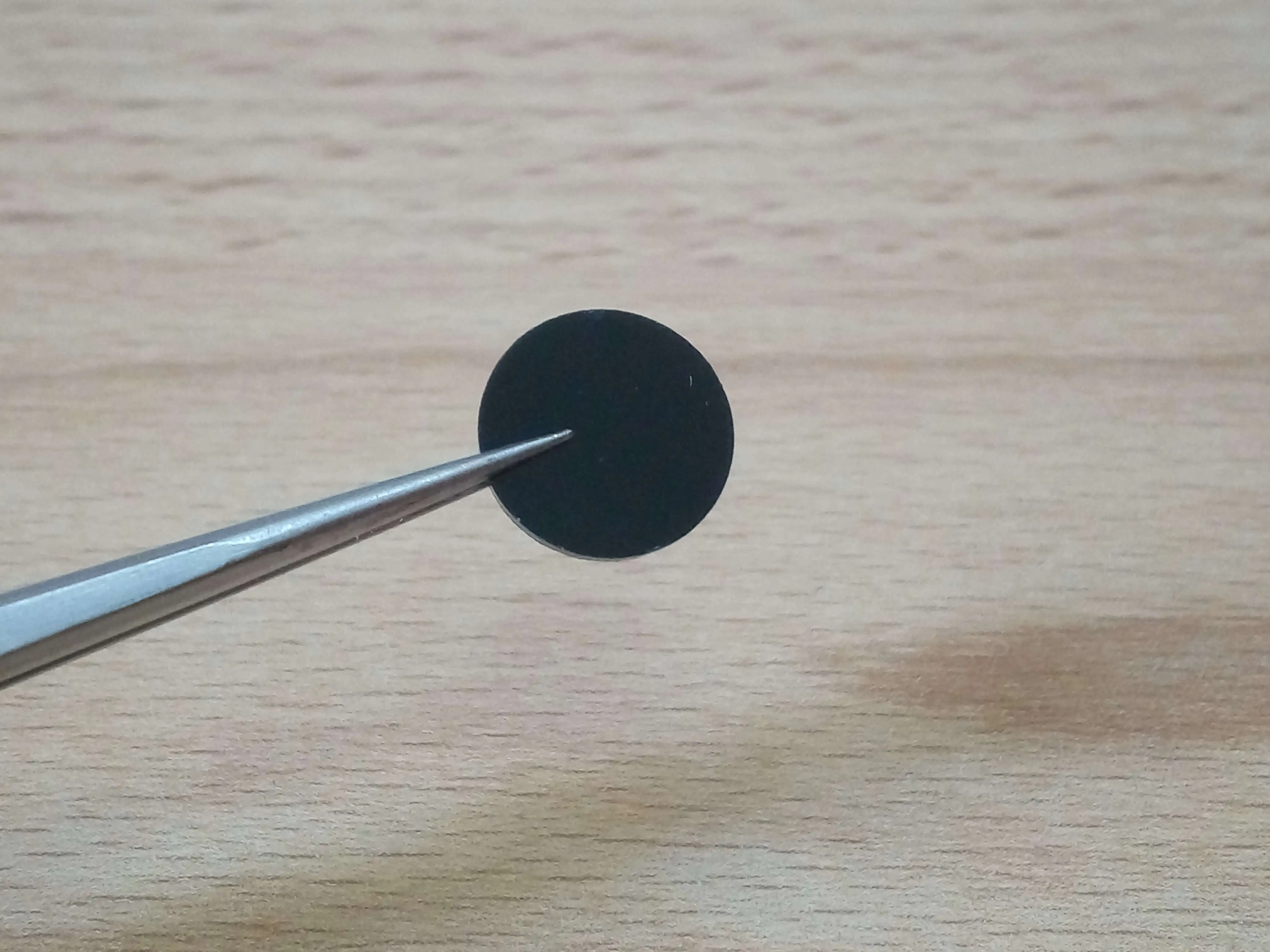

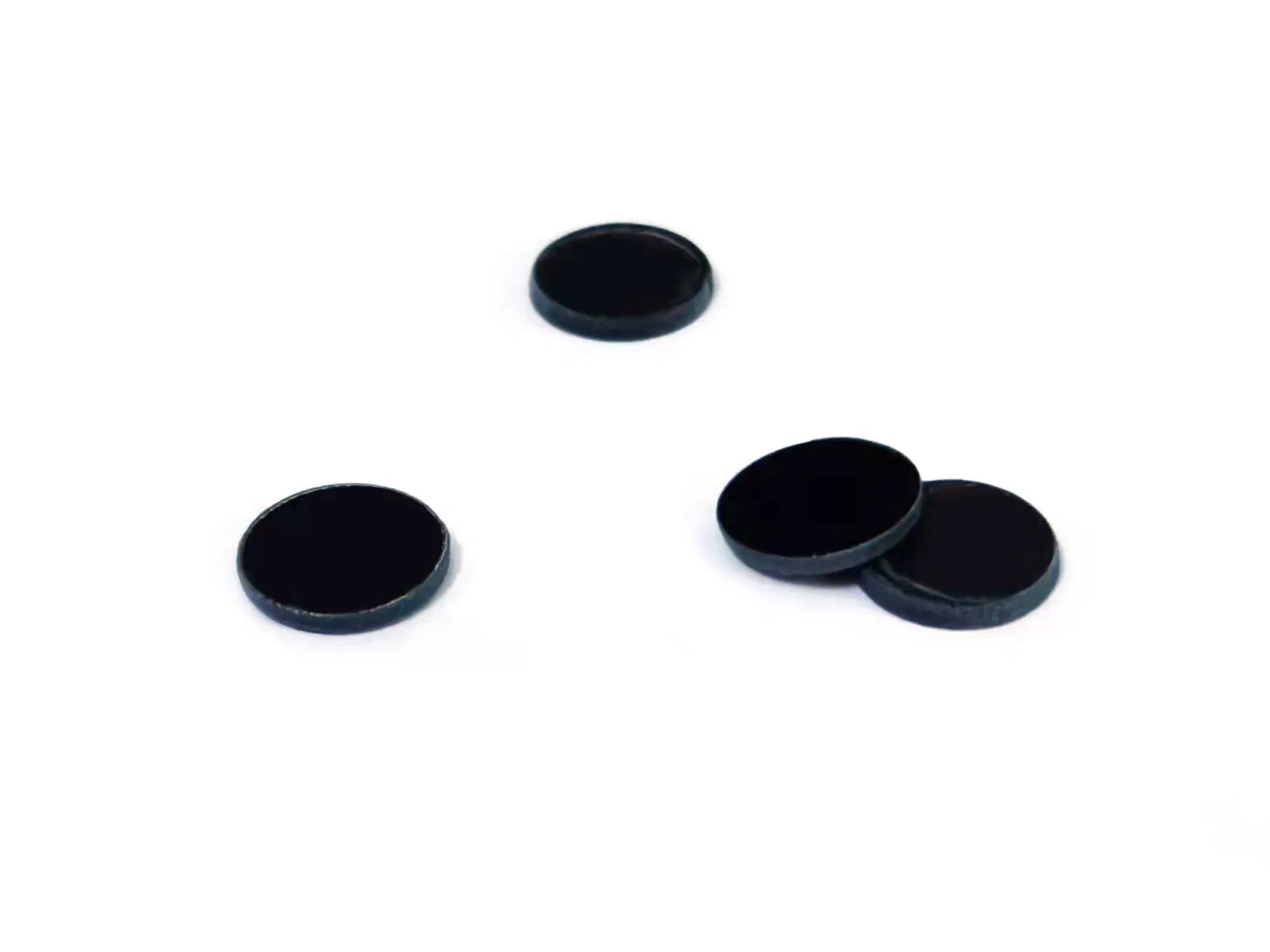

780NM Infrared Long Wave Pass Filter 800NM/850NM/940NM-1100NM Round Dia=11mm Thick-1.0MM for IR Camera M12 Board Lenses 1PCS

Product description

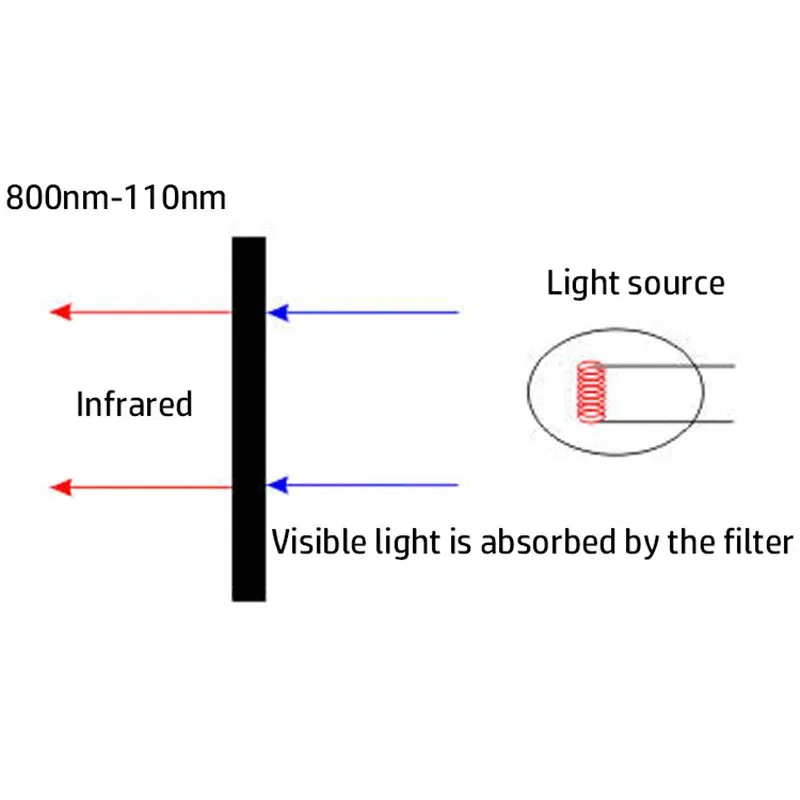

The long-wave pass filter allows light whose wavelength is greater than the set wavelength to pass, and cuts off the light whose wavelength is less than the set wavelength. It has the advantages of wide cut-off bandwidth, deep cut-off depth, high conversion steepness, and high transmittance. Widely used in fluorescence excitation spectroscopy, Raman spectroscopy applications, spectral grouping applications, and astronomical observation applications, etc. It can also be used in imaging optical systems, machine vision system applications, to eliminate interference light outside the available bands, and greatly improve imaging clarity Degree, and the sensitivity of the system.

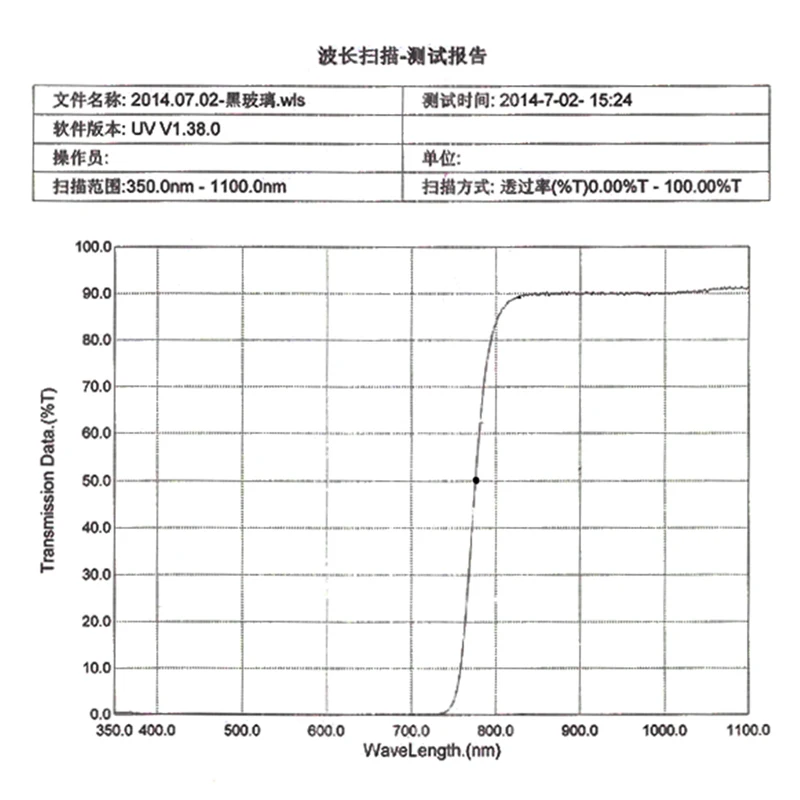

Optical index
Center wavelength: LP 780nm +/- 5nm
Transmission band: 780nm~1100nm
Cut-off band: 200nm~780nm
Material: Acrylic
Transmission wavefront error: λ/4 @ 780 nm
Parallel difference: <30 arc seconds
Surface finish: 40-20
Center wavelength tolerance: ±1%
Transmittance T: Tavg>90%
Cut-off zone depth: OD4
Cut-off band steepness: <1%
Effective aperture: >90%
Incident angle: 0°

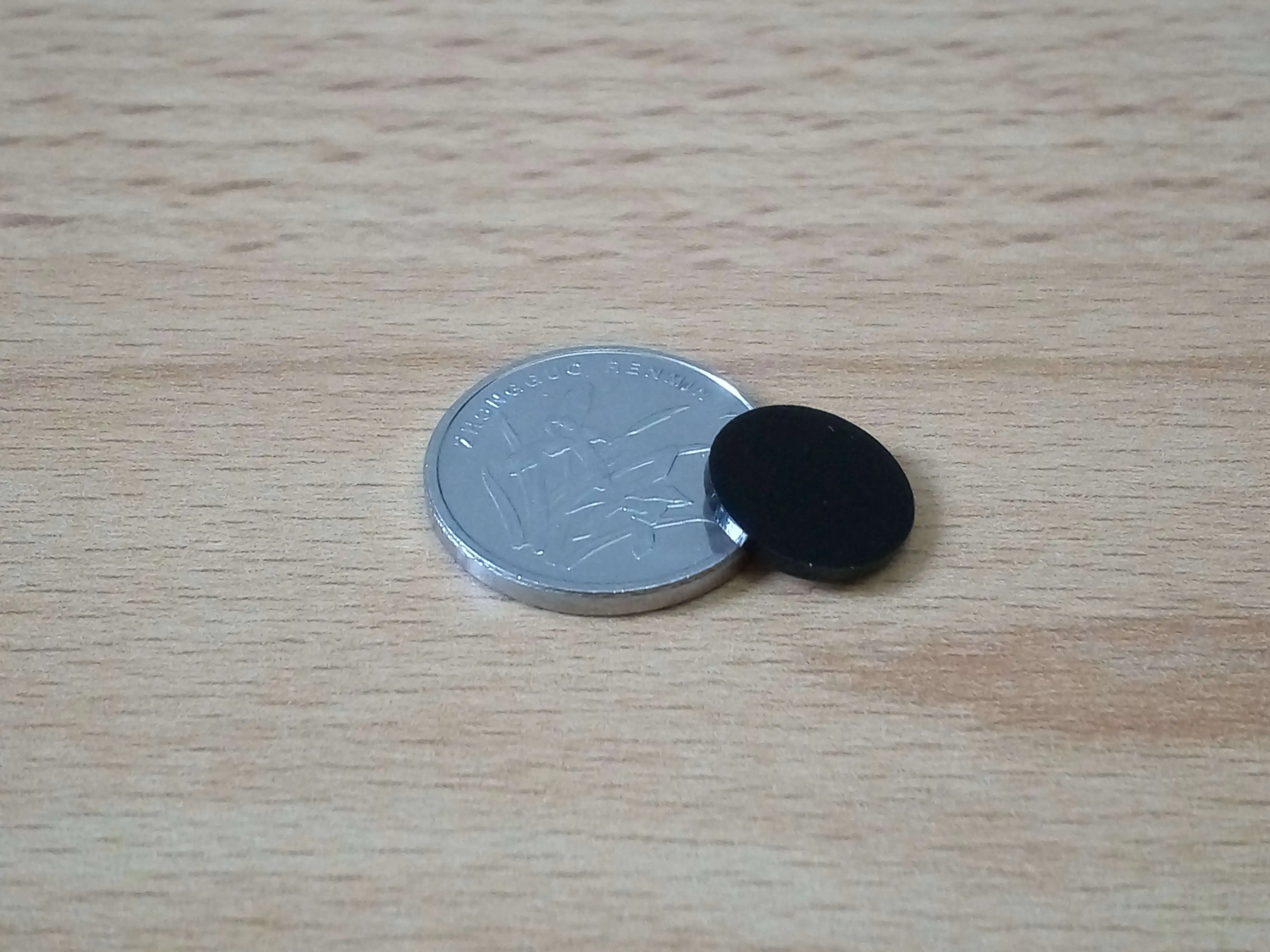

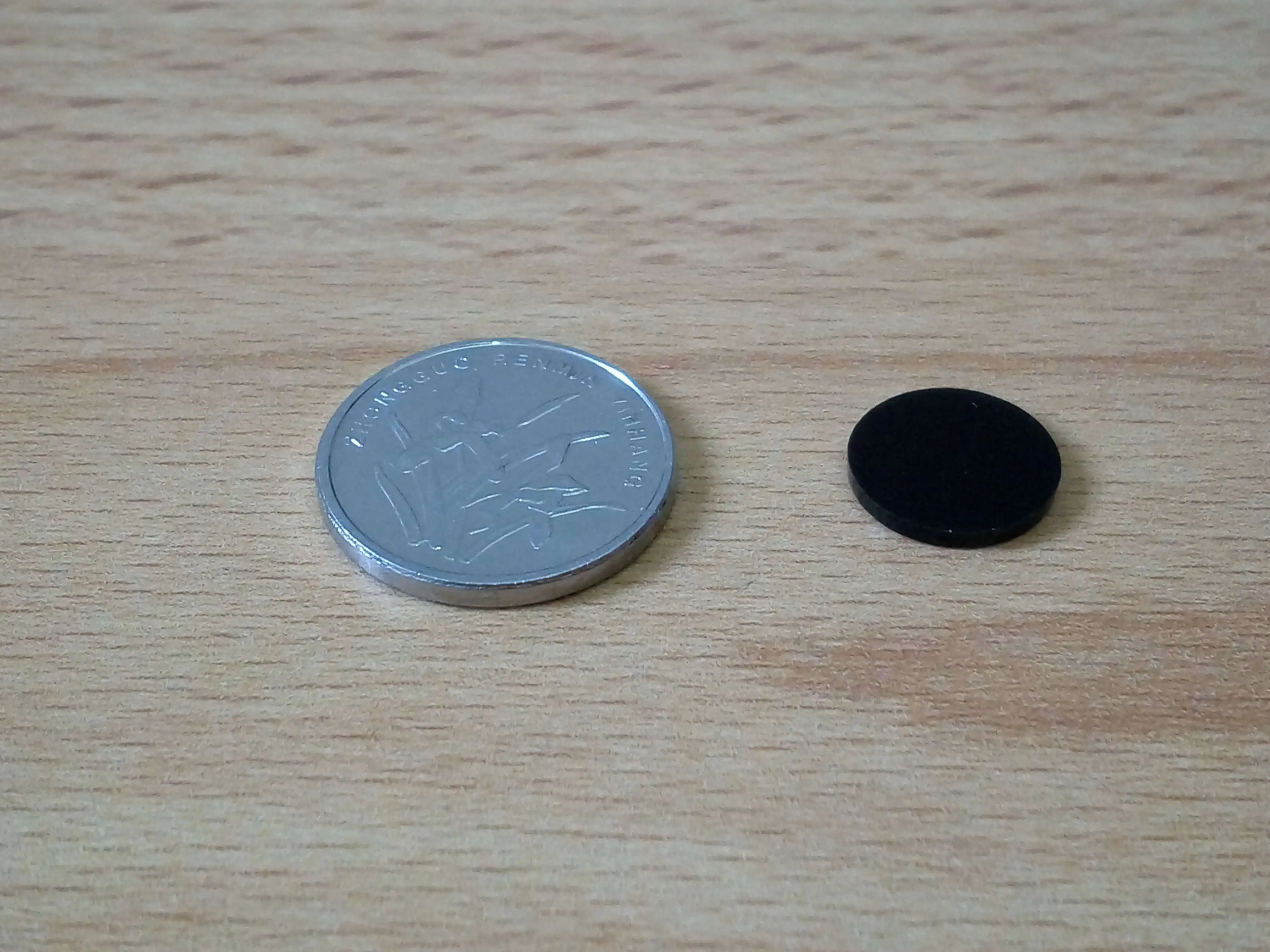

Size(Dia.T.): 11mm x 1.0mm

Diameter tolerance: +0.0/-0.1mm

Thickness: 1.2mm ±0.05mm

(If you need different sizes or different frequency bands and more quantities, please contact us, and then we will give you a quotation)

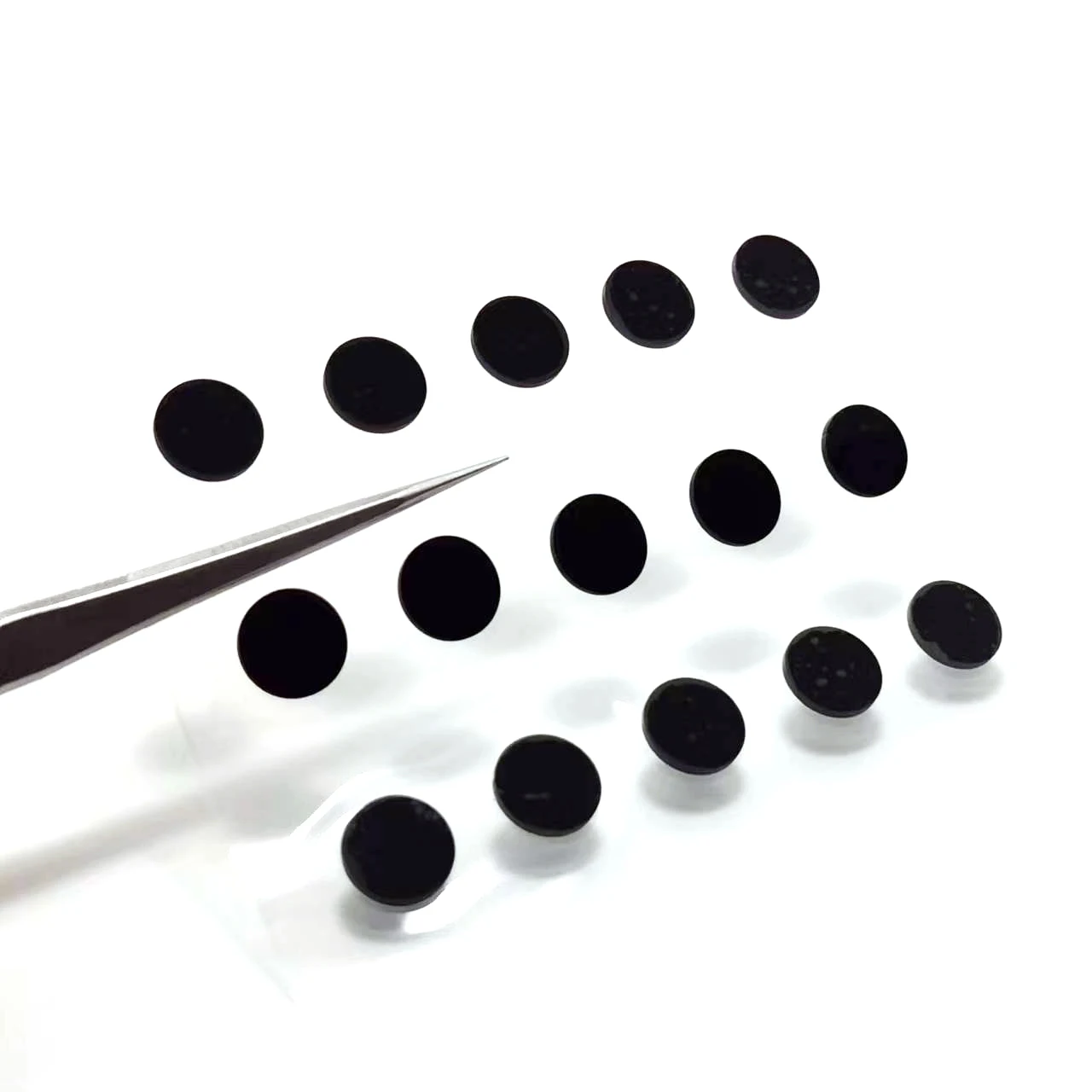

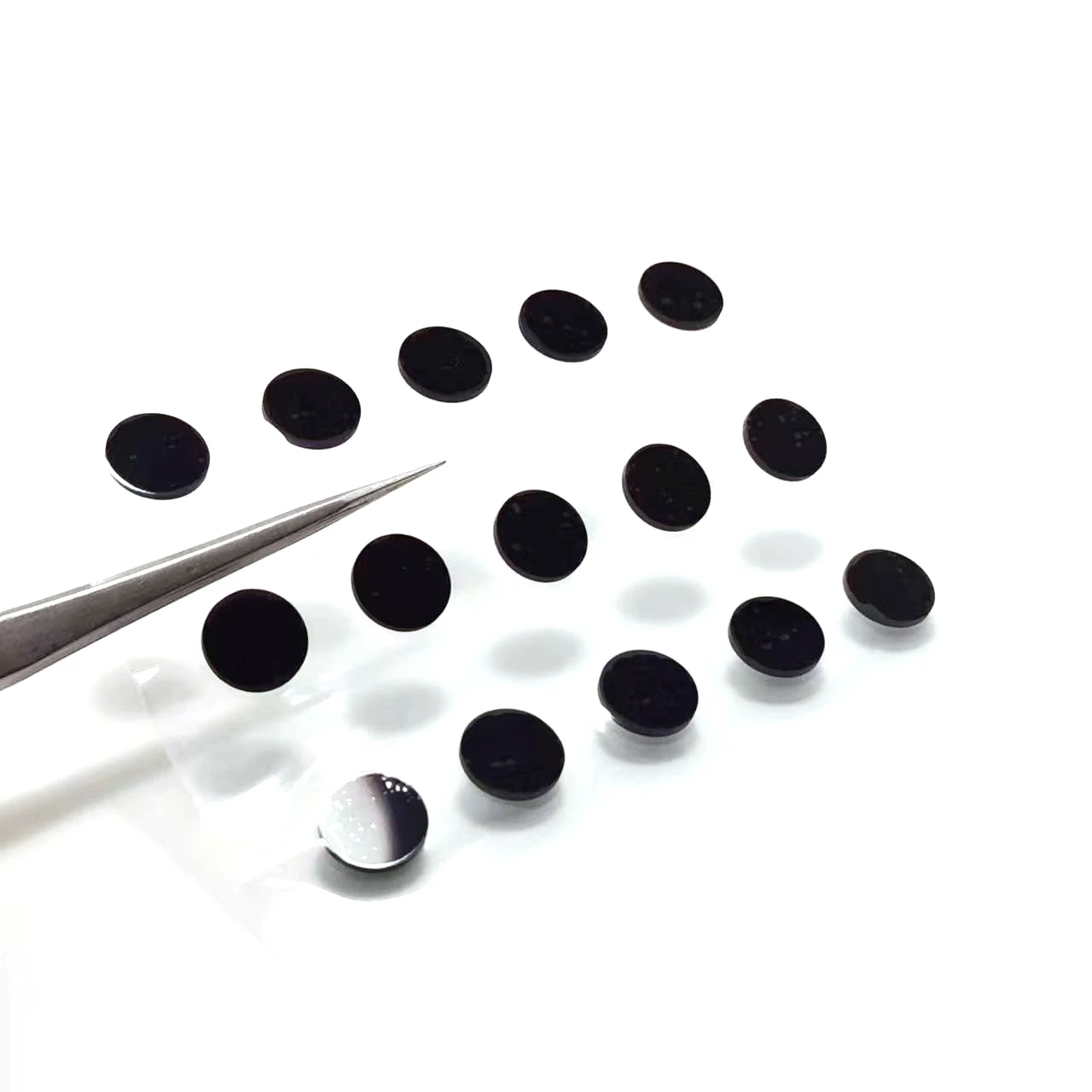

Note:  Our filters are all new, and each filter has a protective film on it.

Package
Round Dia=11mm ,Thick-1.0mm 780NM (800nm 850nm 940nm)-1100nm Long Band Pass Filter 1PCS.
