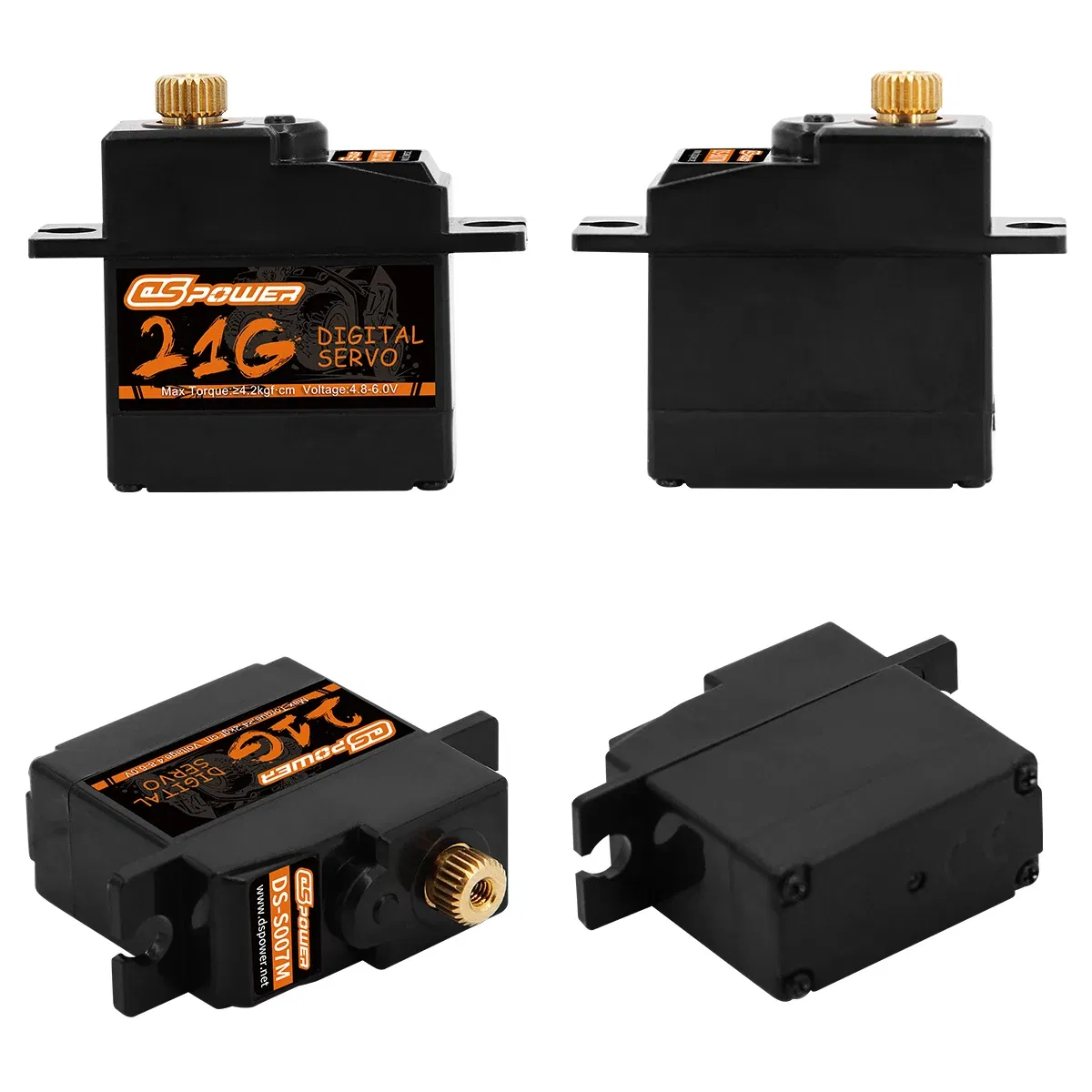

DSpower 21g Metal Gear mini servo 4.2KG torque 17g Servo for 1:18 1:16 rc car slash E-Revo C24 D12 MN99S MN86 RC Airplane robot

Features:

High performance digital standard

Low noise and long service life

Small volume and large torque

Suit for RC car boat helicopter model

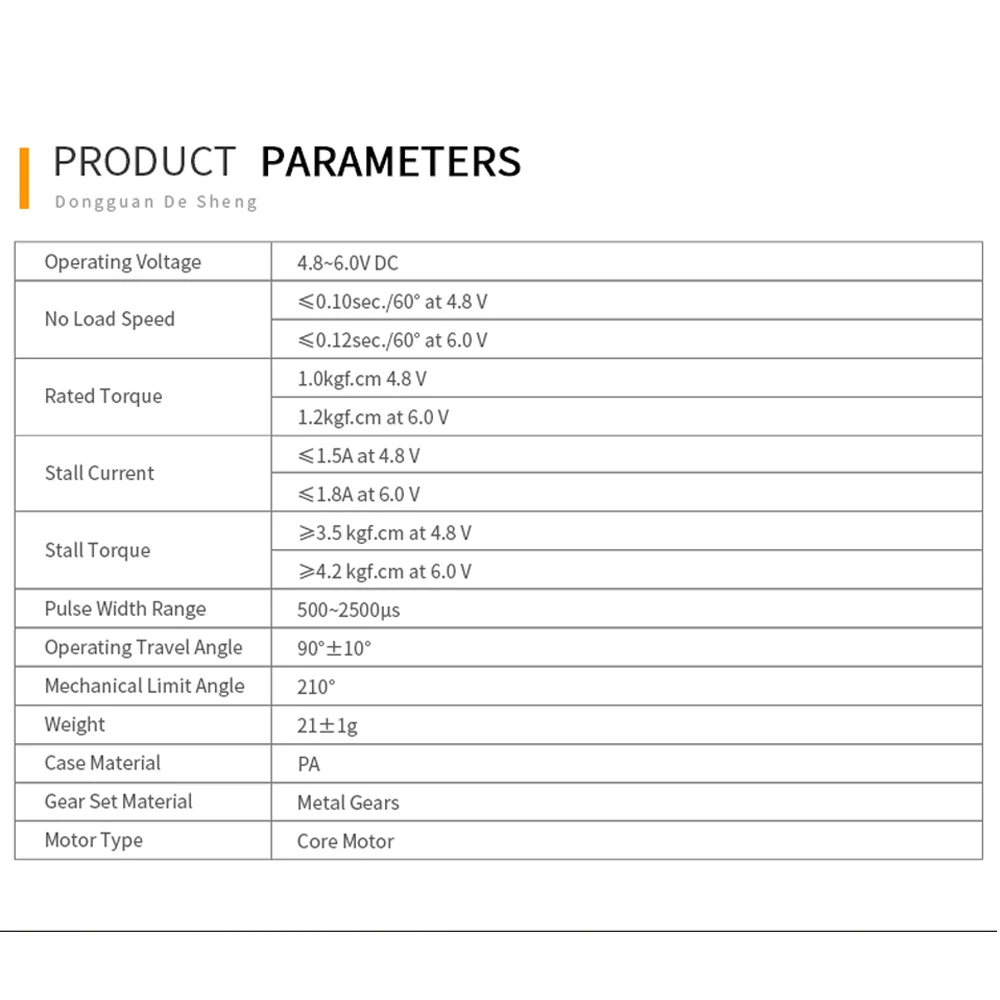

Specifications:

Item name: DSpower S007M

Quantity: 1pcs

Operating Voltage : 4.8~6.0V DC

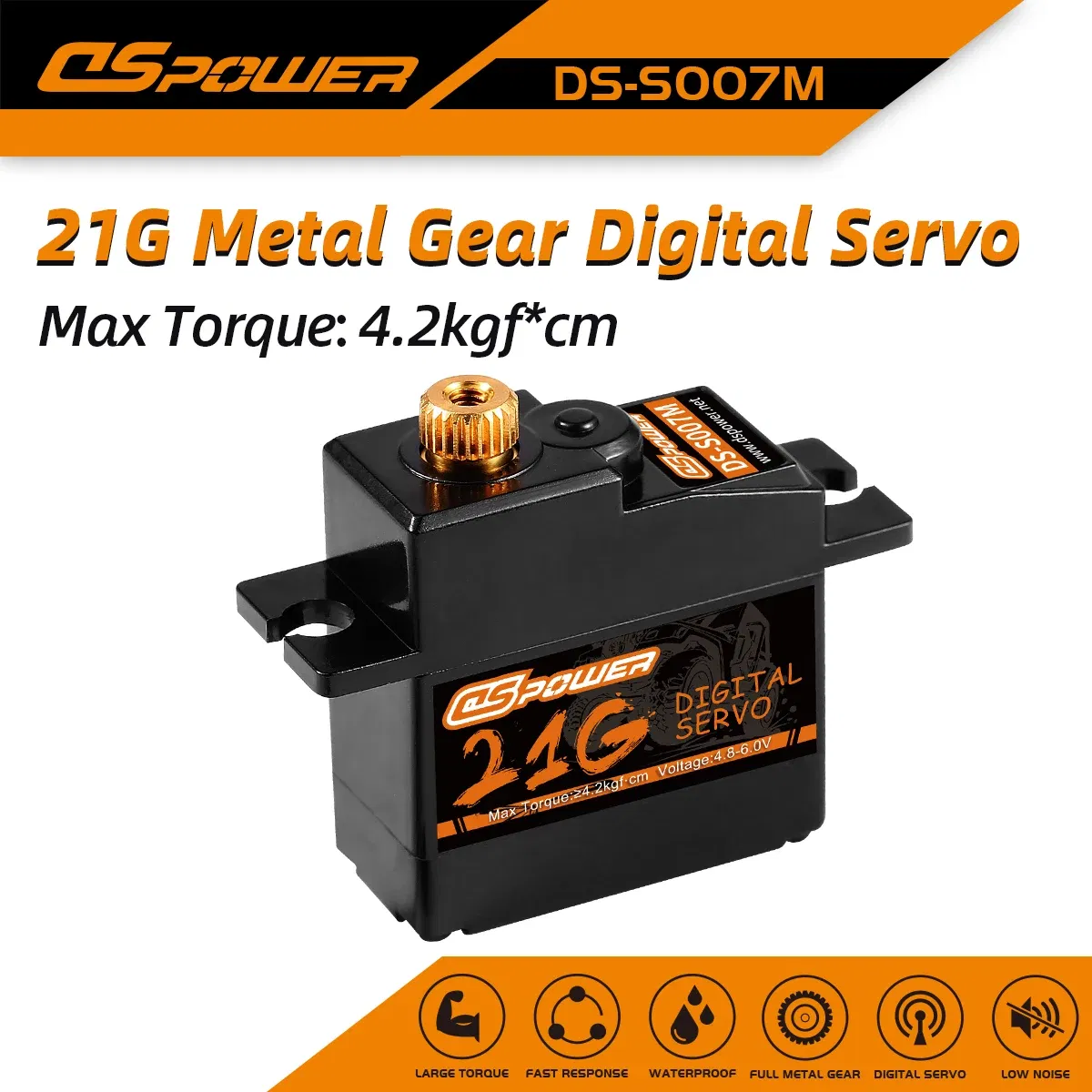

Max. Torque : 4.8V≥3.80kgf·cm ； 6.0V≥4.20kgf·cm

No Load Speed : 4.8V≤0.10sec/60°; 6.0V≤0.12sec/60°

Stall Current：4.8V≦1500mA；6.0V≦1800mA

Consumption Current* (No Load)：4.8V ≦200mA ；6.0V≦210mA

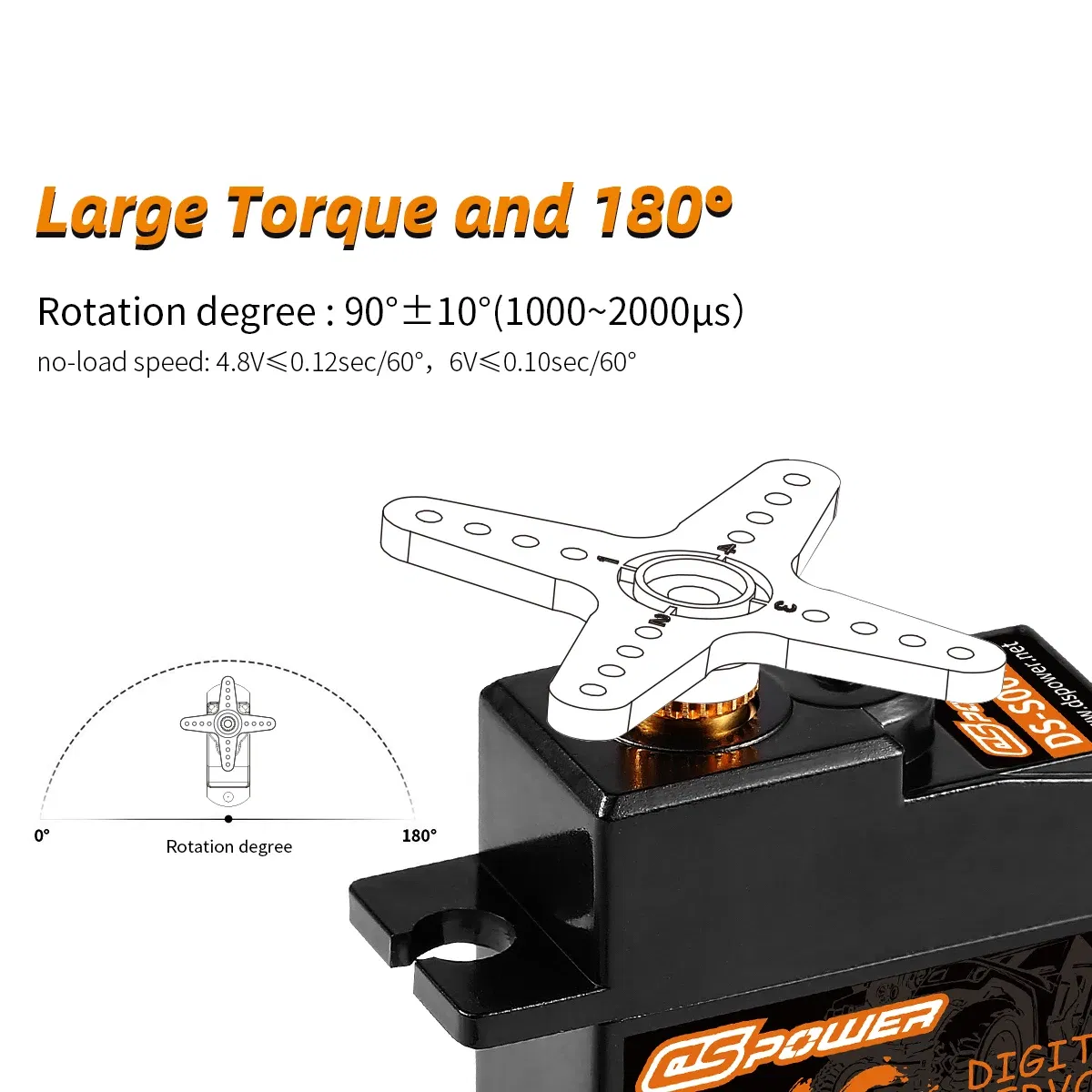

Max. Operating Travel Angle：180°±10°(1000~2000μs）

Dead Band Width: ≤ 5us

Mechanical Limit Angle: 360°

Communication Interface: PWM

Motor Type: Core motor

Case Material: ABS

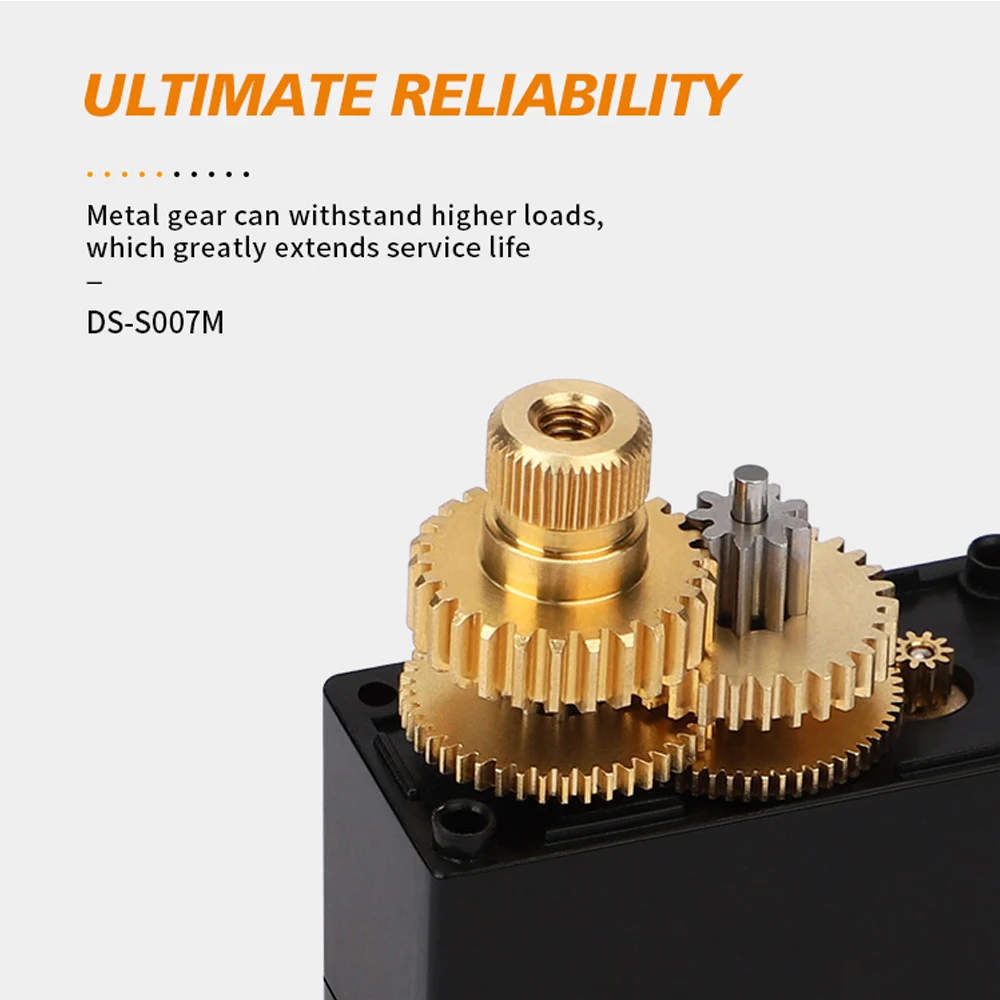

Gear Set Material : Metal gear

Weight: 21 g

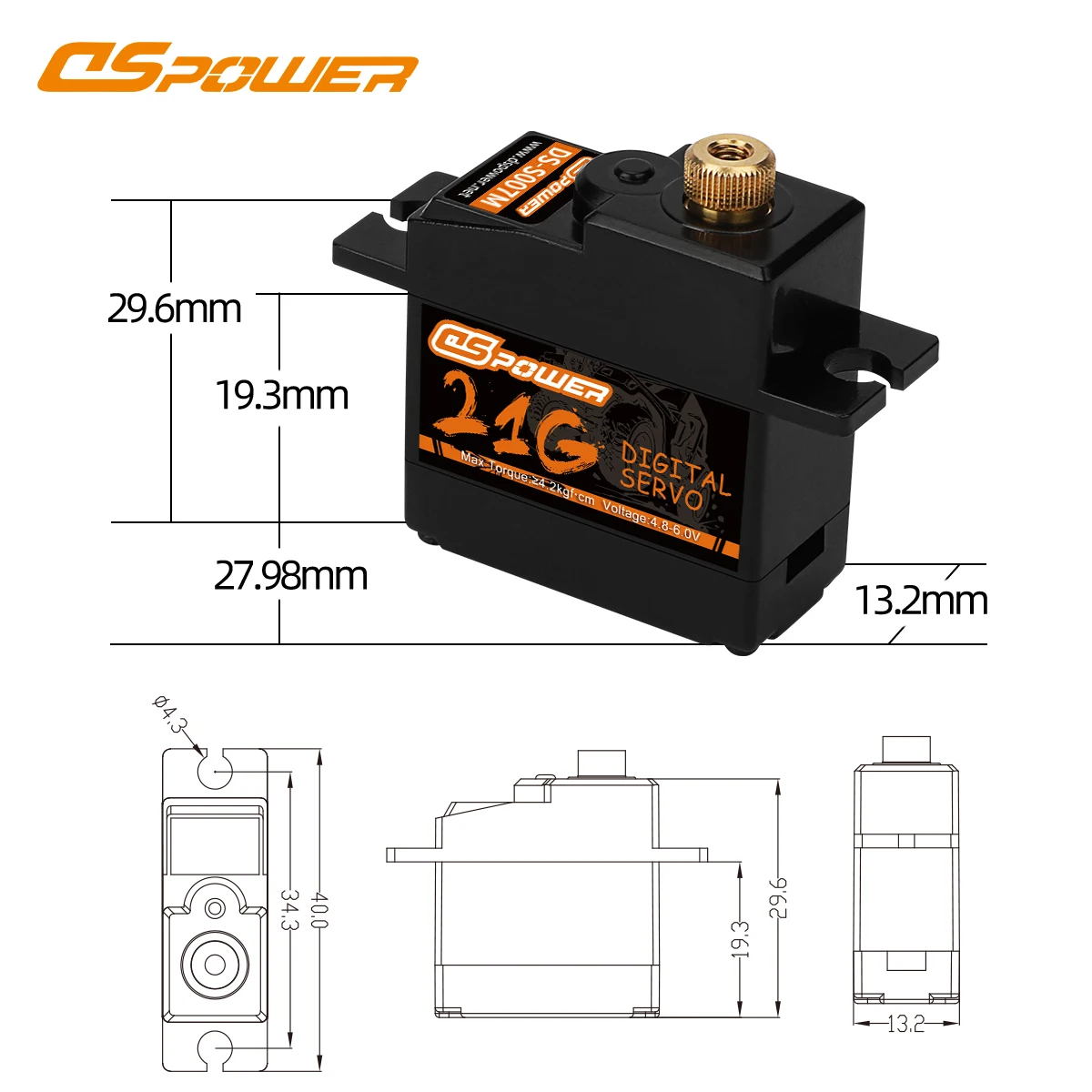

Size: 29.6 × 13.2 × 40mm

Length of Connector cable: JR 250±5mm (exposed without plug)

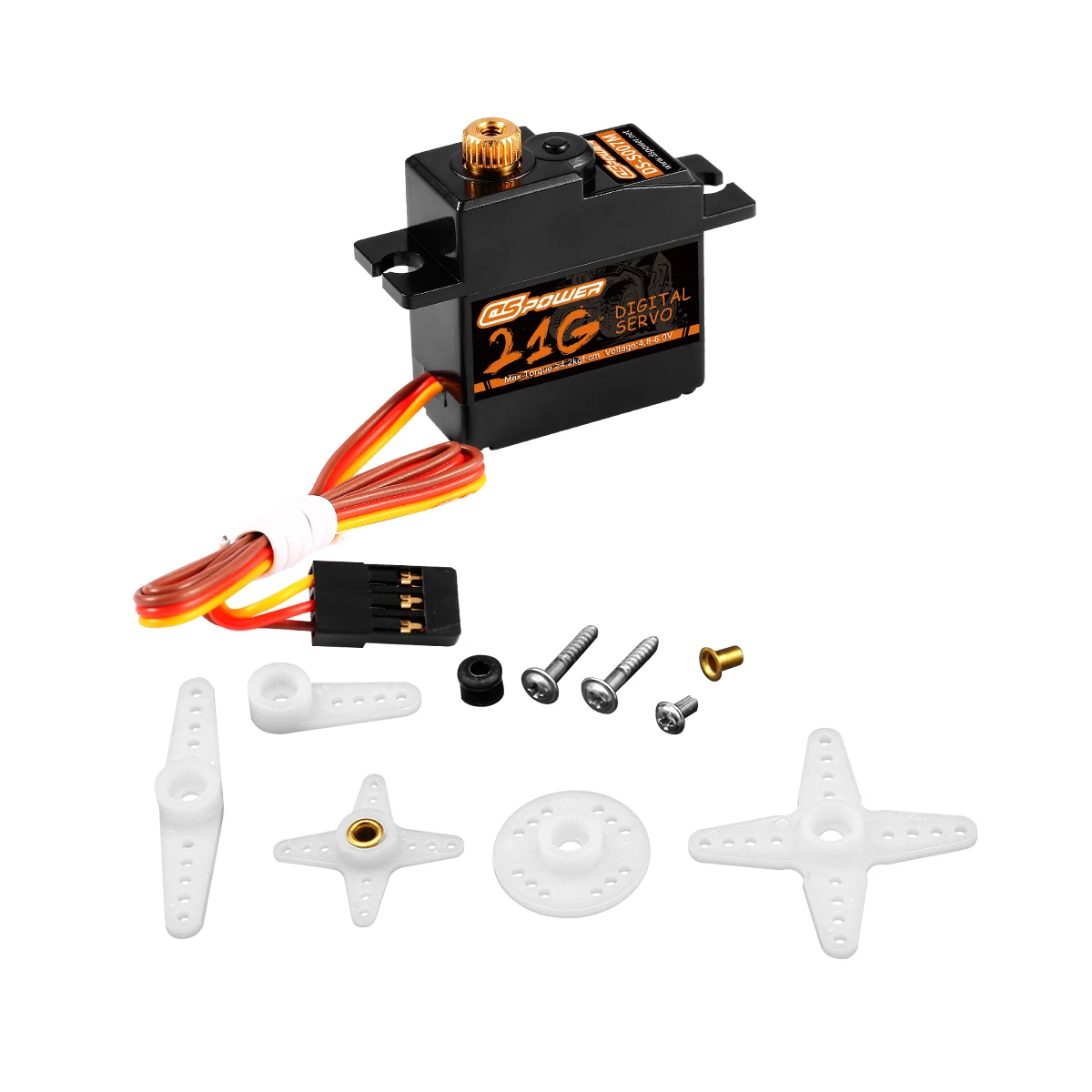

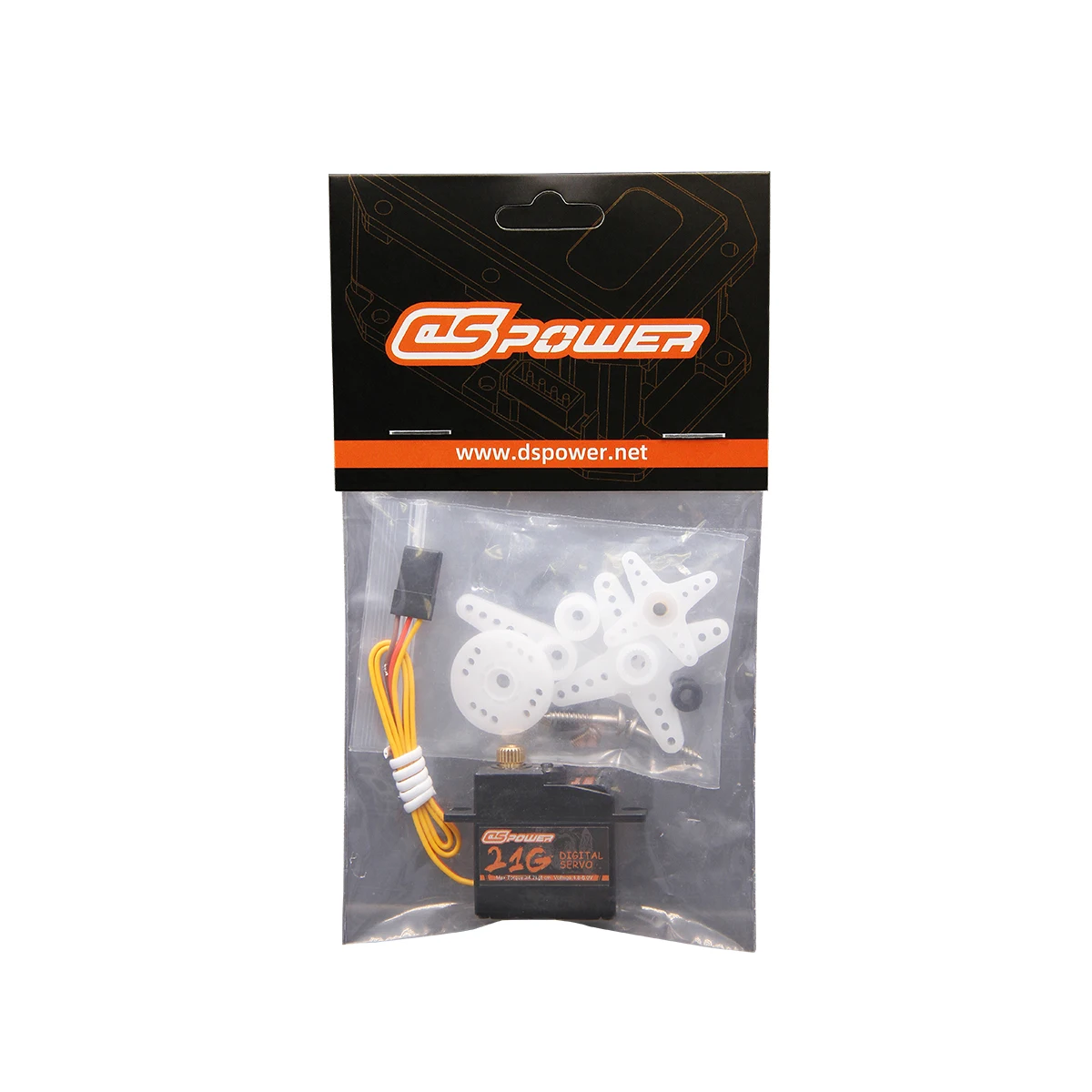

Package included:

1 * 21G Digital Servo

1 * Servo Arm Accessories
