Description:

Origin: Mainland China
Application: Automotive
is_customized: Yes
Type: Aluminum Electrolytic Capacitor
Structure: Fixed Capacitor
Package Type: Surface Mount
Rated Voltage: 0-16V
Model Number: GDCPH 16V25F
Color: Black
Operating Temperature: -20℃~70℃

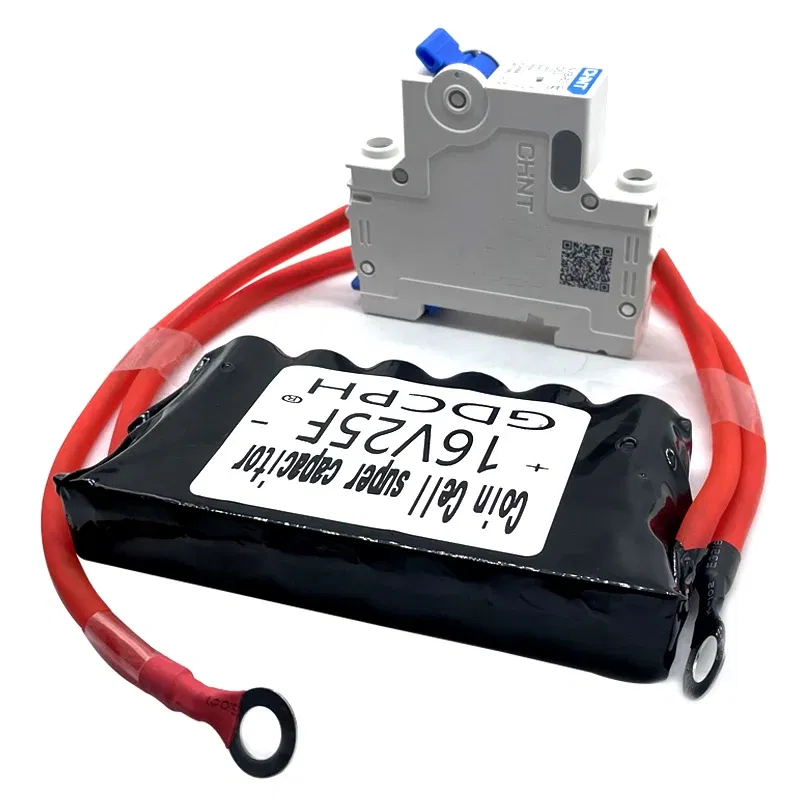

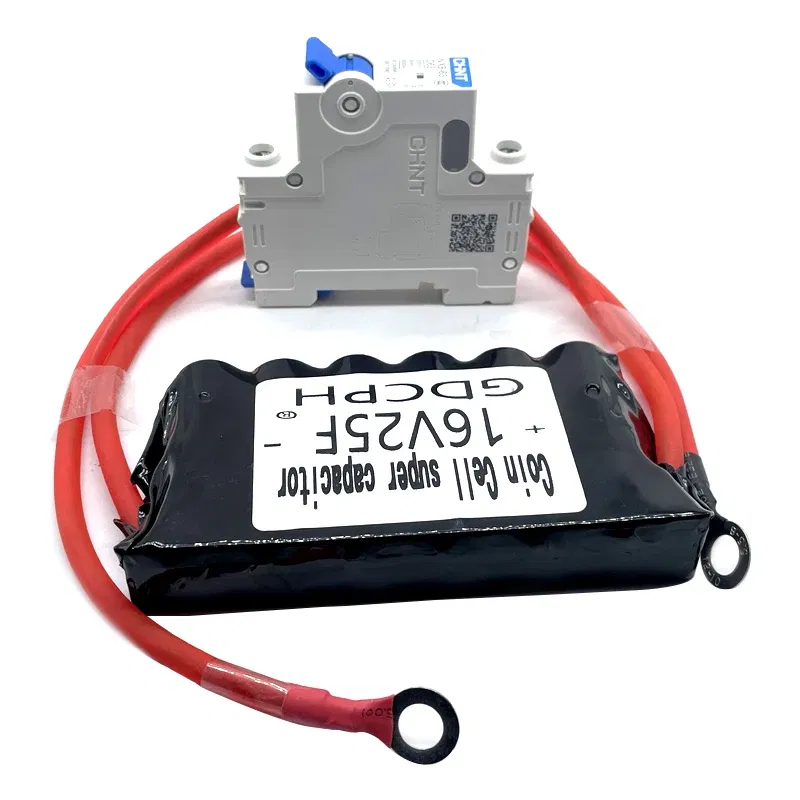

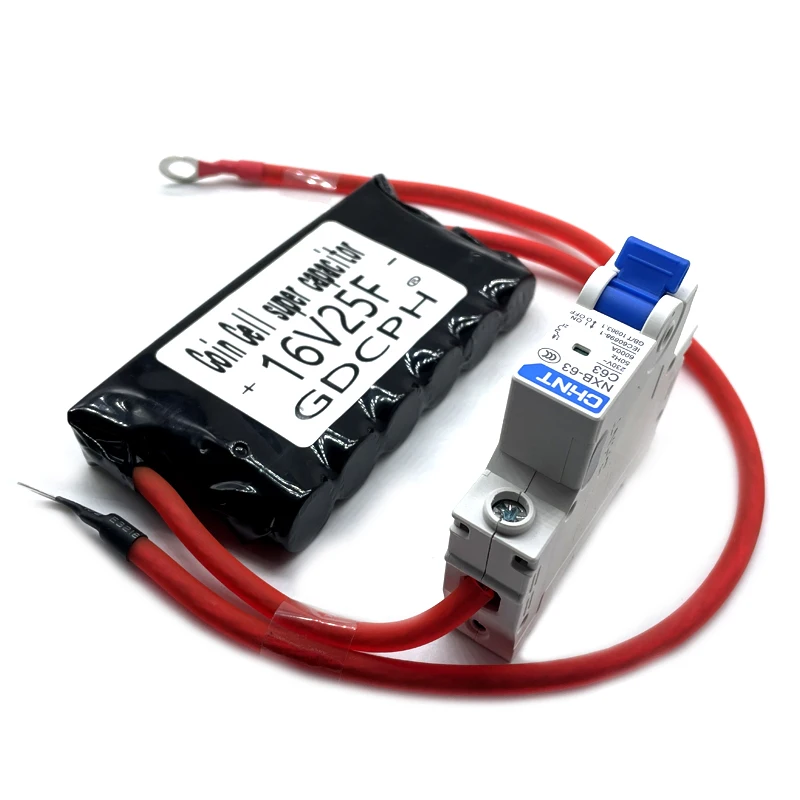

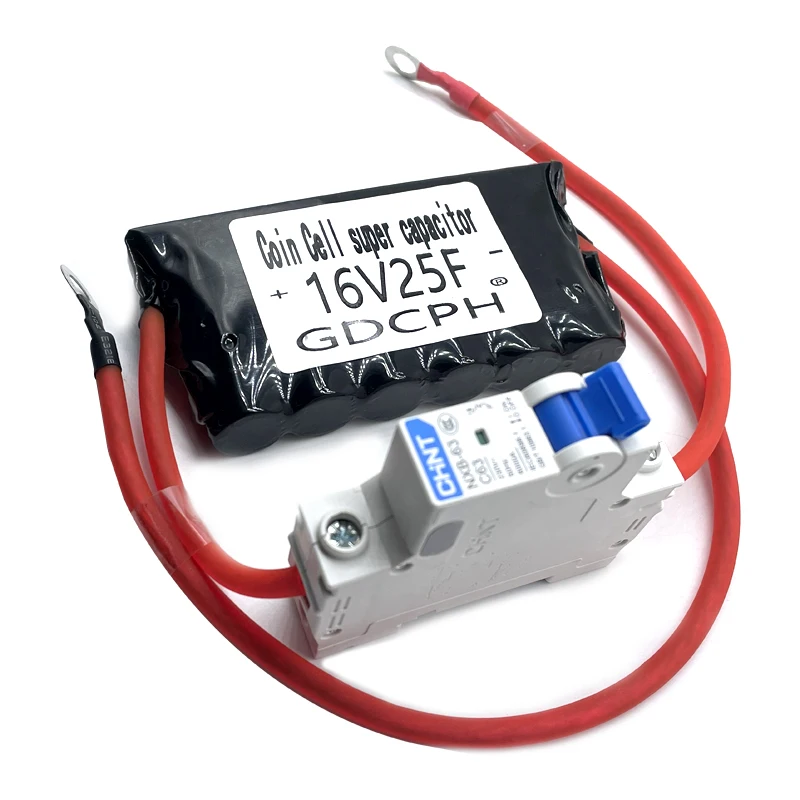

Product Name: 16V25F Automotive Rectifier Module With Air Open Version

Brand Name: GDCPH

Material: Aluminum

Color: Black

Capacitor Category: Aluminum Electrolytic Capacitor

Voltage: 0-16V

Capacity: 25F

Volume: L*W*H: 124mm*21mm*63mm (Please allow 1-3mm error due to manual measurement. pls make sure you do not mind before you bid)

Weight: 272g

Working Temperature: -20℃~70℃

Package Included：1* GDCPH 16V25F Super Capacitor Rectifier Module

Characteristics of Supercapacitor:

1. High current discharge capacity. High energy conversion efficiency, low process loss, high current energy cycle efficiency ≥ 90%, high power density, equivalent to 5~10 times of the battery;

2. Fast charging speed. Charging for 10 seconds to 10 minutes can reach more than 95% of the rated capacity;

3. The cycle life is long, and the number of deep charging and discharging cycles can reach 100000~500000;

4. Excellent ultra-low temperature characteristics, temperature range - 20~+70 ℃;

5. The raw materials, production, use, storage and disassembly process of the product are free of pollution.
