Description:

【Note】

[] Do not include Raspberry Pi5, Please Buy alone.

【Features】

[] Integrated, temperature-controlled cooling fan that connects to the fan connector on Raspberry Pi 5

[] 2mm × 17mm × 4mm heatsink with self-adhesive pad improves heat transfer from the processor

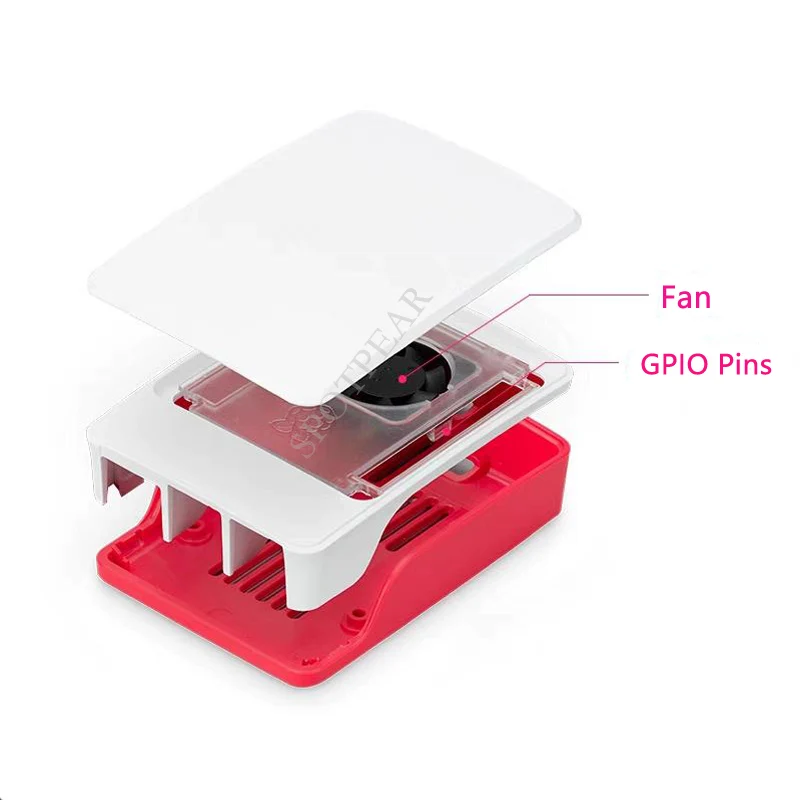

[] Easily removable lid exposes fan and breakout slot for cables and GPIO

[] Integrated mounting features allow for case stacking

[] HATs can be mounted to the enclosure with stand-offs and GPIO header extenders (not included)

[] Four silicone feet for the case are included

【Specification】

[] Input voltage: 5V DC supplied via four-pin fan header on Raspberry Pi 5

[] Fan speed control: Pulse width modulation control with tachometer

[] Maximum airflow: 2.79 CFM

[] Maximum fan speed: 8000 RPM +/- 15%

[] Case material: ABS (base, frame, lid) and PC (fan assembly)

【Based On Raspberry Pi 5】

[] Matching The Size And Mounting Holes Of The Raspberry Pi 5

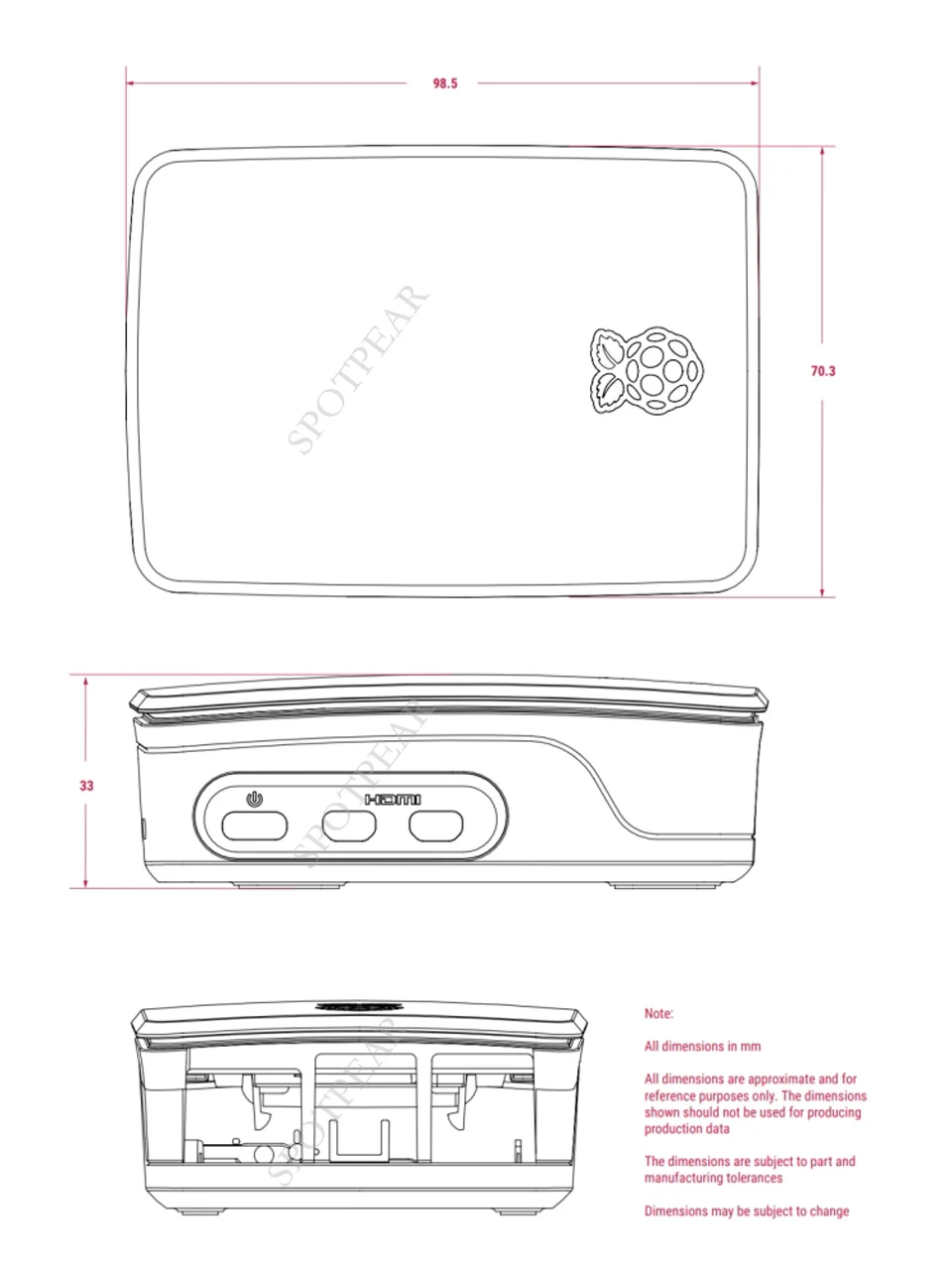

【Outline Dimensions】

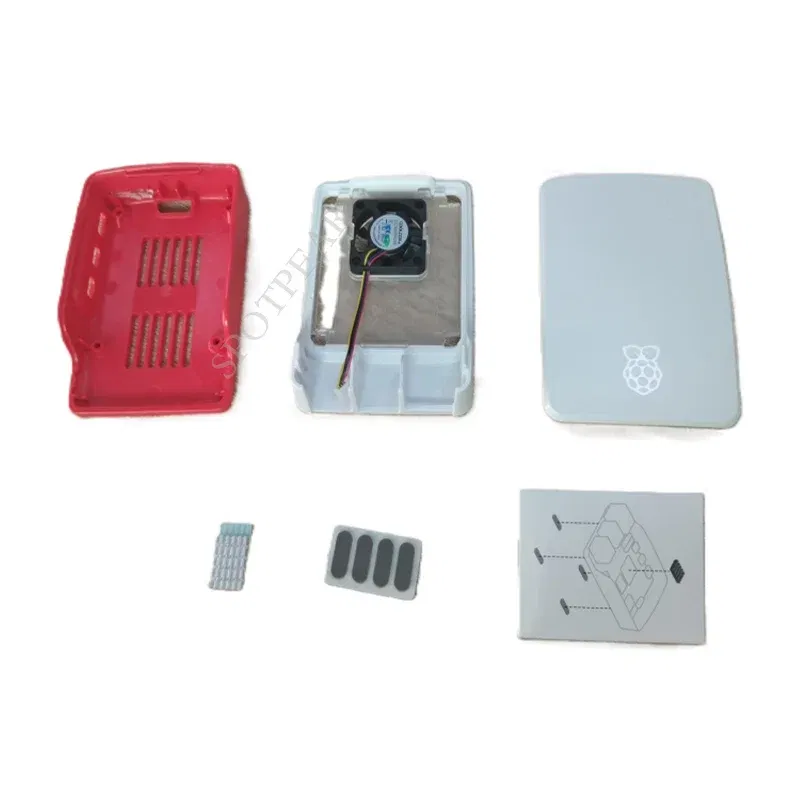

[] Case × 1
