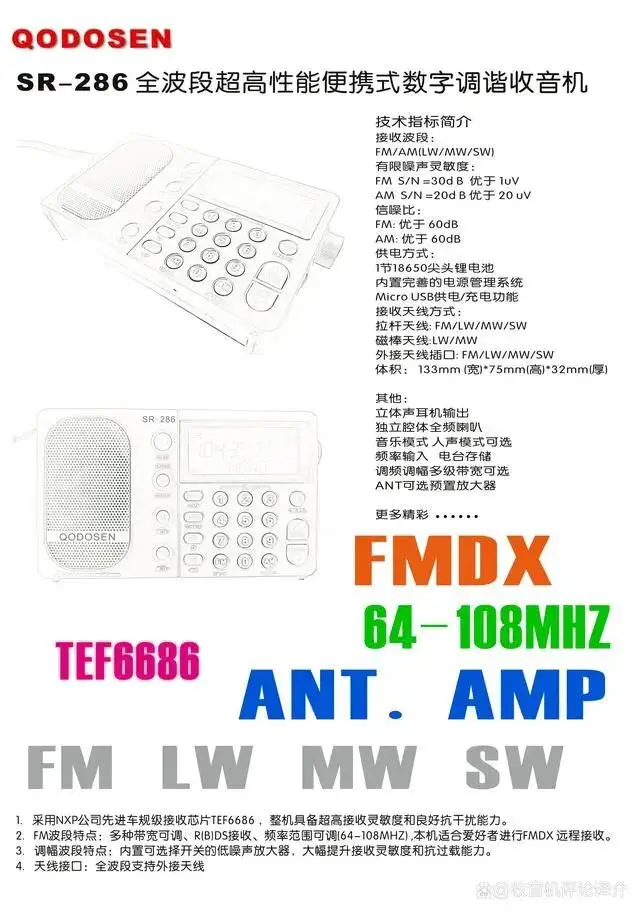

Receiving band: FM/AMILW/MW/SW)


Limited operating sound sensitivity: FMS/N=30dB better than luVAMS/N=20dB better than 20uV


Signal to noise ratio: FM: better than 60d8AM: better than 60dB


Power supply method: 1 18650 pointed lithium battery


Built in comprehensive power management system


Micro USB powered charging function


Receiving antenna method: rod antenna F


MLw/Mwsw magnetic rod antenna Lw/Mw


External antenna socket: FM/LW/MW/sw


Volume; 133mm (· 75mm high 32mm

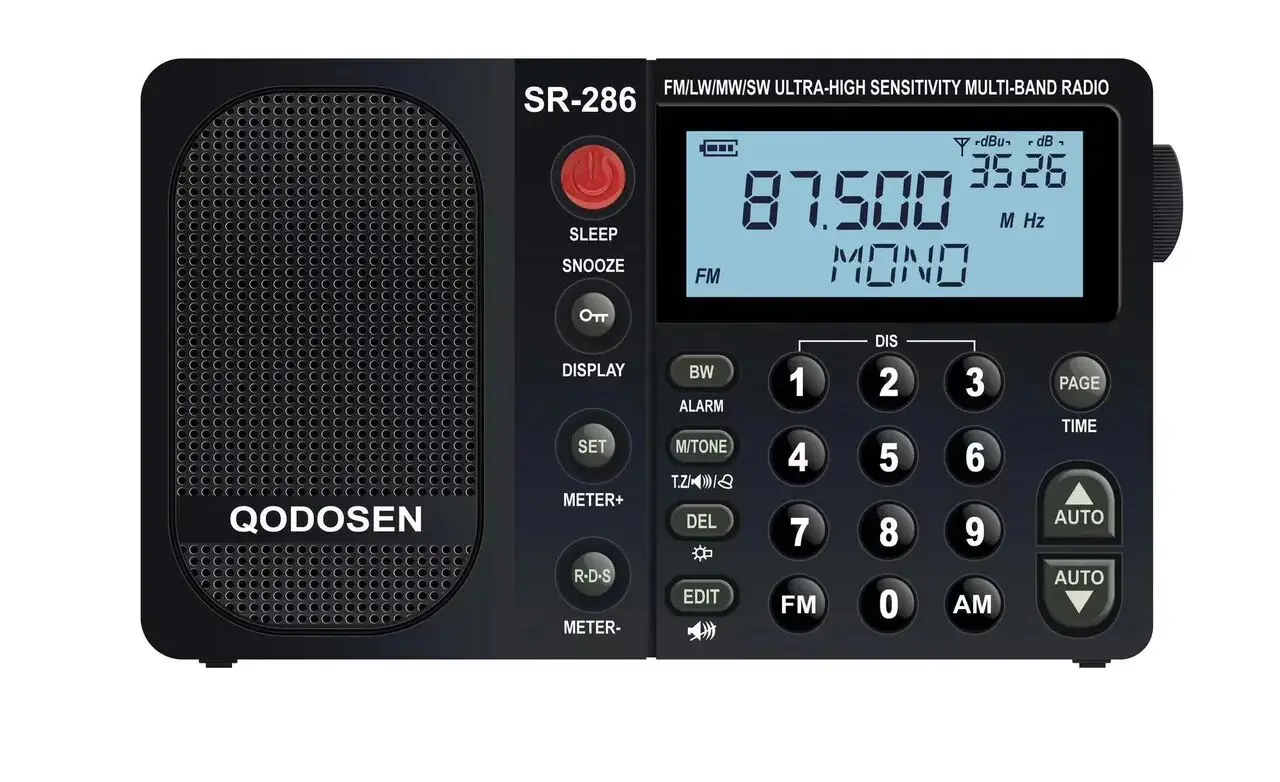

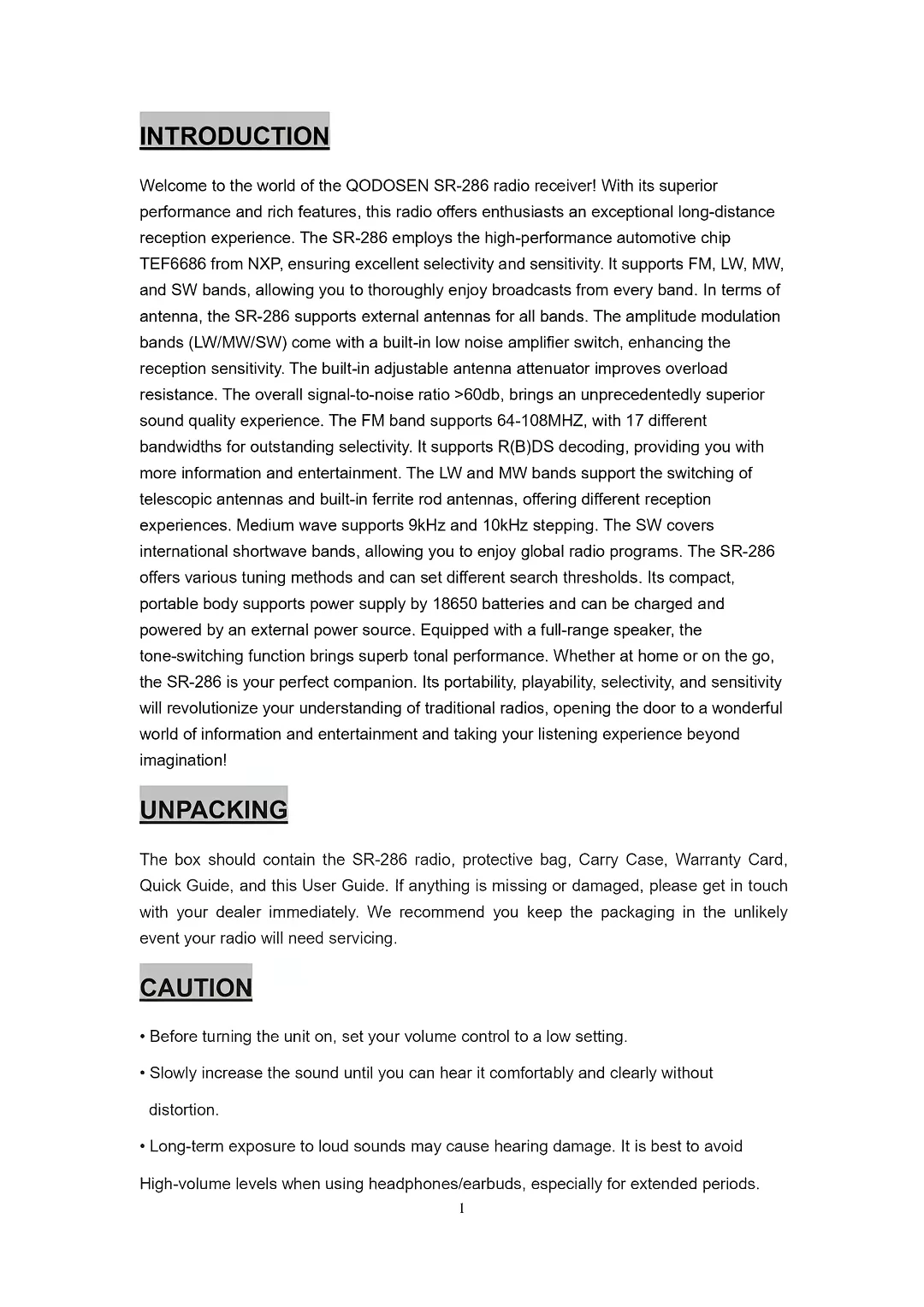

Q: What are the outstanding highlights of the new SR-286 mini radio?



Answer: The main highlights include the following aspects:

① Adopting NXP's advanced vehicle level receiving chip TEF6686, the entire machine has ultra-high receiving sensitivity and good anti-interference ability.

② FM band features: multiple adjustable bandwidths, R (B) DS reception, and adjustable frequency range (64-108MHz). This machine is suitable for enthusiasts to remotely receive FMDX.

③ AM band characteristics: A low noise amplifier with built-in selectable switches greatly improves reception sensitivity and overload resistance.

④ Antenna interface: Full band support for external antennas.



Q: Does SR-286 have a sleep shutdown function?



Answer: Yes, there are 1-99 minute sleep shutdowns available for free selection, and there are two settings available: one is to briefly press the number button to input directly, and the other is to rotate the shuttle for setting.



Q: How many bands are there in SR-286?



Answer: It has four bands: frequency modulation, medium wave, short wave, and long wave. It does not have an aviation band and cannot receive single sideband signals.



Q: Is it convenient to switch bands?



Answer: If switching from another band to the FM band, briefly press the FM button; if switching from the FM band to another band, frequently press the AM button, and the radio will cycle between long wave, medium wave, and short wave.
