Description:

Style: Portable
Origin: Mainland China
Function: Built-In Speaker
Function: Built-in Amplifier
Type: AM / FM
Type: FM(化妆品)
Type: MW
Type: SW
Type: LW
Package: Yes
Body Material: Aluminum
Dimensions (WxHxD): 10*10*4cm

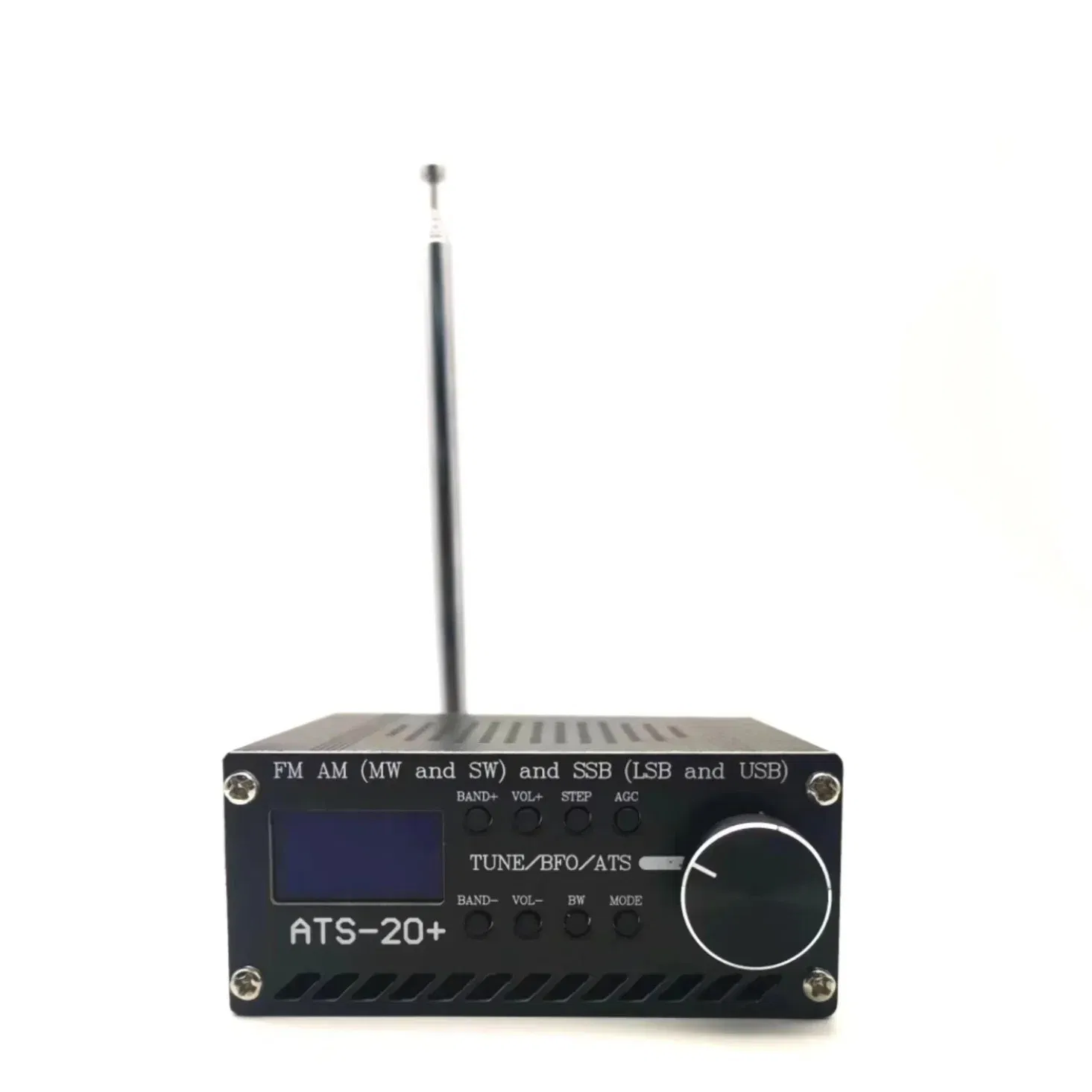

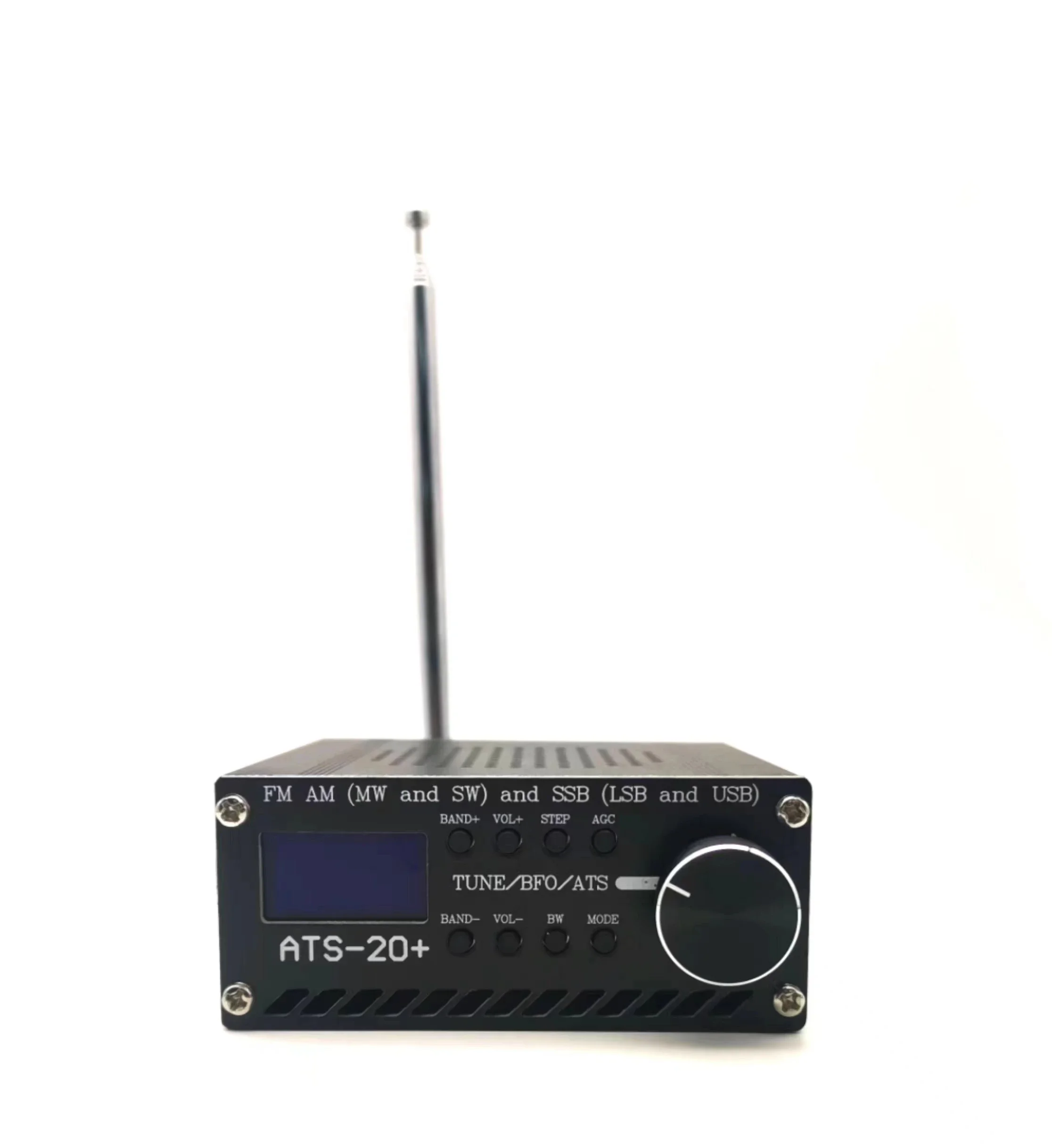

Model Number: ATS-20
Bluetooth: No
Power Supply: Rechargeable Battery Pack

(3)ats20 plus 1024: As the ATS20+ exclusively produced by sdr 1024

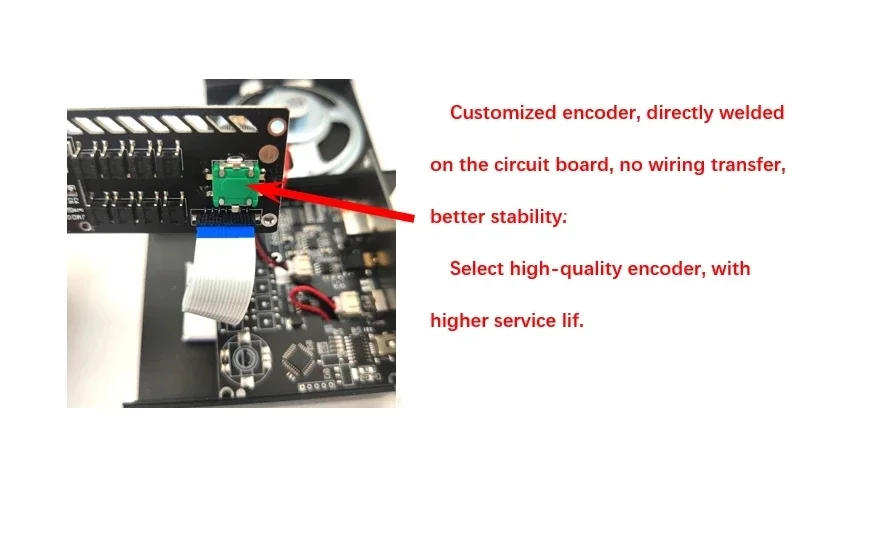

The encoder of ATS-25 is used, with long service life and better hand feel

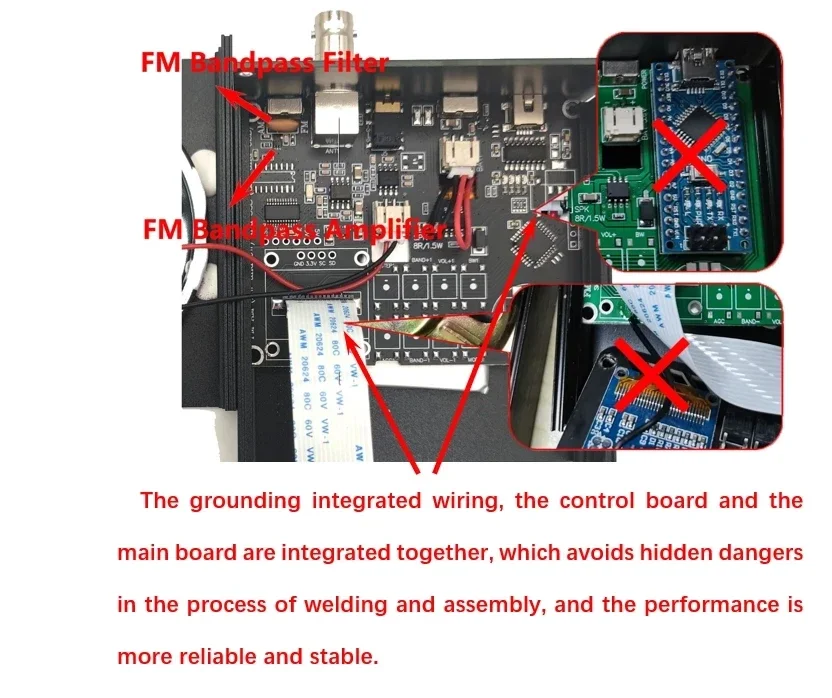

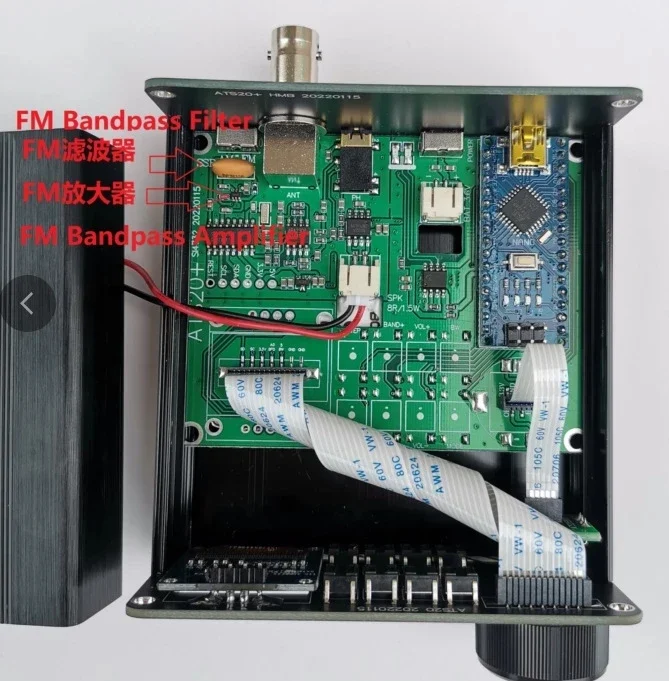

FM amplifier and M filter are added.

Use the knob cap of ATS-25

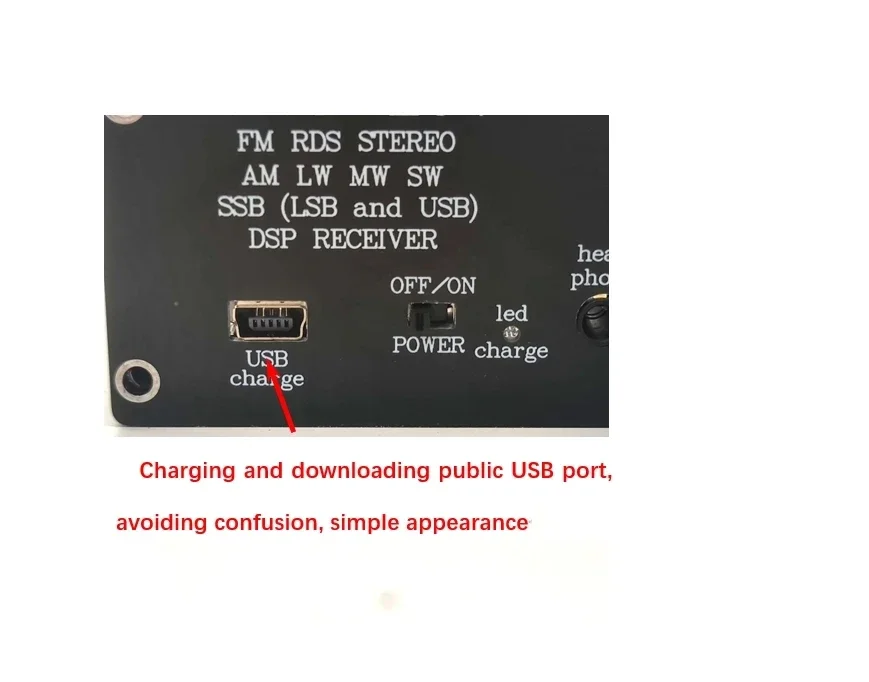

USB charging and downloading synchronization interfaces are added, and no more interfaces are added

Features:
Use a 3.7v lithium battery.
Support USB charging and downloading.
output supports headset 3.5mm.
Support 4ohm speaker 3W output.
FM supports earphone antenna.

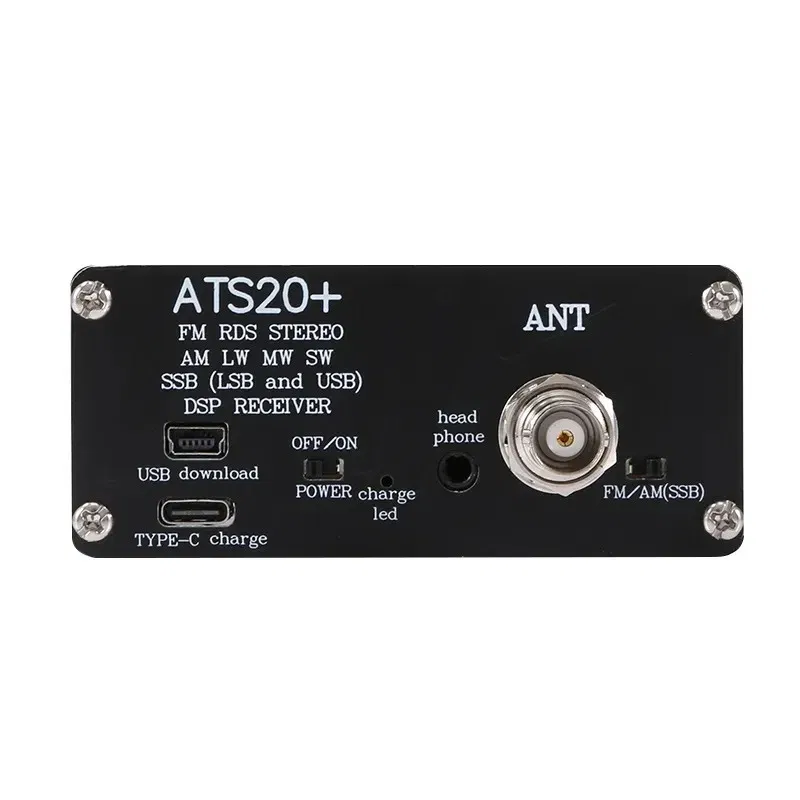

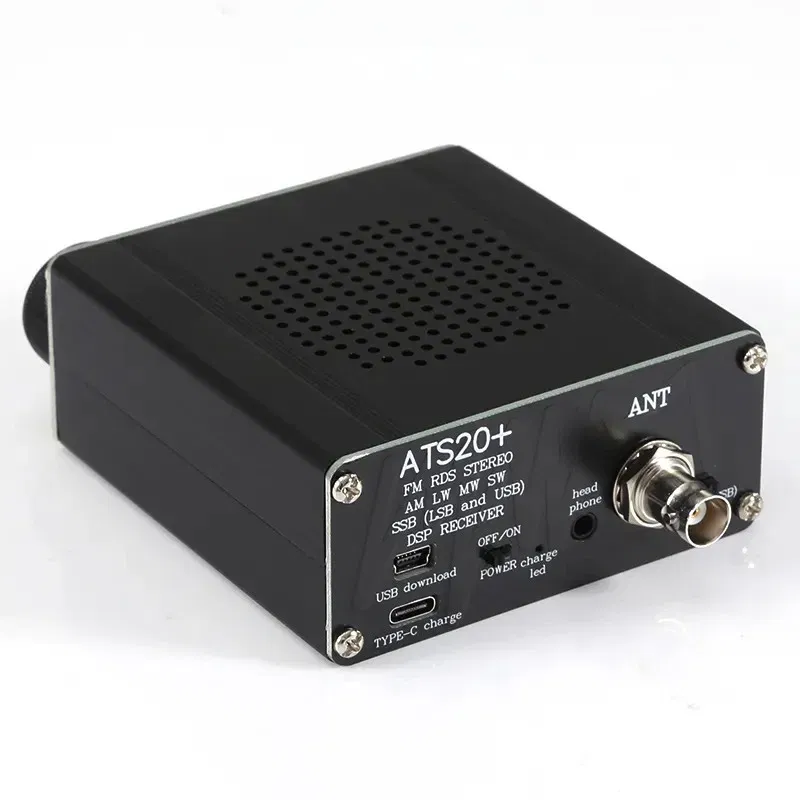

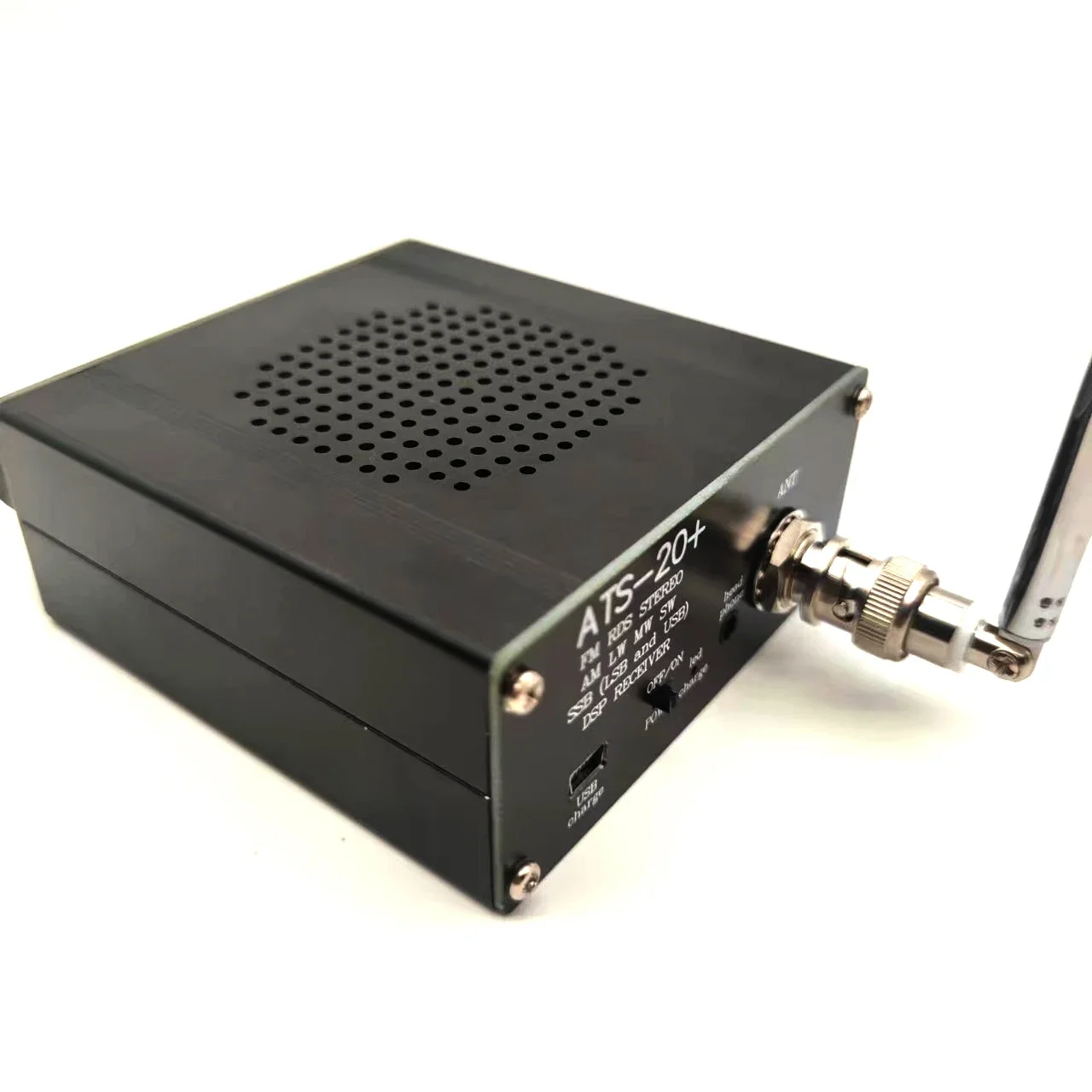

Antenna interface uses BNC.

Size: 88x88x38mm.
Si4732 and si4735 are compatible. Users can change the chip by themselves, and
the software is compatible.

Specification:
1) FM,AM (MW and SW) and SSB (LSB and USB);
2) bandwidth filter 1,1.8,2,2.5,3,4,6kHz;
3) 22 commercial and ham radio bands preconfigured;
4) BFO Control;
5) Frequency step switch (1,5 and 10KHz);
Band band[]=
{FM_BAND_TYPE, 8400, 10800, 10430, 10},
{LW_BAND_TYPE, 100, 510, 300, 1},
{MW_BAND_TYPE, 520, 1720, 810, 10},
{SW_BAND_TYPE, 1720, 3500, 1900, 1}, // 160 meters
{SW_BAND_TYPE, 3500, 4500, 3700, 1}, // 80 meters
{SW_BAND_TYPE, 4500, 5500, 4850, 5},
{SW_BAND_TYPE, 5500, 6300, 6000, 5},
{SW_BAND_TYPE, 6300, 7800, 7050, 5}, // 40 meters
{SW_BAND_TYPE, 7800, 10000, 9600, 5},
{SW_BAND_TYPE, 10000, 11000, 10100, 1}, // 30 meters
{SW_BAND_TYPE, 11000, 12500, 11940, 5},
{SW_BAND_TYPE, 12500, 13900, 13600, 5},
{SW_BAND_TYPE, 13900, 14500, 14270, 1}, // 20 meters
{SW_BAND_TYPE, 14500, 15900, 15300, 5},
{SW_BAND_TYPE, 15900, 17900, 17600, 5},
{SW_BAND_TYPE, 17900, 18300, 18100, 1}, // 17 meters
{SW_BAND_TYPE, 18300, 21900, 21200, 1}, // 15 mters
{SW_BAND_TYPE, 21900, 26200, 24940, 1}, // 12 meters
{SW_BAND_TYPE, 26200, 27900, 27500, 1}, // CB band (11 meters)
{SW_BAND_TYPE, 27900, 30000, 28400, 1}}; // 10 meters


Note:

1.Please allow ±5cm error
due to manual measurement. pls make sure you do not mind before you bid.

2.Due to the difference between different monitors, the picture may not reflect
the actual color of the item. Thank you!

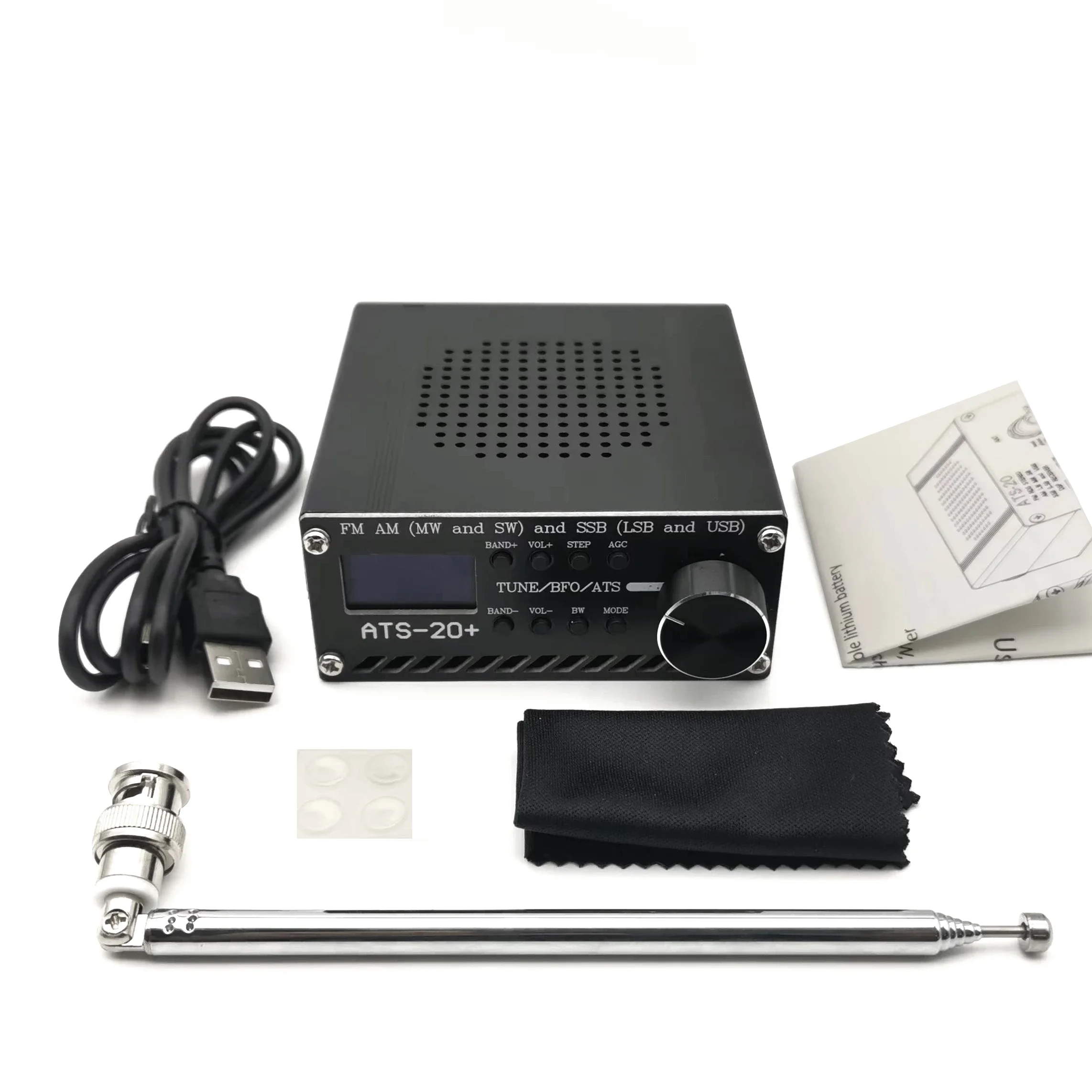

Package includes:
SI4732machine×1

Mini-USB data line×1

BNC head tie rod
antenna×1

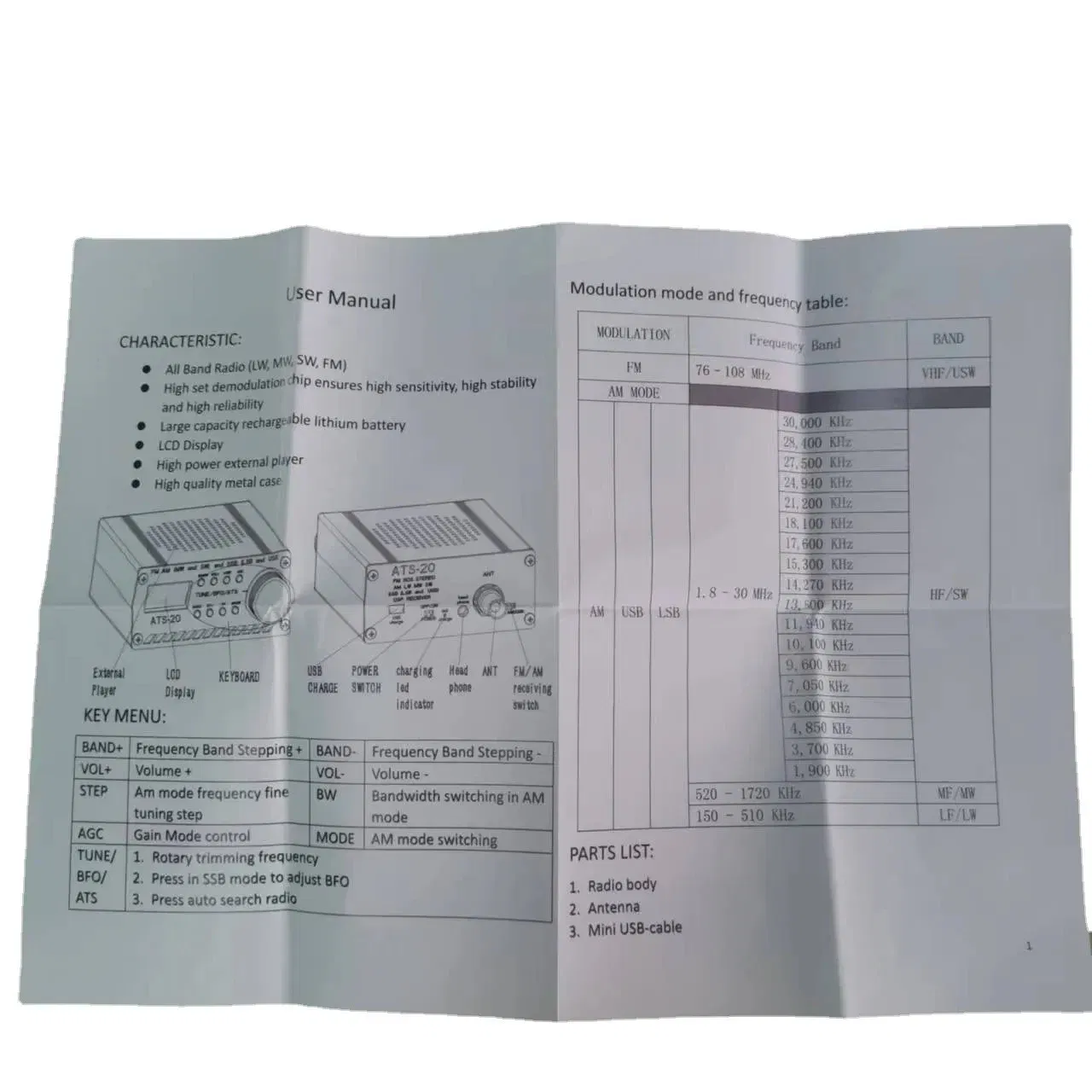

Radio instructions×1

Upgrade from ATS-20 version to ATS -20+(SDR1024 version)

Q: Is there any difference between ATS20+and ATS20+1024

Answer: ATS20+1024 adds scanning without rotary encoder/better noise reduction function/new USB charging and downloading synchronization interface, instead of adding interface, it is recommended to purchase ATS20+1024

Q: What is parcel logistics

Answer: Generally, there are DHL options for delivering worry free standard logistics

Q: How long is the delivery time

A: Usually within 1-3 days

Q: Does the receiver cover AM 108-136 MHz?

A: No, only 76-108 MHz
