3256808142136129
$683.92 NZD
Description:
Origin: MY(Origin)Hign-concerned Chemical: None
Package: Yes
Feature: SPEAKER
Hign-concerned Chemical: None
Cooling system: no
Usage Scenario: Gaming
MAX BOOST CLOCK: 5GHz
PCIe VERSION: PCIe 5.0
Support Memory Channels: 2
Support Memory Type: DDR5
Support Chipset Models: AMD Others
Default TDP / TDP: 120W
Number OF Therads: 16
L3 Cache Capacity: 96MB
L2 Cache Capacity: 8MBMB
Unlocked: no
GPU-built: YES
Number of Cores: Eight Core
Chip Process: 7nanometers
Package: Yes
Processor Type: AMD Ryzen 7000 Series-R7
Type: Octa Core
Socket Type: AM5
Application: Desktop

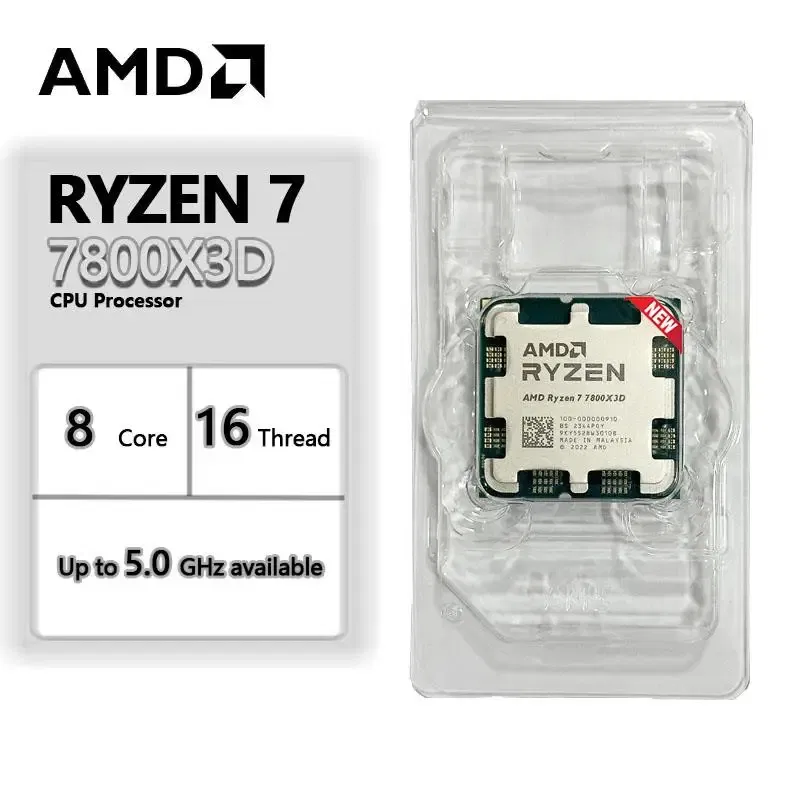

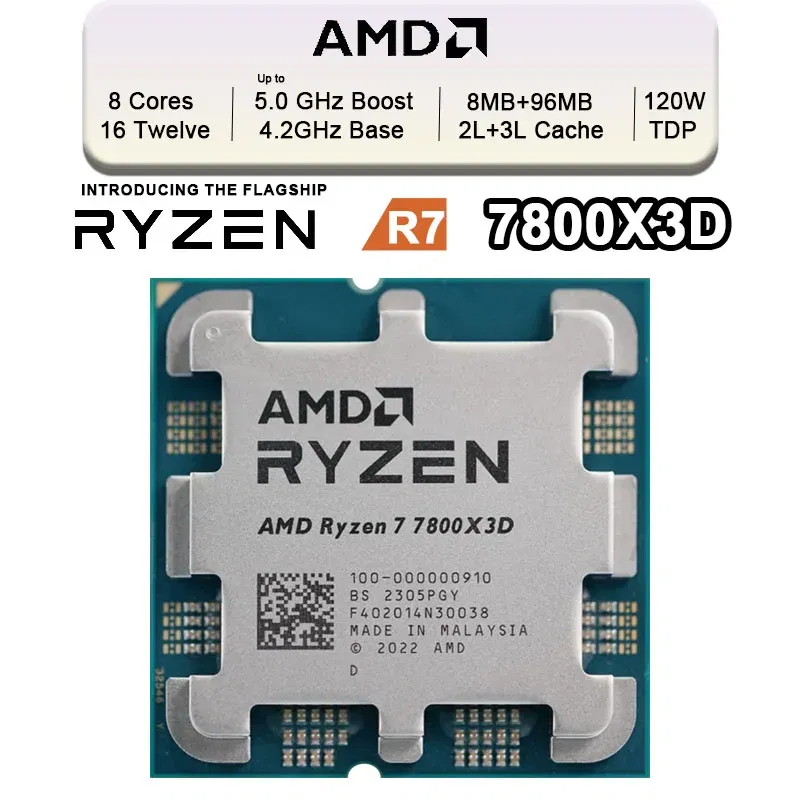

AMD Model: R7-7800X3D RYZEN 7 7800X3D
Origin: MY(Origin)
Warranty: Three years warranty
Chip Process: 5 Nanometers
CPU brand is brand new and genuine. CPU manufacturing site is randomly sent and cannot be specified (China Malaysia)
AMD Ryzen 7 7800X3D specifications
General information
Type
CPU / Microprocessor
Market segment
Desktop
Family
AMD Ryzen 7
Model number?
7800X3D
CPU part numbers
100-100000910is an OEM/tray microprocessor
100-100000910WOFis a boxed processor without fan and heatsink
Maximum turbo frequency
5 GHz / 5000 MHz
Package
1718-pin lidded Land Grid Array (LGA)
Socket
Socket AM5
Estimated release date
January 04, 2023 (announcement)
February 2023 (availability)
Architecture / Microarchitecture
Instruction set
x86
Microarchitecture
Zen 4
Processor core?
Raphael
Manufacturing process
TSMC 0.005 micron FinFET process (CPU die)
TSMC 0.006 micron FinFET process (I/O die)
Die
71mm2(CPU die)
122mm2(I/O die)
Data width
64 bit
The number of CPU cores
8
The number of threads
16
Floating Point Unit
Integrated
Level 1 cache size?
8 x 32 KB instruction caches
8 x 32 KB data caches
Level 2 cache size?
8 x 1 MB caches
Level 3 cache size
96 MB shared cache
Physical memory
128 GB
Multiprocessing
Uniprocessor
Extensions & Technologies
MMX instructions
Extensions to MMX
SSE Streaming SIMD Extensions
SSE2 Streaming SIMD Extensions 2
SSE3 Streaming SIMD Extensions 3
SSSE3 Supplemental Streaming SIMD Extensions 3
SSE4 SSE41 SSE42 Streaming SIMD Extensions 4
SSE4a?
AES / Advanced Encryption Standard instructions
AVX / Advanced Vector Extensions
AVX2 / Advanced Vector Extensions 2.0
AVX-512 / Advanced Vector Extensions 512
BMI / BMI1 + BMI2 / Bit Manipulation instructions
F16C / 16-bit Floating-Point conversion instructions
FMA3 / 3-operand Fused Multiply-Add instructions
SHA / Secure Hash Algorithm extensions
AMD64 / AMD 64-bit technology?
SMT / Simultaneous MultiThreading
AMD-V / AMD Virtualization technology
Precision Boost 2
Security Features
EVP / Enhanced Virus Protection?
Low power features
Pure Power[1]
Integrated Graphics Processing Unit
GPU Type
Radeon
Shader cores
128
Base frequency (MHz)
400
Maximum frequency (MHz)
2200
Integrated peripherals / components
Memory controller
Memory channels (total): 2
Supported memory: DDR5-5200
ECC supported: Yes
Other peripherals
PCI Express 5.0 interface (24 lanes)
Supported interfaces
USB-C interface
USB 3.2 Gen 2 (4 ports)
USB 2.0 (1 port)
Electrical / Thermal parameters
Maximum operating temperature?
89°C
Thermal Design Power?
120 Watt
Notes on AMD Ryzen 7 7800X3D
The CPU package contains 1 CPU die and 1 I/O die
[1] - Information is not confirmed
==========
Hign-concerned Chemical : None
Cooling system : no
Usage Scenario : Gaming
MAX BOOST CLOCK : 5GHz
PCIe VERSION : PCIe 5.0
Support Memory Channels : 2
Support Memory Type : DDR5
Support Chipset Models : AMD Others
Default TDP / TDP : 120W
Number OF Therads : 16
L3 Cache Capacity : 96MB
L2 Cache Capacity : 8MBMB
Unlocked : no
GPU-built : YES
Number of Cores : Eight Core
Chip Process : 7nanometers
Package : Yes
Processor Type : AMD Ryzen 7000 Series-R7
Type : Octa Core
Socket Type : AM5
Application : Desktop
AMD Model : R7-7800X3D RYZEN 7 7800X3D
Origin : MY(Origin)
Warranty : Three years warranty
Chip Process : 5 Nanometers
