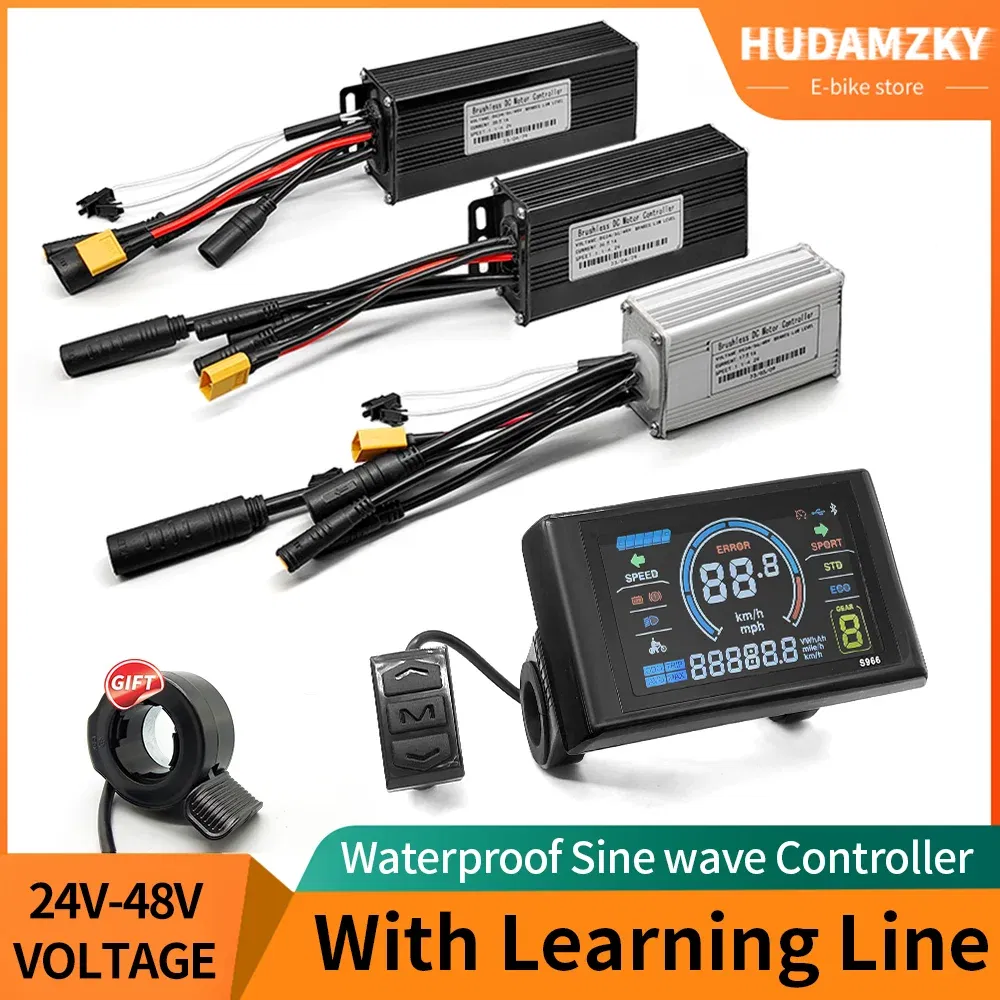

Color: Dark Grey - Ebike Sine Wave Waterproof Controlle 17A 26A 30A, with Color S966 Display Compatible Hall and Hall free Hub Motor Controller

Description:

Attention

1.XT60 Battery Connector,If you need to change the connector , please contact customer service

Features:

The Display is easy to install, with clear screen display and powerful functions

Brushless Hub Motor for 350W-1000W, Electric Bike, Electric Bike Kit

The controller has a headlight function, making it more convenient and safe for you to ride at night

Parameter：

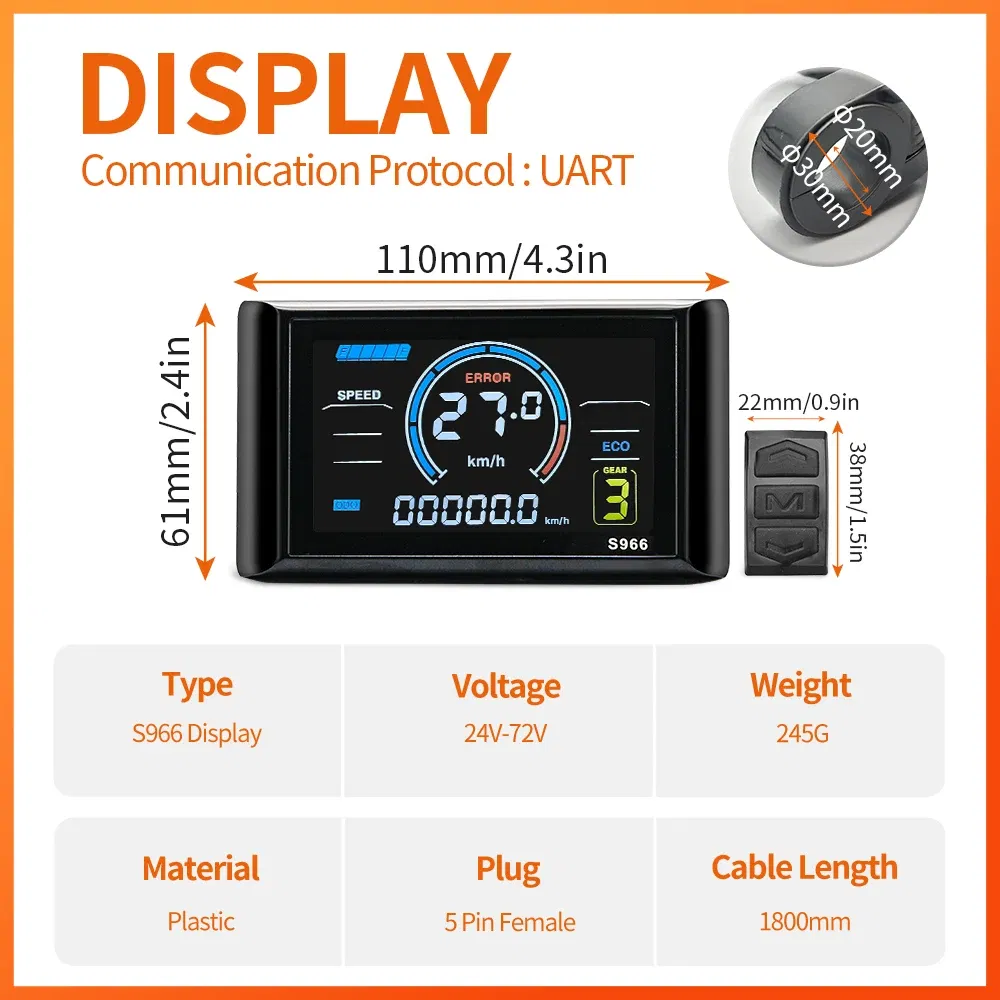

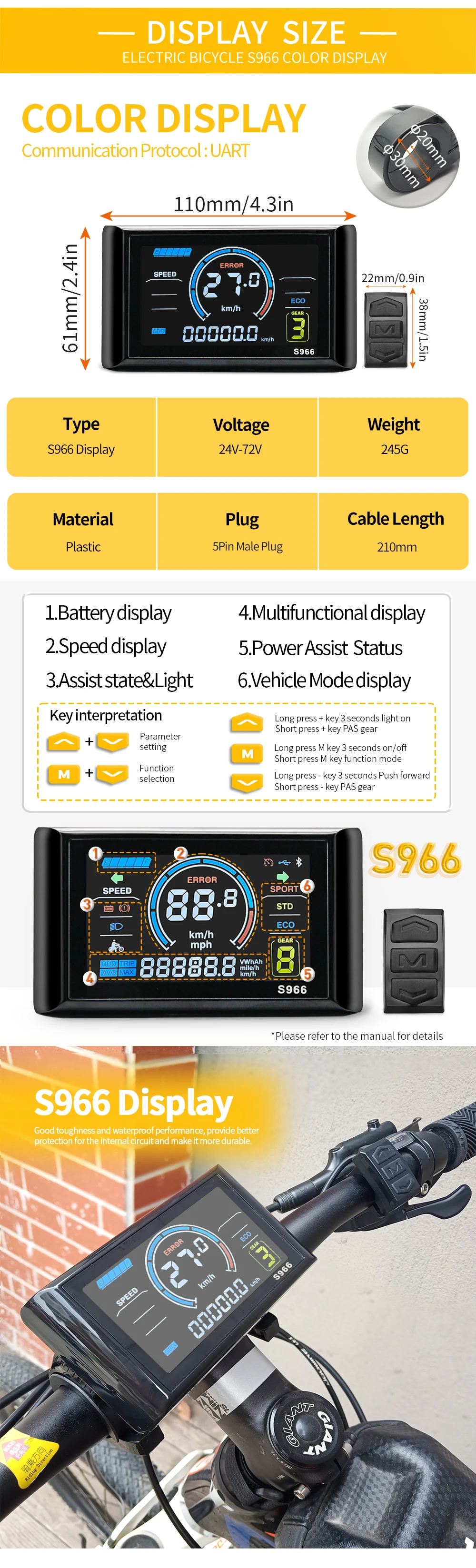

LCD Display

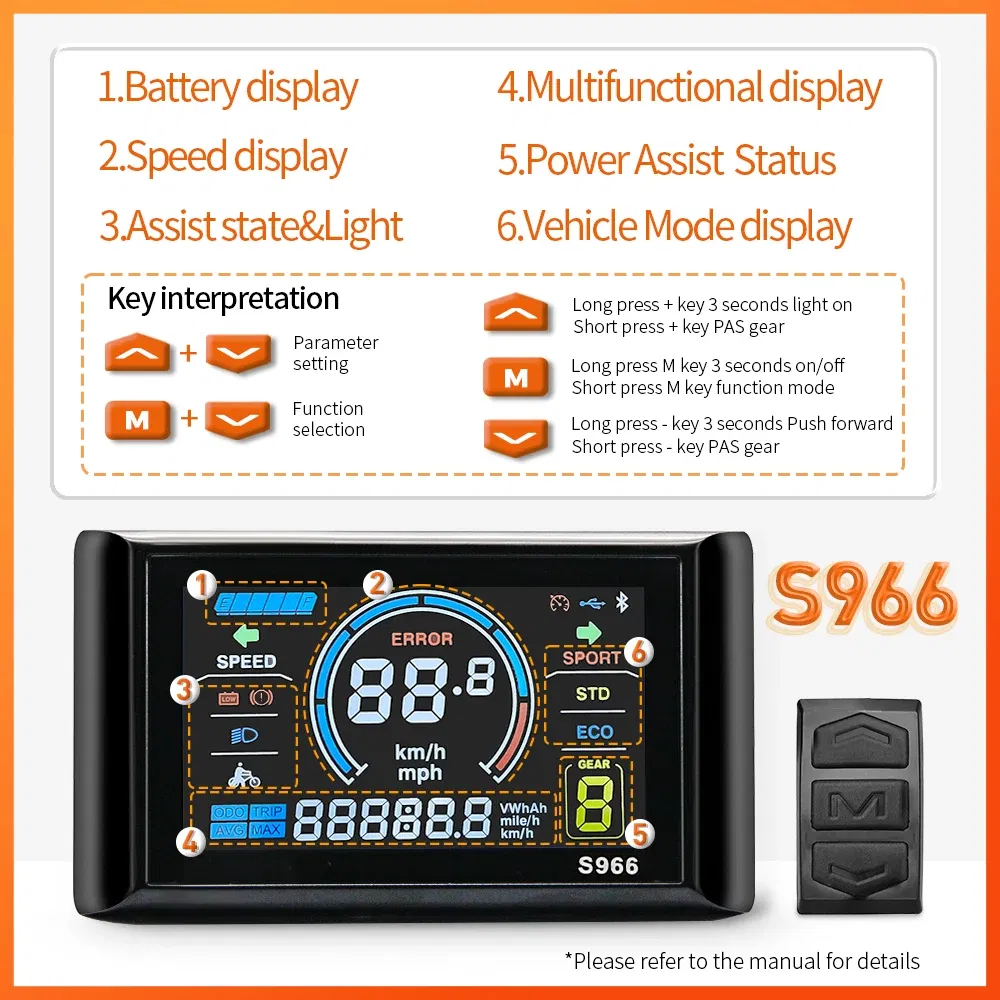

• Type : S966 Color LCD Display

• Voltage : 24V 36V 48V 52V

• Plug : 5Pin Female SM Plug

• Holder Diameter :φ22mm

• Cable Length: 30cm ( SM )

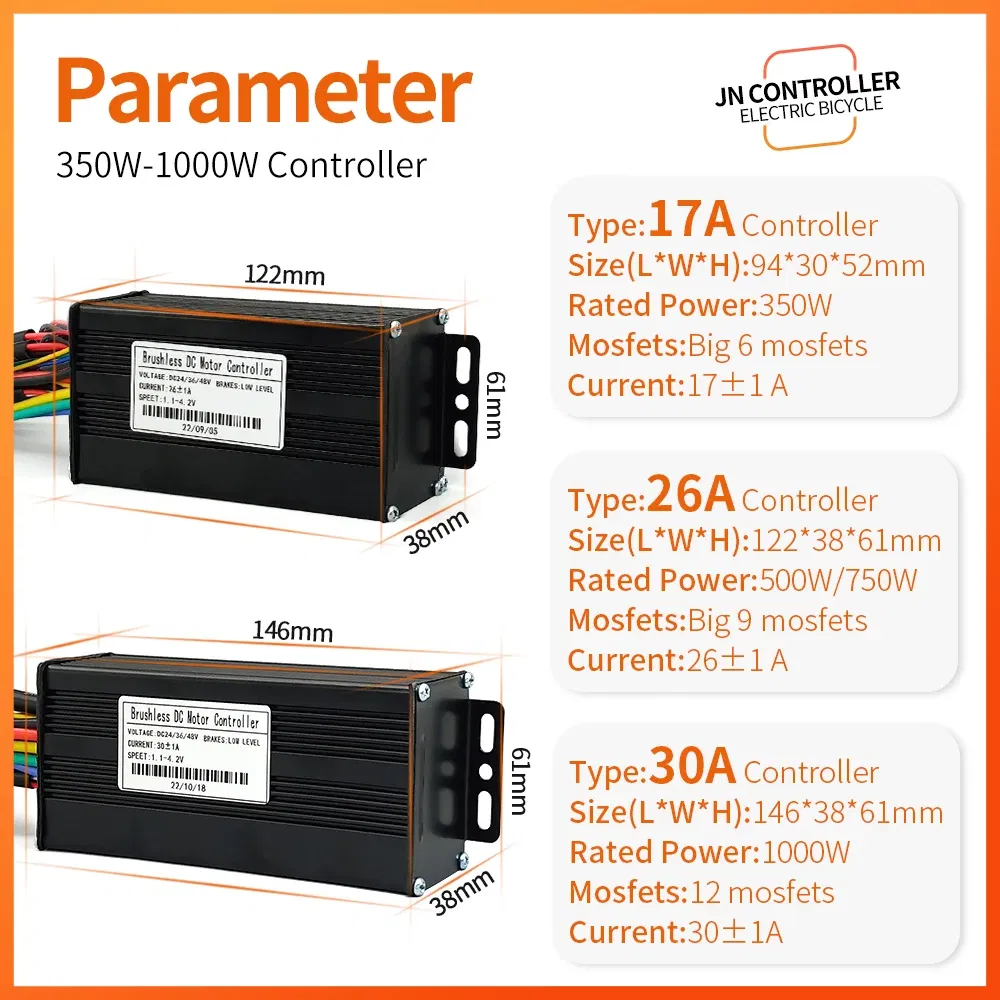

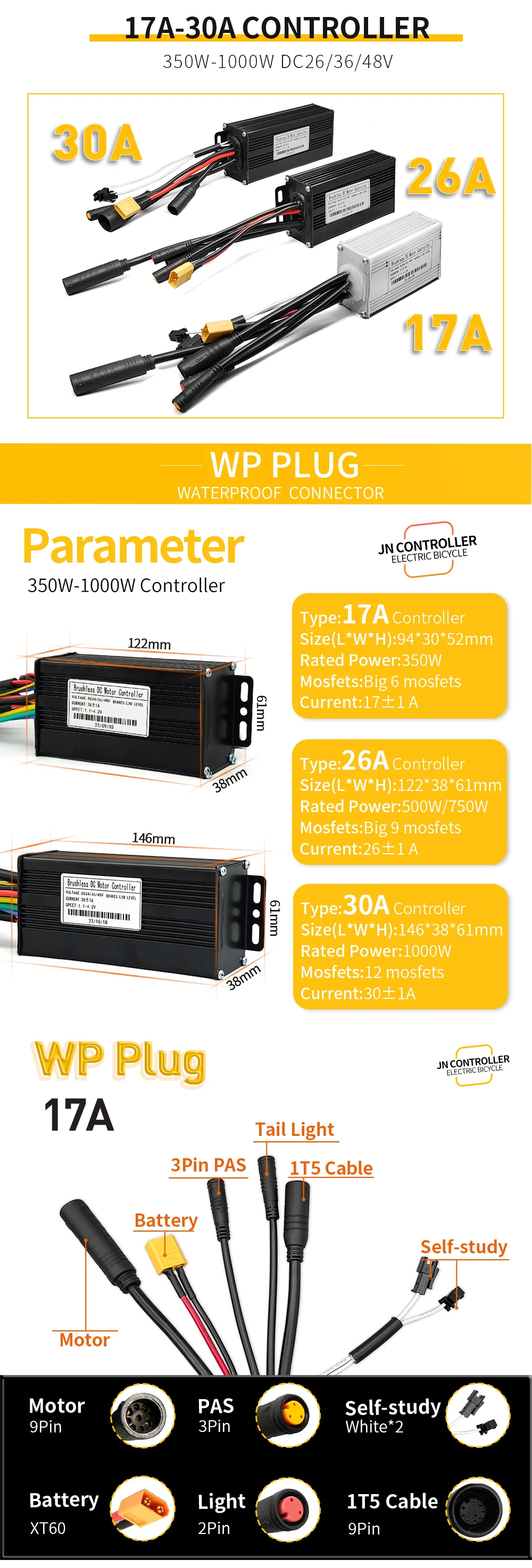

Controller

• Type:17A Sine WaveController

• Size(L*W*H):About 94*30*52mm

• Rated Power:350W

• Speed Set:1.1-4.2V

• Mosfet:Big 6 Mosfets

• Booster:1:5

• Brakes:Low-Level

• Rated Voltage:DC36/48V

• Compatible with motors with or without Hall

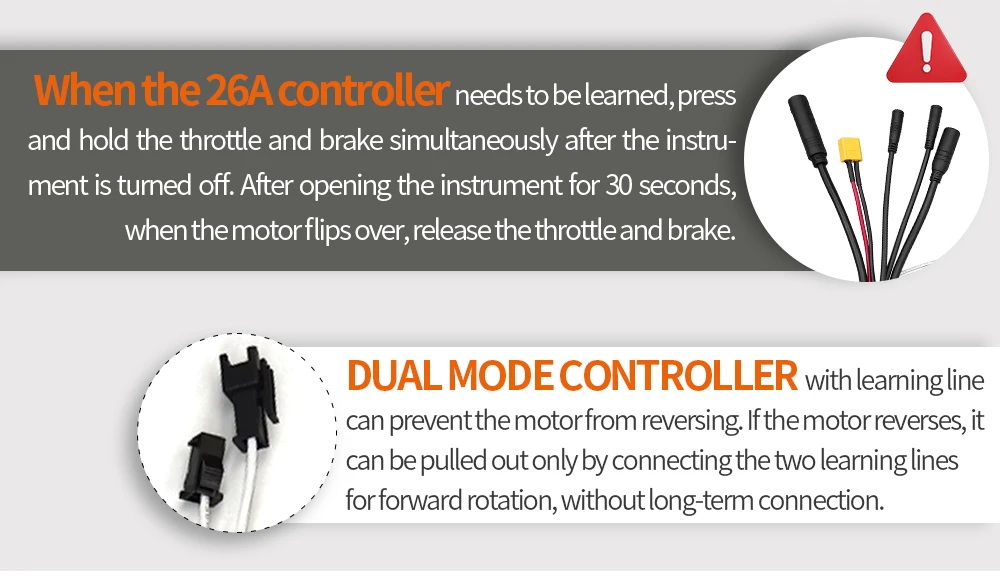

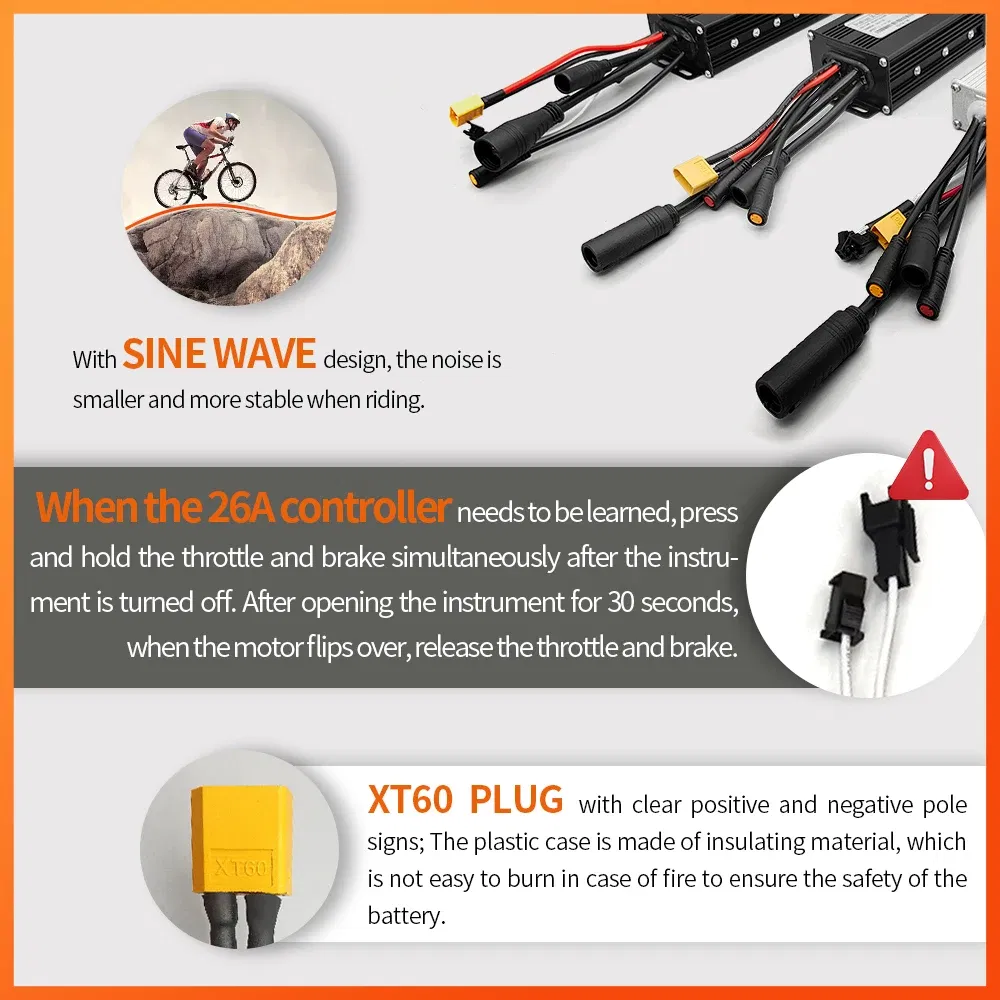

• With motor forward and reverse learning function

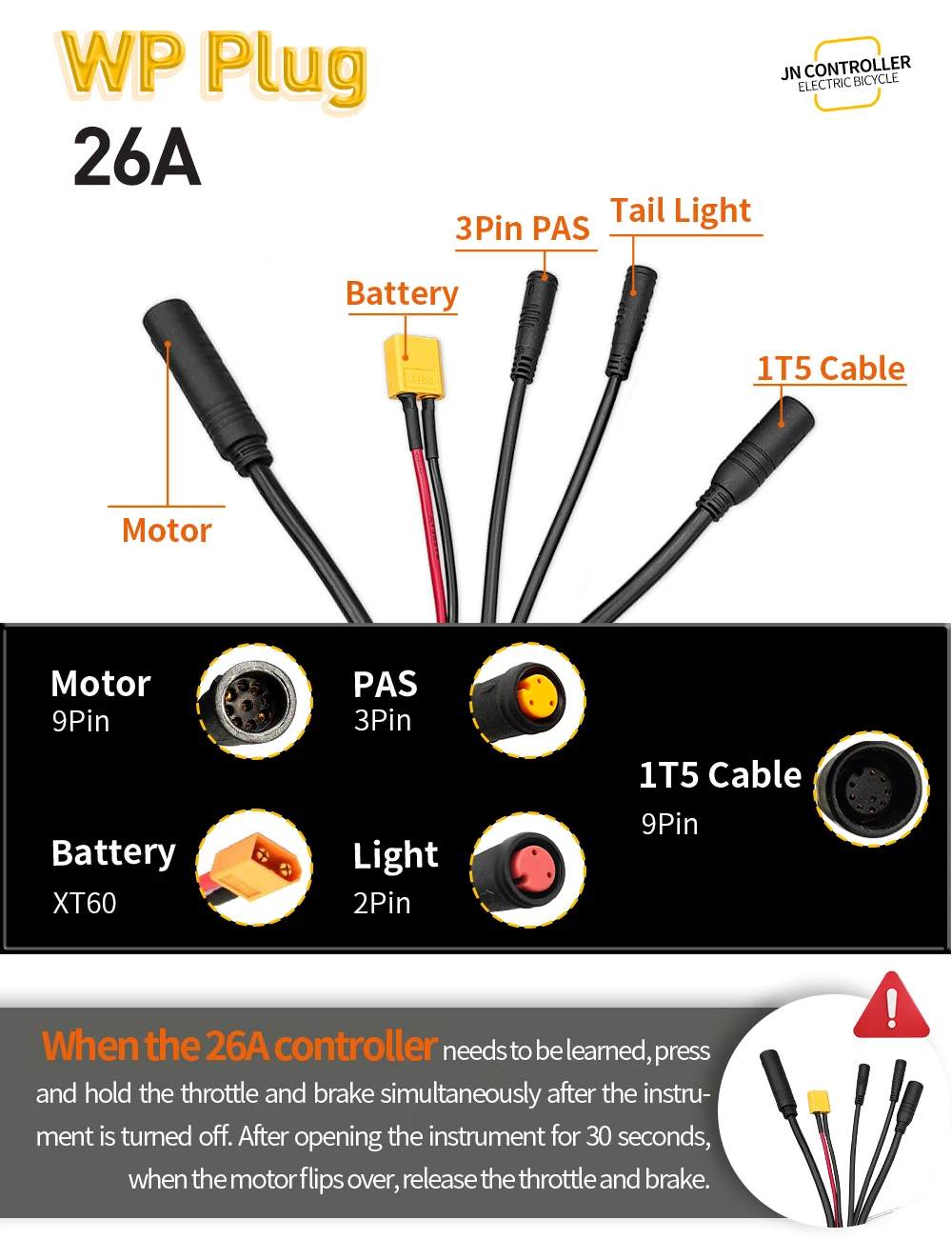

• Type:26A Sine WaveController

• Size(L*W*H):About 124*38*62mm

• Rated Power:500W/750W

• Speed Set:1.1-4.2V

• Mosfet:Big 9 Mosfets

• Booster:1:5

• Brakes:Low-Level

• Rated Voltage:DC36/48V

• Compatible with motors with or without Hall

• With motor forward and reverse learning function

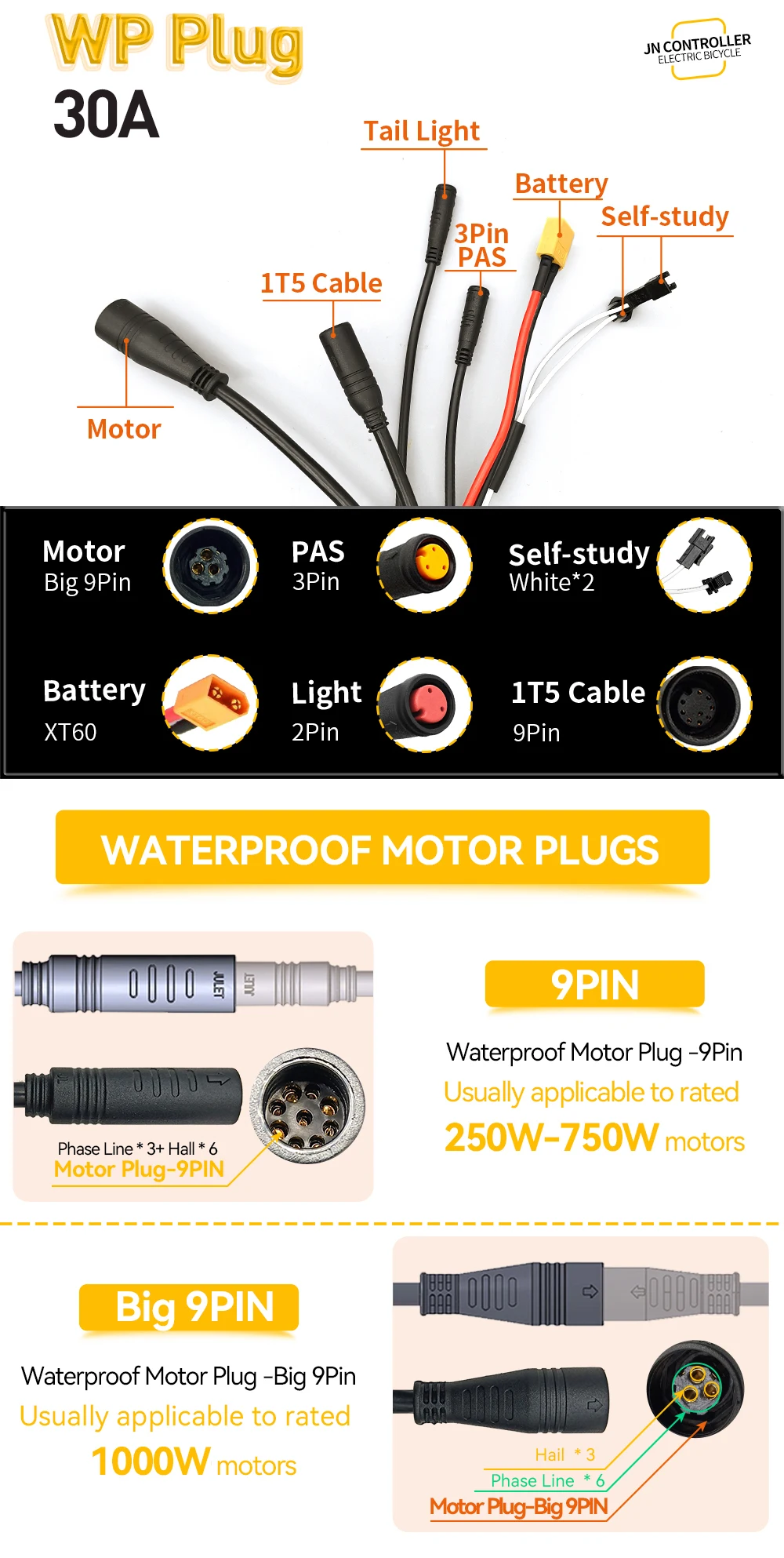

• Type:30A Sine WaveController

• Size(L*W*H):146*38*62mm

• Rated Power:1000W

• Speed Set:1.1-4.2V

• Mosfet:12 Mosfet

• Booster:1:5

• Brakes:Low-Level

• Rated Voltage:DC36/48V

• Compatible with motors with or without Hall

• With motor forward and reverse learning function
