Description:

Accessory Type: LCD Screen
Origin: Mainland China
Hign-concerned Chemical: None

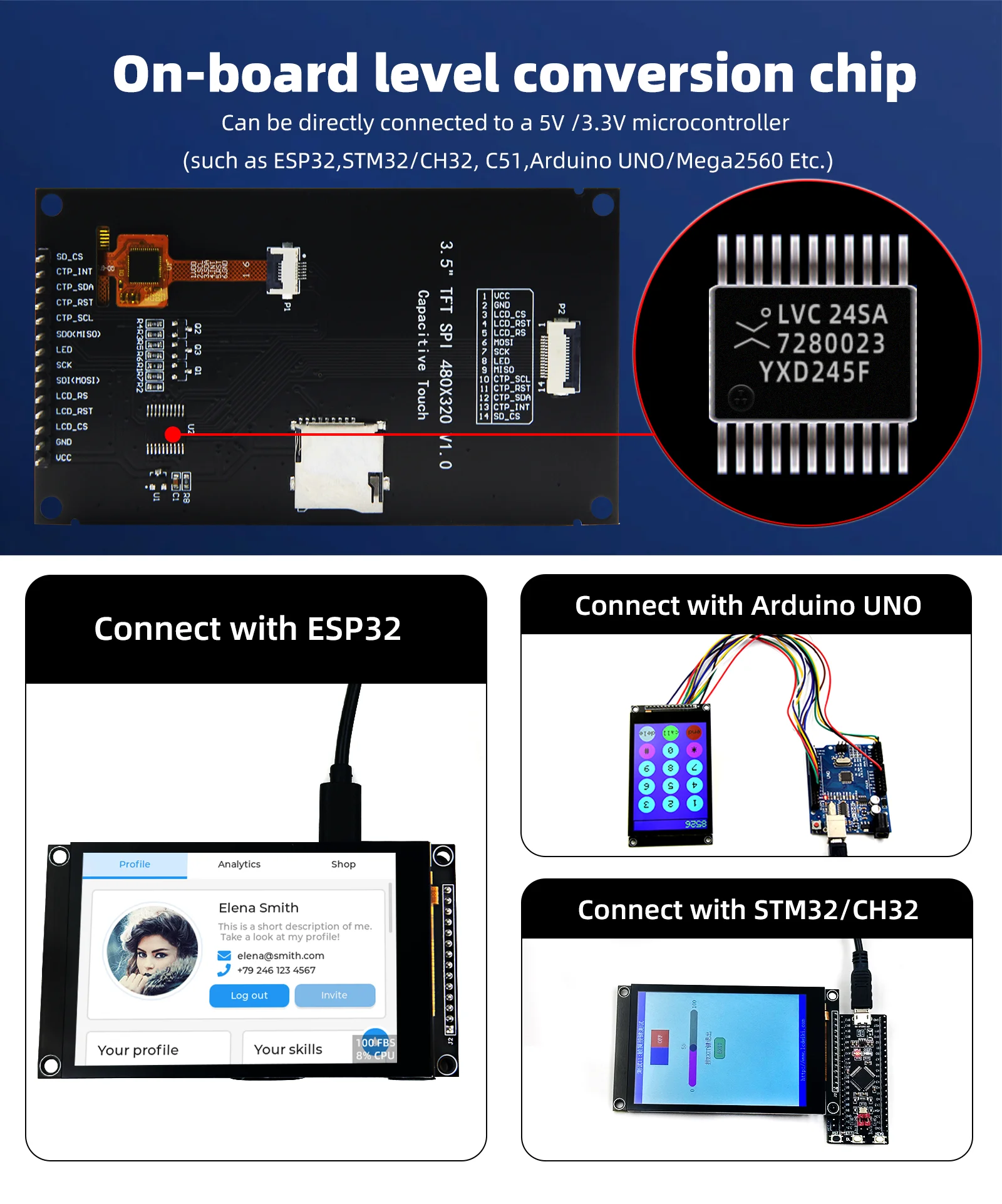

Compatible With: Arduino/ESP32/CH32/STM32 Etc.

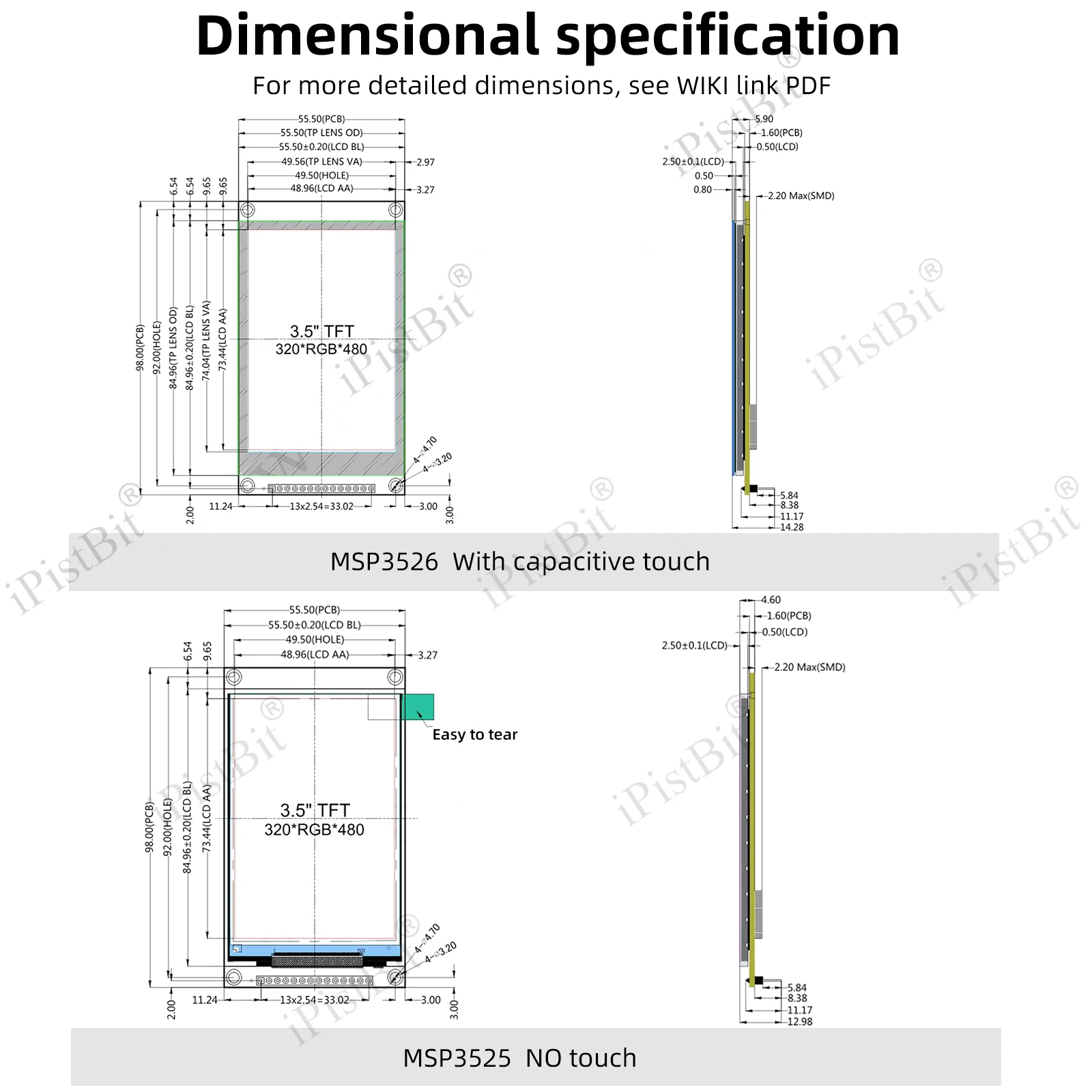

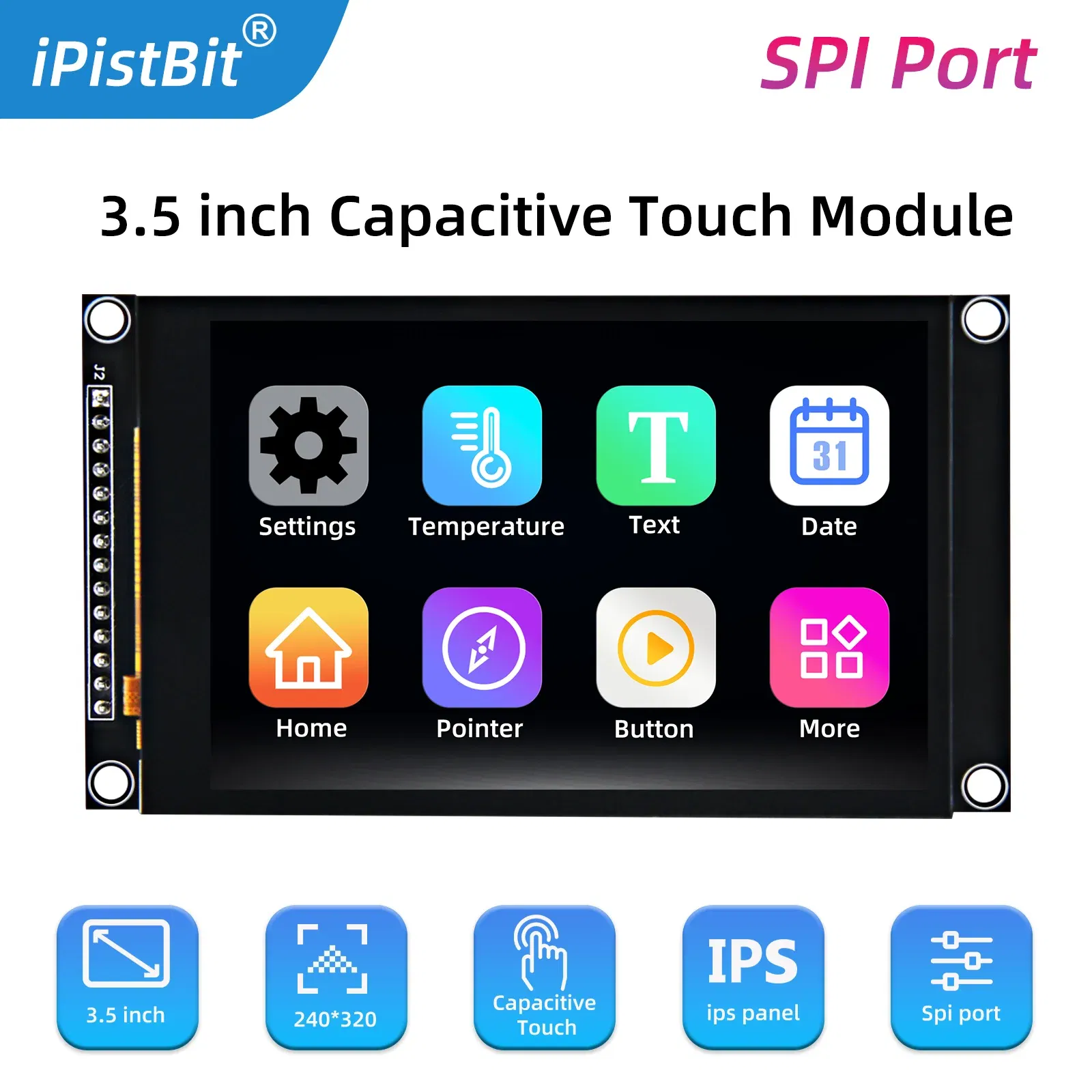

Screen Size: 3.5inch
Panel Type: IPS
Panel View Angle: 178° Full View
Resolution: 480*320
Driver IC: ST7796U

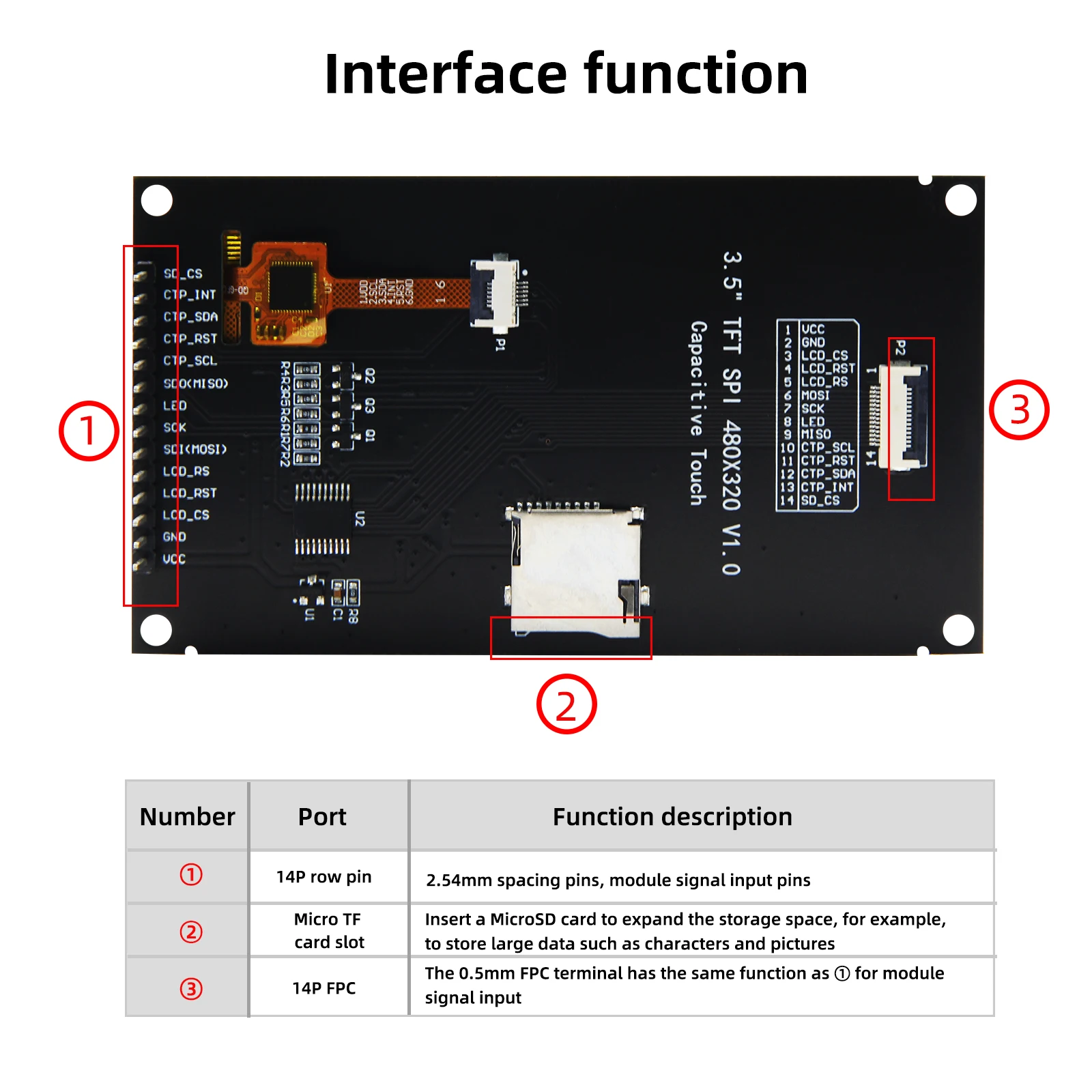

Display Interface: 4-Wire SPI

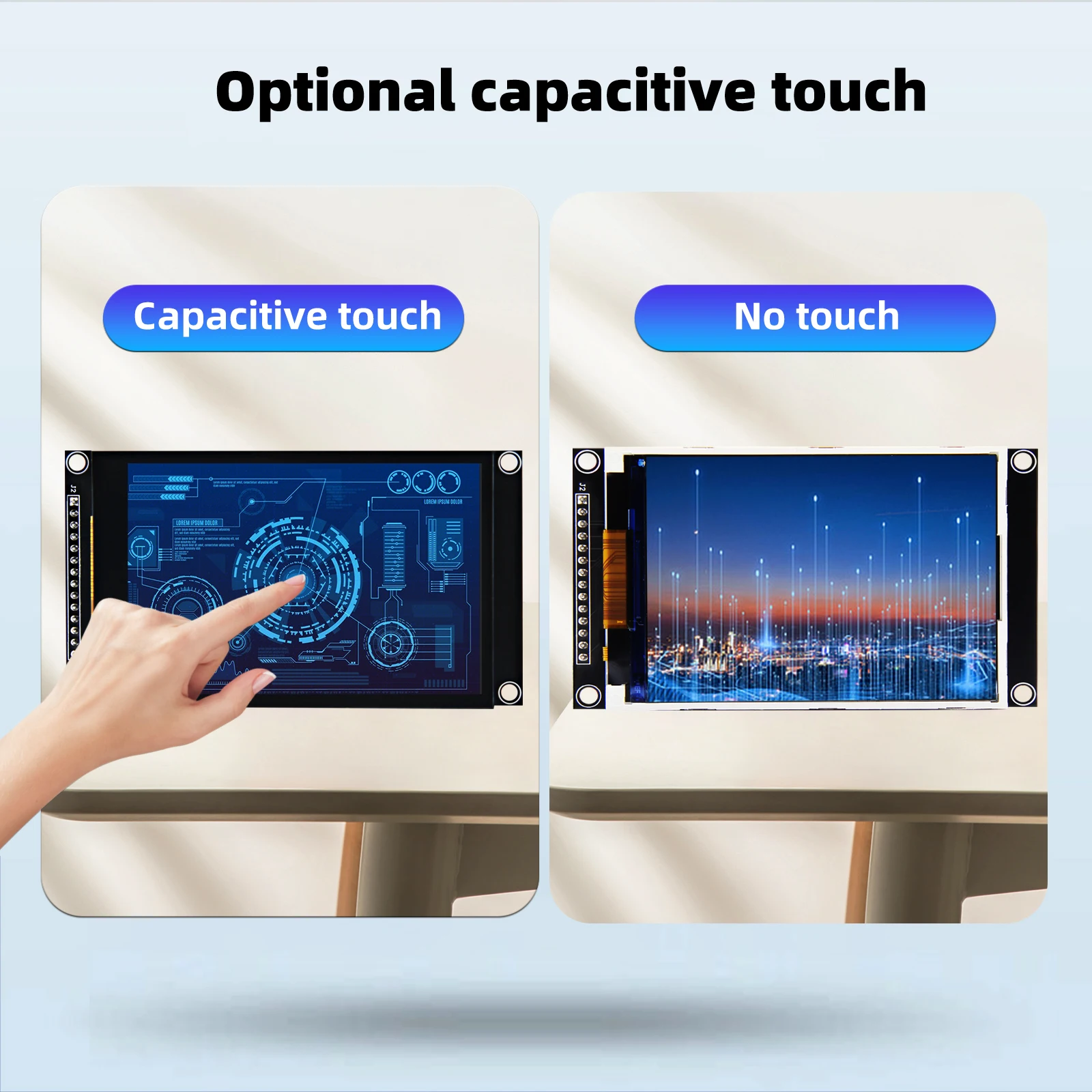

Touch Type: Capacitive Touch | No Touch
Touch IC: FT6336U
Touch Interface: IIC

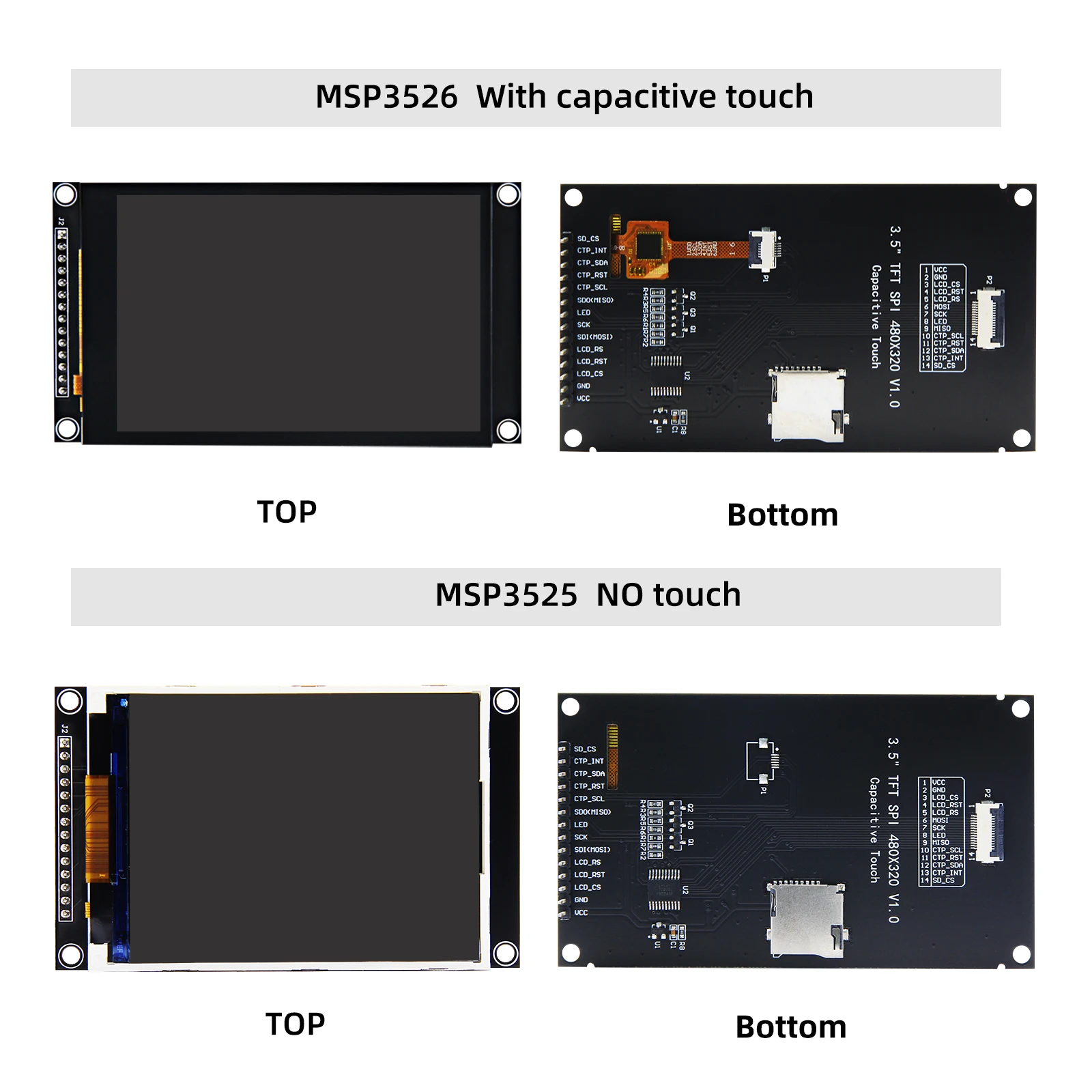

Weight: MSP3525(73g)| MSP3526(82g)

Wiki & External links

http://www.lcdwiki.com/3.5inch_IPS_SPI_Module_ST7796

• Wiki

• Specification

• User Manual

• Schematic Diagram

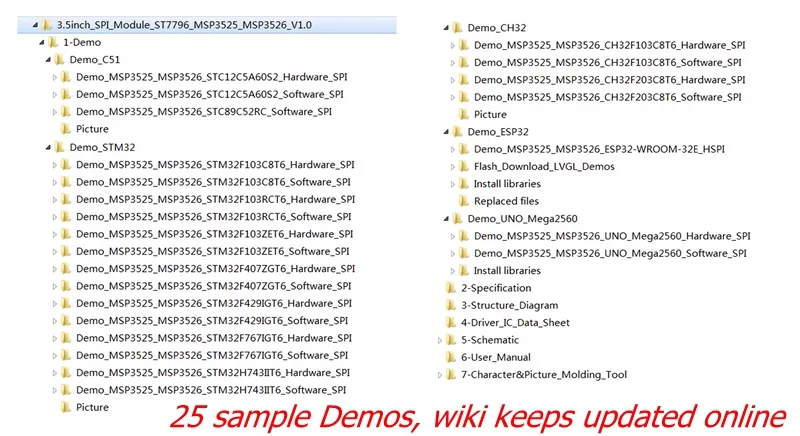

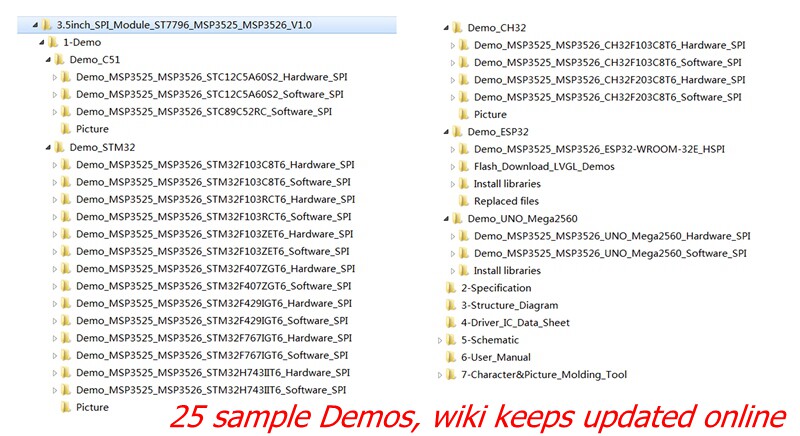

• Source code

• ST7796 Datasheet

• FT6336U Datasheet

Program Download
