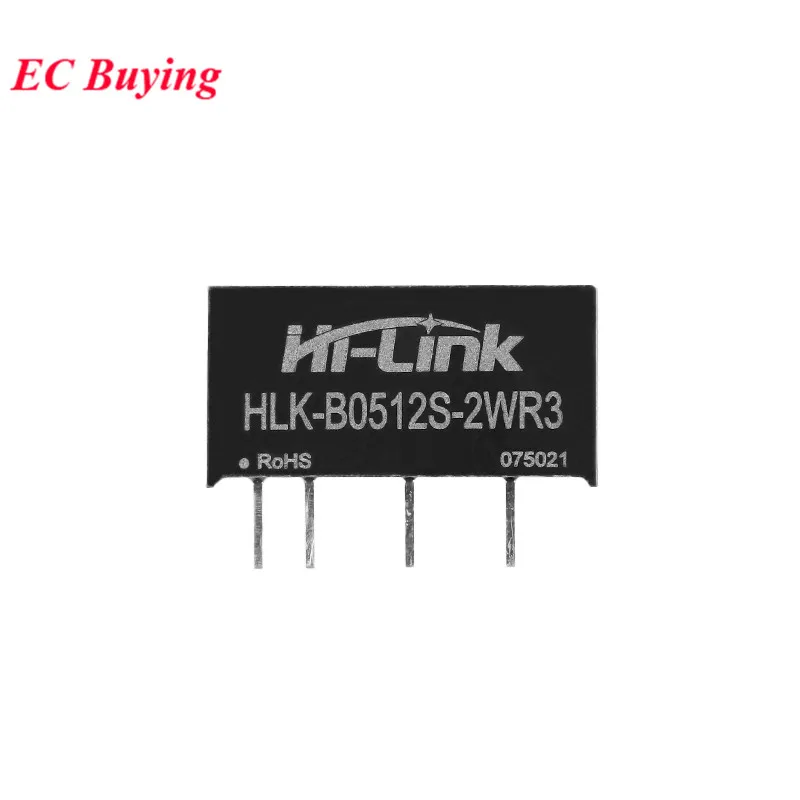

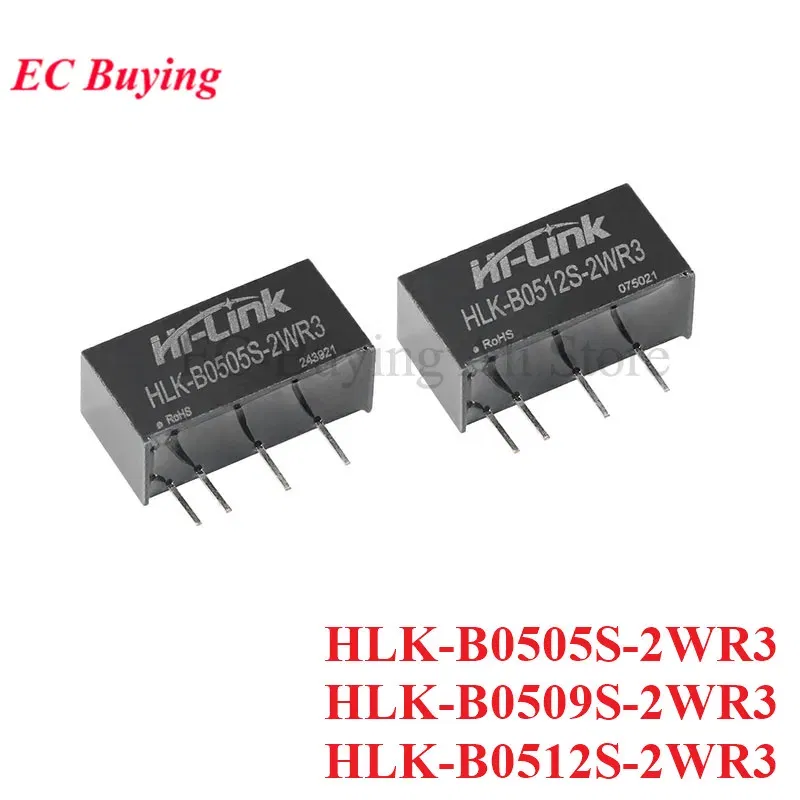

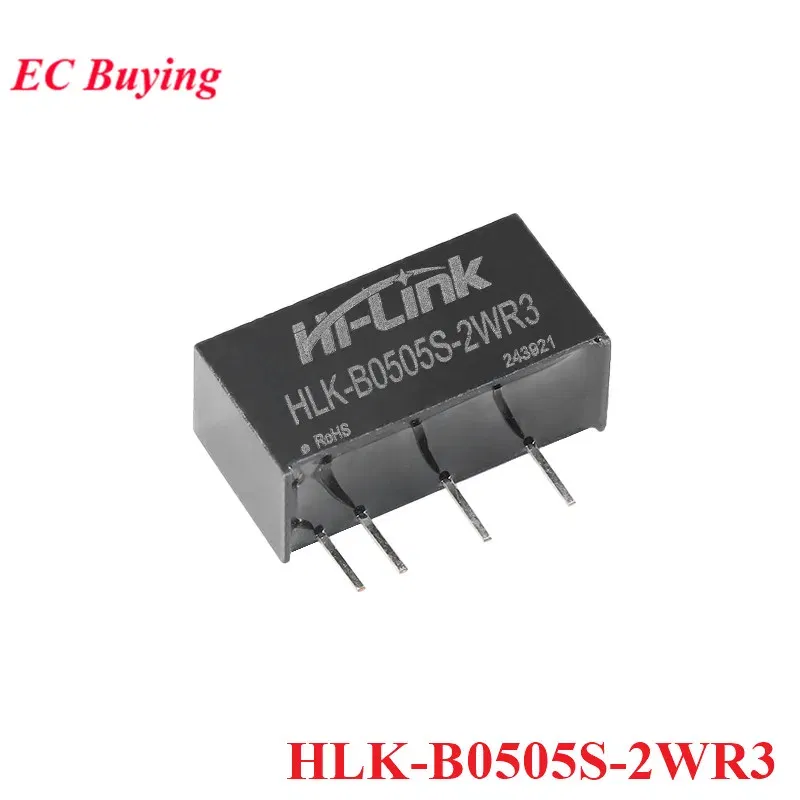

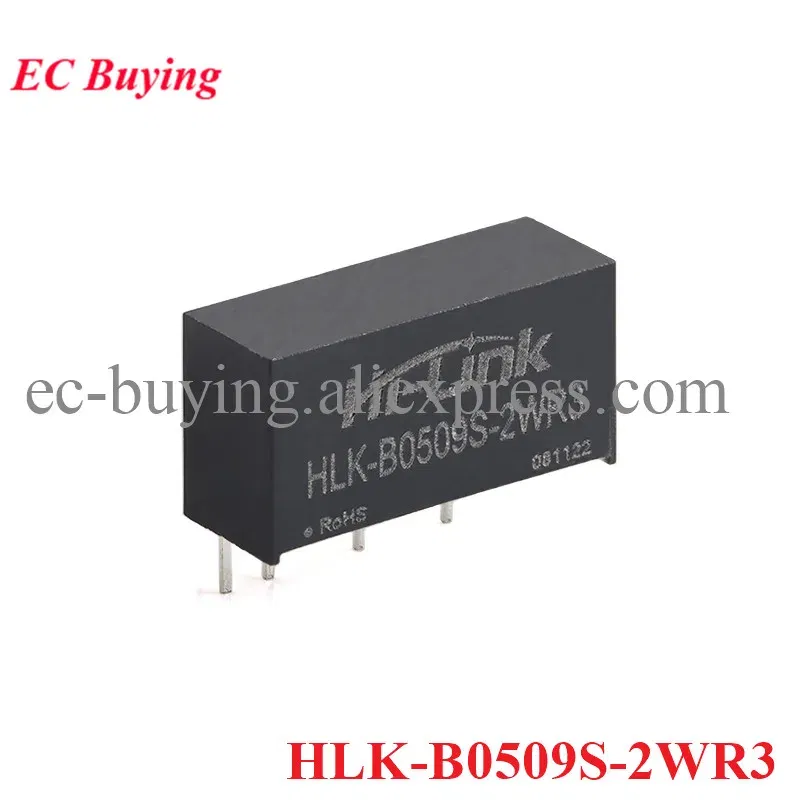

Color: Orange - DC-DC Isolated Switching Power Module 5V to 5V 9V 12V 2W Power Supply Short Circuit Protection HLK-B0505S-2WR3 HLK-B0512S-2WR3

●Ultra-miniature standard package SIP package and standard pins

●Constant voltage input (10% Vin), isolated unregulated single output, 2W

●Low standby power consumption, input and output isolation withstand voltage 1 500VDC

●Low ripple noise (20MH bandwidth)<100mVp-p

●High efficiency, conversion efficiency can reach 90% (Typ.)

●Operating temperature range: -40°C~+85°C

●Good output short-circuit and over-current protection and self-recovery,

●High reliability, long life design, MTBF≥3500000H

●It is potted with high-quality waterproof and thermally conductive adhesive, which is dust-proof, moisture-proof, shock-proof and flame-retardant

●Comply with UL/CE/EMC and safety test requirements

●Can be used in medical, industrial control, electric power, instrumentation, communication, railway and other fields

Operating temperature: -40~+85°C

Storage temperature: -40~+125°C

Relative humidity: 5~95%RH

Cooling method: natural cooling

Atmospheric pressure: 80~160Kpa

Altitude:≤2000m

Vibration: Vibration coefficient 10-55Hz, 10G, 30 Min.along X, Y and Z

Input characteristics (room temperature test)

Rated input voltage: 24VDC nominal input series

Input voltage range: 21.6~26.4VDC

Maximum input current: ≤0.1A

Reflected ripple current: 15mA

Impulse voltage (lsec.max) :≤30VDC

Start voltage: 21.6VDC

Input Filter Type: Capacitive Filter

Hot plug: not supported

Output Characteristics (Public)

Output load (load percentage): 10%-100%

Output voltage accuracy: ±15.0%(MAX)

Linear adjustment rate: (input voltage ±1%) ±1.2% (other outputs)

Load regulation rate: (10%~100% load)

Output ripple and noise (mVp-p): ≤ 100mVp-p

Temperature drift coefficient (full load): ±0.03%/°C

Output short circuit protection: support
