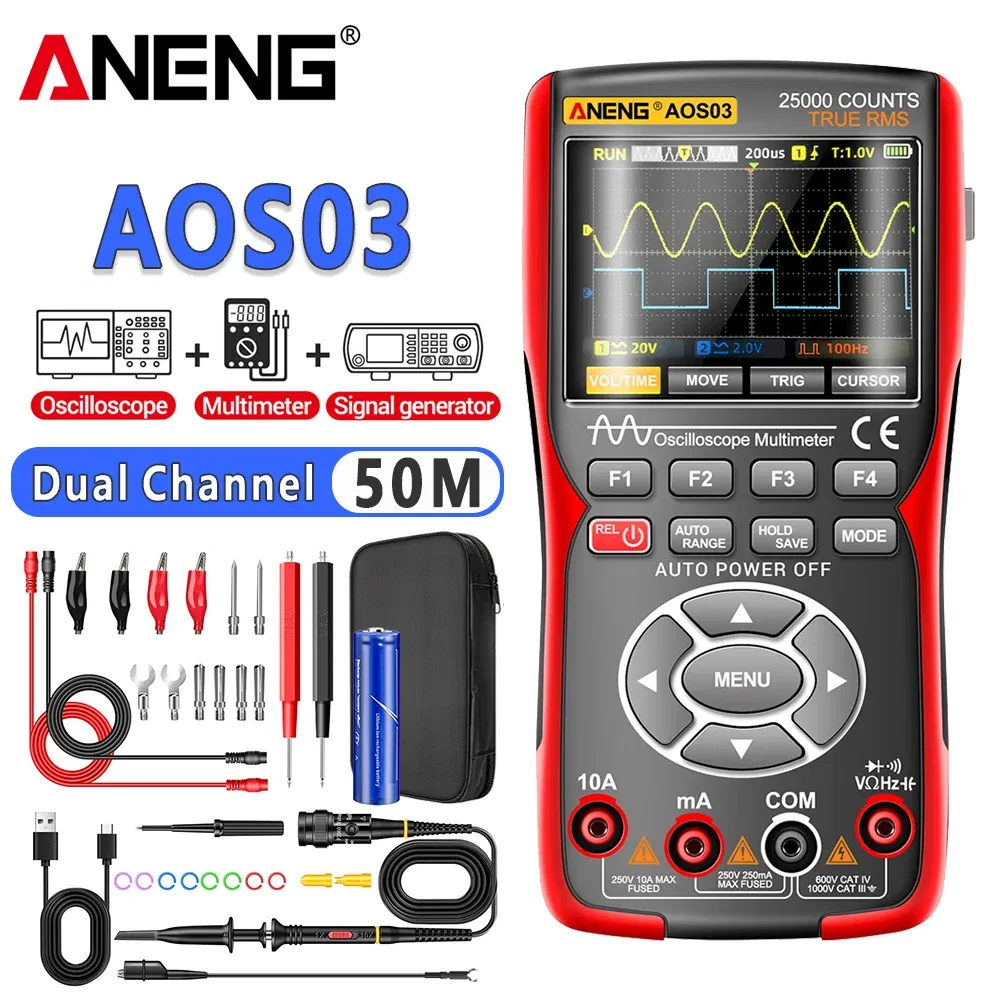

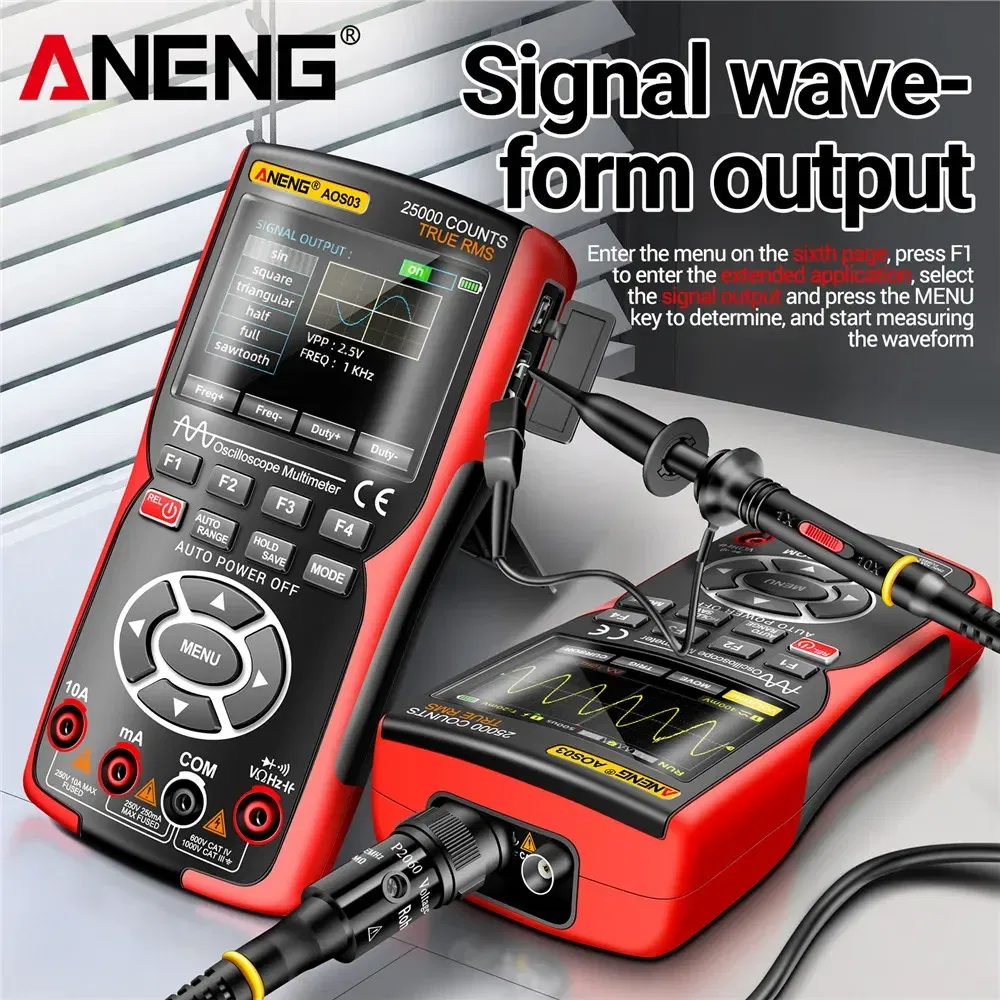

Color: Red - ANENG AOS03 Oscilloscope Multimeter Signal Generator Waveform Output Handheld Battery LCD Screen Display Multimeter
$174.07 NZD
Description:
ANENG Model: AOS03Origin: Mainland China
DIY Supplies: ELECTRICAL
Display resolution: 800*600 Pixels

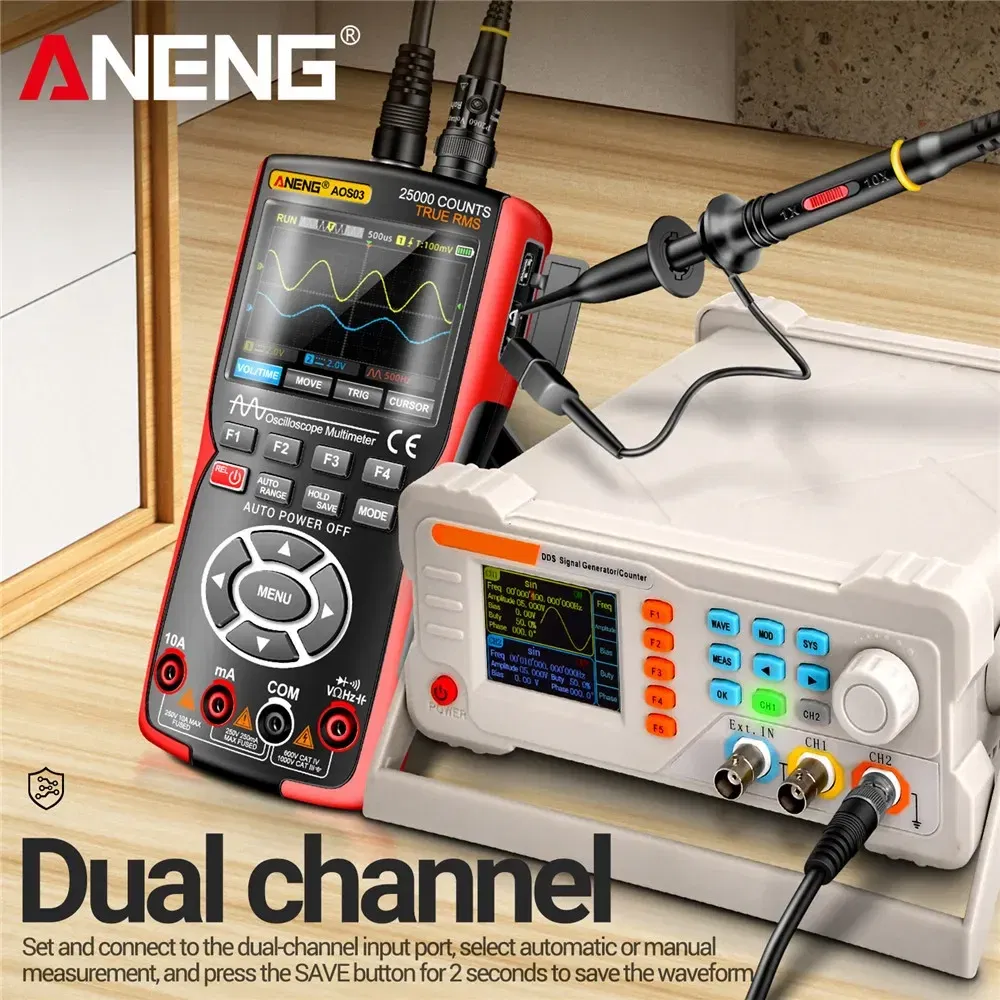

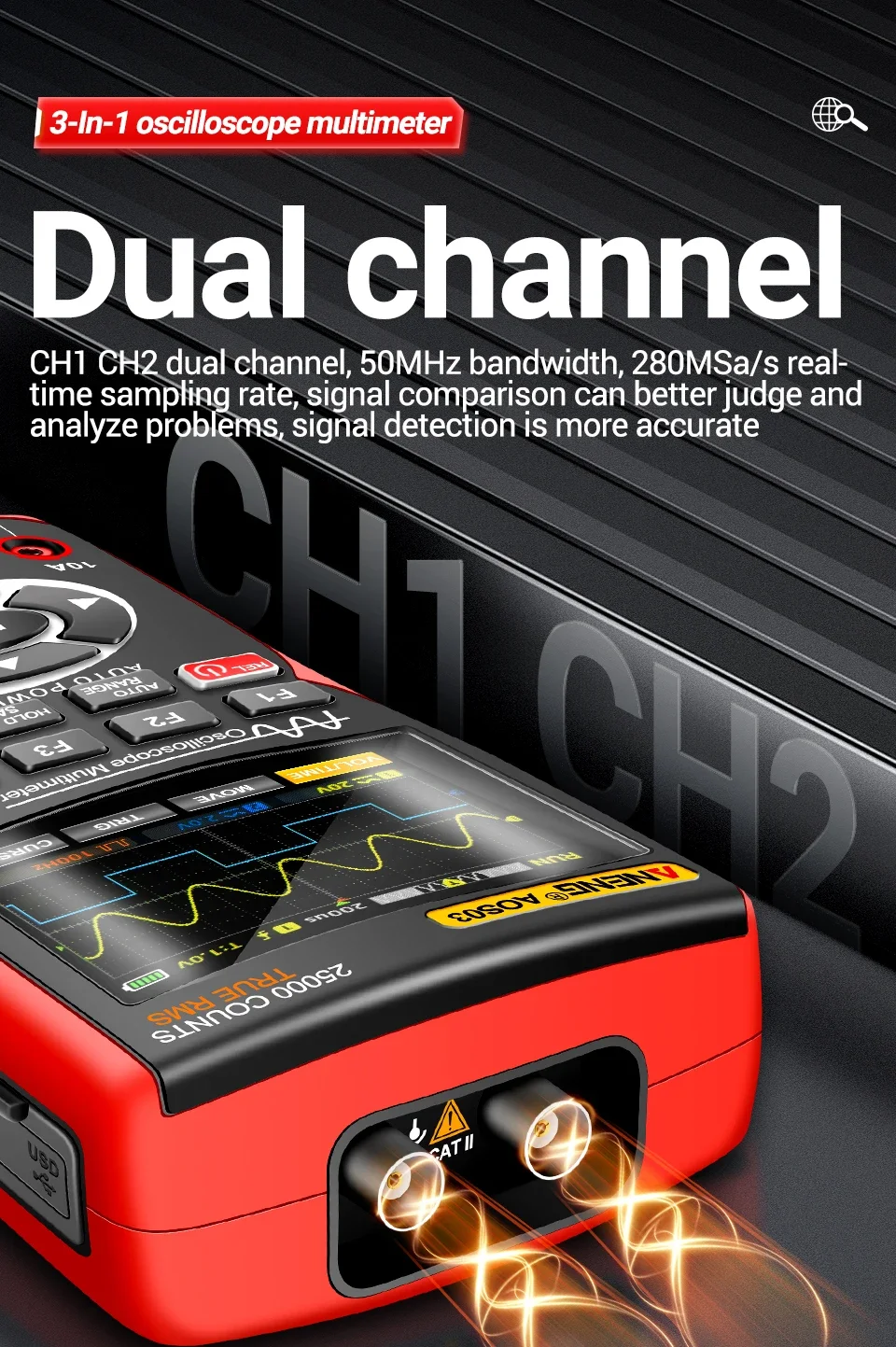

Digital Channels: 2
Model Number: AOS03
Record Length: 128kbyte
IS Battery Demountable: Yes
Display Size: 3.0 - 4.9 Inches
Certification: none

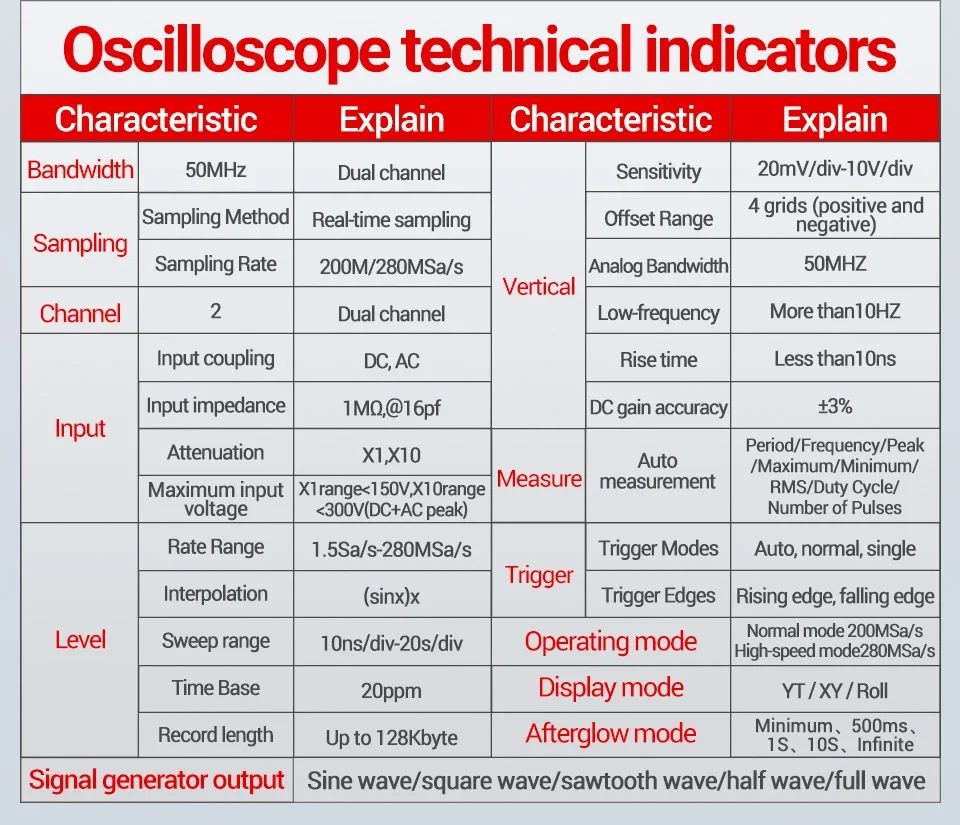

Real Time Sampling Rate: 200MSa/s
Max Waveform Capture Rate: 250,000wfm/s
Band Width: Less than 60MHz
Choice: yes

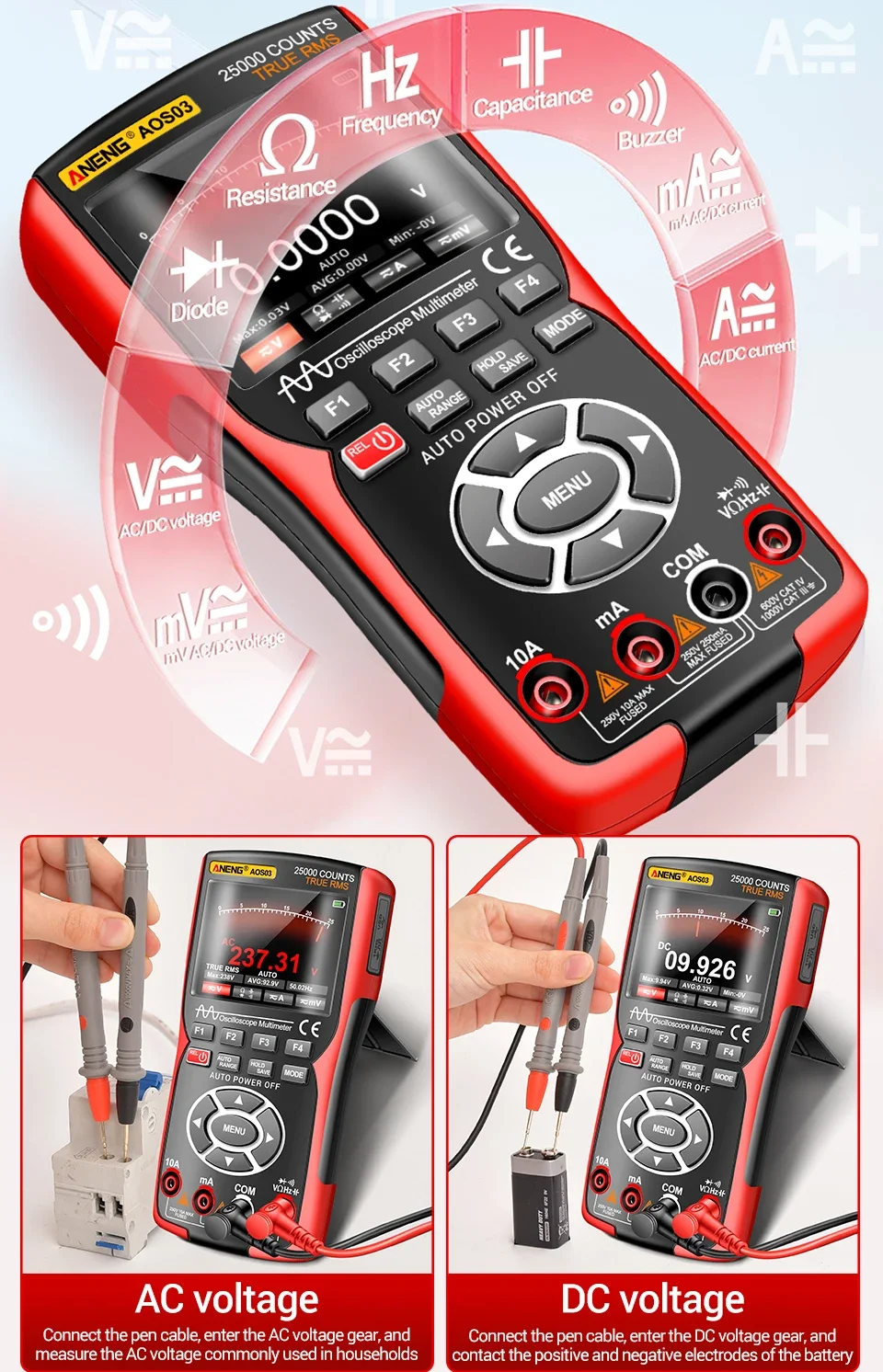

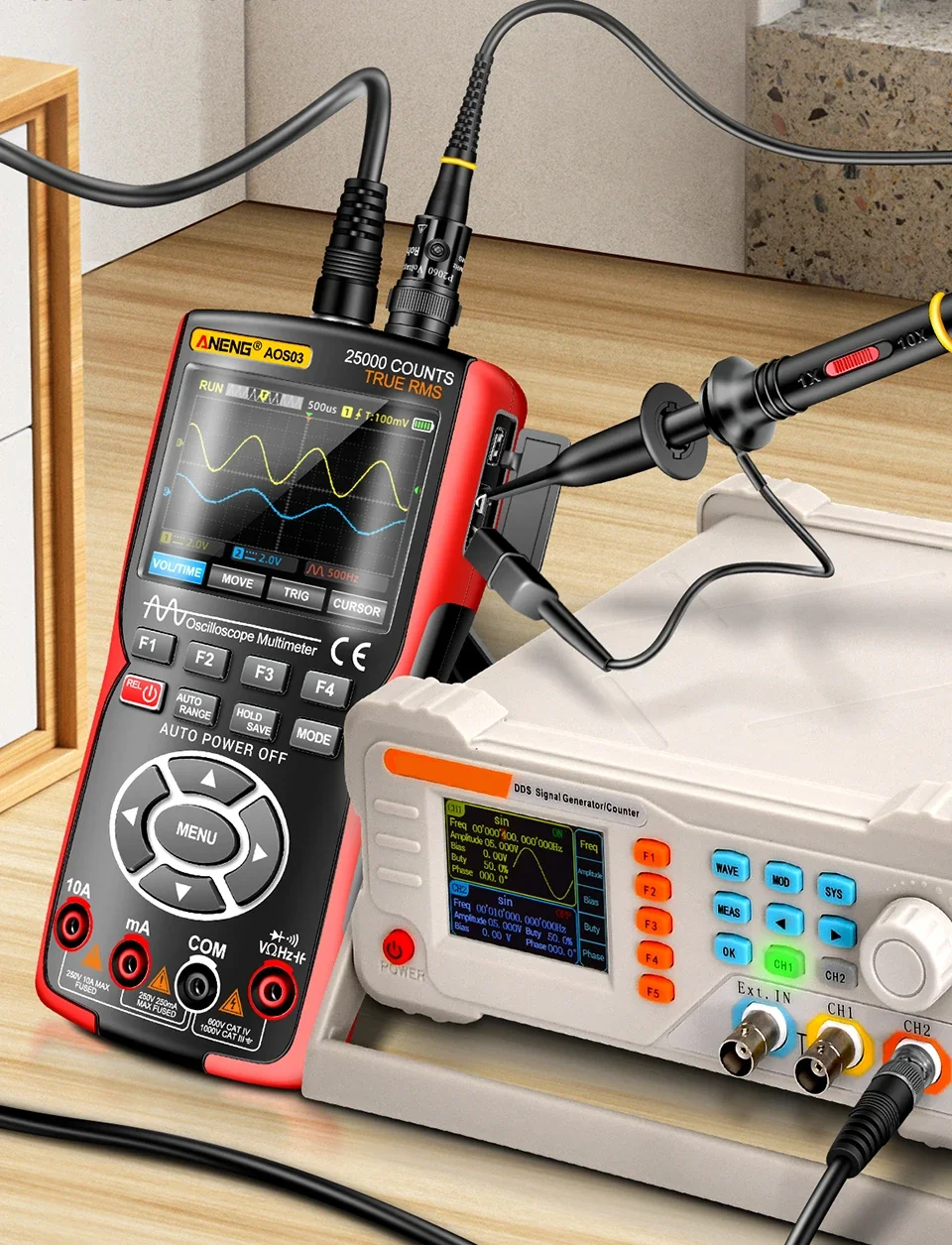

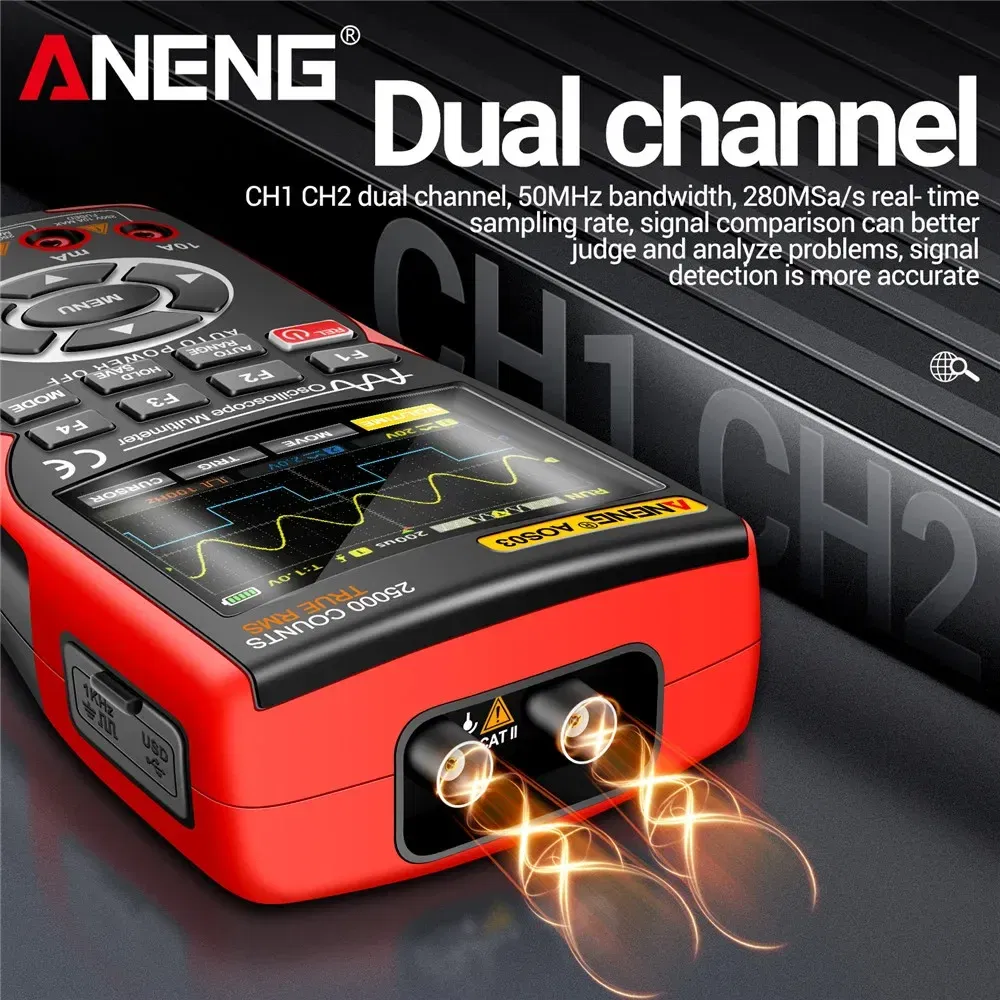

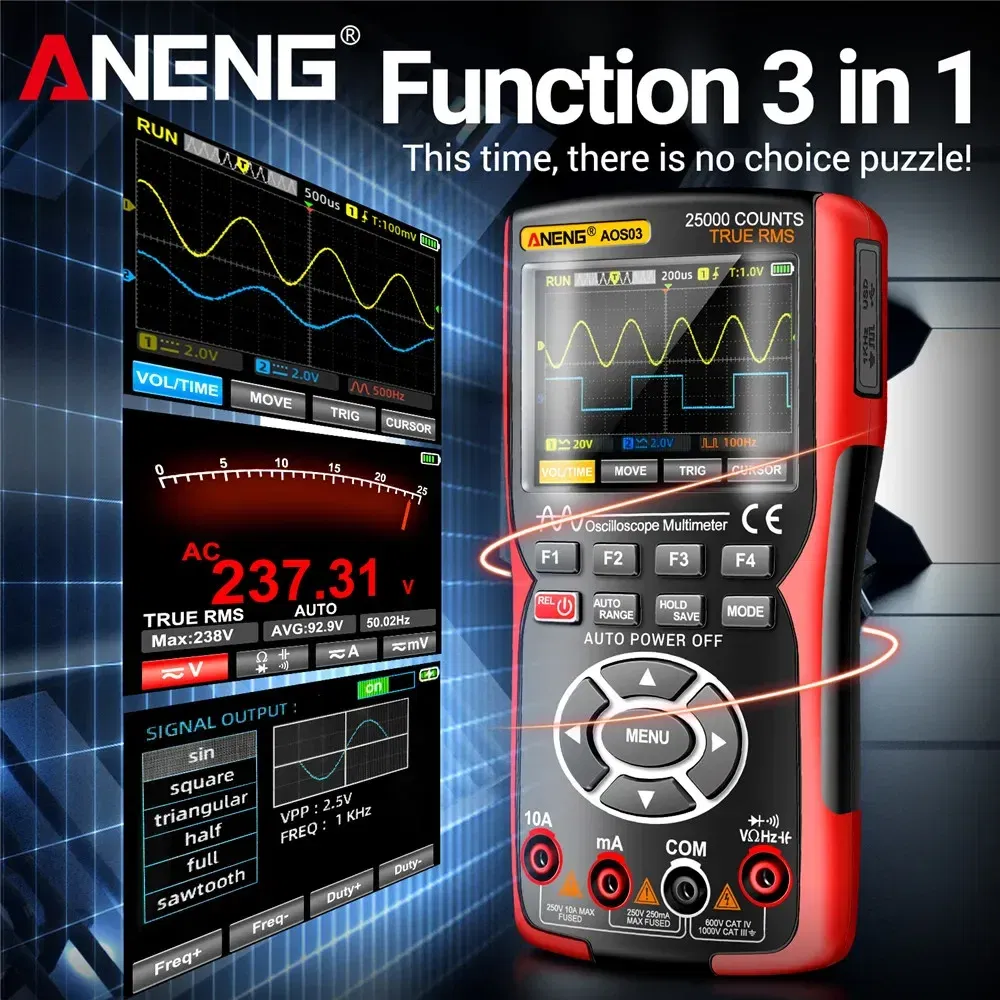

ANENG AOS03
Oscilloscope multimeter
Description:

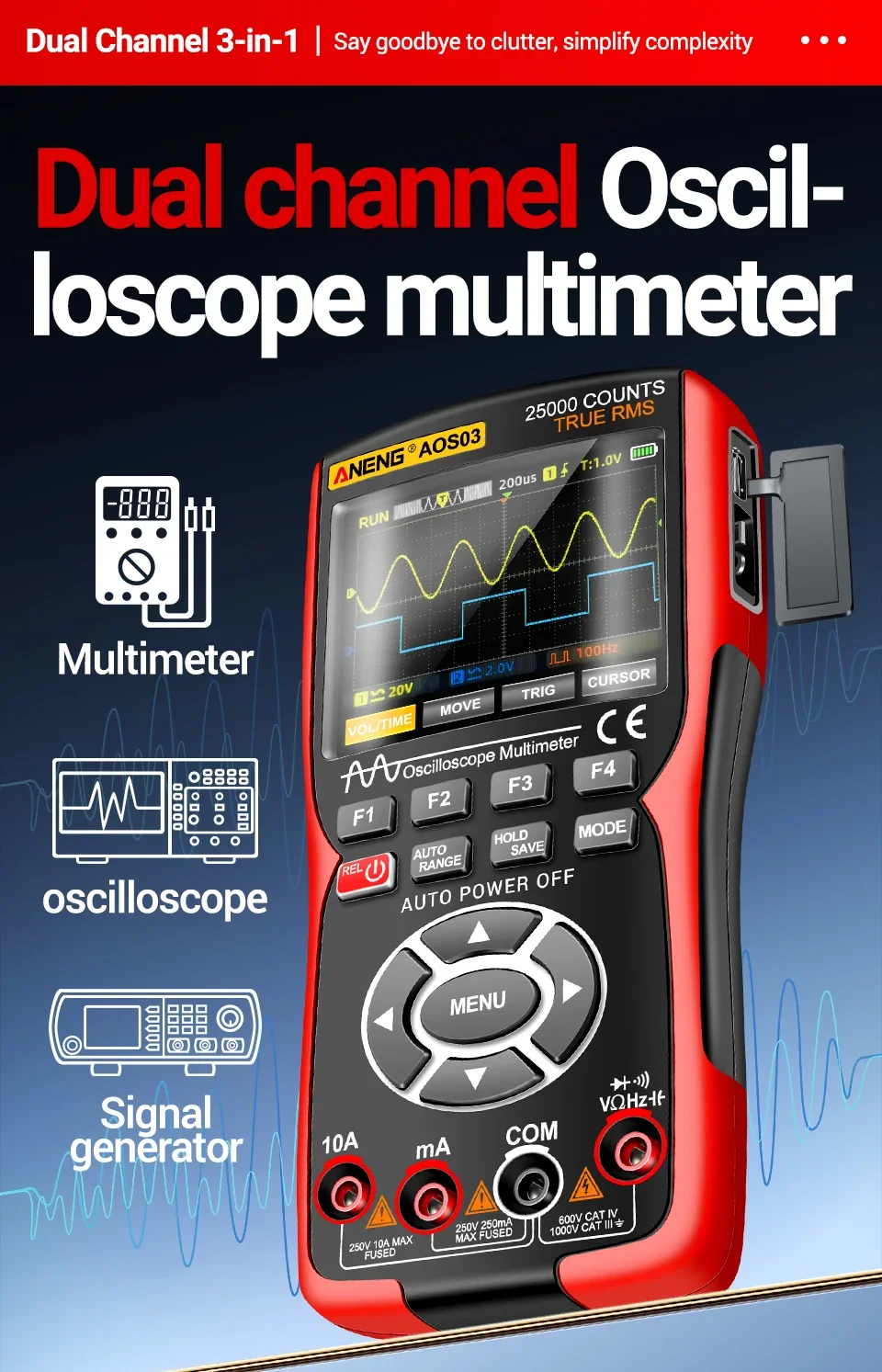

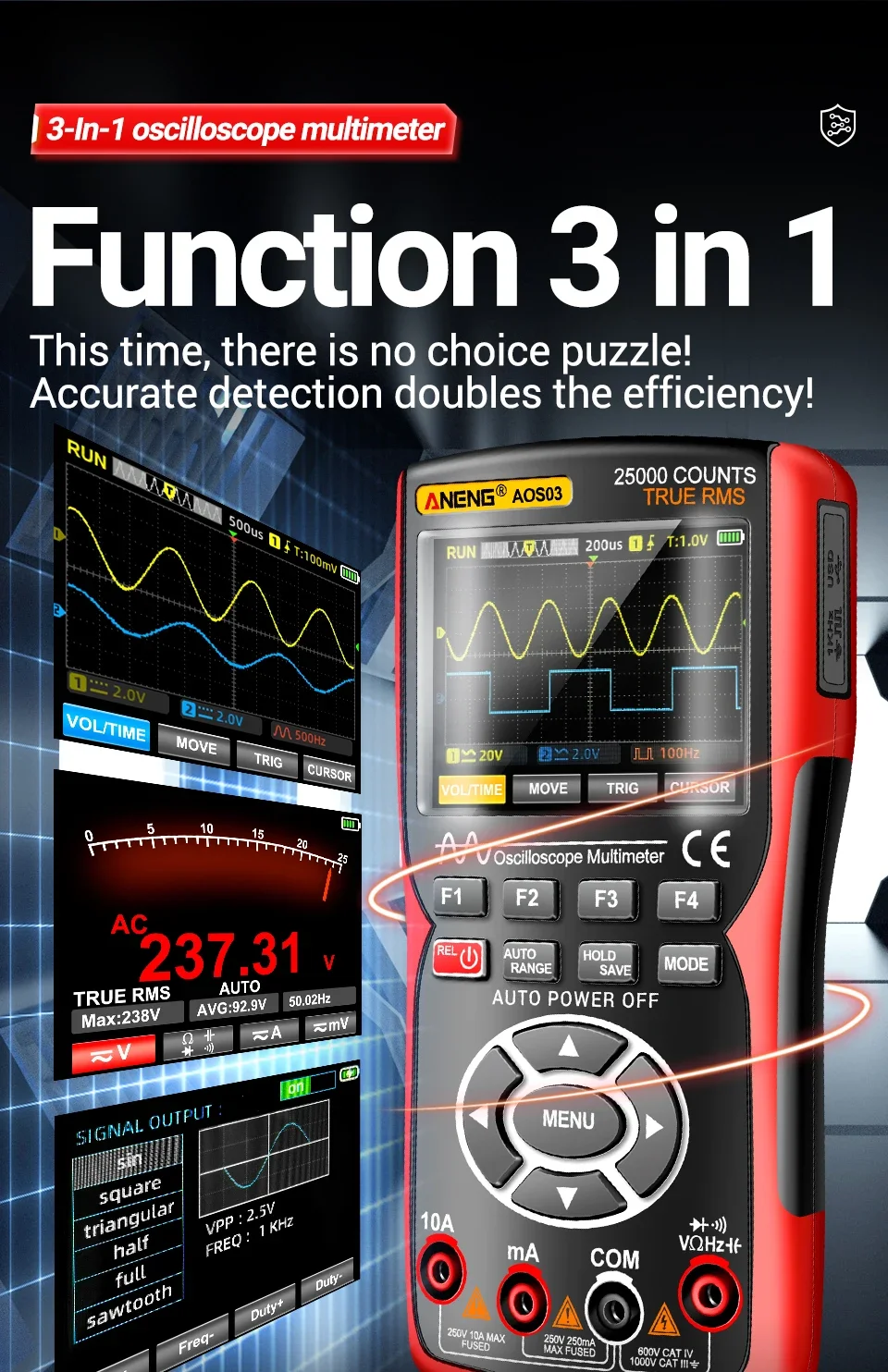

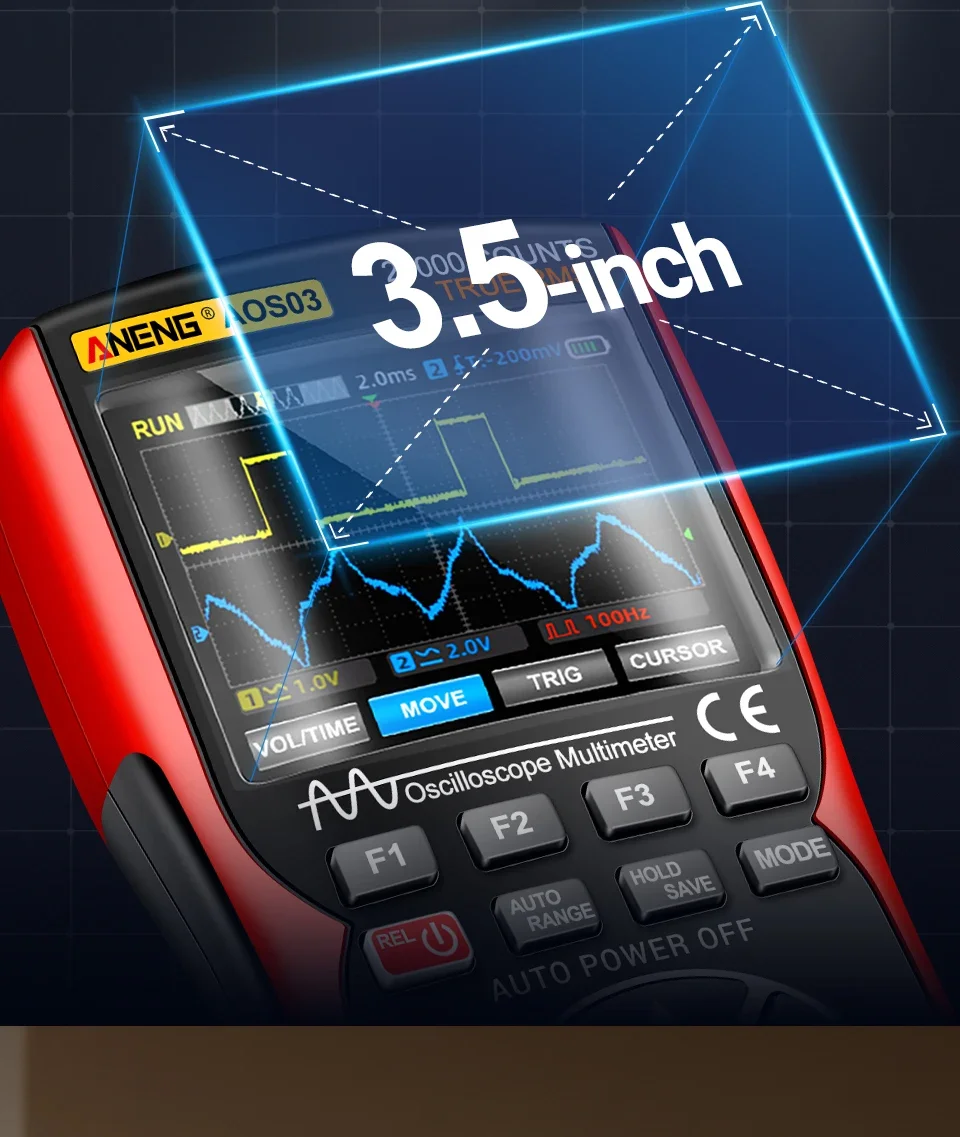

This handheld oscilloscope adopts a dual injection molding process ,featuring a beautiful appearance,compact size,convenient portability,and flexible operation.The screen utilizes a 3.5-inch IPS full-view color display,with a multimeter dispaly of up an oscilloscope,signal generator,and multimeter into a three-in-one device.With superior performance and powerful functionality,it can be used in various measurement scenarios,meeting a wide range of user measurement needs.
Specification:

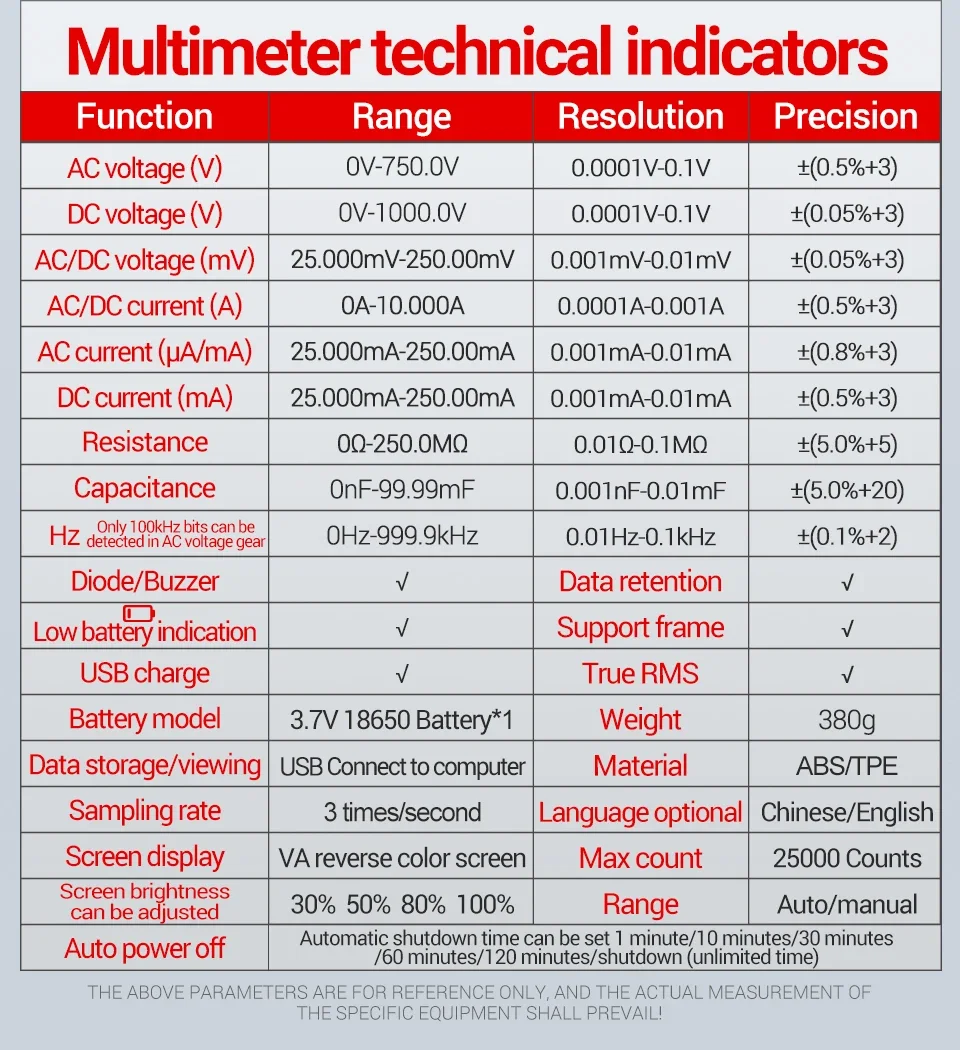

General Technical Specifications for Multimeter
Display(IPS) | 25000counts |
Range | Automatic/Manual |
Material | ABS+TPE |
Sampling Rate | 3 time per second |
True RMS | √ |
Data Hold | √ |
Screen Backlight | √ |
Low Battery Indicator | √ |
Auto Power Off | √ |
Mechanical Technical Specifications
Dimensions | 177*89*40mm |
Weight | 380g |

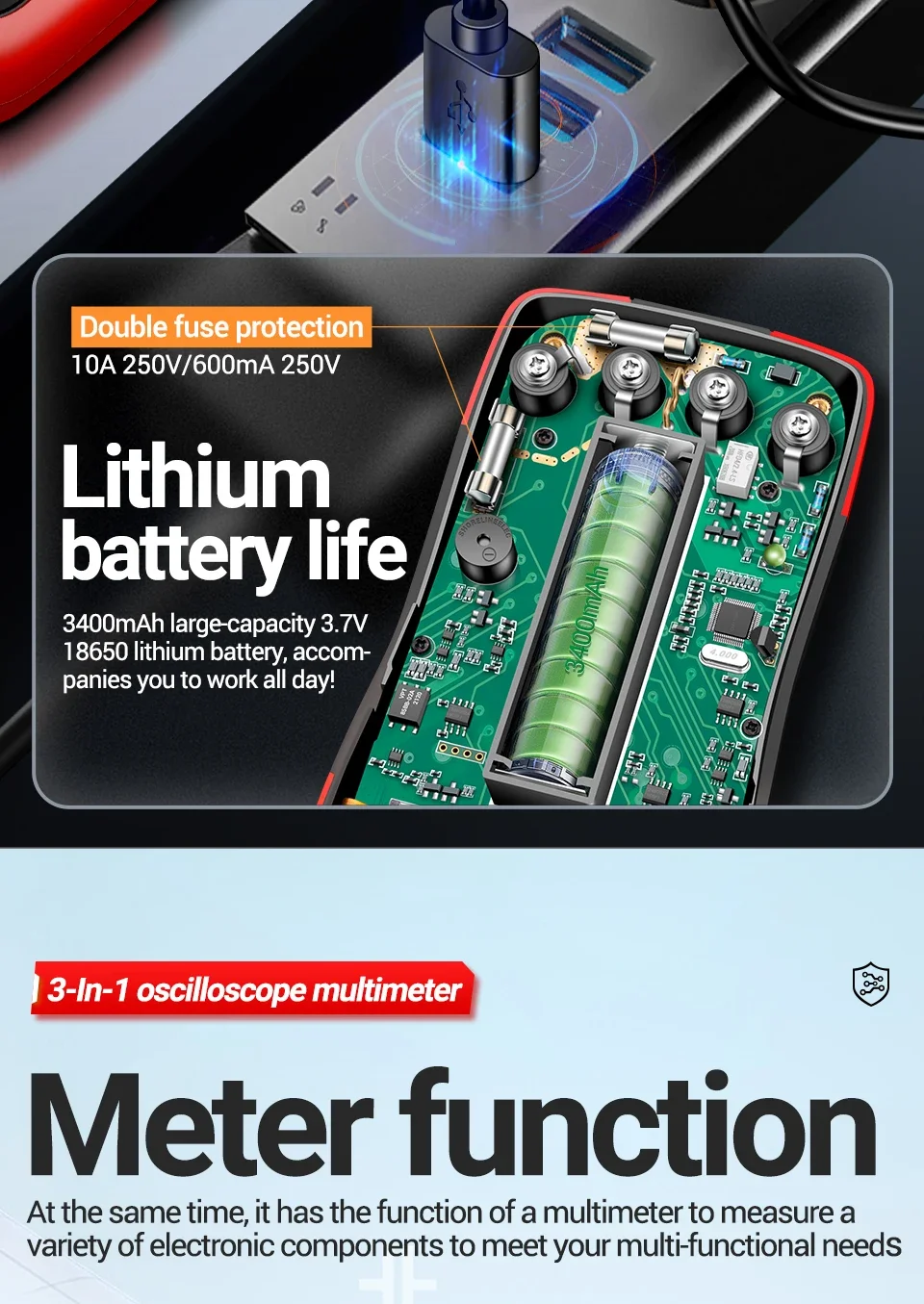

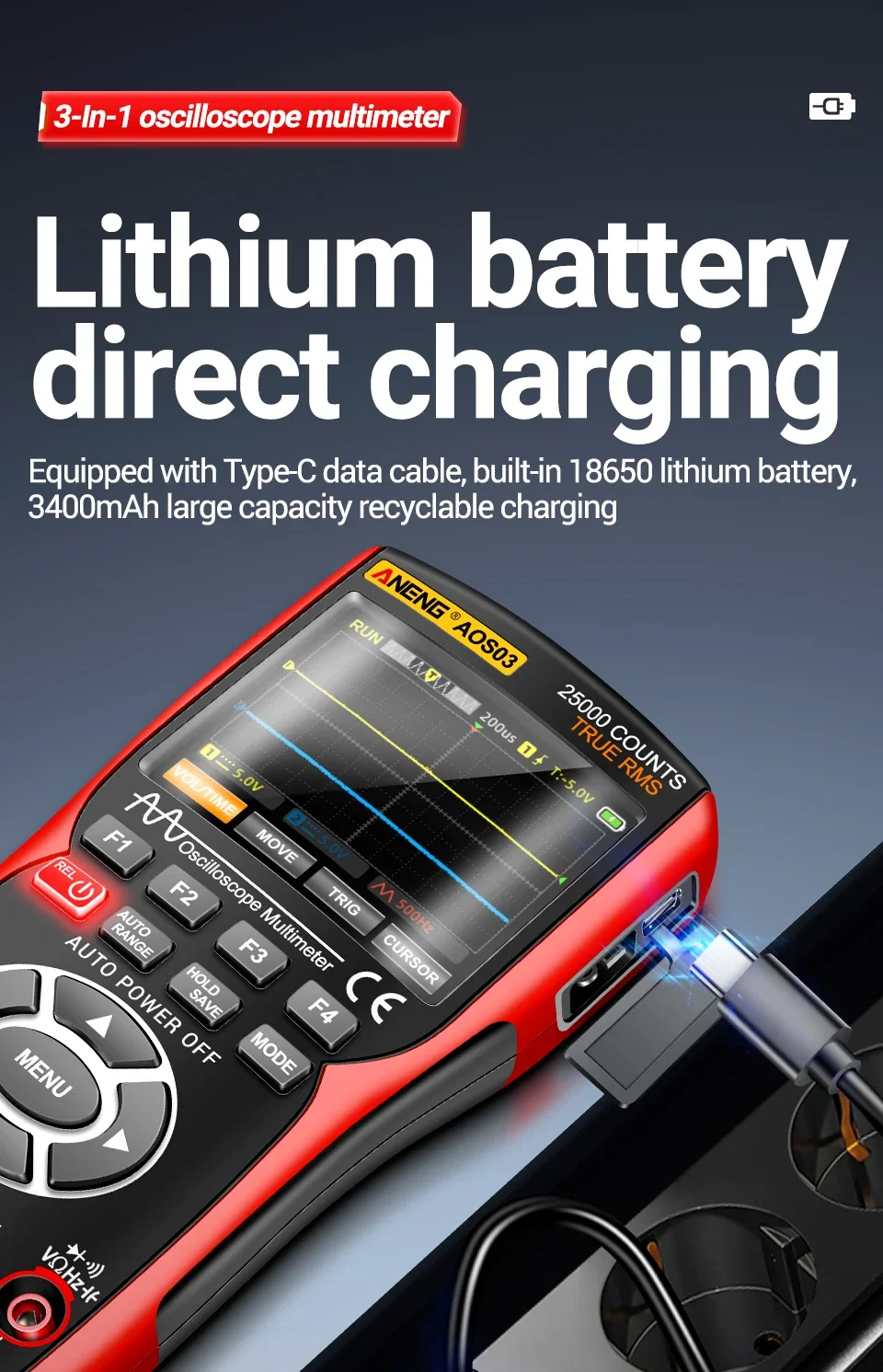

Battery Type | 18650 battery*1 |
Warranty Period | 1 year |
Envionmental Specifications
Operating | Temperature | 0~40℃ |
Humidity | ＜75% | |
Storage | Temperature | -20~60℃ |
Humidity | ＜80% |

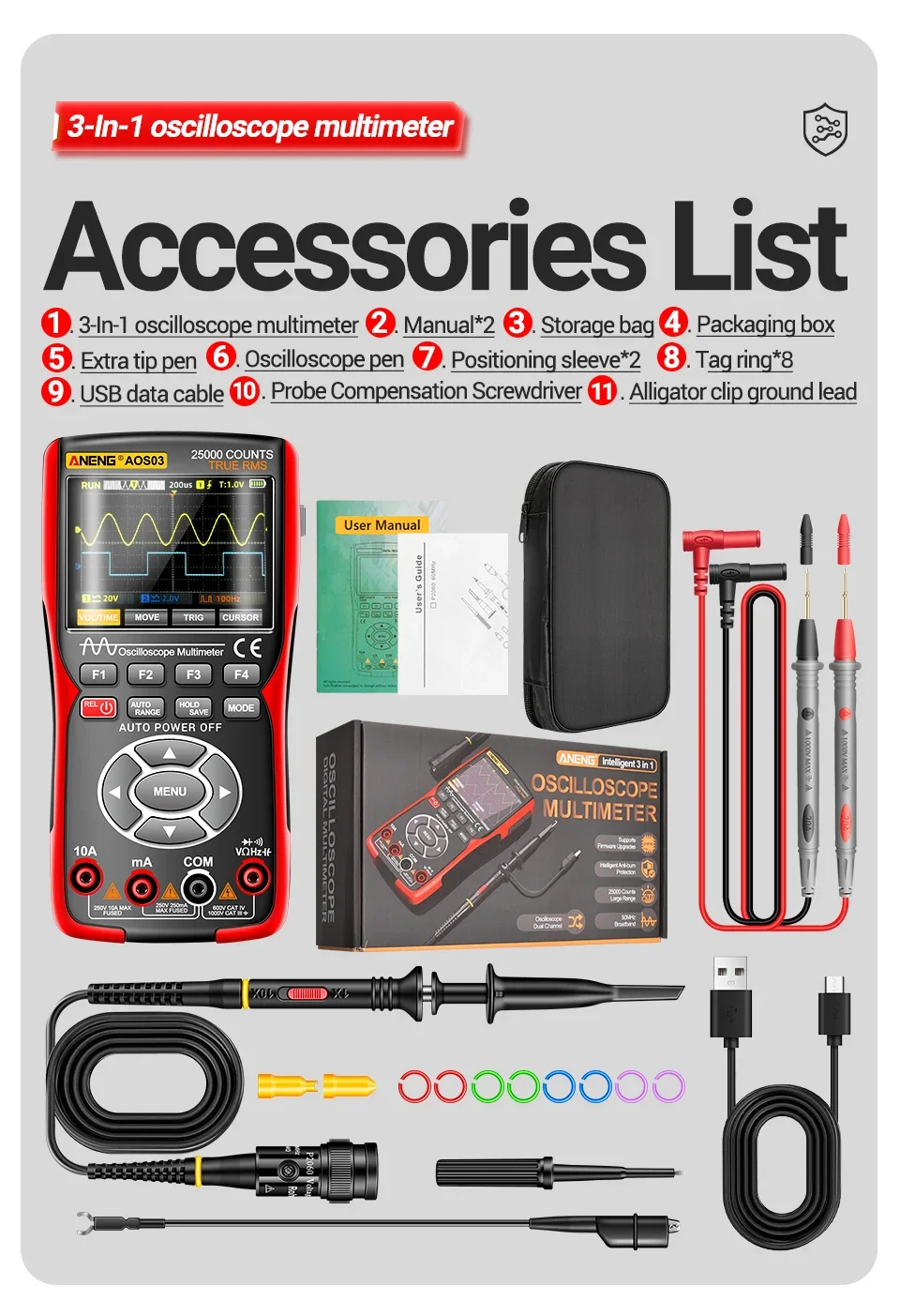

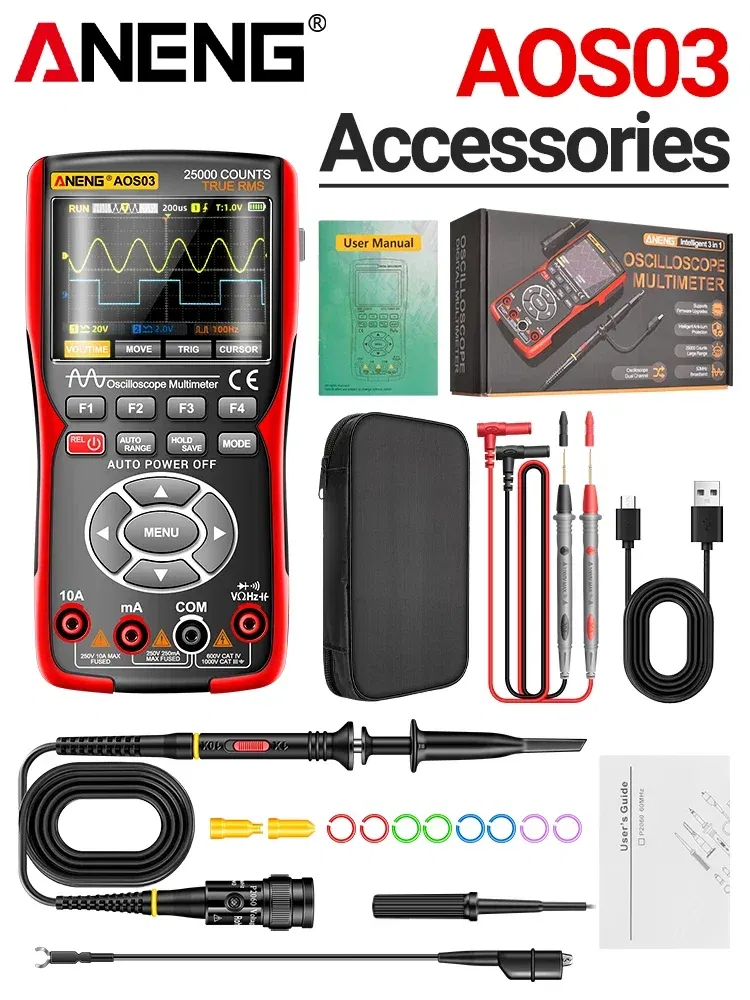

Package Include:
according to your choice
