Language: English, Plug Type: AU Plug, Ships From: CHINA - New! Shelly 2PM Gen3 Smart Switch 2 Channels Wi-Fi Operated Cover roller Control 16 total current automate Adjust Position
$162.58 NZD
Description:
Hign-concerned Chemical: NoneOrigin: Mainland China
Smart home platform: other
Model Number: Shelly 2PM Gen3
Hign-concerned Chemical: None
Communication method: Bluetooth-compatible,Wi-Fi
Weight: 30g/1.06 oz
Screw terminals max torque: 0.4 Nm / 3.5 lbin
Conductor cross section: 0.2 to 2.5 mm / 24 to 14 AWG (solid, stranded and bootlace ferrules)
Mounting: Wall console,In-wall box
Shell material: Plastic
Shell color: Black
Ambient working temperature: -20°C to 40°C / -5°F to 105°F
Humidity: 30% to 70% RH
Max. altitude: 2000 m / 6562 ft
Power supply: 110-240 V/ 24 V
Power consumption: < 1.4 W
External protection: Tripping characteristic B or C,max 16A max rated current,min 6 kA interrupting rating
Max. switching voltage: 240 V,30 V
Max. switching current AC: 10 A per channel,16 A total,18 A total peak
Max. switching current DC: 10 A
Voltmeter (AC): Yes
Ammeter (AC): Yes
Internal-temperature sensor: Yes
Protocol: 802.11 b/g/n,4.2
RF band: 2402-2480 MHz,2402-2480 MHz
Max. RF power: < 20 dBm,< 4 dBm
CPU: ESP-Shelly-C38F
Flash: 8MB
Schedules: 20
Webhooks (URL actions): 20 with 5 URLs per hook
Scripting: Yes
MQTT: Yes

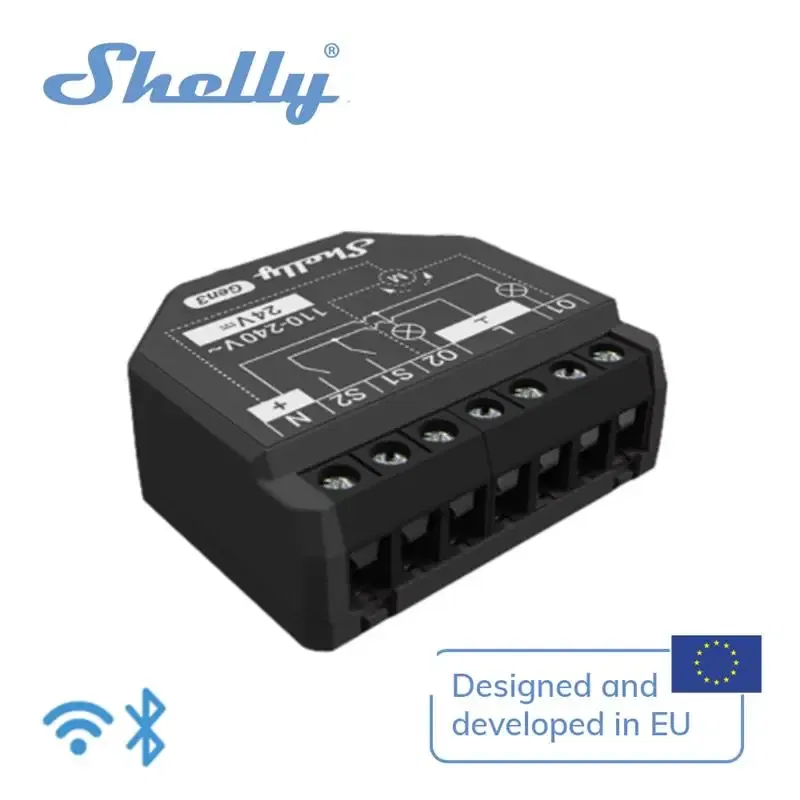

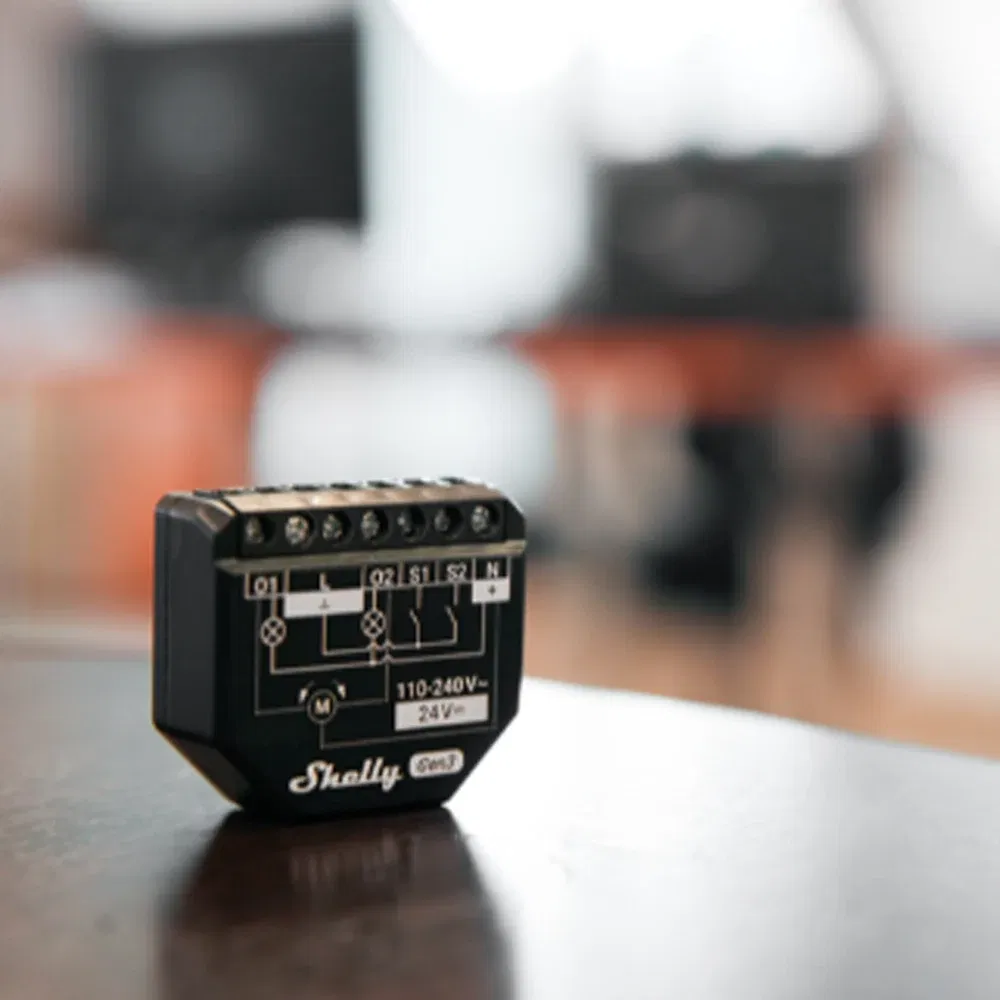

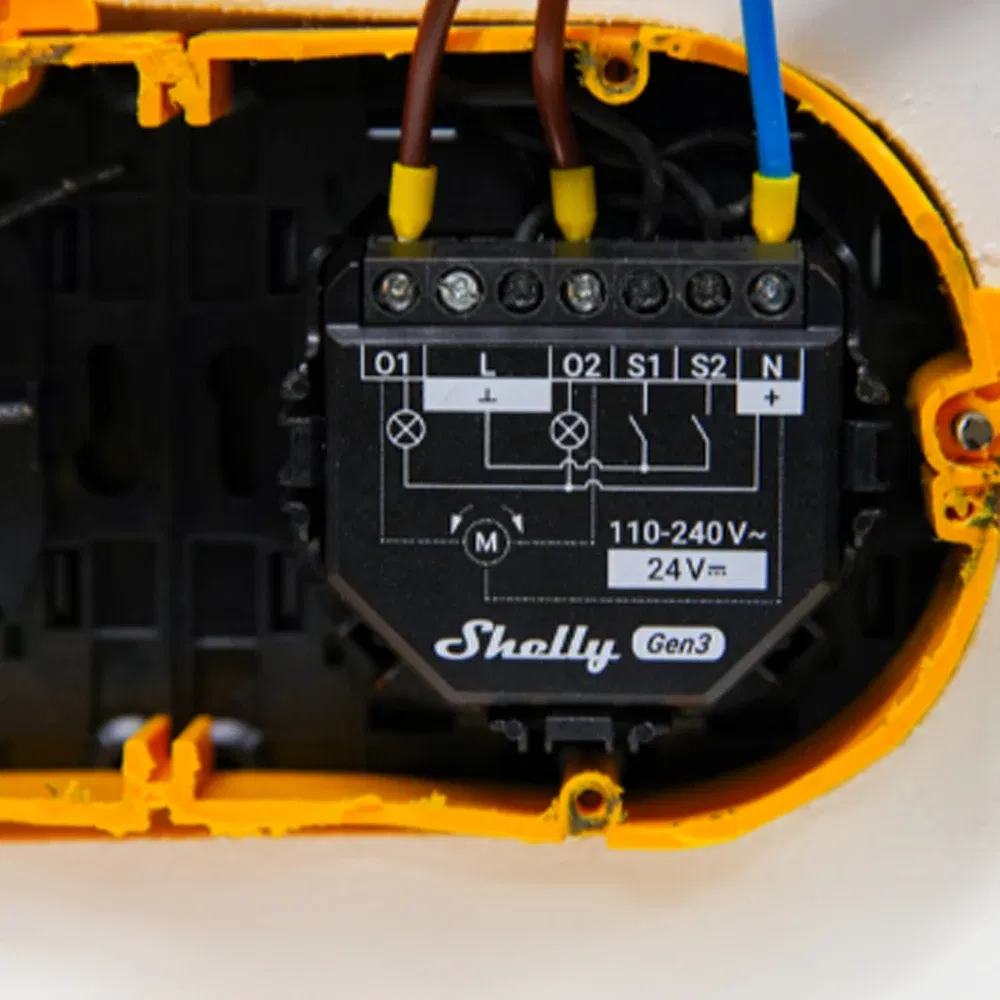

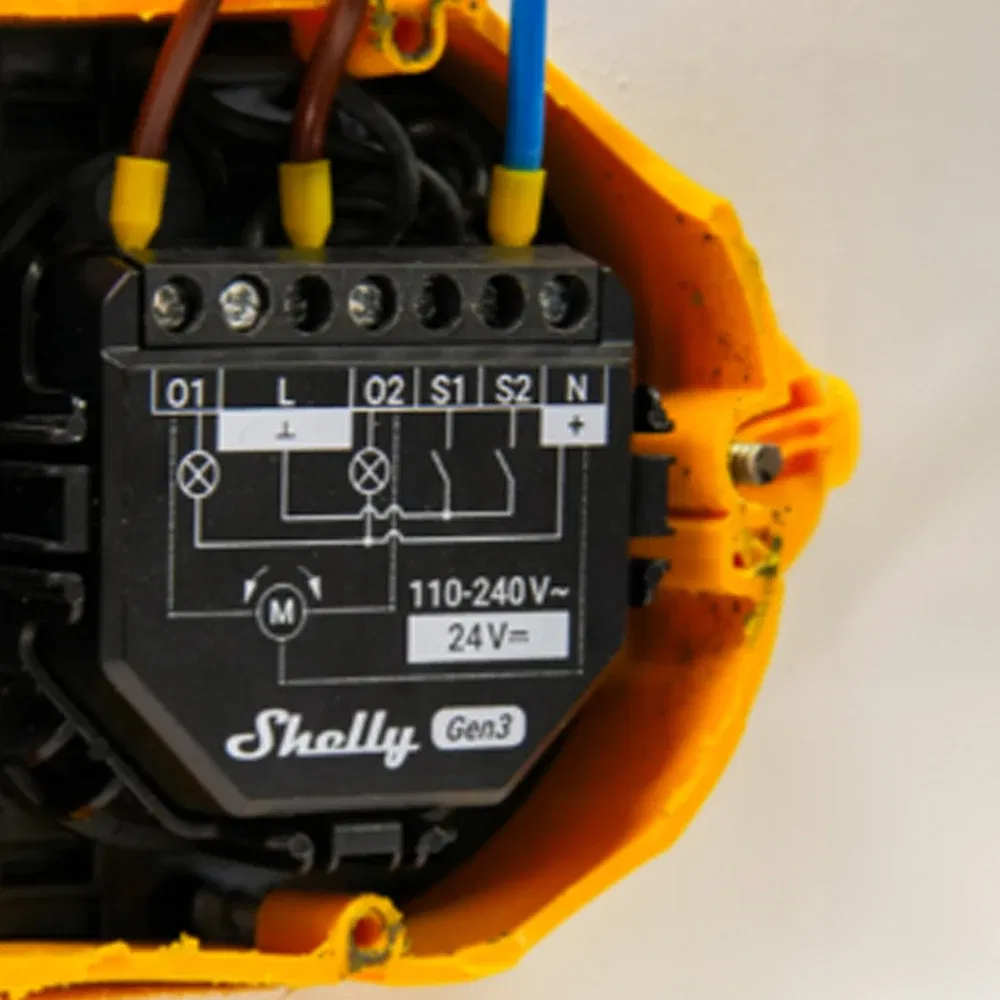

Shelly 2PM Gen3 is a smart switch with dual-channel control, power metering, and cover control. Remotely control and monitor two different electrical circuits, or roller shutters, blinds, and other bi-directional motors from anywhere. Perfect for retrofitting standard electrical wall boxes, power sockets, and light switches, even in spaces with limited room.
Wi-Fi-operated smart switch, 2 channels 16 total current (18 A peak)
2 channels on the same phase
Power metering on each channel
Cover (roller) control - automate and adjust the position of roller shutters, blinds, gates, curtains, awnings, sliding doors, and other bi-directional motors
Slats angle control - use with your venetian blinds and control the tilt position (angle) of slats to adjust the amount of light in a room.
New processor - ESP-Shelly-C38F chip with an increased memory of 8 MB
Improved durability of terminals
Virtual components
Wi-Fi range extender & Bluetooth gateway
Supports scripting webhooks, MQTT, WebSocket, HTTPS, UDP, TLS and custom certificates
No HUB required! Easy control through Shelly Smart Control app, various home automation protocols, platforms, as well as voice assistants.
SupportsKNXnet/IP communication
==========
Hign-concerned Chemical : None
Communication method : Bluetooth-compatible,Wi-Fi
Model Number : Shelly 2PM Gen3
Compatibility : others
Origin : Mainland China
Certification : CE,RoHS
Weight : 30g/1.06 oz
Screw terminals max torque : 0.4 Nm / 3.5 lbin
Conductor cross section : 0.2 to 2.5 mm / 24 to 14 AWG (solid, stranded and bootlace ferrules)
Mounting : Wall console,In-wall box
Shell material : Plastic
Shell color : Black
Ambient working temperature : -20°C to 40°C / -5°F to 105°F
Humidity : 30% to 70% RH
Max. altitude : 2000 m / 6562 ft
Power supply : 110-240 V/ 24 V
Power consumption : <; 1.4 W
External protection : Tripping characteristic B or C,max 16A max rated current,min 6 kA interrupting rating
Max. switching voltage : 240 V,30 V
Max. switching current AC : 10 A per channel,16 A total,18 A total peak
Max. switching current DC : 10 A
Voltmeter (AC) : Yes
Ammeter (AC) : Yes
Internal-temperature sensor : Yes
Protocol : 802.11 b/g/n,4.2
RF band : 2402-2480 MHz,2402-2480 MHz
Max. RF power : <; 20 dBm,<; 4 dBm
CPU : ESP-Shelly-C38F
Flash : 8MB
Schedules : 20
Webhooks (URL actions) : 20 with 5 URLs per hook
Scripting : Yes
MQTT : Yes
