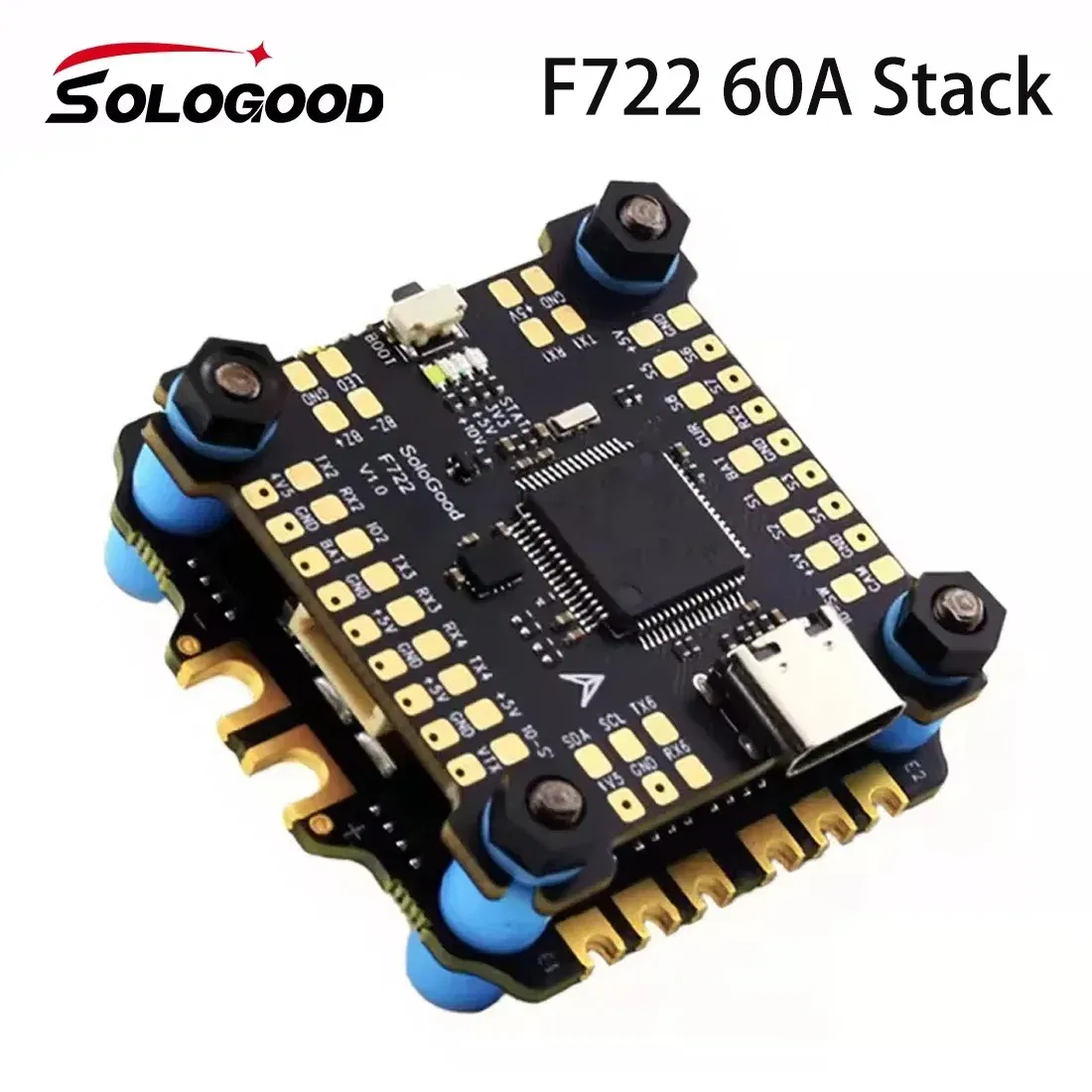

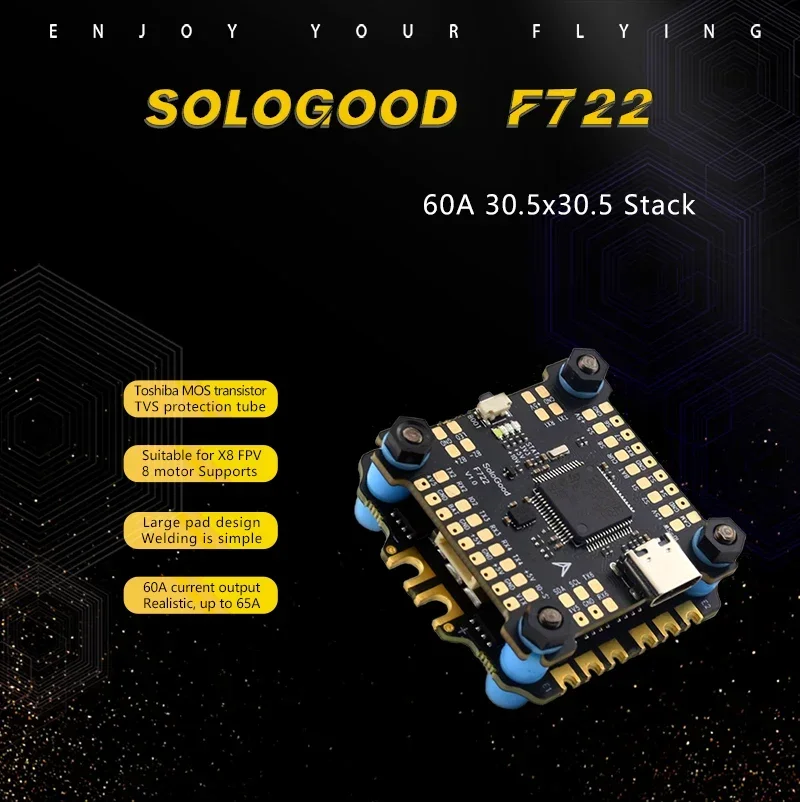

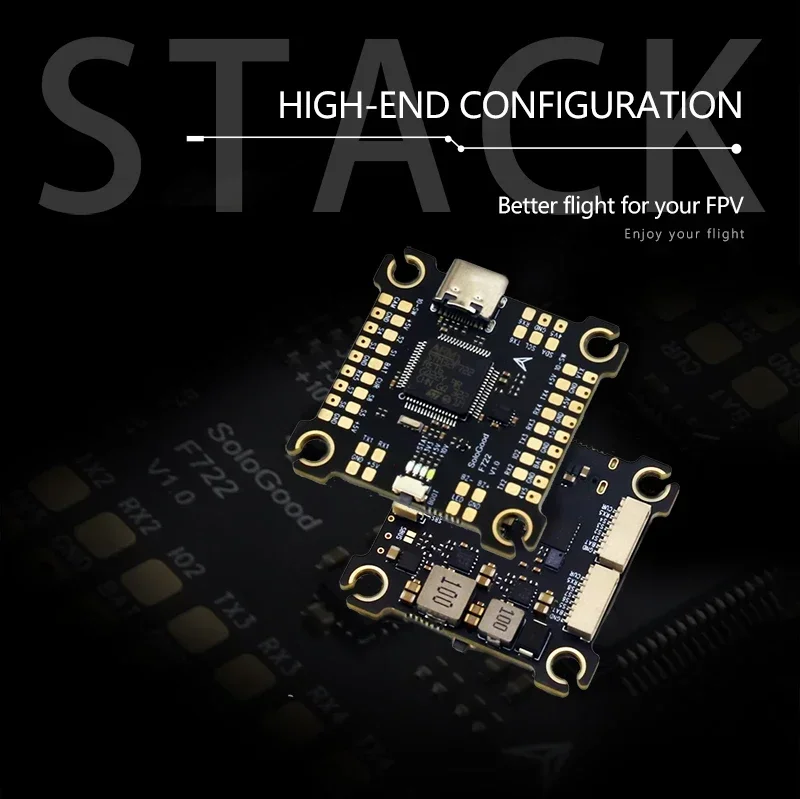

SoloGood F722 60A Stack ICM42688P F722 Flight Controller BLHELI_S 60A 4in1 ESC 30.5X30.5mm 2-6S for FPV Freestyle Drones Parts
$152.23 NZD
Description:
For Vehicle Type: AirplanesIs it battery/power supply: N
Wheelbase: Screws
Recommend Age: 14+y
Recommend Age: 6-12Y
Quantity: 1 pcs
Technical parameters: value 2
Tool Supplies: F722 Flight Controller
Upgrade Parts/Accessories: Adapter
Is it charger/adapter: N
RC Parts & Accs: Flight Controller
Use: Vehicles & Remote Control Toys
Is Batteries Included: No
Origin: Mainland China
Model Number: SoloGood F722 60A Stack
Material: Composite Material
Remote Control Peripherals/Devices: RECEIVERS
High-concerned chemical: None
Is Electric: No Battery
Recommend Age: 14 + y,6-12Y
Four-wheel Drive Attributes: SoloGood F722 60A Stack

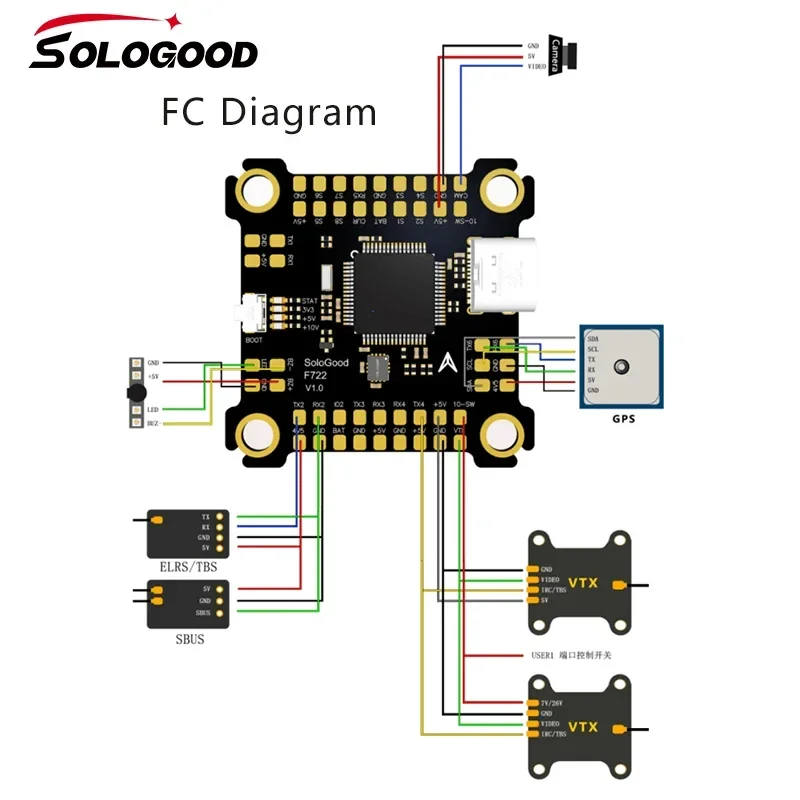

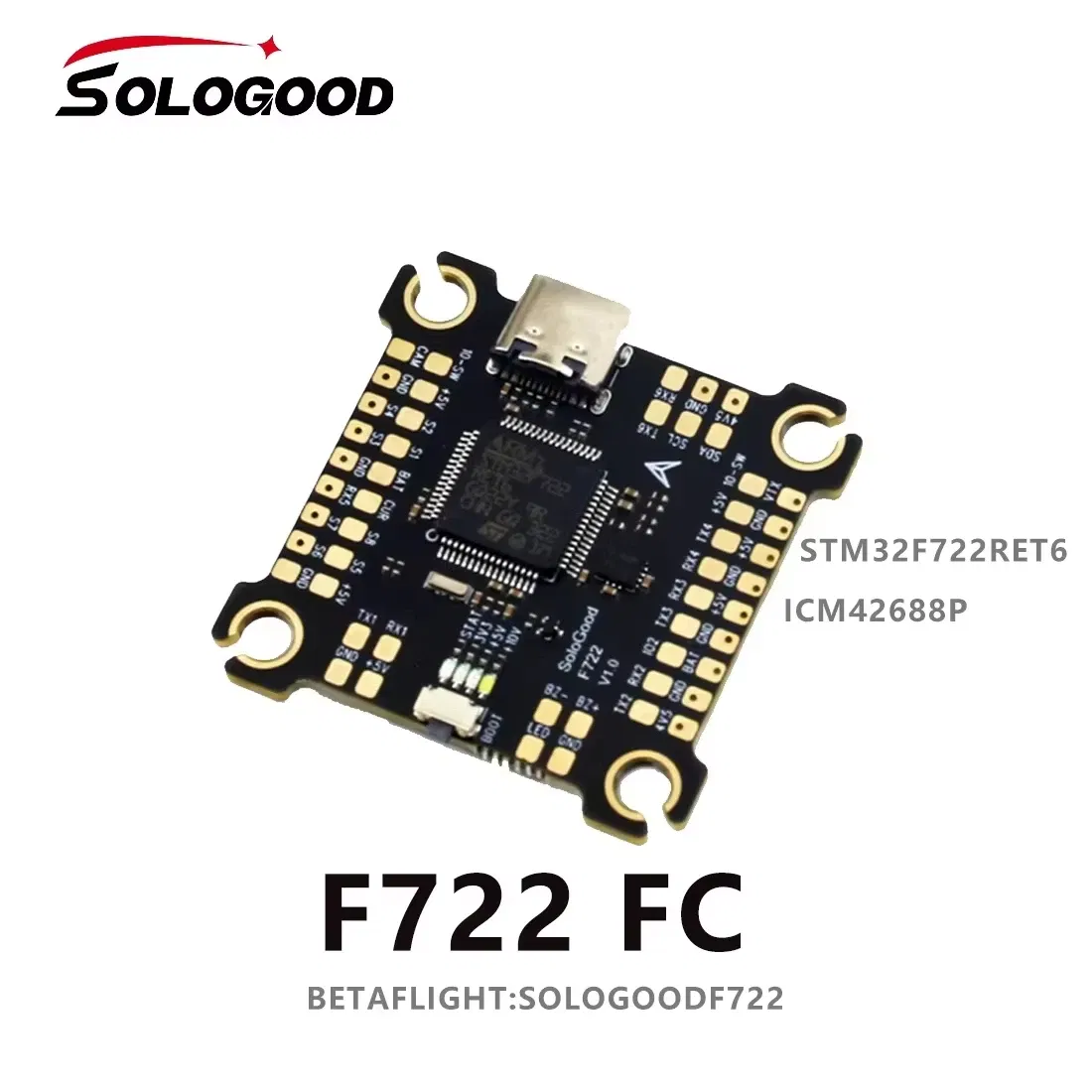

Main control: STM32F722RET6
Gyroscope: ICM42688P
Barometer: Support (DPS310)
OSD: Support (AT7456E)
BEC: 10V/2A, 5V/2A
UART port: 6
Black box: onboard (16M flash memory)
Number of supported motors: M1-M8
Firmware name: BETAFLIGHT: SOLOGOODF722
Input voltage: 3-6S lithium battery (11-30V MAX)
Output voltage: VBAT
Installation hole: 30.5x30.5mm (4mm aperture)
Flight control size: 38.5x38.5mm
Weight: 8.1 grams
LED status: blue: gyroscope status, green: 3V3 indication, red: 5Vbec indication, white: 10Vbec indication
DJI/Vista: Support/6pin
Electric regulation
TVS protective diode: Yes
External capacitor: 1000uF high-frequency low resistance capacitor (included in the packaging)
ESC/Motor Protocol: DSHOT300/600
Continuous current: 60A
Maximum current :65A
Installation hole: 30.5x30.5mm (4mm aperture)
For more info about FC, pls scan this app

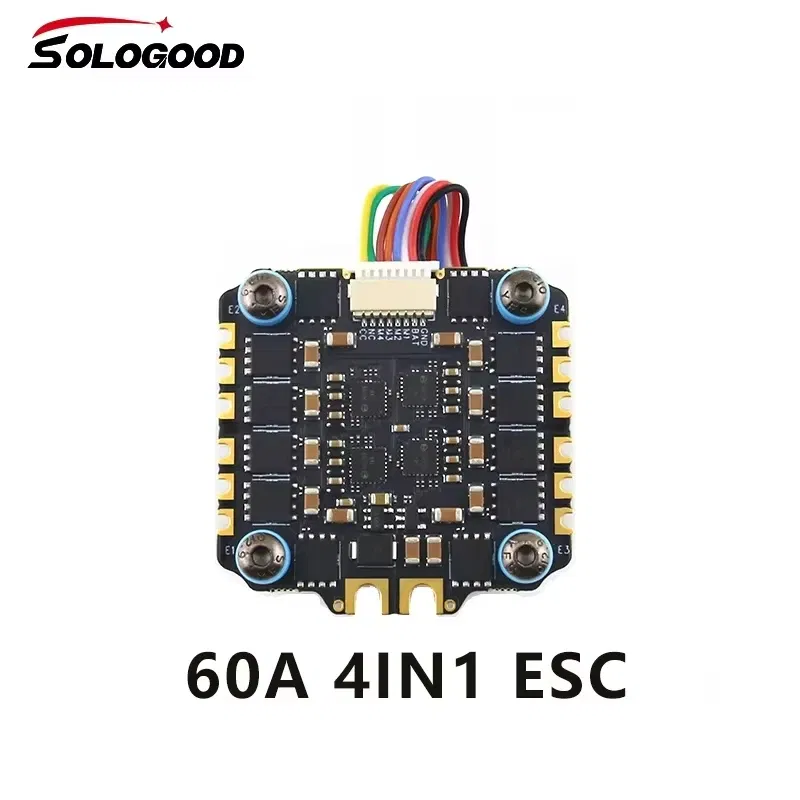

Sologood BLS60A 4in1 ESC SPEC:
Firmware: BLHELI-S: J-H-30-16.7
Continuous current 55A
Maximum current 60A
Electric dispatch protocol support: DSHOT300/600
Input voltage: 3-6s
Galvanometer: Yes
TVS diode protection: Yes
External capacitor: 1000UF high-frequency electrolytic capacitor
MOS: High performance Toshiba MOS
Installation hole position 30.5x30.5mm (4mm hole)
Size: 41.5mm X42mm
Weight: 15g
