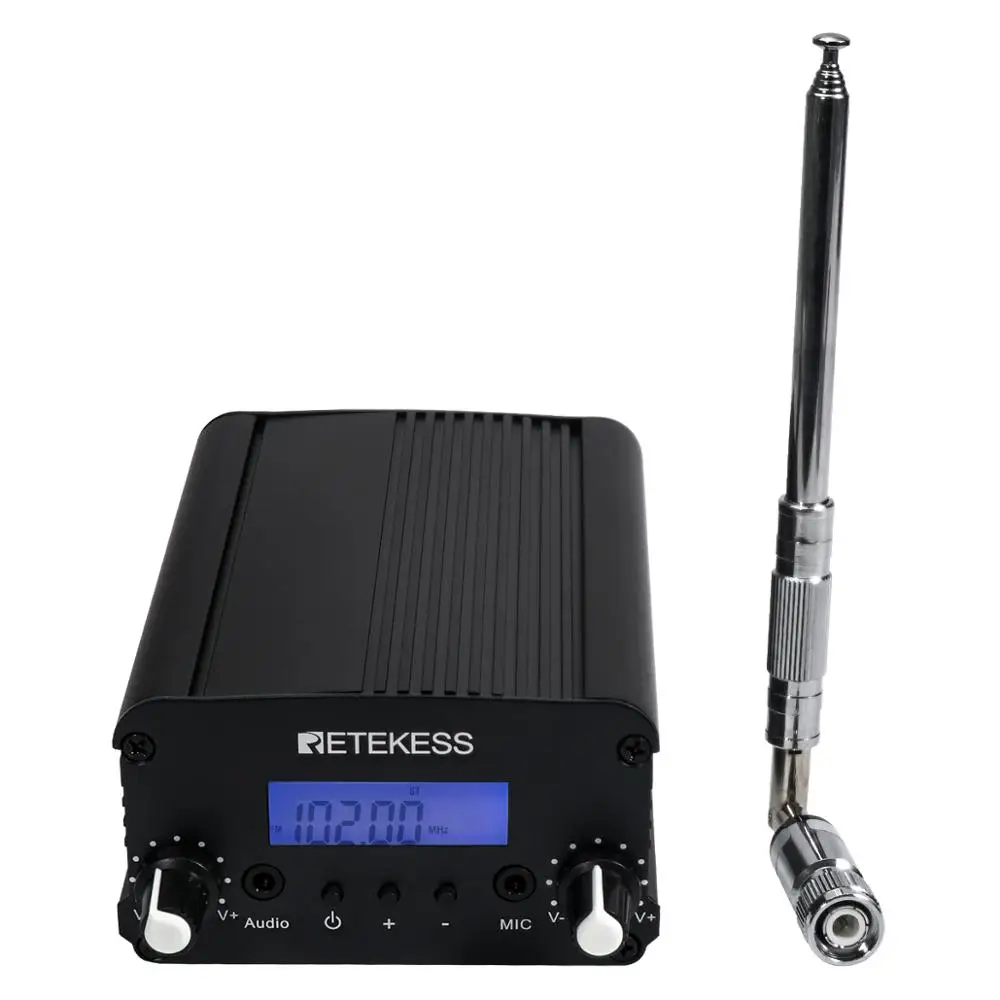

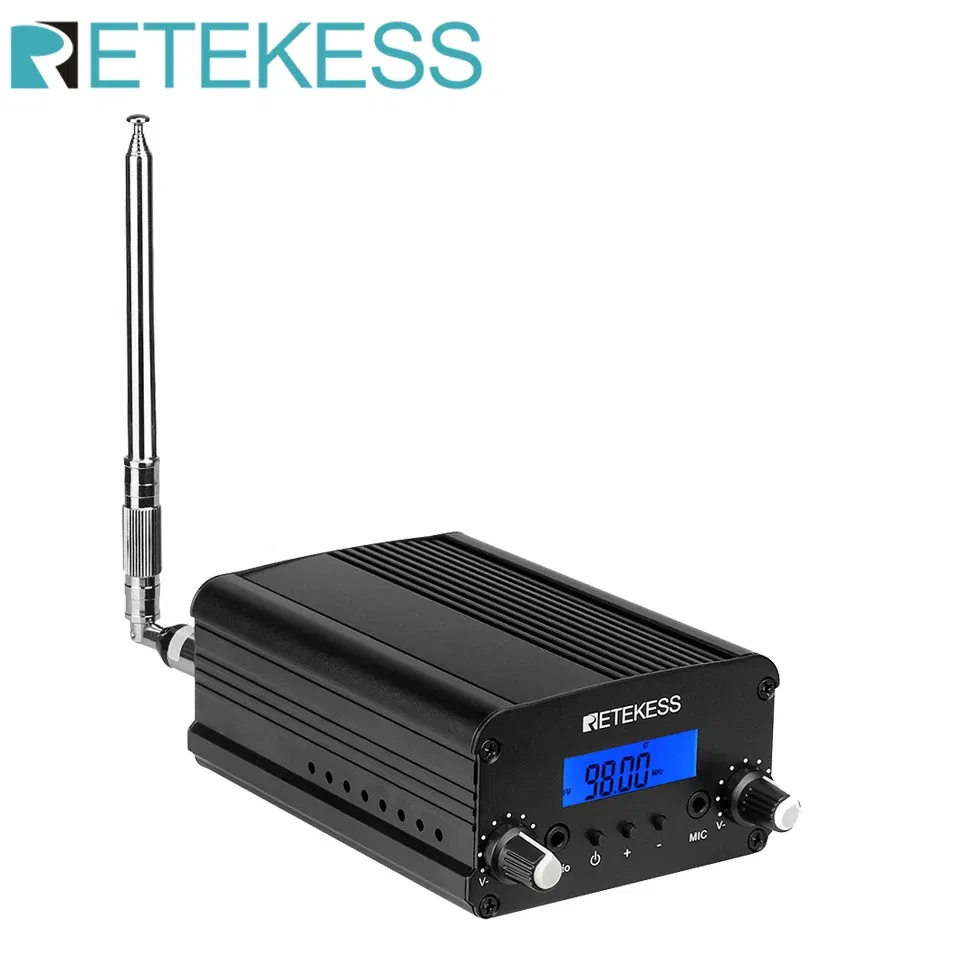

Color: Black, Ships From: CHINA - Retekess TR509 Wireless FM Broadcast Transmitter Stereo Radio Station Campus Amplifier AUX Input For Drive-in Church Cinemas

$106.84 NZD

Description:

Transducer: Electret Microphone
Set Type: Multi-Microphone Kits
Style: Drive-in Church
Use: Drive-in Church
Origin: Mainland China
Package: Yes
Polar Patterns: Cardioid
Certification: CE
Diaphragm: S-Mall
Communication: WireLess
Frequency domain: 76~108Mhz
stepped frequency: 100KHZ
frequency response: 50HZ~15000HZ
Item Dimensions: 128 (L) x 95 (W) x 55 (H) mm
Weight: 18. body 479g(include antenna)
Working current:: 1.67A
Frequency stability:: ±10PPM
Output impedance: 50Ω
Rf power output range: H:7W (L:1W)
Audio distortion: <0.30%
Preemphasis delay: 75us
Degree of separation: ≥35 dB
Input level: ≤15 dBV
Modulation frequency deviation: ±75KHZ
SNR(Signal to Noise Ratio): ≥60 dB
Choice: yes
semi_Choice: yes

Note:
1.When the product is outputting high power at H gear, the volume can be properly lowered to reduce the background noise to obtain a better listening effect.

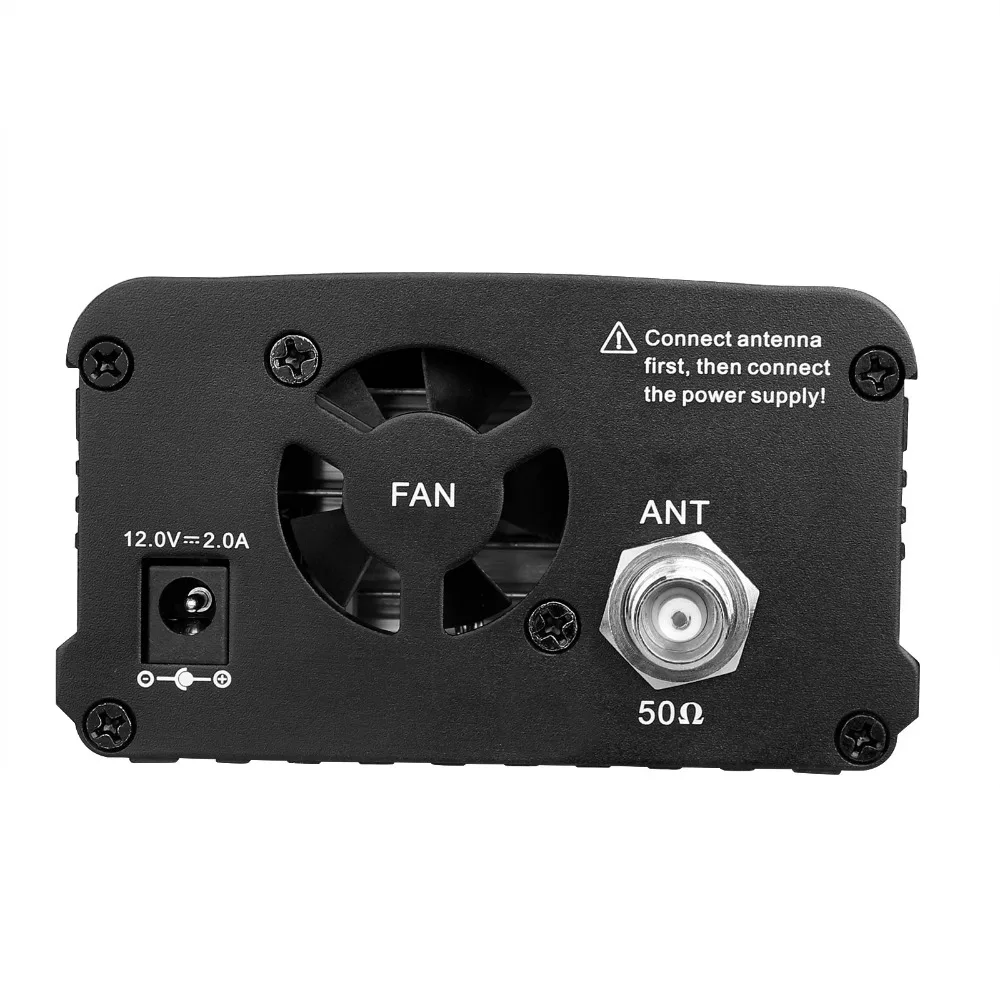

2.The transmitting frequency of TR509 and the antenna must correspond strictly, otherwise it will easily cause damage to the machine.

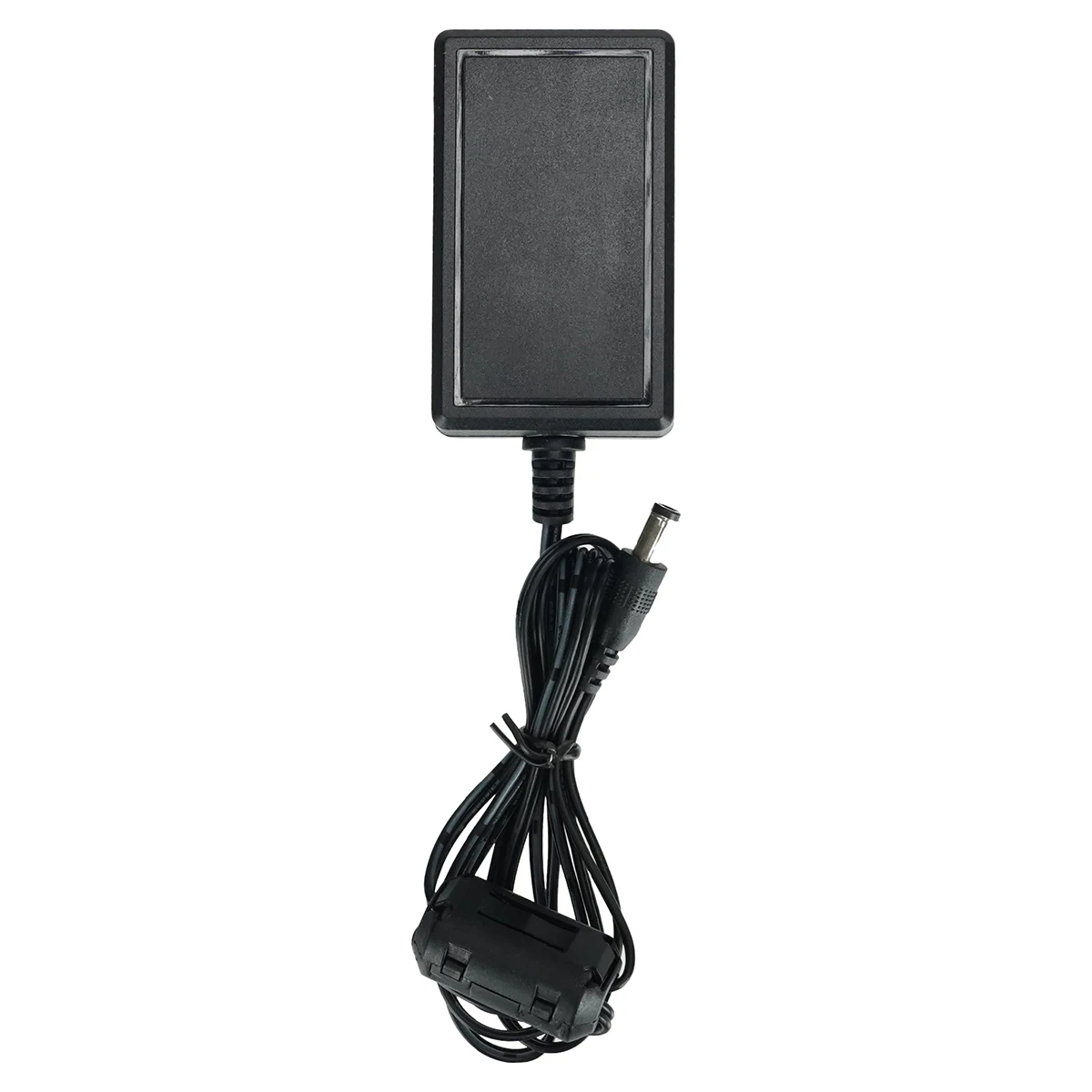

3. we replaced the power adapter.New power adapter: The adapter head and cable are integrated, and the direct adapter distinguishes the connector shape
Customers please purchase with caution! ! !
4.TR509 has three voltages to choose from: universal American standard or 220V European standard/British standard. When purchasing, please pay attention to whether the voltage you need is the universal American standard or the 220V European standard/British standard. To avoid mistakes, you can note the specifications you need.

Model

TR509

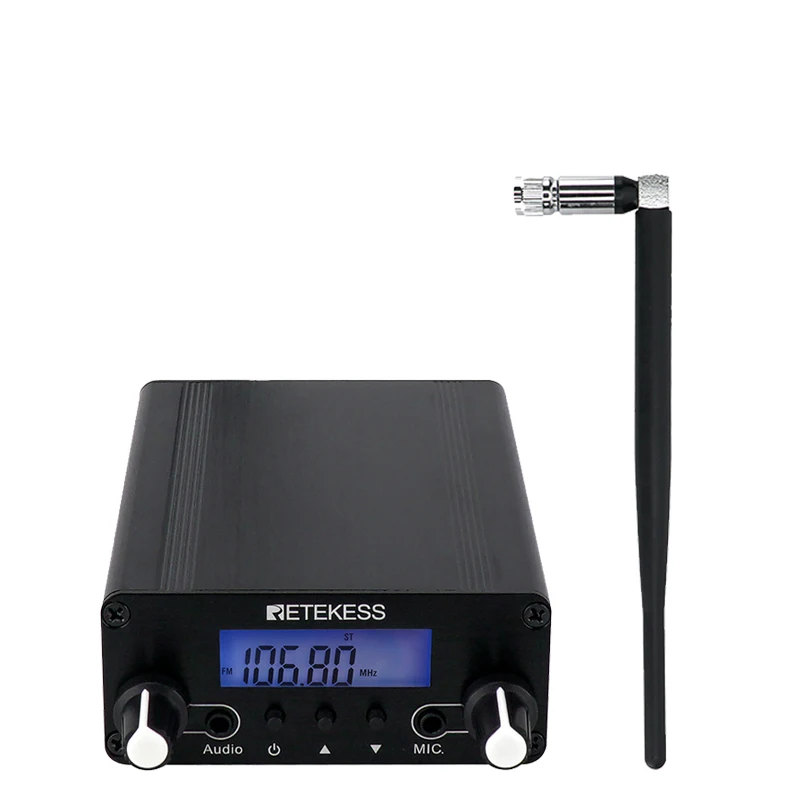

TR508


Weight

479g

269g

Size

128x95x55 mm

113x 88x39 mm

Working Distance

1000-2000m
(Max: 2KM
1KM

300m

Stereo

Yes

Yes

Frequency Range

76~108Mhz

76~108Mhz

Working Current

1.67A

<300mA

Operating Voltage

11~13V DC (rated voltage 12 v)

11~13V DC (rated voltage 12 v)

Features

Long receiving distance,
dual-mode power(7W and 1W)

Adjustable power (100mW and 500mW)

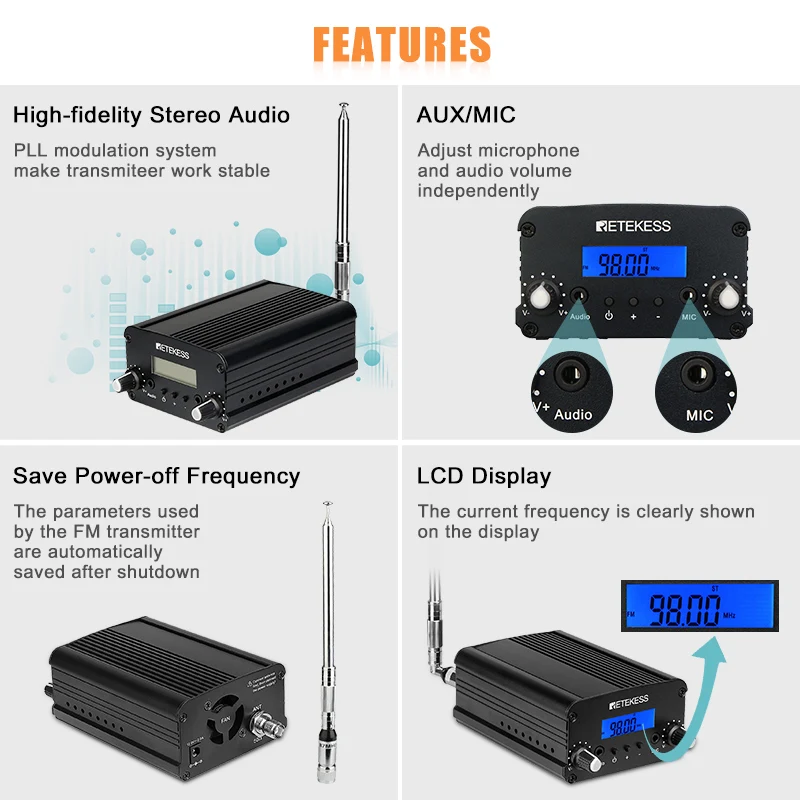

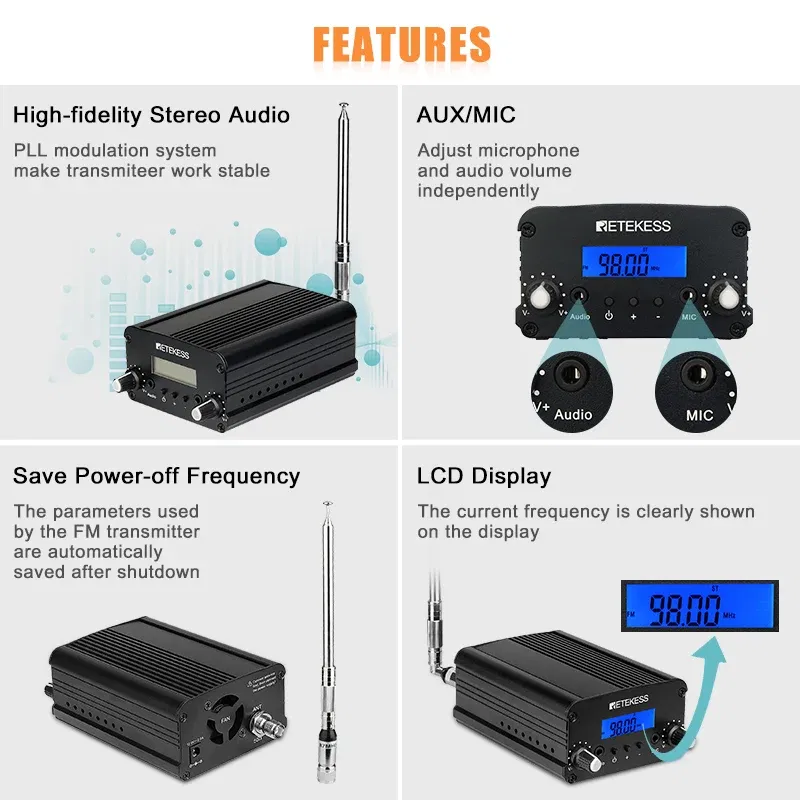

1. AUX Input

2. MIC Input

3. LCD Display

4. TWO Mold Power(7W and 1W)

5. Setup Work Frequency Rang Arbitrarily

6. High Quality Stereo

7. High fidelity and stability Transmitted

8. Audio and Mic volume adjusting knob independently

9. Longer work distance (Max:2KM,1KM)

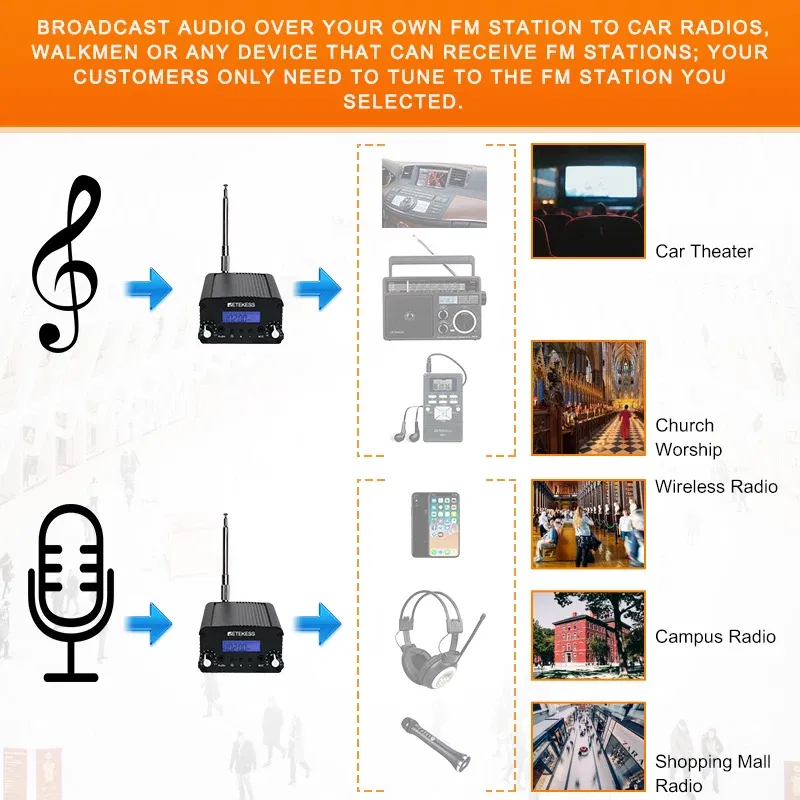

1、Broadcast audio over your own FM station to car radios,walkmen or any device that can receive FM stations; Your customers only need to tune to the FM station you selected.

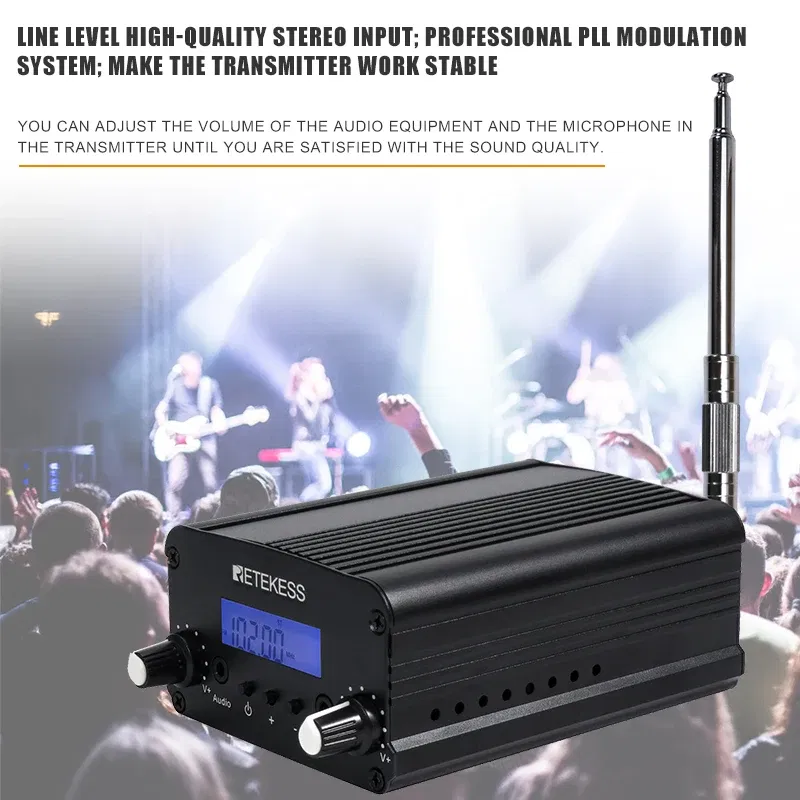

2. Line level high-quality stereo input; professional PLL modulation system; make the transmitter work stable; you can adjust the volume of the audio equipment and the microphone in the transmitter until you are satisfied with the sound quality.

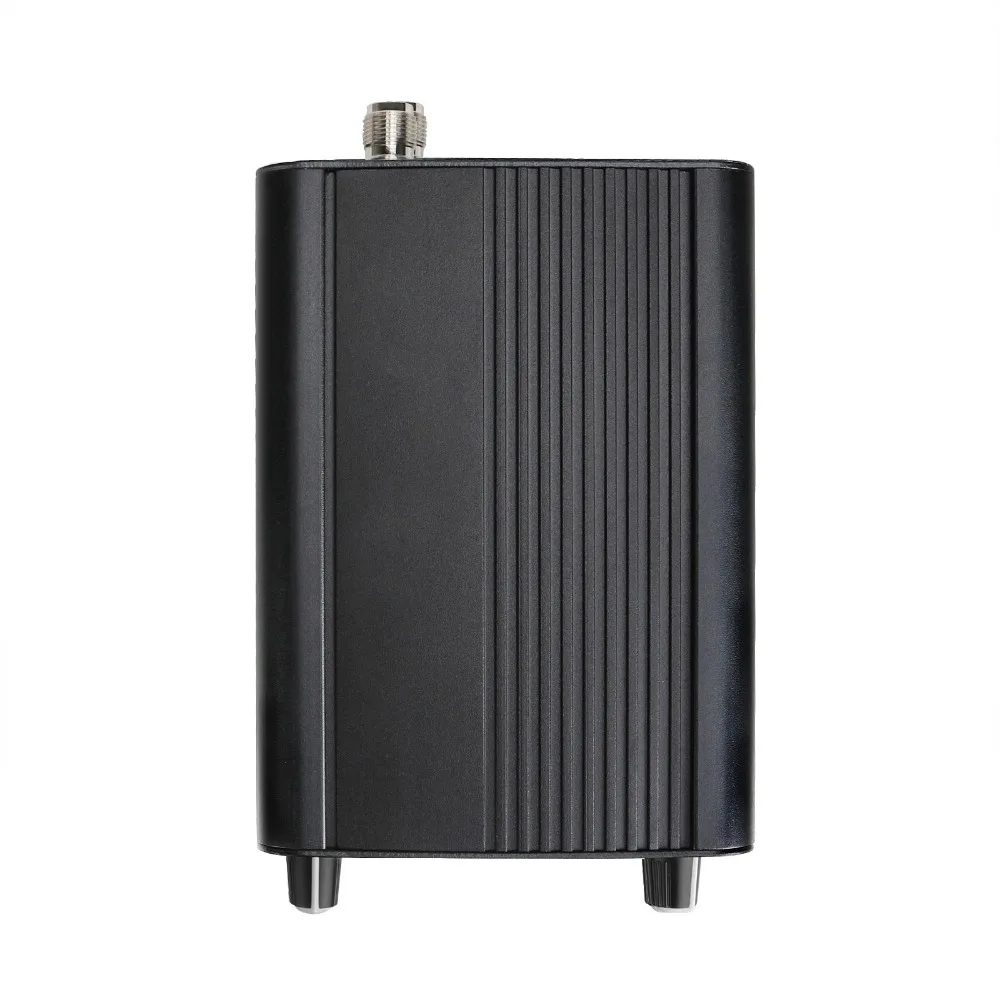

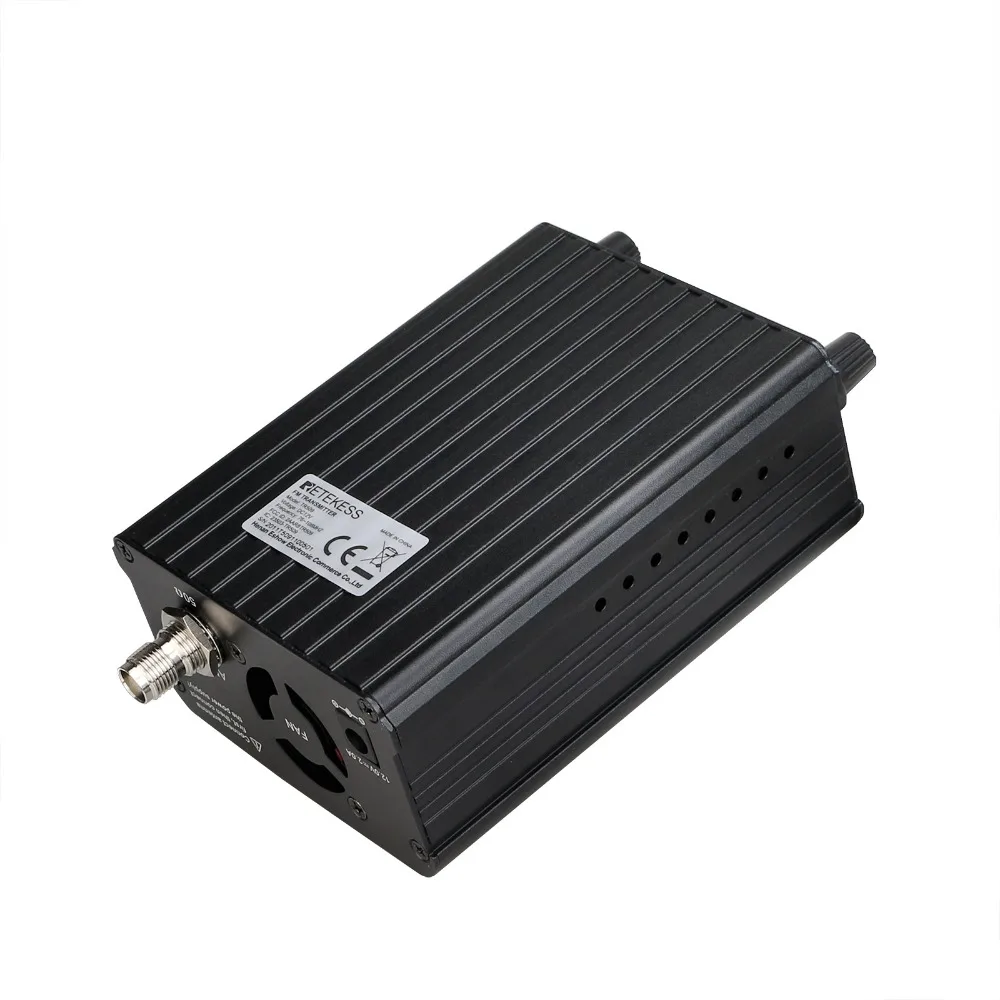

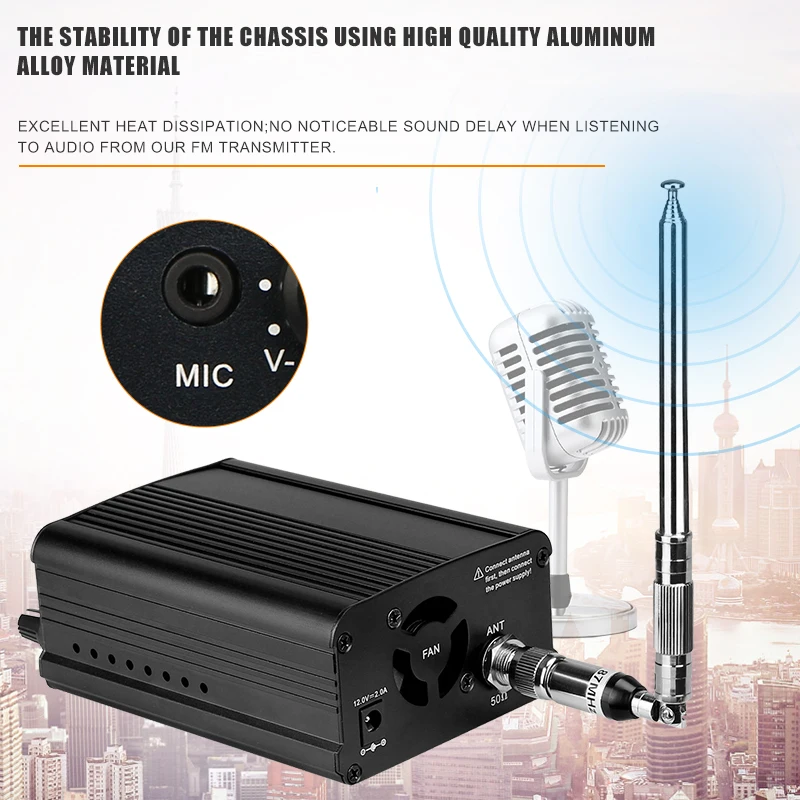

3、The stability of the chassis using high quality aluminum alloy material;excellent heat dissipation;no noticeable sound delay when listening to audio from our FM transmitter.
4. Usage scenario: The transmitter can also be connected to an external microphone device, and is widely used in campus shopping mall broadcasts, conference speeches, church broadcasts, supermarket broadcasts, etc. The switching frequency can be set arbitrarily from 76M to 108M, ranging from 86M to 90M, 95M to 108M, 87M to 108M.

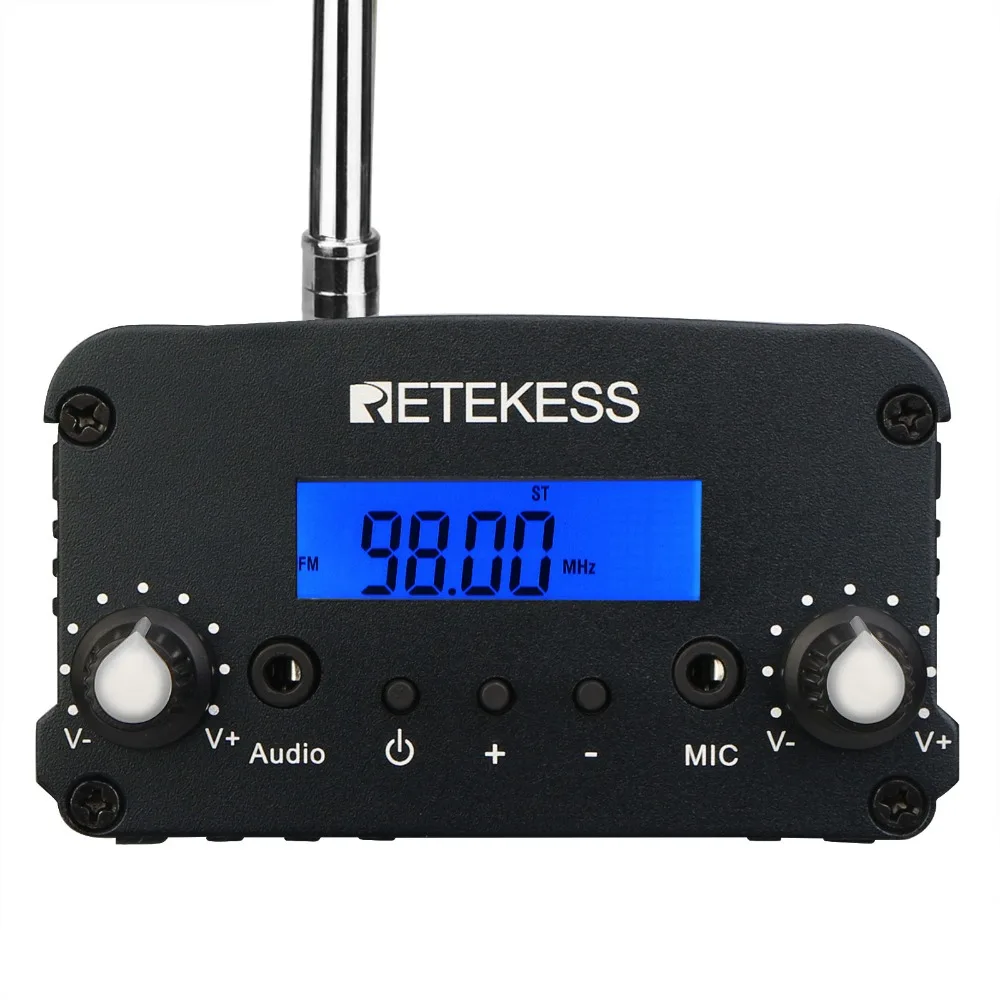

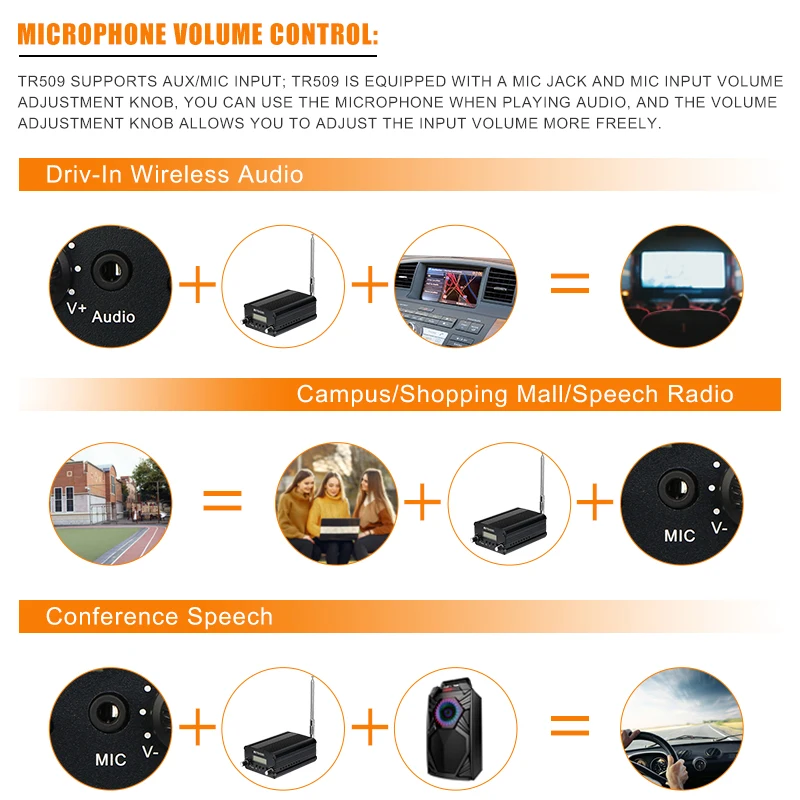

5. Microphone volume control: TR509 supports AUX/MIC input; TR509 is equipped with a MIC jack and MIC input volume adjustment knob, you can use the microphone when playing audio, and the volume adjustment knob allows you to adjust the input volume more freely.

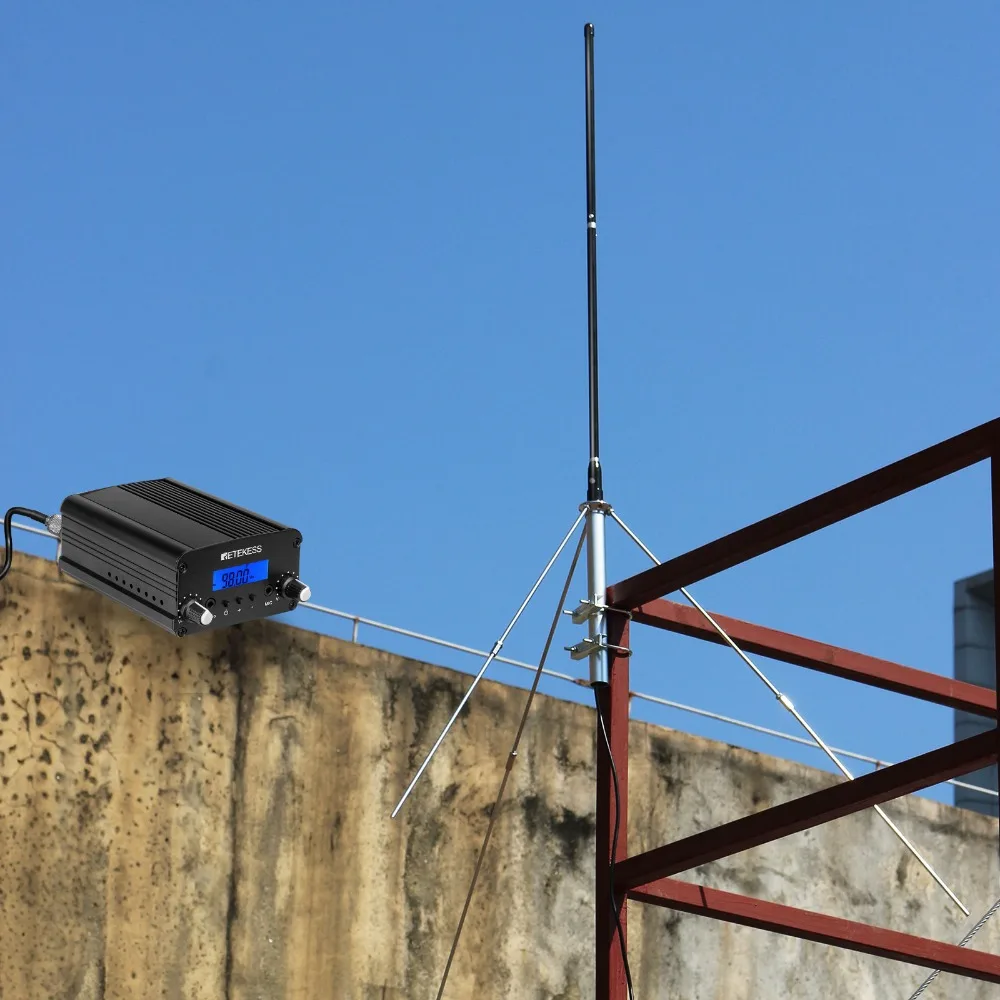

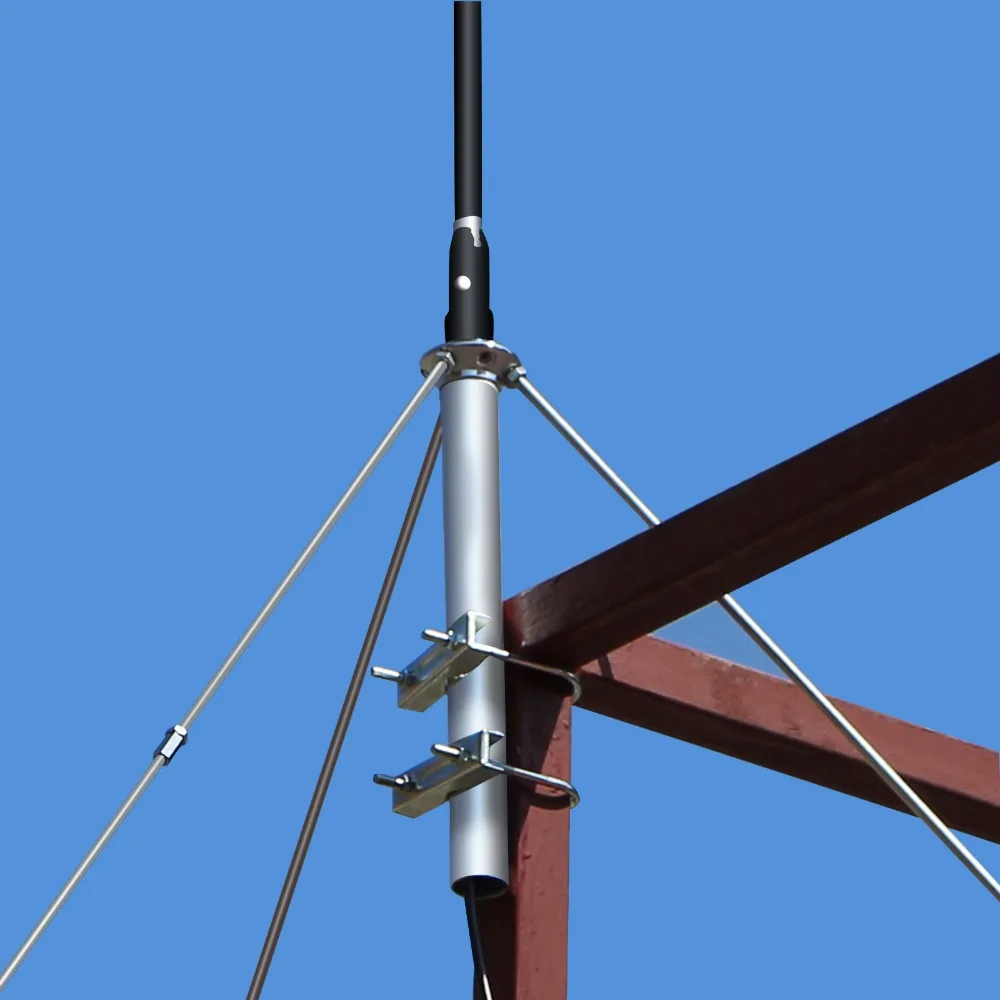

6. The long-distance transmitter is adjustable: the broadcast transmitter is equipped with a detachable antenna.With a longer working distance (maximum: 2KM , 1KM






Festival Light Show


Radio Broadcast


drive-in worship service



Bar/KTV


Drive-in Cinemas


Watching The Game

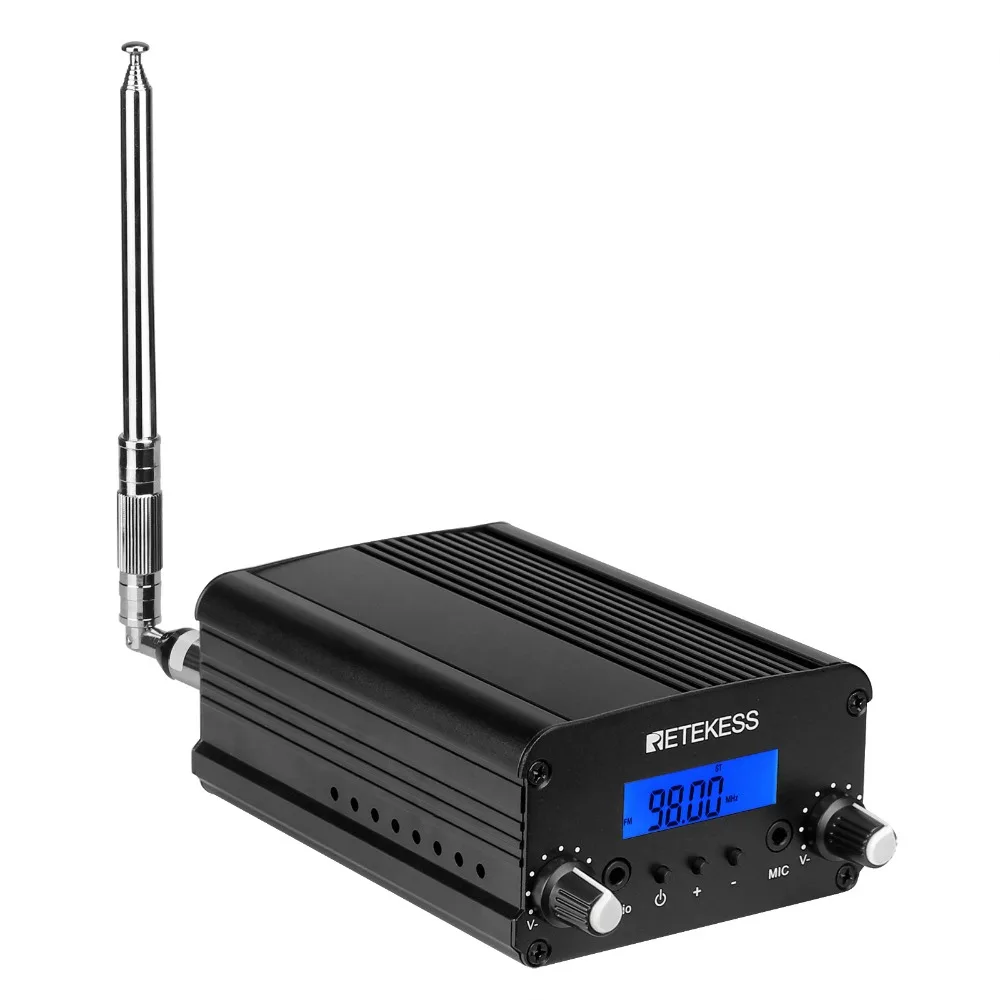

TR509 FM Transmitter

Working voltage

11~13V DC(Rated voltage 12 v)

Working current

1.67A

Frequency domain

76~108Mhz

Frequency stability

±10PPM

Stepped frequenc

100KHz

The operating temperature of the environment

-10°C~50°C

Output impedance

50 ohm

Rf power output range

H:7W(L:1W)

Harmonic and noise radiation

<=-60dB

Audio distortion

<0.30%

Frequency response

50HZ~15000HZ

Preemphasis delay

75us

Degree of separation

>=35 dB

Input level

<=15 dBV

Modulation frequency deviation

±75KHZ

SNR(Signal to Noise Ratio)

>=60 dB

Item Dimensions

128 (L) x 95 (W) x 55 (H) mm

Weight

body 479g(include antenna)

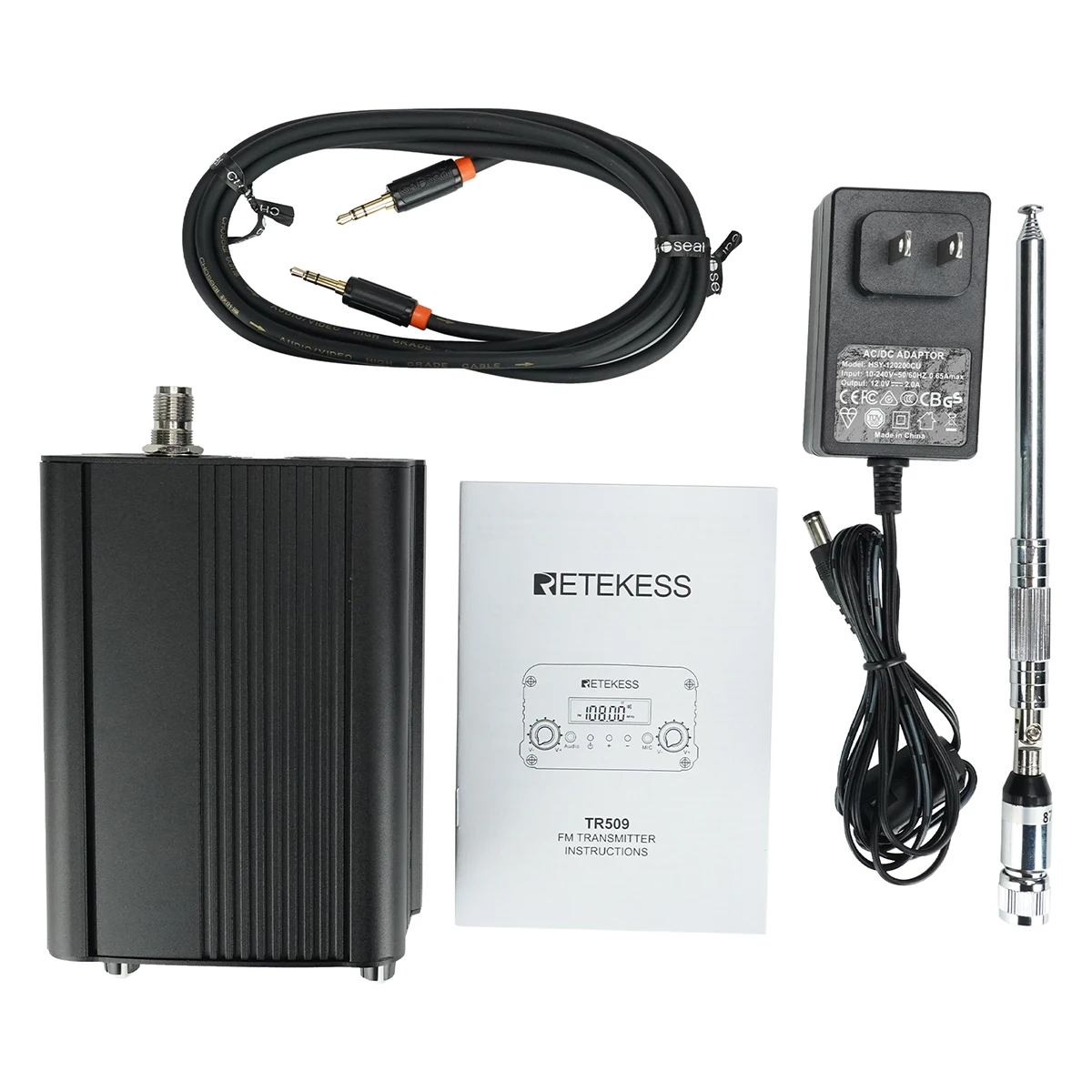

1*TR509 Transmitter

1* TNC Antenna

1* 3.5mm Audio Cable

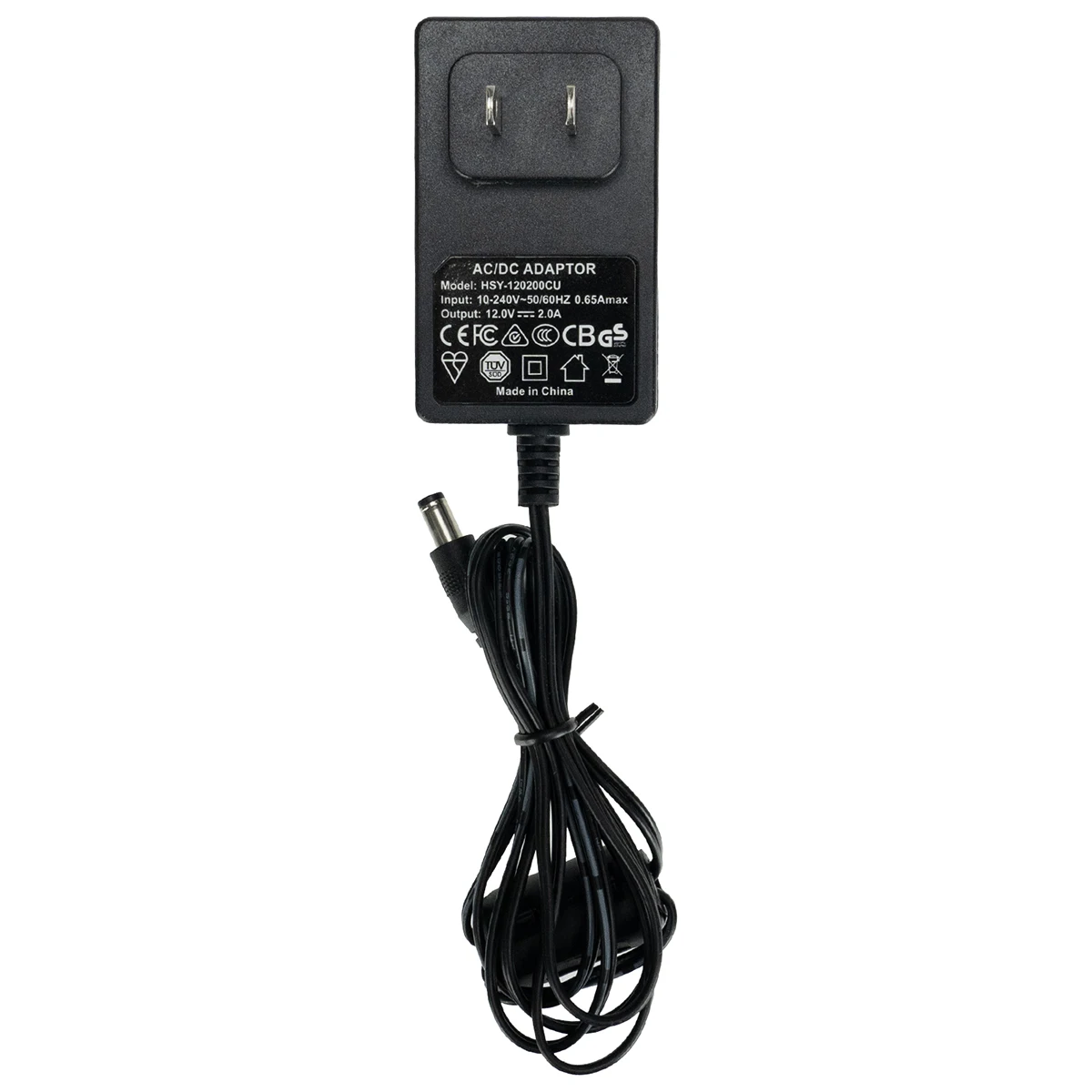

1*Power Adapter(EU/US/AU/UK/ optional)
