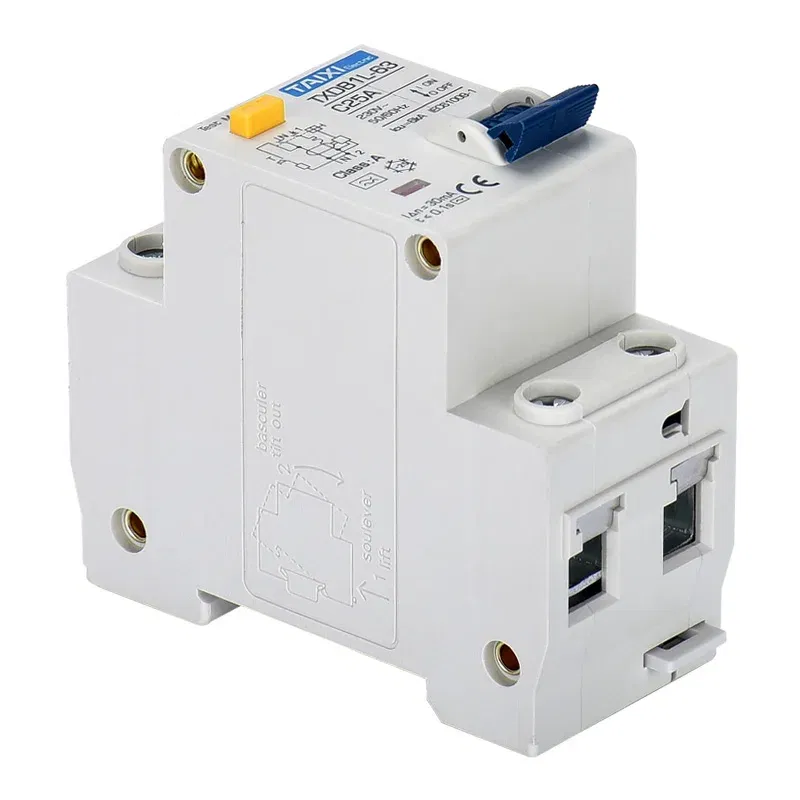

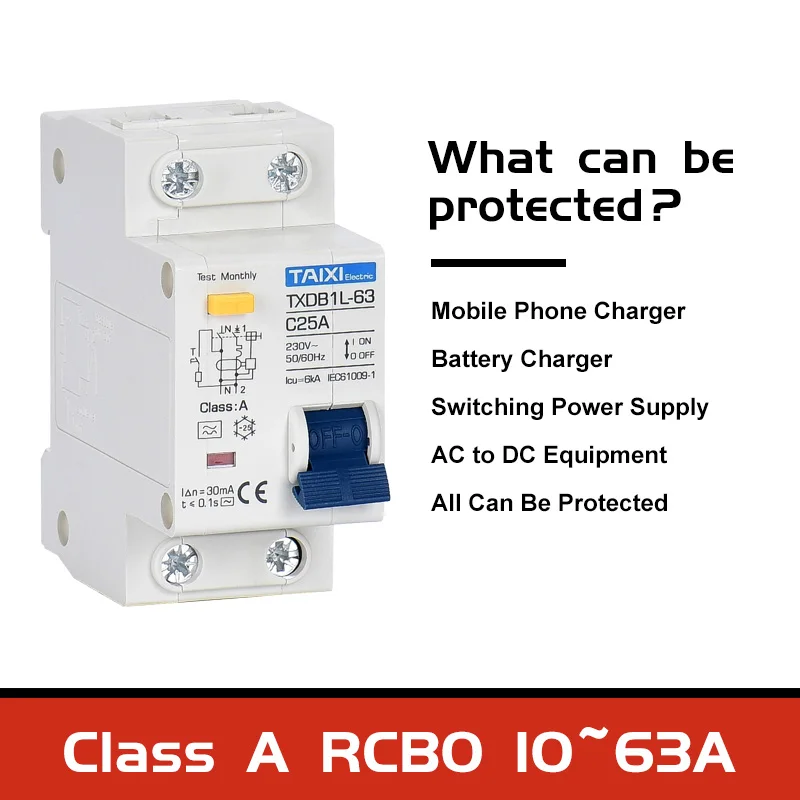

Rated Current: 16a, Ships From: CHINA, Poles Number: 2 - Type A AC CLASS Rcbo 110V 220V RCCB 10A 20A 40A 50A 63A 30mA Residual Current Circuit Breaker Leakage WIth Overload Protection
$13.86 NZD
Description:
Type: MiniOrigin: Mainland China
Rated Voltage: 220/380V
is_customized: Yes
Type: Circuit breaker
Model Number: TXDB1L
Is Smart Device: No
Certification: CE

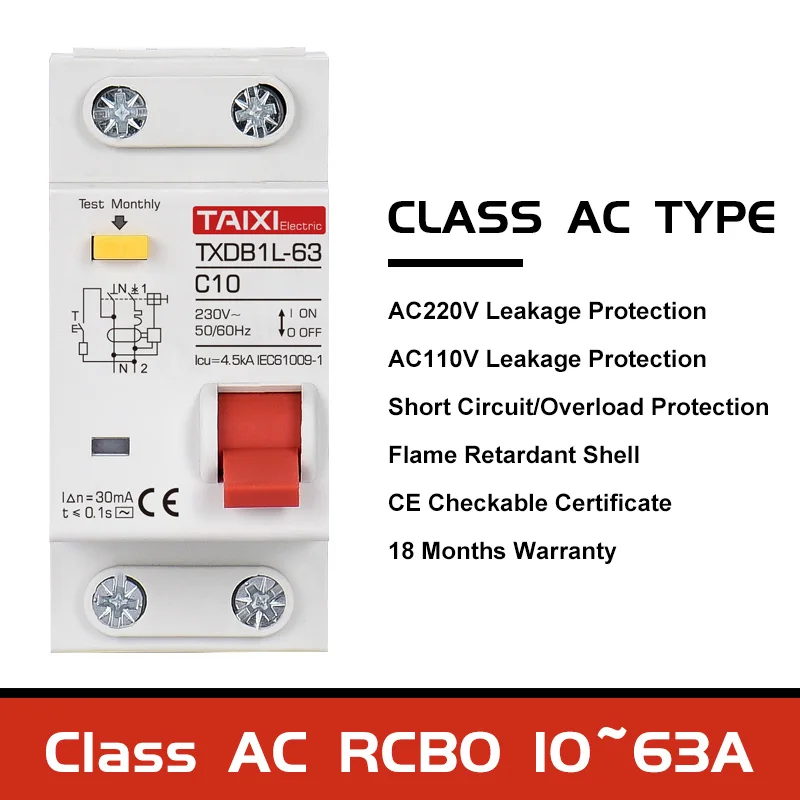

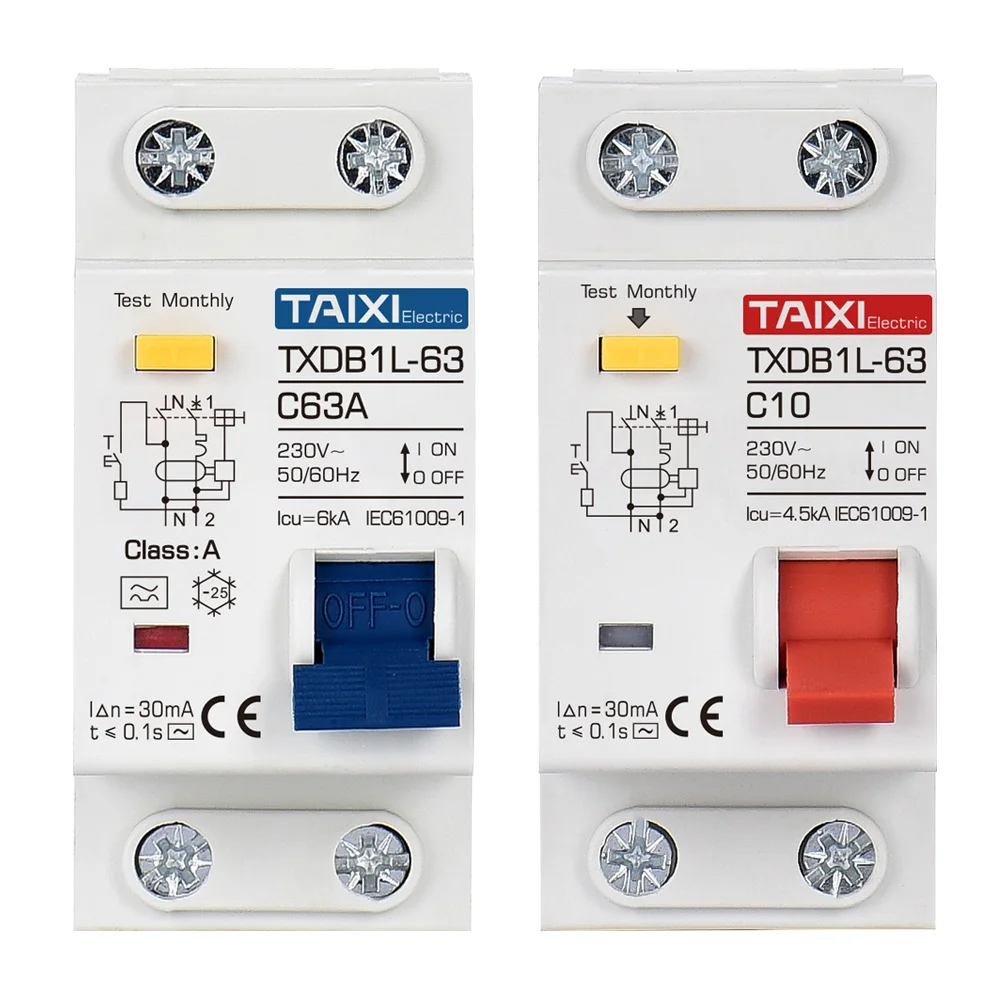

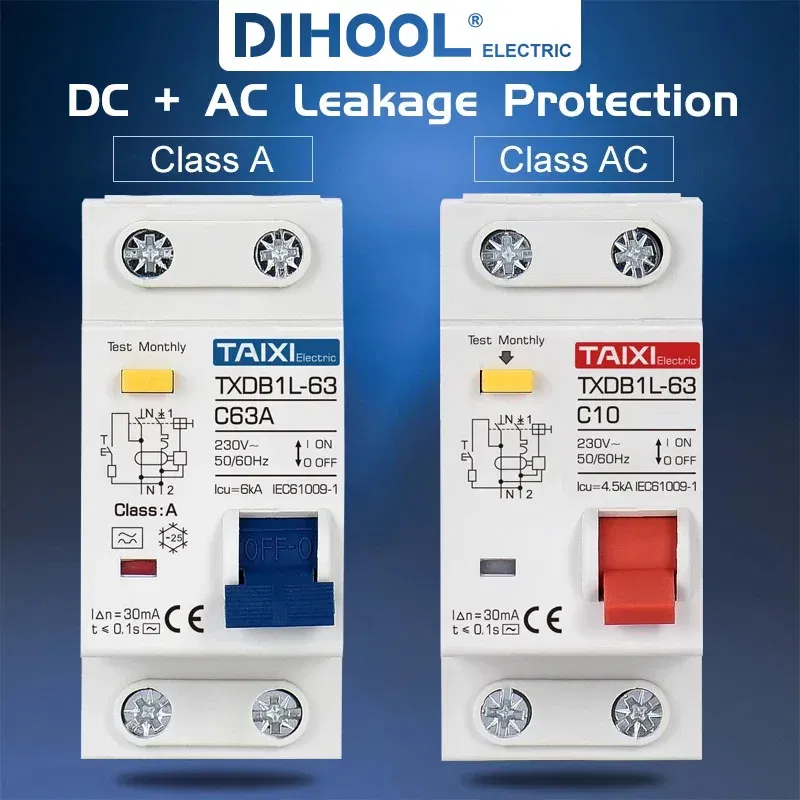

red: type AC

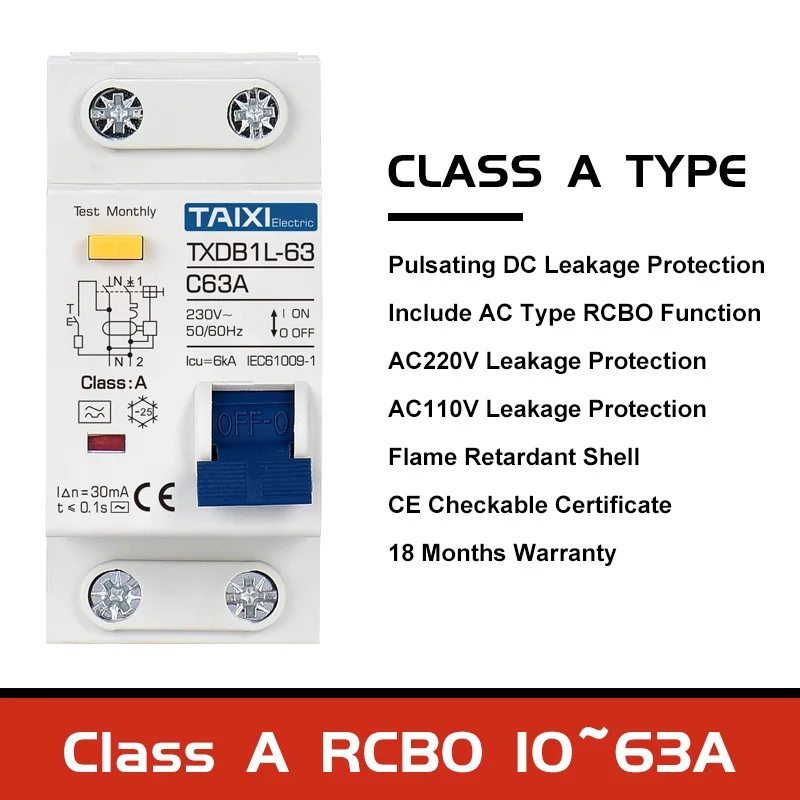

blue: type A
■ Rated current: 6,10,16,20,25,32,40,50,63A
■ Rated operating voltage: 110 / 400V AC
■ Rated insulation voltage: 500V
■ Rated residual operated current: 30mA
■ Breaking capacity: 4.5kA
■ Trip indicator: TXDB1L electric leakage circuit breaker has residual current operated trip indicator window, when leakage fault trip, the window changes from colorless to red
■ Mechanical life: 8000 times
■ Electrical life: 2000 times
■ Wiring: 6 ~ 63A, can be connected to max wires of 25mm2
■ Standard: IEC61009-1 / GB16917.1
■ Certification: CCC, CB
■ Tripping characteristics: C-type curve, protection of conventional load and distribution cables, instantaneous trip range (5 ~ 10) In
