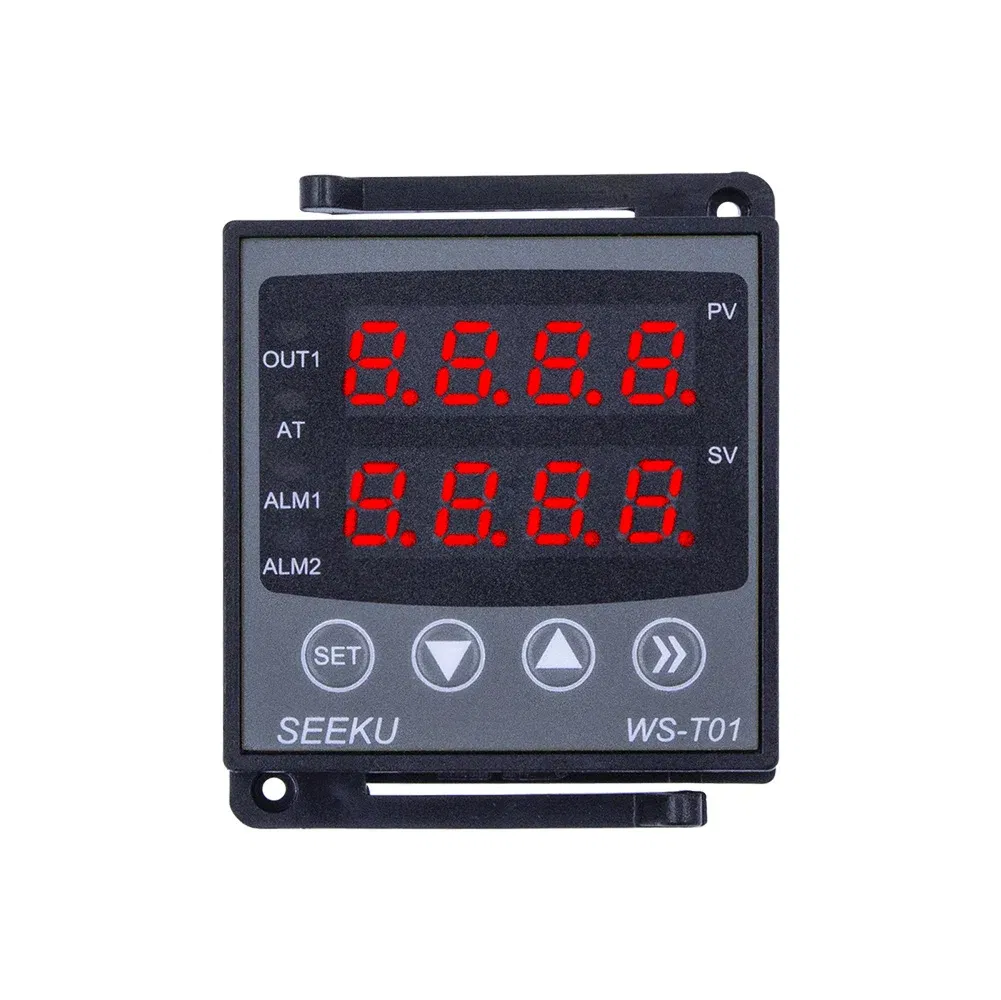

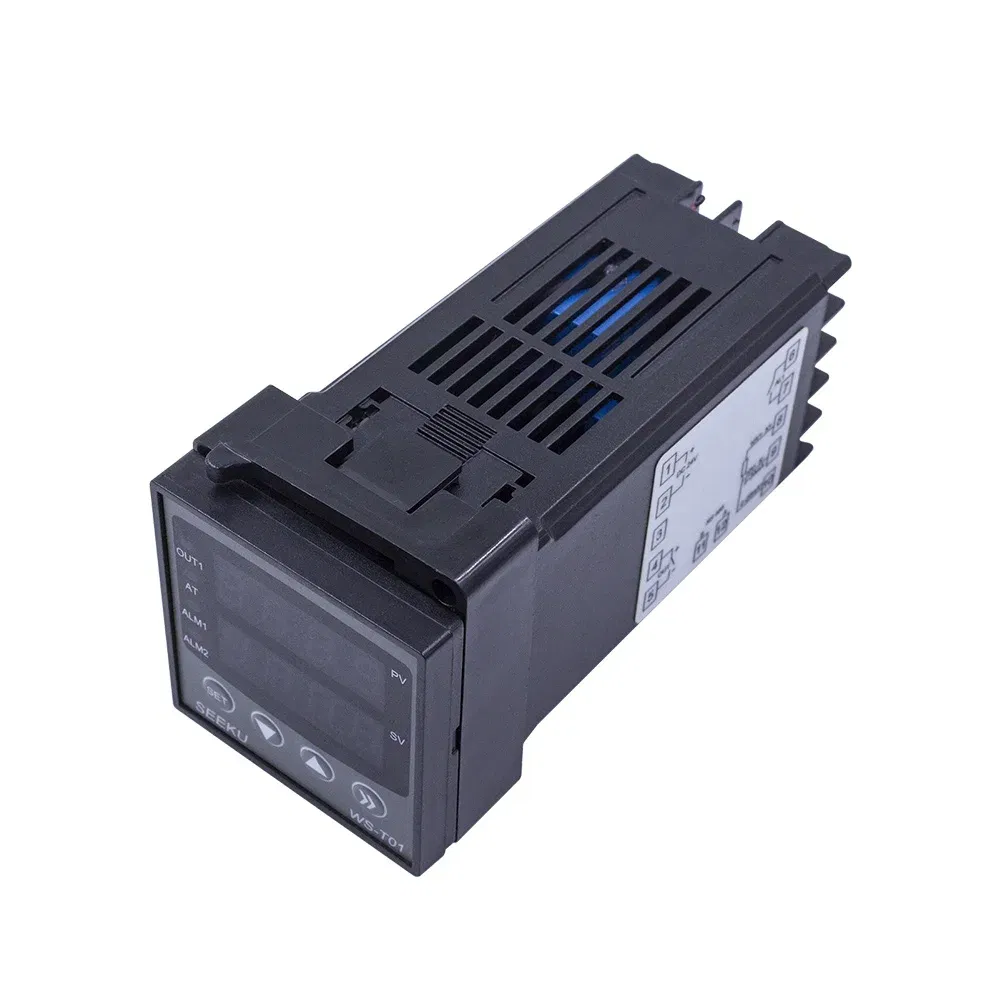

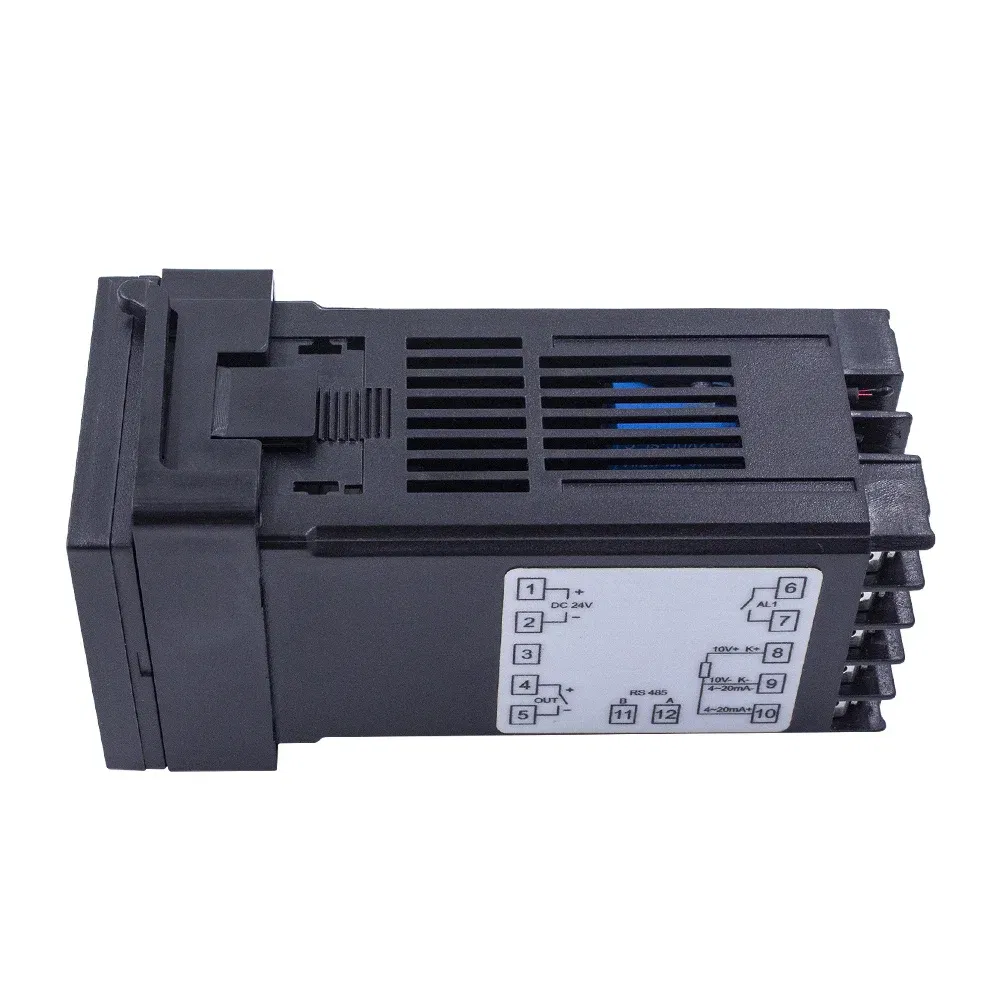

Size: Option 6 - RS485 MODBUS 6 alarm pattern controller T01 PT100 K type thermal couple 4-20mA 0-10V input 220VAC/24VDC Digital pid temperature
$22.56 NZD
Description:
Hign-concerned Chemical: NoneType: Industrial Computer Accessories
Origin: Mainland China
Model Number: T01
Type: T01 Control
Input: PT100 K type thermal couple 4-20mA 0-10V Input
Output: SSR/Relay/4-20mA analog
RS485 MODBUS 6 alarm pattern controller T01 PT100 K type thermal couple 4-20mA 0-10V input 220VAC/24VDC Digital pid temperature
T01 Seller points:
1. Compatible with 4 signal input: K type; PT100; 0-10V abd 4-20mA Analog input
2. 3 output pattern optional: Relay; SSR voltage drive; 4-20mA analog

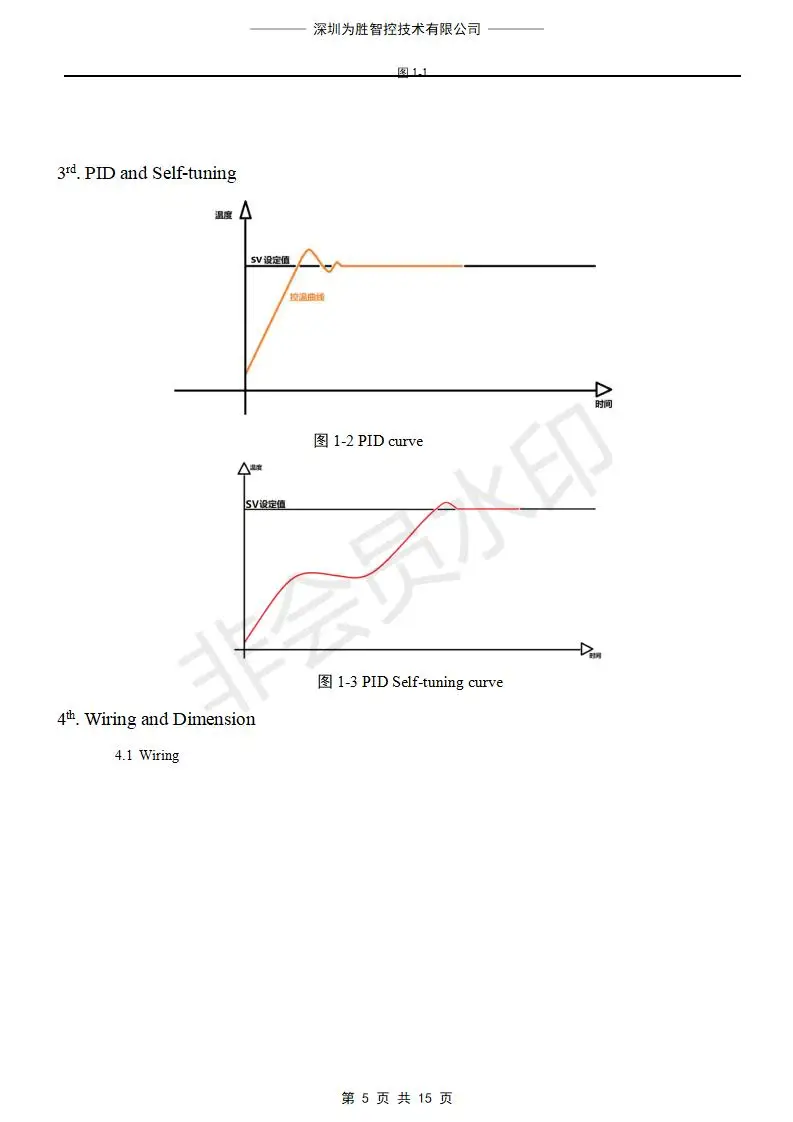

3. PID self tunning
4. Supports RS485 MODBUS baud rate: 1200/2400/4800/9600/19200/38400
5. Up to 0.1 celsius degree precision(32.18 F degree)
6. Sample acquisition speed: 8 times/s
7. Alarm pattern: upper&lower limit; positive&negative bias; inner zone; outer zone; None

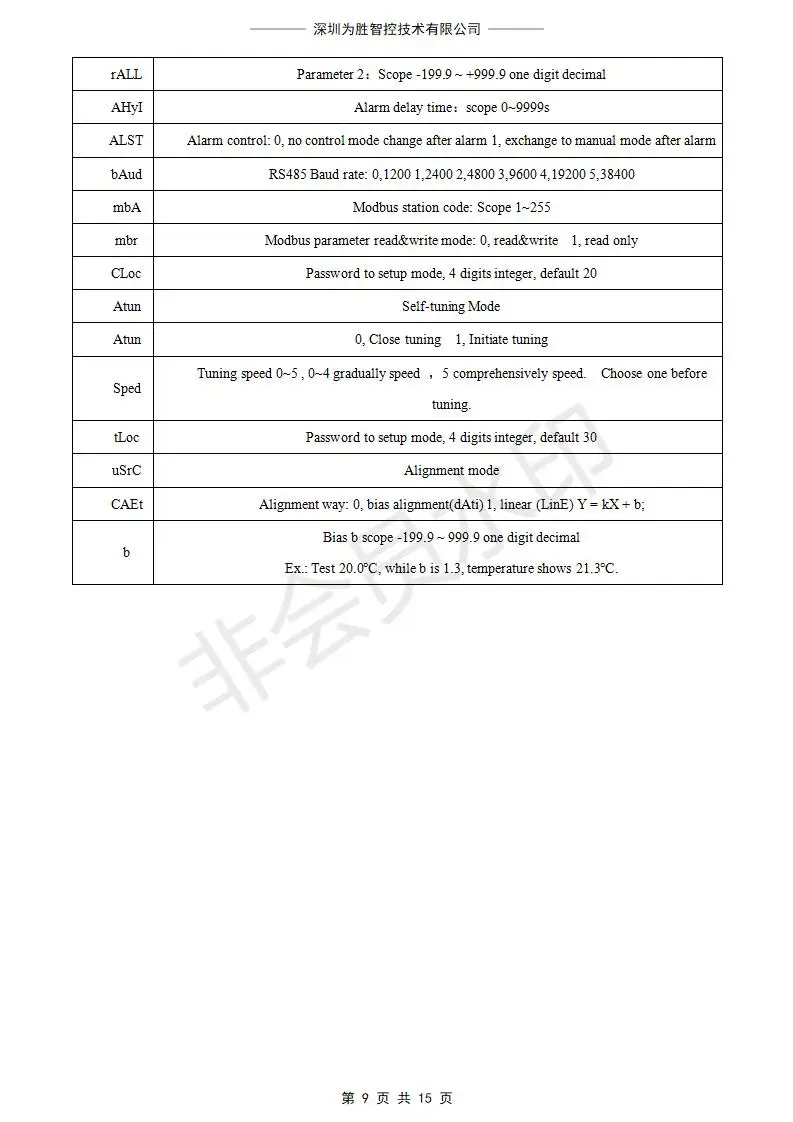

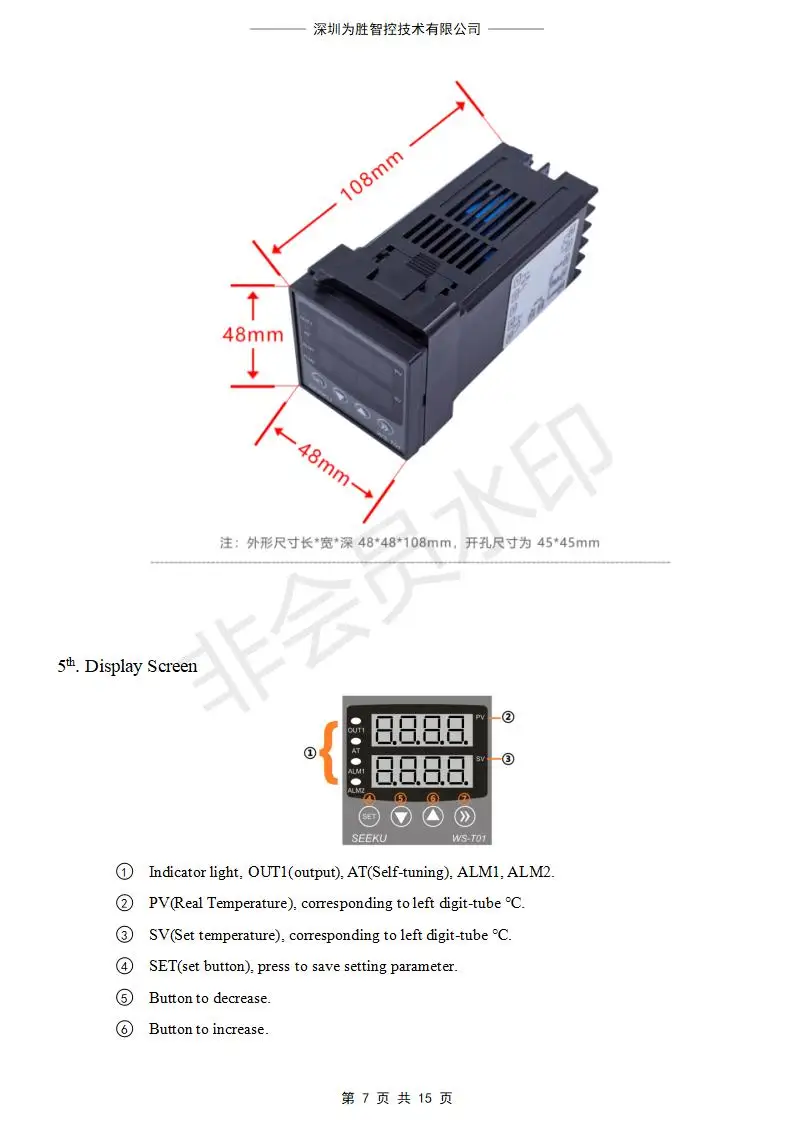

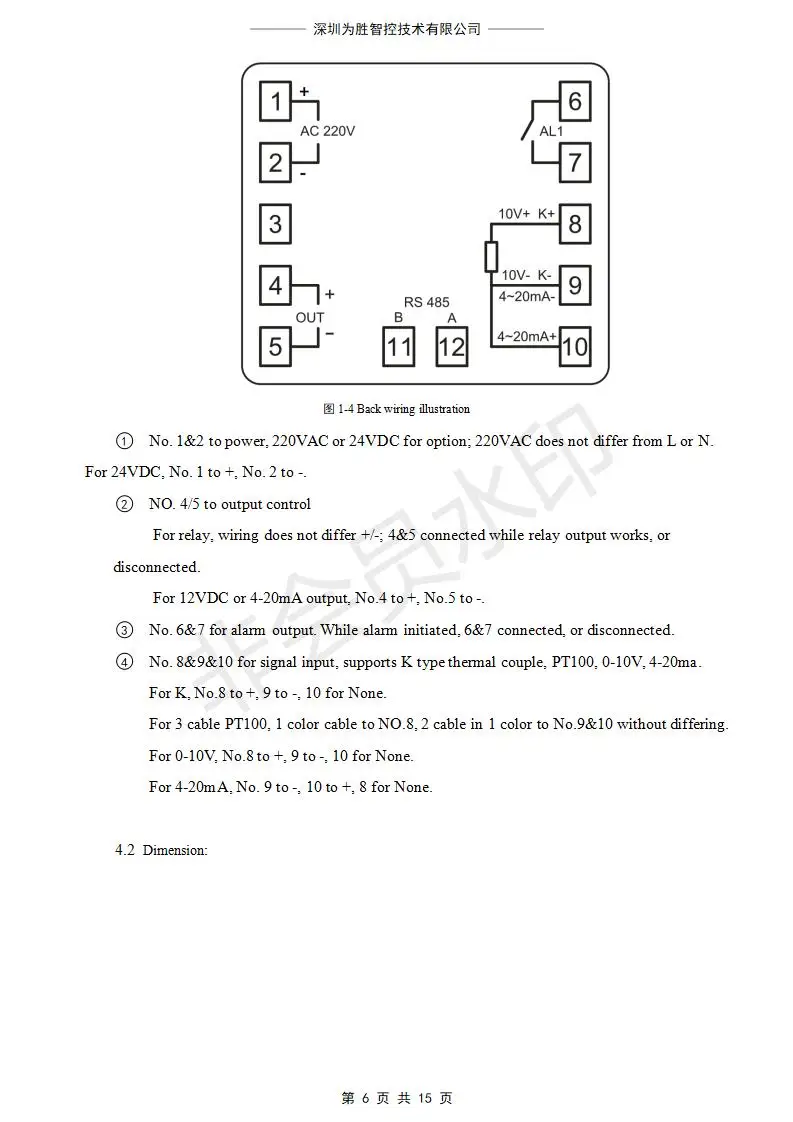

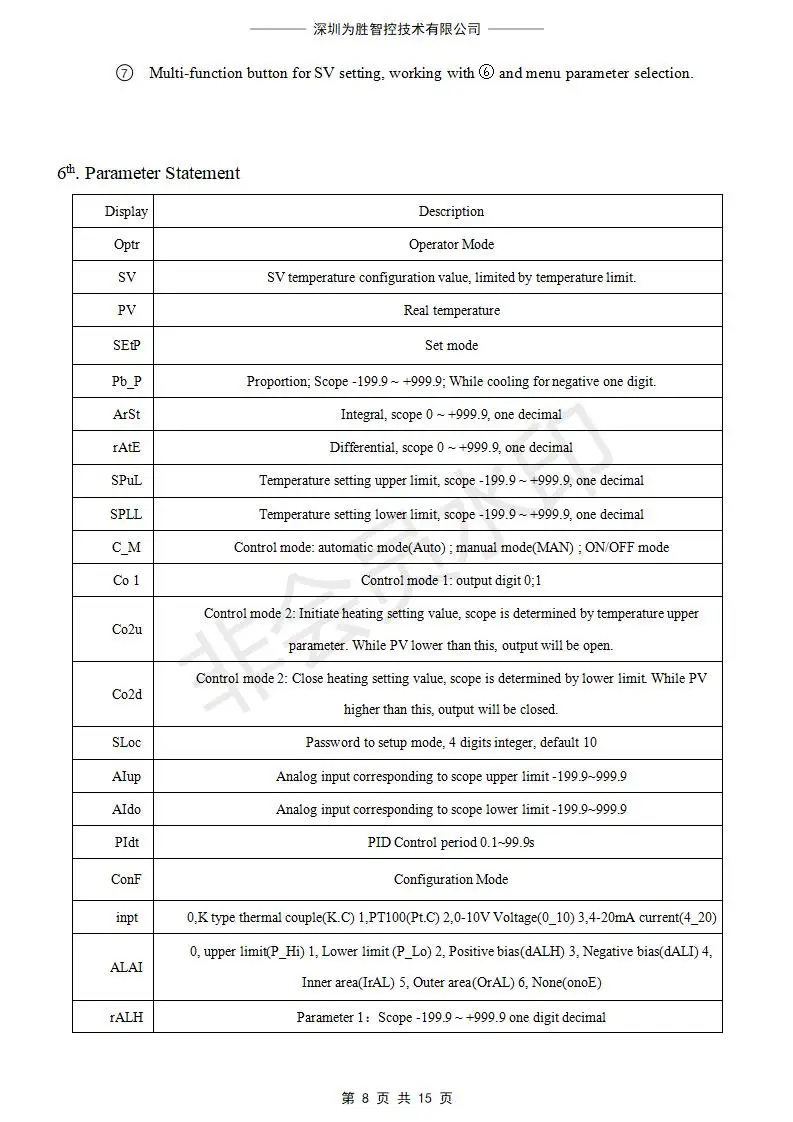

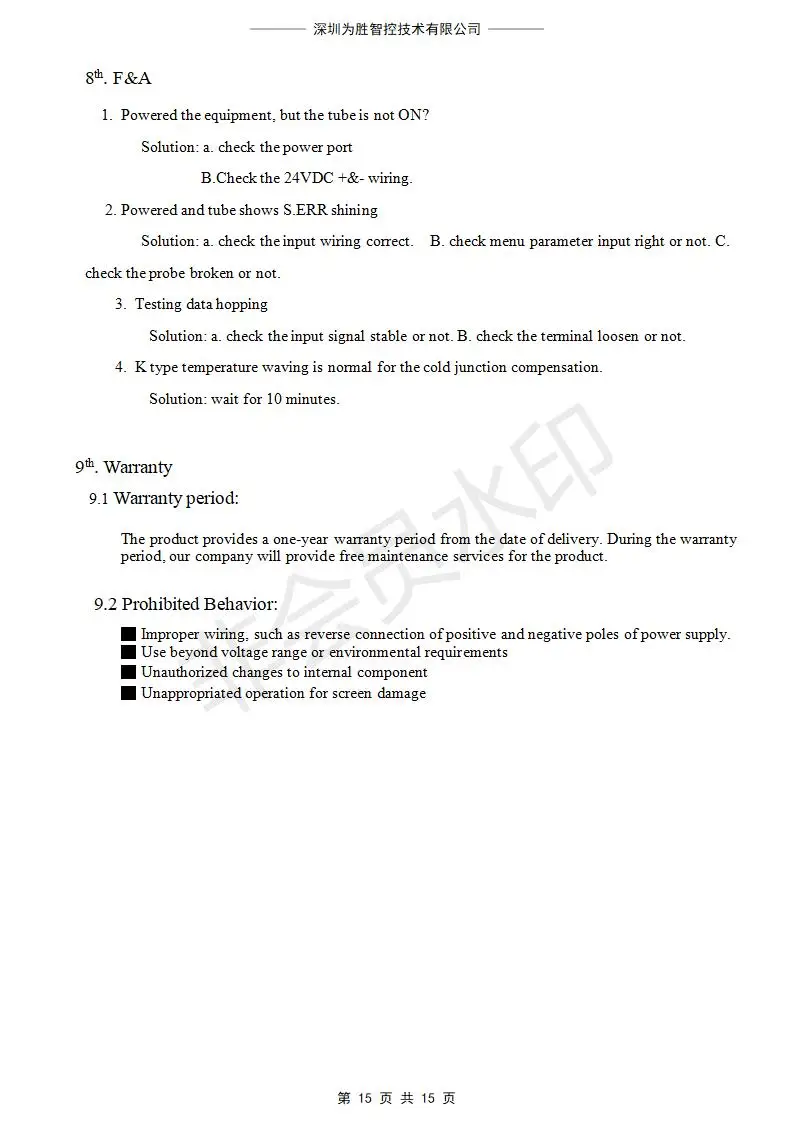

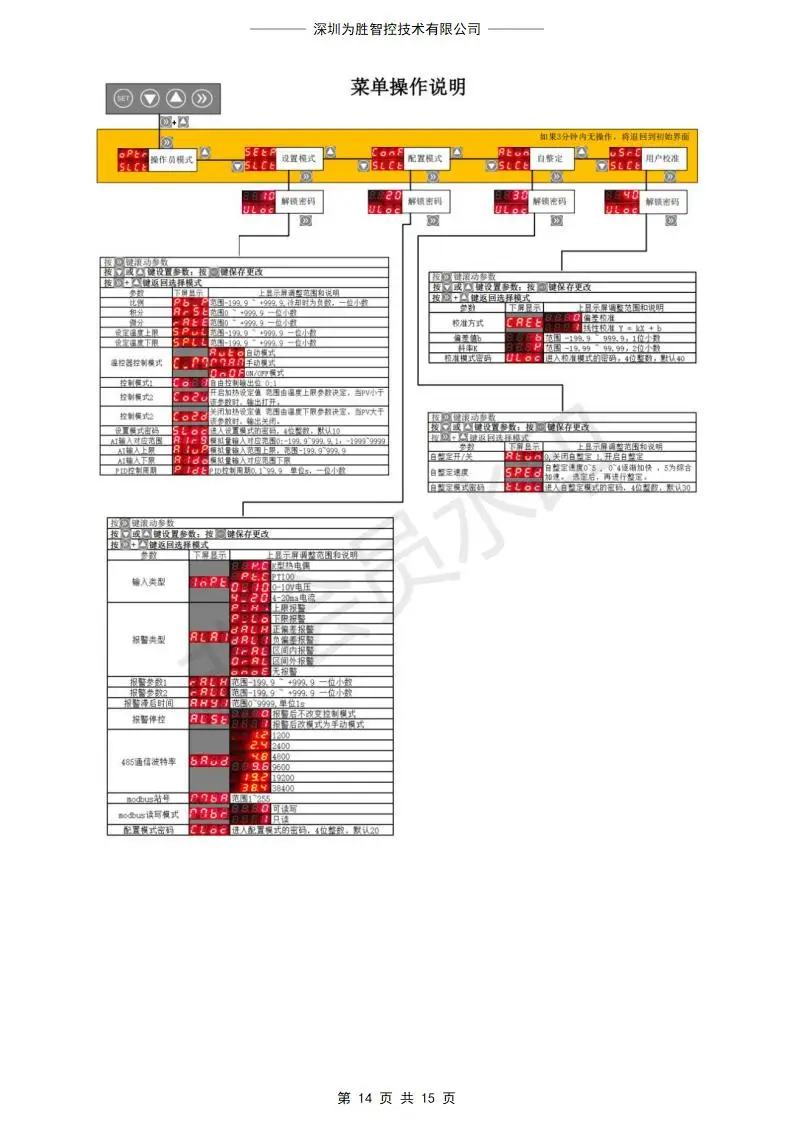

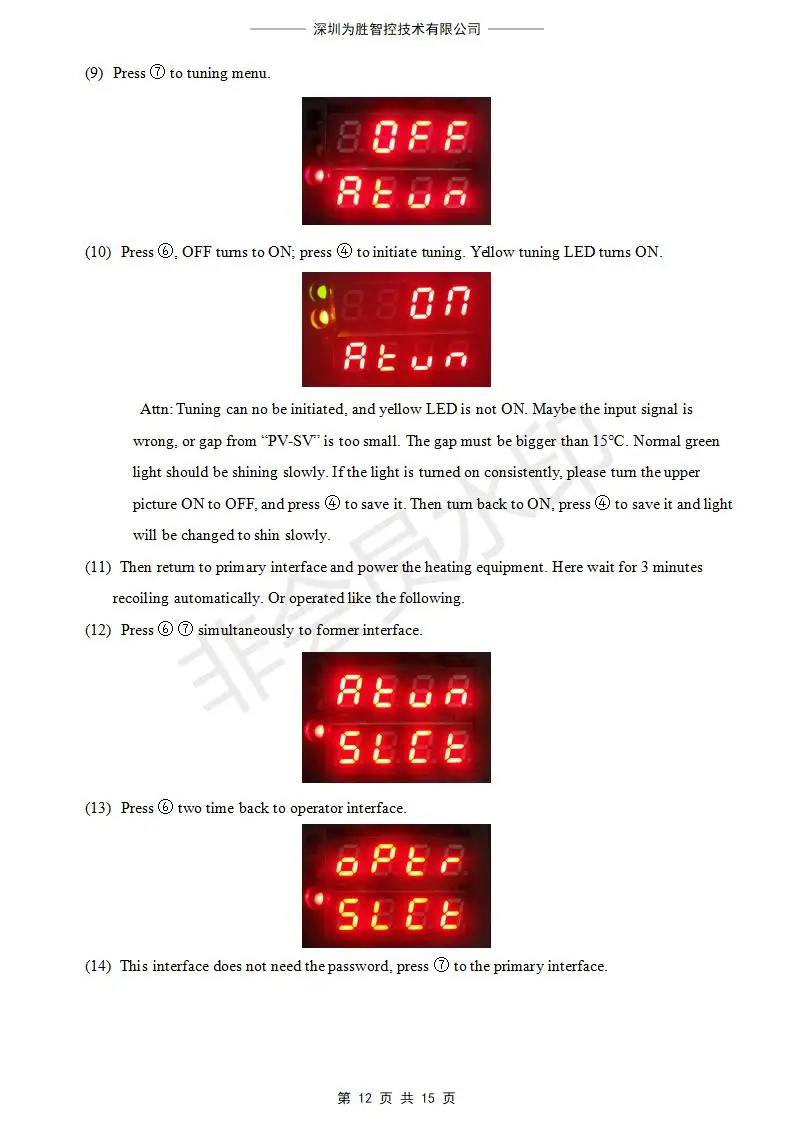

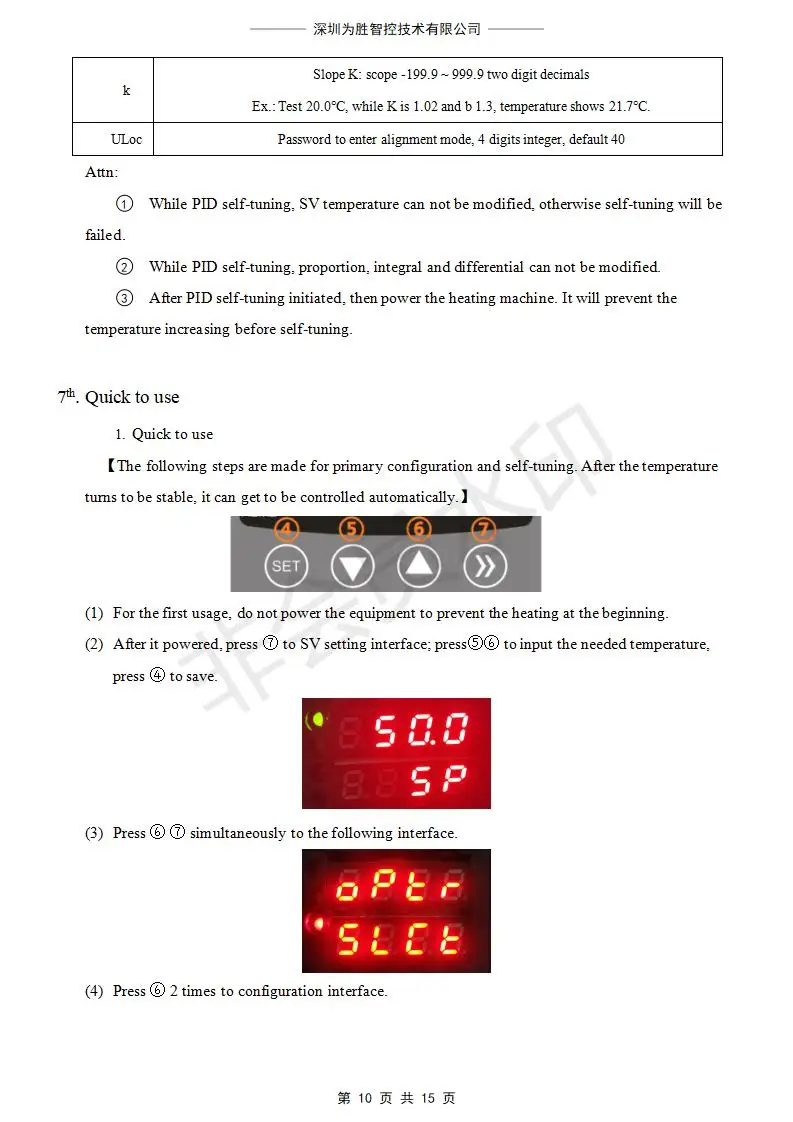

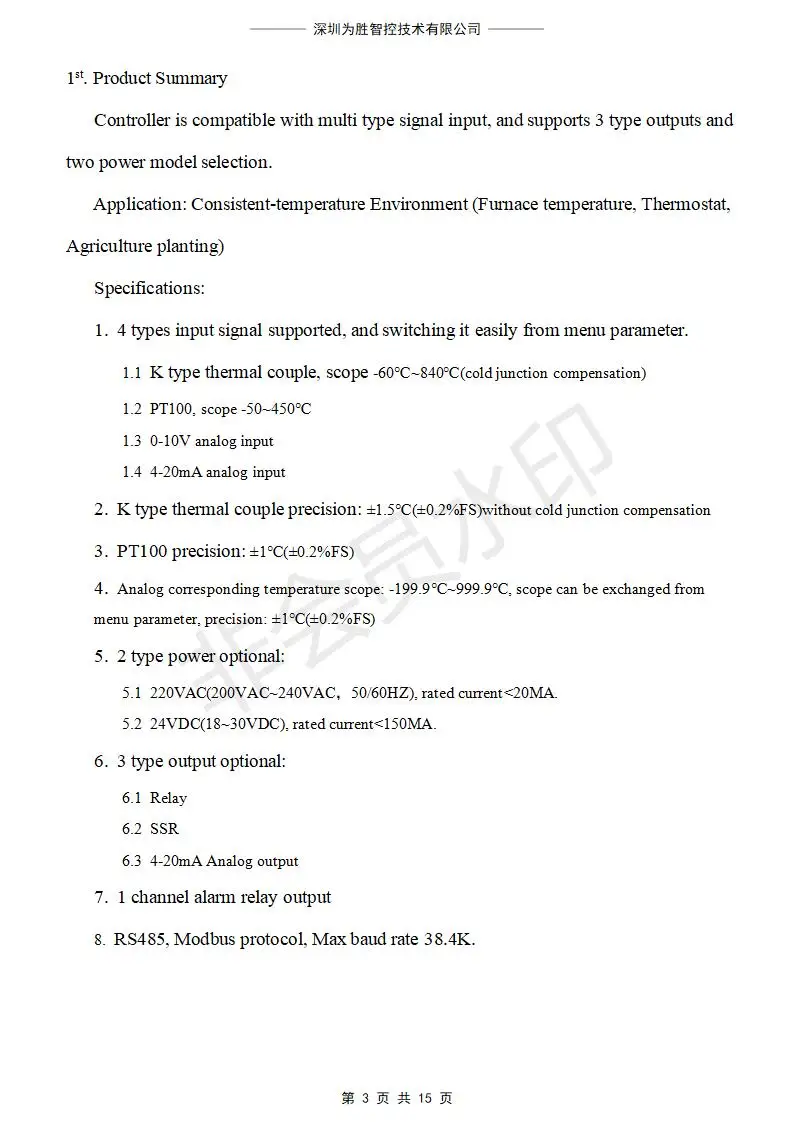

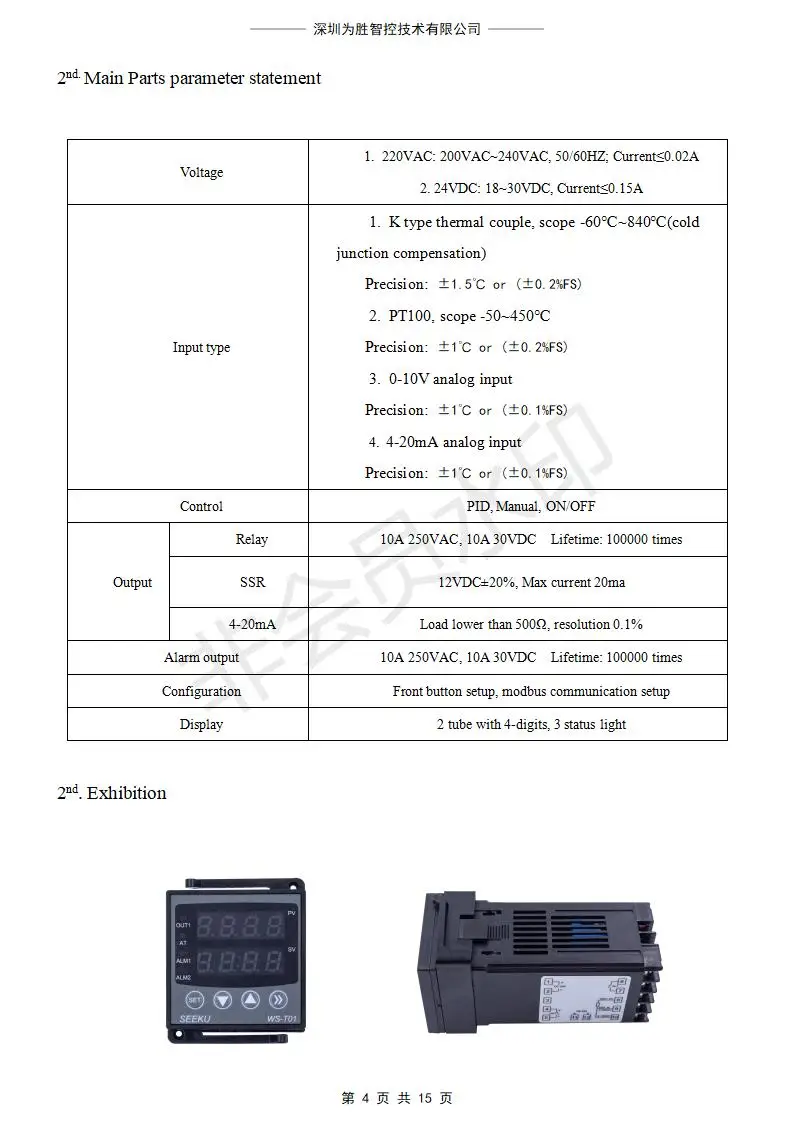

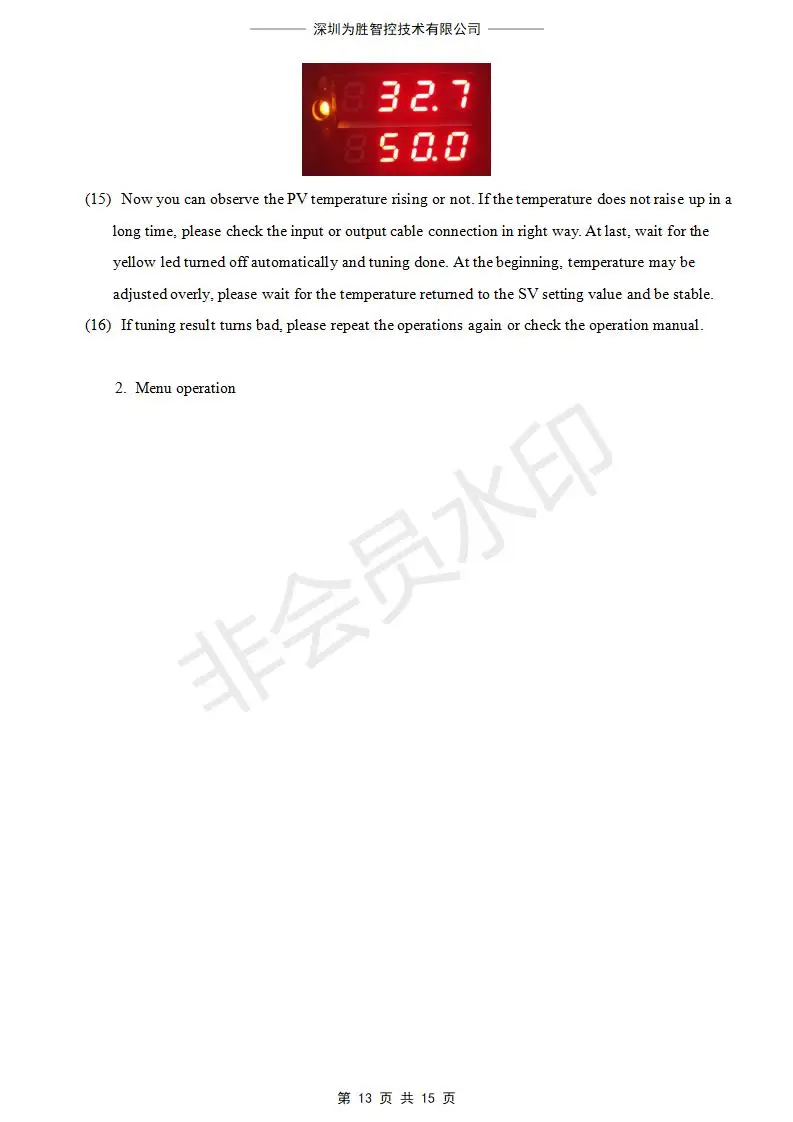

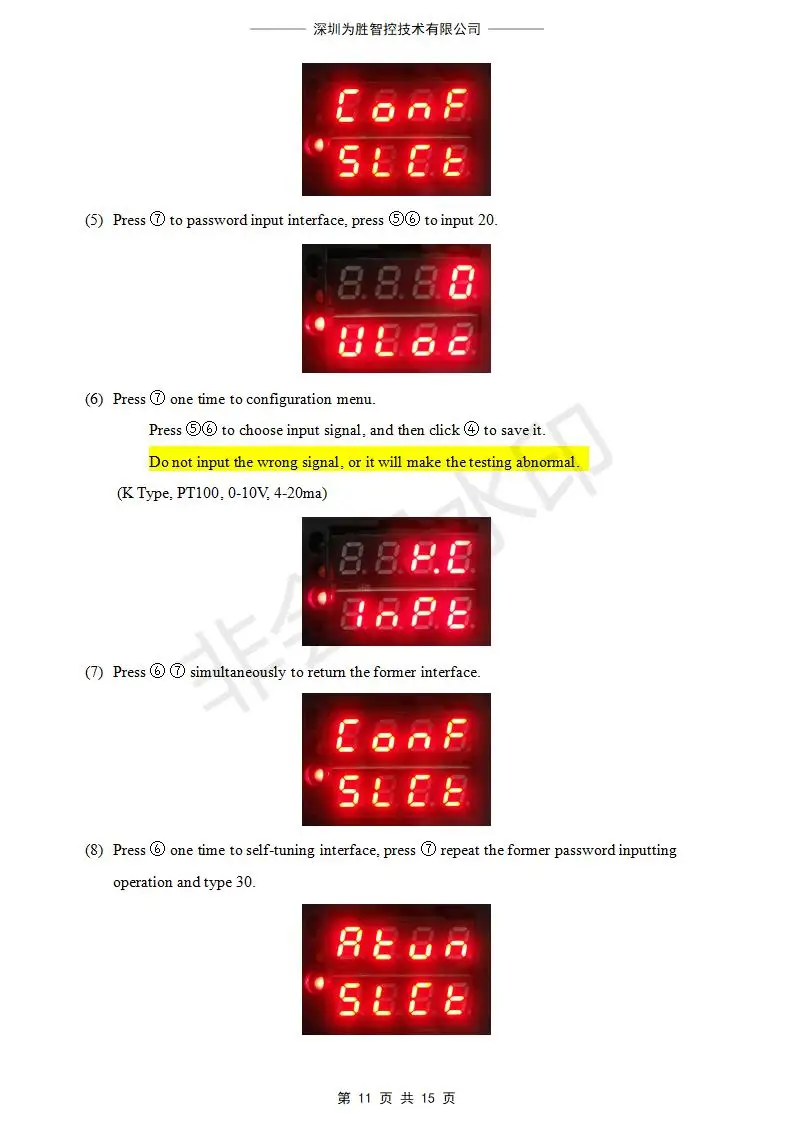

Attn: For more information, you can check the following instruction or seller customer service.
